MIC-3723/3723R
16-bit, 8-ch Non-isolated
Analog Output CompactPCI
Card / Rear I/O support
User Manual
MIC-3723/3723R User Manual ii
Copyright
The documentation and the software included with this product are copy-
righted 2006 by Advantech Co., Ltd. All rights are reserved. Advantech
Co., Ltd. reserves the right to make improvements in the products
described in this manual at any time without notice. No part of this man-
ual may be reproduced, copied, translated or transmitted in any form or
by any means without the prior written permission of Advantech Co., Ltd.
Information provided in this manual is intended to be accurate and reli-
able. However, Advantech Co., Ltd. assumes no responsibility for its use,
nor for any infringements of the rights of third parties, which may result
from its use.
Acknowledgements
Intel and Pentium are trademarks of Intel Corporation.
Microsoft Windows and MS-DOS are registered trademarks of
Microsoft Corp.
All other product names or trademarks are properties of their respective
owners.
Part No. 2003372310 2nd Edition
Printed in Taiwan March 2006
iii
Product Warranty (2 years)
Advantech warrants to you, the original purchaser, that each of its prod-
ucts will be free from defects in materials and workmanship for two years
from the date of purchase.
This warranty does not apply to any products which have been repaired or
altered by persons other than repair personnel authorized by Advantech,
or which have been subject to misuse, abuse, accident or improper instal-
lation. Advantech assumes no liability under the terms of this warranty as
a consequence of such events.
Because of Advantech’s high quality-control standards and rigorous test-
ing, most of our customers never need to use our repair service. If an
Advantech product is defective, it will be repaired or replaced at no
charge during the warranty period. For out-of-warranty repairs, you will
be billed according to the cost of replacement materials, service time and
freight. Please consult your dealer for more details.
If you think you have a defective product, follow these steps:
1. Collect all the information about the problem encountered. (For
example, CPU speed, Advantech products used, other hardware
and software used, etc.) Note anything abnormal and list any
onscreen messages you get when the problem occurs.
2. Call your dealer and describe the problem. Please have your man-
ual, product, and any helpful information readily available.
3. If your product is diagnosed as defective, obtain an RMA (return
merchandize authorization) number from your dealer. This allows
us to process your return more quickly.
4. Carefully pack the defective product, a fully-completed Repair and
Replacement Order Card and a photocopy proof of purchase date
(such as your sales receipt) in a shippable container. A product
returned without proof of the purchase date is not eligible for war-
ranty service.
5. Write the RMA number visibly on the outside of the package and
ship it prepaid to your dealer.
MIC-3723/3723R User Manual iv
CE
This product has passed the CE test for environmental specifications
when shielded cables are used for external wiring. We recommend the use
of shielded cables. Please contact your supplier for ordering information.
Technical Support and Assistance
Step 1. Visit the Advantech web site at www.advantech.com/support
where you can find the latest information about the product.
Step 2. Contact your distributor, sales representative, or Advantech's cus-
tomer service center for technical support if you need additional
assistance. Please have the following information ready before
you call:
- Product name and serial number
- Description of your peripheral attachments
- Description of your software (OS, version, software, etc.)
- A complete description of the problem
- The exact wording of any error messages
Packing List
Before setting up the system, check that the items listed below are
included and in good condition. If any item does not accord with the
table, please contact your dealer immediately.
• CompactPCI Communication Interface Card
• Rear I/O Module (for MIC-3723R only)
• 1 x Companion CD-ROM (DLL driver included)
• 1 x User Manual (this manual)
Safety Precaution - Static Electricity
Follow these simple precautions to protect yourself from harm and the
products from damage.
1. To avoid electrical shock, always disconnect the power from your
PC chassis before you work on it. Don't touch any components on
the CPU card or other cards while the PC is on.
2. Disconnect power before making any configuration changes. The
sudden rush of power as you connect a jumper or install a card may
damage sensitive electronic components.
v
Contents
Chapter 1 Introduction ..................................................... 2
1.1 Features ............................................................................. 2
1.2 Applications ...................................................................... 3
1.3 Installation Guide .............................................................. 4
Figure 1.1:Installation flow chart ................................... 5
1.4 Software Overview............................................................ 6
1.5 Device Drivers Programming............................................ 7
1.6 Accessories........................................................................ 9
Chapter 2 Installation ..................................................... 12
2.1 Unpacking ....................................................................... 12
2.2 Driver Installation ........................................................... 13
2.3 Hardware Installation ...................................................... 17
Figure 2.1:Device Name Listed on Device Manager .. 18
2.4 Device Setup & Configuration........................................ 19
2.4.1 Setting up the Device ................................................... 19
Figure 2.2: Device Manager Dialog Box ..................... 20
2.4.2 Configuring the Device ................................................ 20
Figure 2.3:Device Setting Dialog Box ......................... 21
Chapter 3 Signal Connections ........................................ 24
3.1 Overview ......................................................................... 24
3.2 Switch & Jumper Settings............................................... 24
Figure 3.1:MIC-3723 Connectors, Jumpers & Switch 24
Figure 3.2:MIC-3723R Connectors, Jumpers&Switch 25
Figure 3.3:MIC-3723R Rear I/O Connectors .............. 25
3.2.1 Jumper Settings ............................................................ 26
Table 3.1:Jumper Settings ............................................ 26
3.2.2 Setting the Analog Output Mode After Reset .............. 26
3.2.3 BoardID Switch Settings ............................................. 27
3.3 Signal Connections.......................................................... 28
3.3.1 Pin Assignments .......................................................... 28
Figure 3.4:I/O Connector Pin Assignments ................. 28
3.3.2 I/O Connector Signal Descriptions .............................. 29
Table 3.2: I/O Connector Signal Description .............. 29
3.3.3 Analog Output Connection .......................................... 30
Figure 3.5:Floating-load Connections ......................... 30
Figure 3.6:Grounded-load Connections ....................... 30
Figure 3.7:Differential-load w/Ground Connections ... 31
Figure 3.8:Grounded-load w/Floating Power .............. 31
Figure 3.9:Floating-load w/Grounded Power .............. 32
Figure 3.10:Floating-load w/Internal +12 VDC ......... 32
Figure 3.11:Current Sink Circuitry .............................. 32
3.4 Field Wiring Considerations ........................................... 34
MIC-3723/3723R User Manual vi
Appendix A Specifications ................................................. 36
A.1 Analog Output ................................................................. 36
A.2 Digital Input /Output ....................................................... 36
A.3 General ............................................................................ 37
Appendix B Block Diagram............................................... 40
2
CHAPTER
1
Introduction
This chapter gives background infor-
mation on the MIC-3723/3723R and
shows how to configure the card to
match your application and prepare it
for installation on your system.
Sections include:
• Features
• Applications
• Installations Guide
• Software Overview
• Device Drivers Programming
• Accessories
MIC-3723/3723R User Manual 2
Chapter 1 Introduction
Thank you for buying the Advantech MIC-3723/3723R. MIC-3723/
3723R is a non-isolated analog output card for CompactPCI systems.
Each analog output channel is equipped with a 16-bit, double-buffered
DAC. It also features auto-calibration function and a BoardID switch.
MIC-3723/3723R is an ideal solution for industrial applications where
multiple analog output channels are required.
The following sections of this chapter will provide further information
about features of the multifunction cards, a Quick Start for installation,
together with some brief information on software and accessories for the
MIC-3723/3723R card.
1.1 Features
• Auto calibration function
• Each analog output channel is equipped with a 16-bit DAC
• Flexible output range: ±10V, 0~20 mA, 4~20 mA
• Synchronized output function
• Output values retained after system hot reset
• 2-port (16-channel) user-defined digital input/output
• BoardID switch
• Rear I/O Module (for MIC-3723R only)
MIC-3723/3723R offers the following main features:
Auto-calibration Function
MIC-3723/3723R provides an auto-calibration function by using a cali-
bration utility. The built-in calibration circuitry of MIC-3723/3723R cor-
rects gain and offset errors in analog output channels, thereby eliminating
the need for external equipment and user adjustments.
3 Chapter1
Flexible Voltage Output Range
MIC-3723/3723R provides a fixed voltage output range at ±10V to fulfill
the flexible range needed for various applications. You can define a spe-
cific voltage output range and output the data format via the enclosed
software utility and driver.
Keep Output Values after System Reset
You can independently set the eight outputs to different ranges: ±10V,
0~20mA or 4~20mA, and all the ranges are software selectable. When the
system is hot reset (power not shut off), MIC-3723/3723R can either
retain the last analog output values, or return to its default configuration,
depending on jumper settings. This practical function eliminates danger
caused by operation errors after unexpected system resets.
BoardID Switch
MIC-3723/3723R has a built-in DIP Switch that helps define each card’s
unique identifier when multiple MIC-3723/3723R cards have been
installed in the same PC chassis. The BoardID switch setting function is
very useful when you build a system with multiple MIC-3723/3723R
cards. With correct BoardID settings, you can easily identify and access
each card during hardware configuration and software programming.
1.2 Applications
• Process control
• Programmable voltage sources
• Programmable current sink
• Servo control
• Multiple loop PID control
Note: For detailed specifications of the MIC-3723/
3723R, please refer to Appendix A, Specifica-
tions.
MIC-3723/3723R User Manual 4
1.3 Installation Guide
Before you install your MIC-3723/3723R card, please make sure you
have the following necessary components:
• MIC-3723/3723R DA&C card
• MIC-3723/3723R User Manual
• Advantech DLL drivers (included in the companion CD-ROM)
• Wiring cable PCL-10168 (optional)
• Wiring board ADAM-3968 (optional)
• CompactPCI enclosure with a CompactPCI bus slot (Win 2000/XP)
After you get the necessary components and maybe some of the accesso-
ries for enhanced operation of your MIC-3723/3723R multifunction card,
you can then begin the installation procedures. Figure 1.1 on the next
page provides a concise flow chart to give a broad picture of the software
and hardware installation procedures:
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels Advantech Carte PCI
Advantech
Advantech PCI-1202 Manuel utilisateur
Advantech
Advantech PCI-1737U Manuel d'installation et d'exploitation
Advantech
Advantech PCI-1761 Manuel utilisateur
Advantech
Advantech PCI-1710U-DE Manuel utilisateur
Advantech
Advantech PCI-1752USO Manuel d'installation et d'exploitation
Advantech
Advantech PCM-2312 Manuel utilisateur
Advantech
Advantech PCIE-1761H Manuel utilisateur
Advantech

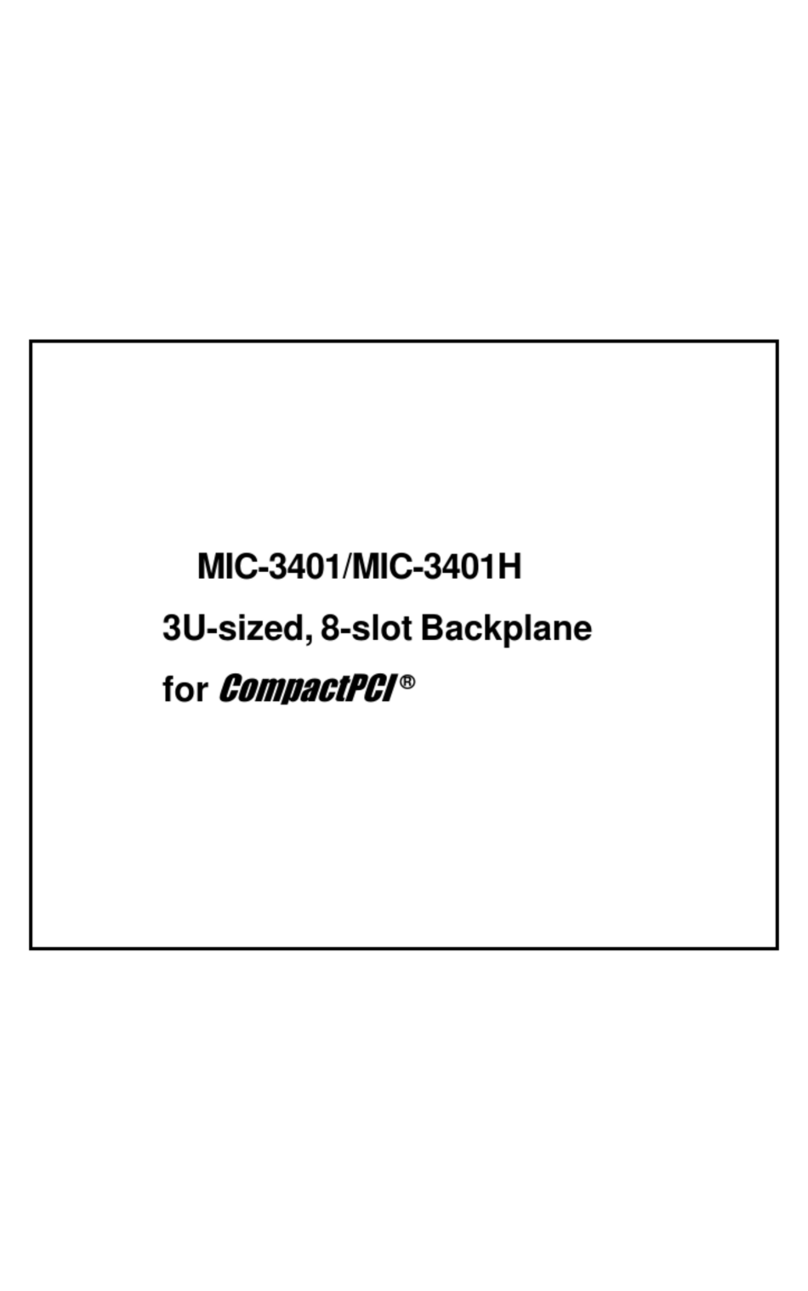

Advantech MIC-3401 Manuel utilisateur
Advantech
Advantech PCI-1751 Manuel utilisateur
Advantech
Advantech SOM-2353 Manuel d'installation et d'exploitation
Advantech
Advantech B+B SmartWorx McPC/Giga-MediaLinX Manuel utilisateur
Advantech
Advantech PCLD-8811 Manuel d'installation et d'exploitation
Advantech
Advantech PCI-1752 Manuel utilisateur
Advantech
Advantech PCI-1710 Manuel utilisateur
Advantech
Advantech PCI-1734 Manuel d'installation et d'exploitation
Advantech
Advantech PCA-684 Manuel utilisateur
Advantech
Advantech EKI-6340 Series Manuel utilisateur
Advantech
Advantech PCI-1671UP Manuel d'installation et d'exploitation
Advantech
Advantech MIO-5393 Manuel utilisateur
Advantech
Advantech PCM-3614I Manuel d'installation et d'exploitation
Manuels Carte PCI populaires d'autres marques
Belkin
Belkin F5D7000F Manuel utilisateur
Pericom
Pericom PI7C7100 Manuel utilisateur
ADLINK Technology
ADLINK Technology cPCI-3548 Manuel utilisateur
Digium
Digium TE200 Series Manuel utilisateur
Allo.com
Allo.com 2nd Gen E1/T1/J1 Manuel utilisateur
Western Digital
Western Digital FireWire PCI Adapter Manuel utilisateur
