User Manual

DVP-7635HE

TABLE OF CONTENTS

PRODUCT INTRODUCTION .................................................................................................................. 3

1.1. P

RODUCT

RIEF

.................................................................................................................................. 3

1.2. S

PECIFICATION

.................................................................................................................................... 3

HARDWARE INSTALLATION............................................................................................................... 5

2.1. P

ACKAGE

ONTENTS

........................................................................................................................... 5

2.2. C

ONNECTION

IAGRAM

....................................................................................................................... 5

2.3. P

RECAUTION

....................................................................................................................................... 6

2.4. PCI/PCIE

........................................................................................................................................... 6

SOFTWARE INSTALLATION ................................................................................................................ 6

3.1. S

UPPORT

....................................................................................................................................... 6

3.2. D

RIVER

NSTALLATION

........................................................................................................................ 6

2/7

1. PRODUCT INTRODUCTION

1.1. Product Brief

DVP-7635HE is a high-quality, high-performance capture device which is specially designed

for high-definition video capture applications. It supports up to 4 channel of high-definition,

1080p30 video from 4x TVI source and selectable 2 x 3.5mm (4 mono) audio source. With

hardware support, DVP-7635HE can record live video from high-definition signal sources into

H.264 files.

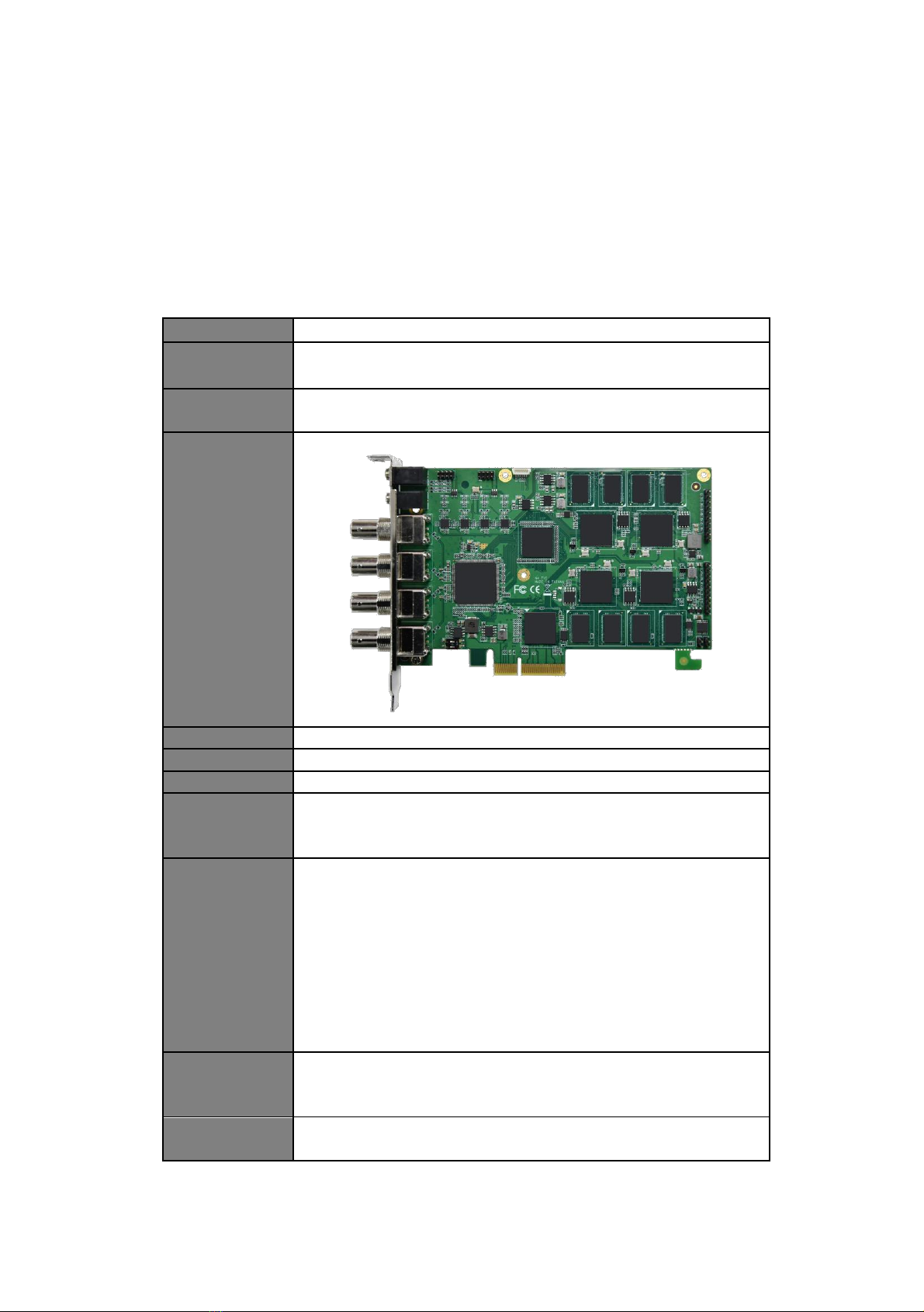

1.2. Specification

Model

DVP-7635HE

Max. FPS

1920×1080p@30/25fps in →1920×1080p@30/25fps

out

Recording

Hardware Compression, Real-Time Mode

Mode

Product


Dimension

150 × 101.02(mm) PCIe Full Height

Interface

PCIe x4 (Gen2)

Video Input

4 × TVI

Display

Video

YV12,NV12,YUY2,RGB24,RGB32

Format

TVI / Compatible Analog HD (A/C)

1920×1080p@30/25fps

1280×720p@60/50/30/25fps

Video RAW

Data

960H / CVBS

Resolution

960×480i@60fps

720×480i@60fps

960×576i@50fps

720×576i@50fps

Recording

Video

H.264 (Hardware Compression)

Format

Recording

TVI / Compatible Analog HD (A/C)

Video

1920×1080p@30/25fps

3/7

Resolution

1280×720p@60/50/30/25fps

960H / CVBS

960×480i@60fps

720×480i@60fps

960×576i@50fps

720×576i@50fps

Audio Input

2 × 3.5mmAudio

Audio

Stereo / 16-bit / 32000 ~ 48000Hz

Format

WatchDog

✓

Multiple

∞

Cards

SDK

VC++ / C# / .NET / VB / V4L2

4/7

2. HARDWARE INSTALLATION

2.1. Package Contents

Item

Amount

DVP-7635HE

2 x RCA to 3.5mm stereo analog audio cable

2.2. Connection Diagram

Figure below is the connection diagram for supported signal and interface.

Signal Connection diagram

5/7

2.3. Precaution

Before proceed, make sure touch a safely grounded object or metal object before touching

the device.

Wrist strap

Please follow below chapter for installation operations

2.4. PCI/PCIE

Turn off PC/notebook and remove power cord from AC plug/sockets on the wall.



Remove notebook battery.



After make sure the system is fully shut down, open the chassis.



Unpack the device package and make sure don’t touch any electrical and

semiconductor components on the device, especially ICs on board.



Install PCI/PCIE card to available motherboard PCI/PCIE slot and fasten the screw on the

device and back plate.



Close the chassis and connect signal source to the device.



Turn on the system.



3. SOFTWARE INSTALLATION

3.1. Support OS

Windows based system

Windows XP

Support

Windows Vista

Support

Windows 7

Support

Windows 8/8.1

Support

Windows 10

Support

Linux based system

Linux 2.6.14 or Higher

Support

3.2. Driver Installation

After install the device and reboot the PC/notebook, the “Windows Found New Hardware

Wizard” will appear and detect the device. Please click “Cancel” to exit the Wizard, and

6/7

implement installation program to install the device driver and application.

Please click on the driver and follow the instruction to start the installation.



While the installation is completed, user may check the device driver is installed

correctly by following steps



Start



Control Panel



System



Device Manager



And user can find device from the device manager dialog (see below figure,

device number will different by channel numbers).

SCC0 Series

7/7
