Advantech ICR-4453S Manuel utilisateur

5G Industrial Router

ICR-4453

USER MANUAL

ICR-4453

2022 Advantech Czech s.r.o. No part of this publication may be reproduced or transmitted in any form or

by any means, electronic or mechanical, including photography, recording, or any information storage and retrieval

system without written consent. Information in this manual is subject to change without notice, and does not

represent a commitment on the part of Advantech.

Advantech Czech s.r.o. shall not be liable for incidental or consequential damages resulting from the furnish-

ing, performance, or use of this manual.

All brand names used in this manual are the registered trademarks of their respective owners. The use of

trademarks or other designations in this publication is for reference purposes only and does not constitute an

endorsement by the trademark holder.

ICR-4453

Used symbols

Danger – Information regarding user safety or potential damage to the router.

Attention – Problems that can arise in speciﬁc situations.

Information, notice – Useful tips or information of special interest.

GPL licence

Source codes under GPL licence are available at https://icr.advantech.cz/source-code

address.

Advantech Czech s.r.o., Sokolska 71, 562 04 Usti nad Orlici, Czech Republic

Document No. MAN-0055-EN, revision from April 5, 2022. Released in the Czech Republic.

ICR-4453

Contents

1 Product Overview 2

1.1 Product Introduction ................................. 2

1.2 Product Usage Examples .............................. 3

1.3 Hardware Overview ................................. 5

1.4 Order Codes ..................................... 7

1.5 Package Contents .................................. 8

1.6 Product Dimensions ................................. 9

1.7 Mounting Recommendations ............................ 10

1.8 Wall Mounting ..................................... 11

1.9 DIN Rail Mounting .................................. 12

1.10 Product Label ..................................... 13

2 Hardware Functionality 14

2.1 SIM Card Slots .................................... 14

2.2 Antennas Interfaces ................................. 15

2.3 Ethernet Interfaces .................................. 15

2.4 SFP Cage ....................................... 16

2.5 Power Supply ..................................... 17

2.6 I/O Port Interfaces .................................. 19

2.7 Serial Interfaces ................................... 20

2.8 USB Port ....................................... 21

2.9 MicroSD Card Reader ................................ 22

2.10 LED Status Indication ................................ 24

2.11 Reset Functions ................................... 25

3 First Use 27

3.1 Connecting the Router ................................ 27

3.2 Starting up the Router ................................ 27

3.3 Router Conﬁguration ................................. 28

4 Technical Parameters 30

4.1 Basic Parameters ................................... 30

4.2 Standards and Regulations ............................. 31

4.3 Type Tests and Environmental Conditions ..................... 32

4.4 Parameters of Cellular Module ........................... 33

4.5 Parameters of GNSS ................................. 35

4.6 Parameters of WiFi .................................. 36

4.7 Parameters of I/O Ports ............................... 37

4.8 Parameters of PoE .................................. 37

iii

ICR-4453

4.9 System Conﬁguration ................................ 38

Appendix A: Troubleshooting 39

Appendix B: Customer Support 42

Appendix C: Regulatory & Safety Information 43

Appendix D: Related Documents 45

ICR-4453

List of Figures

1 Access to the Internet from LAN .......................... 3

2 Backed up Access to the Internet .......................... 3

3 Using VPN Tunnel .................................. 4

4 Serial Gateway .................................... 4

5 Hardware Overview of the Router .......................... 5

5 Router Dimensions – Front View .......................... 9

6 Router Dimensions – Top View ........................... 9

7 Rotated Wall Mounting Clips ............................. 11

8 Default Position of the DIN Rail Clips ........................ 12

9 Removing Router from the DIN Rail ......................... 12

10 Label Example .................................... 13

5 SIM Cards Insertion ................................. 14

6 Ethernet Connector Pinout of RJ45 Socket .................... 15

7 SFP Module Installation ............................... 16

8 Power Connector Pinout ............................... 17

9 Position of the Grounding Screw .......................... 18

10 I/O Connector Pinout ................................. 19

11 Functional Scheme of the Binary Interface ..................... 19

12 Serial Connector Pinout ............................... 20

13 USB Connector Pinnout ............................... 21

14 MicroSD Card Insertion ............................... 22

15 Resetting the Router ................................. 25

16 Router Connection .................................. 27

17 Router’s Web Interface ................................ 29

ICR-4453

List of Tables

1 Hardware Overview of the Router .......................... 6

2 Order Codes Overview ................................ 7

1 Contents of Package ................................. 8

2 Ethernet Connector Pinout Description of RJ45 Socket .............. 15

3 Tested SFP Cages .................................. 16

4 Power connector pinout ............................... 17

5 Connection of I/O Ports ............................... 19

6 Connection of RS232 ................................ 20

7 Connection of CAN Bus ............................... 20

8 Connection of RS485 ................................ 20

9 USB Connector Pinnout ............................... 21

10 Technical Speciﬁcations of MicroSD Card ..................... 22

11 LED Status Indication ................................ 24

12 Overview of Router Reboot and Reset ....................... 26

13 Basic Parameters ................................... 30

14 Standards and Regulations ............................. 31

15 Type Tests and Environmental Conditions ..................... 32

16 Technical Parameters of Cellular Module ...................... 34

17 Technical Parameters of GNSS ........................... 35

18 Technical Parameters of WiFi ............................ 36

19 Electrical Characteristics of Binary Inputs ..................... 37

20 PoE PSE Parameters ................................ 37

21 System Conﬁguration ................................ 38

ICR-4453

1. Product Overview

1.1 Product Introduction

The ICR-4453 is an Ultra-high-speed 5G NR (New Radio) Router & Powerful Edge Com-

puting Gateway focused on the global market.

Thanks to the ultra high-speed of data transfer, up to 2.5 Gbps for download and

650 Mbps for upload, is this router an ideal solution for demanding IoT applications such

as industrial routers and gateways, digital signage, industrial computers, and tablets, etc.

For maximal performance on the cellular network, the 4x4 MIMO technology is used. An

antenna for GNSS can be connected to the router. The router, assembled in a robust metal

box, is equipped with ﬁve 1Gb Ethernet ports, one SFP cage together with interfaces of

RS232,RS485,CAN bus, two binary inputs and two binary outputs. To backup the cellular

connection, the router offers two SIM card readers on the rear side of the router under the

SIM cover. A microSD card can be inserted under this cover as well. The designated router

models can be equipped with a WiFi module with 3x3 MIMO antennas.

Conﬁguration of the router may be done via a password-protected Web interface. Web in-

terface provides detailed statistics about the router’s activities, signal strength, detailed system

log etc. The router supports VPN tunnels using IPSec (), OpenVPN,GRE,L2TP or PPTP to

make sure safe communication. IPv6 Dual Stack,DHCP,NAT,NAT-T,DynDNS,DNS proxy,

VLAN,QoS,NTP,VRRP, control by SMS, port forwarding, primary connection backup and

many other functions are supported.

The router provides diagnostic functions which include automatically monitoring the PPP

connection, automatic restart in case of connection losses, and a hardware watchdog that

monitors the router status.

The user may insert Linux scripts which are started on various actions. It is possible to

create up to four different conﬁgurations for the same router. These conﬁgurations can be

switched when necessary via Web interface, SMS or binary input status.

The router can automatically upgrade its conﬁguration and ﬁrmware from your central

server. WebAccess/DMP and WebAccess/VPN remote device management platforms are

supported as well.

Examples of possible applications

•mobile ofﬁce

•ﬂeet management

•security system

•telematic

•telemetric

•remote monitoring

•vending and dispatcher machines

ICR-4453

1.2 Product Usage Examples

The router is primarily intended for these four basic situations:

I. Access to the Internet from LAN

Figure 1: Access to the Internet from LAN

II. Backed up access to the Internet (from LAN)

Figure 2: Backed up Access to the Internet

ICR-4453

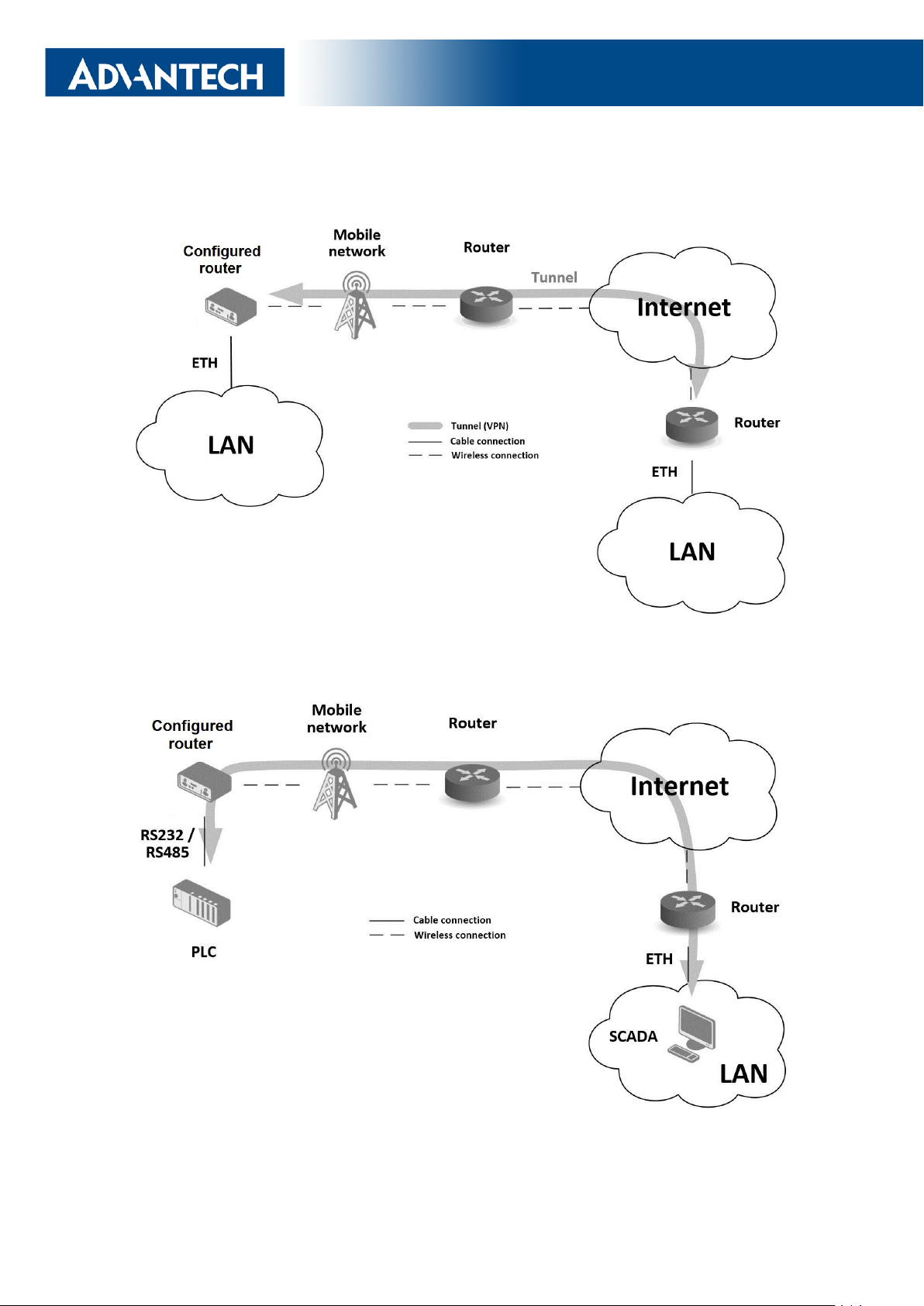

III. Secure networks interconnection or using VPN

Figure 3: Using VPN Tunnel

IV. Serial Gateway

Figure 4: Serial Gateway
