Advantech SIMB-M01 Manuel d'installation et d'exploitation

SIMB-M01 Startup Manual 1

Before you begin installing your card, please make sure that

the following items have been shipped:

• 1 x Intel D525 mini-ITX Main board

• 1 x CD ROM per carton, which contains the followings:

- User’s Manual in PDF ﬁle

- Drivers

• 1 x SATA cable kit (SATA/Power)

• 1 x I/O Shield

• 1 x Startup Manual per carton

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

Note1:

Acrobat Reader is required to view any PDF ﬁle. Acrobat

Reader can be downloaded at: www. adobe.com/Prodindex/

acrobat/readstep.html (Acrobat is a trademark of Adobe).

SIMB-M01

Intel® Atom D525 Mini-ITX Motherboard

Startup Manual

System

• CPU:Onboard Intel® Atom D525 DC 1.8GHz Processor

• BIOS:AMI 8Mb SPI

• SystemChipset:Intel® NM10

• I/OChipset:FINTEK F71869ED

• Memory:Two 204-pin SO-DIMM sockets support up to

4GB Single Channel DDR3 800 MHz SDRAM

• H/WStatusMonitor:Monitoring temperature, voltage

and cooling fan status. Auto throttling control when CPU

overheats

• ExpansionSlots:1 PCI-E x 1

• PowerState:S1, S3, S4, S5

• WakeuponLANorRing:LAN (WOL) and Ring (WO)

• SmartFanControl:Ye s

Display

• Chipset:Integrated Intel® GMA Gen3.5 DX9, 400 MHz

• DisplayMemory:Shared Memory Max 224MB

• DualDisplay:VGA + HDMI

• VGA:Onboard, supports max resolution 2048 x 1536

(@60Hz)

• HDMI:Onboard HDMI 1.3, supports max resolution 1920

x 1080

Audio

• AudioCodec:Realtek ALC662, 5.1 CH. HD Audio

• AudioInterface:Line-in, Line-out, Mic.-in, S/PDIF, Front

Audio Header

Ethernet

• LAN1:Realtek 8111E Gigabit Ethernet

Specications Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and service, please visit our

support website at:

http://www.advantech.com/support

This manual is for the SIMB-M01 series Rev. A1.

Part No. 20060M0110

Printed in China

1st Edition

July 2011

2 SIMB-M01 Startup Manual

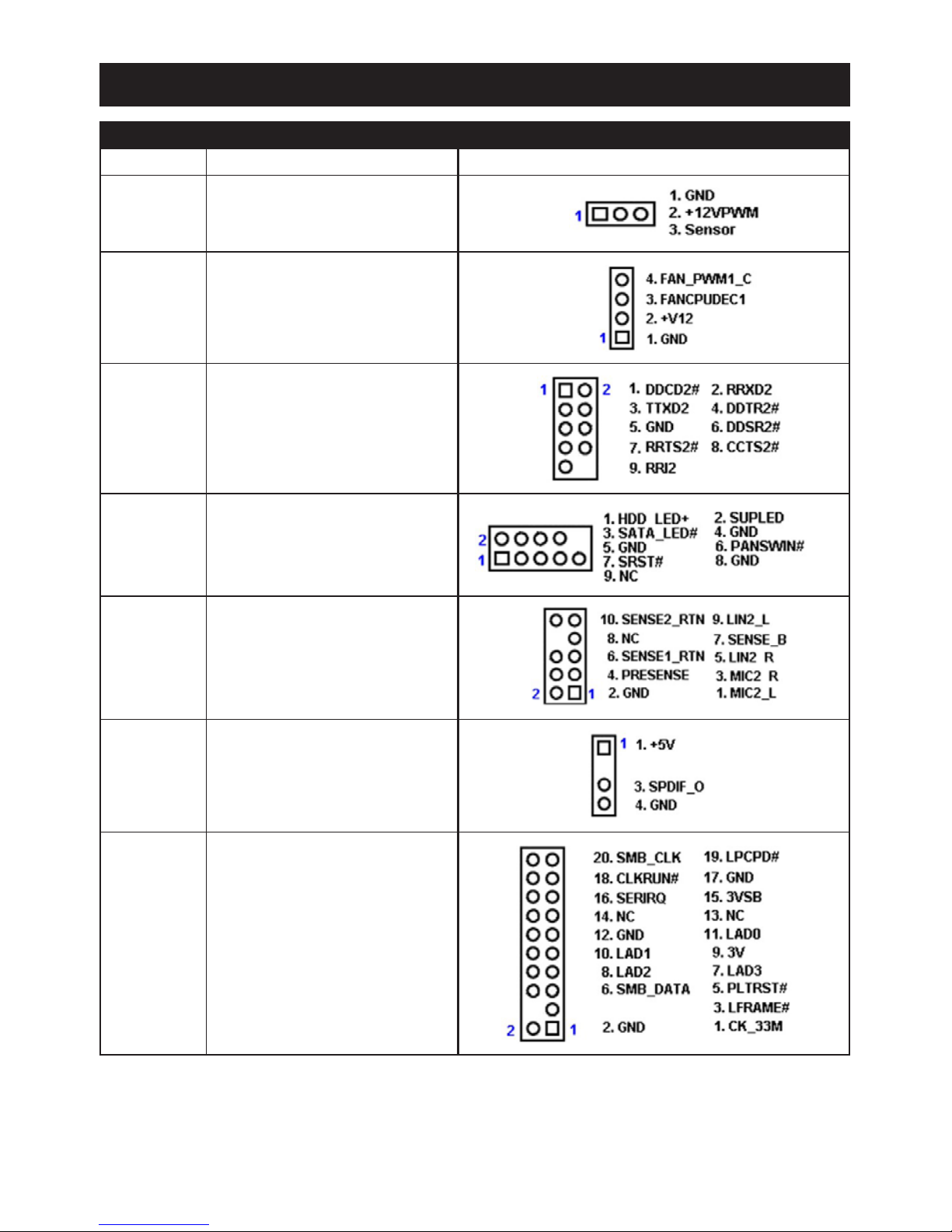

Connectors

Label Function Note

CPU_FAN1 CPU Fan Connector

SYS_FAN1 System Fan Connector

Serial_B Serial Port Connector

F_PANEL Intel Front Panel connector

F_AUDIO Audio Mic.-In & Line-Out Connector

SPDIF_OUT SPDIF OUT

TPM TPM Connector

Connectors and Jumpers

SIMB-M01 Startup Manual 3

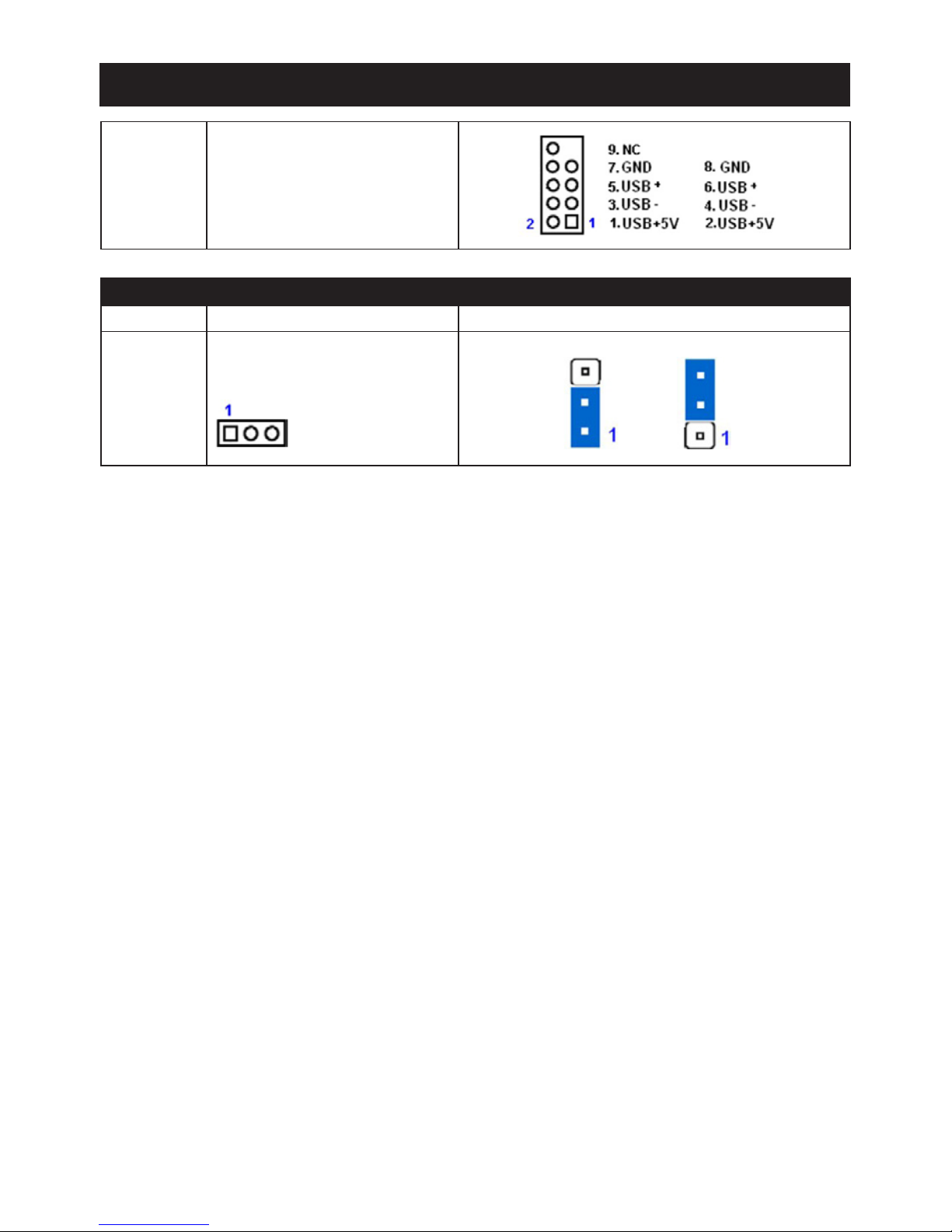

F_USB1

F_USB2

USB 2.0

Connector

Jumpers

Label Function Note

JCMOS1 Clear CMOS

Norrnal* Clear CMOS

Connectors and Jumpers

4 SIMB-M01 Startup Manual

The manufacturer reserves the right to make changes, with-

out notice, to any product, including circuits and/or software

described or contained in this manual in order to improve

design and/or performance. The manufacturer assumes

no responsibility or liability for the use of the described

product(s), conveys no license or title under any patent,

makes no representations or warranties that these products

are free from patent, copyright, or mask work right infringe-

ment, unless otherwise speciﬁed. For the detail product

information, please refer to user’s manual.

Safety Declaration

This device complies with the requirements in Part 15 of

the FCC rules. Operation is subject to the following two

conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received,

including interference that may cause undesired

operation.

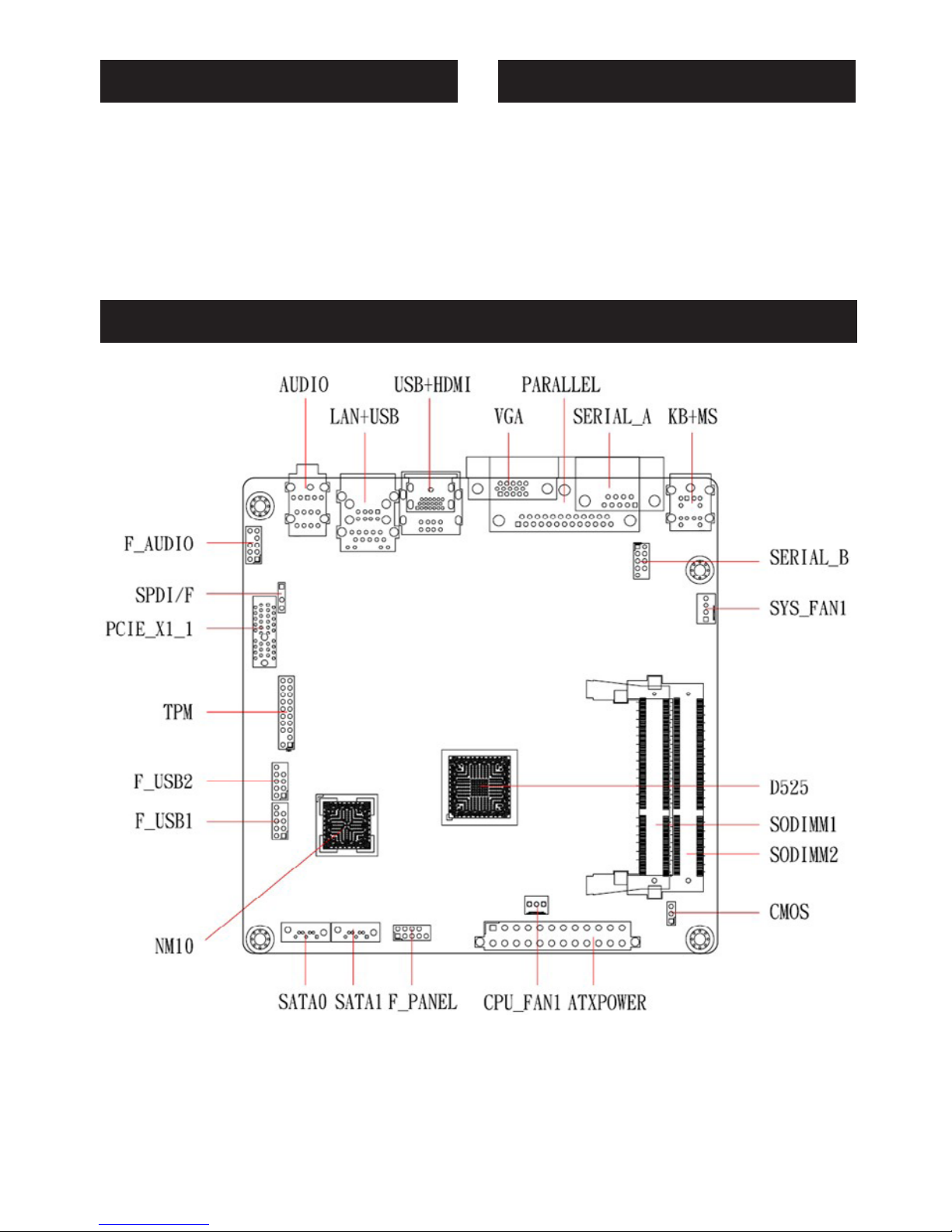

Board Diagram

Disclaimer and Notice
