Advantech AIMB-780 Manuel d'installation et d'exploitation
AIMB-780 Startup Manual 1
Before you begin installing your card, please make sure that
the following items have been shipped:
1 AIMB-780 Startup Manual
1 Driver CD (user’s manual is included)
2 Serial ATA HDD data cables
2 Serial ATA HDD power cables
1 COM Port cables (2 to 2)
1 I/O port bracket
1 Warranty card
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note: Acrobat Reader is required to view any PDF
file.Acrobat Reader can be downloaded at:
www.adobe.com/Products/acrobat/readstep2.
html (Acrobat is a trademark of Adobe)
•
•
•
•
•
•
•
•
AIMB-780 Intel®Core™ i7/i5/i3/Pentium®/Xeon®ATX
Motherboard with DVI/VGA, 4 COM, Dual LAN, DDR3
Startup Manual
Standard SBC Functions
CPU: LGA1156 Intel® Core™ i7/i5/i3/Pentium/Xeon
BIOS: AMI 64 Mb SPI BIOS
Chipset: Intel® Q57 (QG2 SKU) and 3450 (WG2 SKU)
Chipset
System memory: Up to 16 GB four 240-pin DIMM sock-
ets. Supports dual channel DDR3 800/1066/1333
SDRAM (Only WG2 SKU supports ECC memory)
Note: Due to the inherent limitations of PC architecture, the
system may not fully detect 16 GB RAM when 16
GB RAM is installed.
SATA2 Interface: Six on-board Serial ATA2 connectors
with a data transmission rate of up to 300 MB/s support-
ing Advanced Host Controller Interface (AHCI) technology
FDD interface: Supports one FDD
Serial ports: Four serial ports, COM1, COM2 and COM4
are RS-232; COM3 is RS-232/422/485 with auto flow
control support
Parallel port: One parallel port, supports SPP/EPP/ECP
modes.
Keyboard/mouse connector: Supports standard PS/2
keyboard and mouse
Watchdog timer: 255 level timer intervals
USB 2.0: Supports up to fourteen USB 2.0 ports
VGA Interface
Chipset: Only Core i5 6xx; Core i3 and Pentium CPUs
with dual core are embedded with integrated graphics
Display Memory: 1 GB maximum shared memory with 2
GB and above system memory installed
Resolution: Supports DVI up to resolution 1920 x 1200
@ 60 Hz refresh rate
Supports RGB up to resolution 2048 x 1536 @ 75 Hz
refresh rate
Ethernet interface
Interface: 10/100/1000 Mbps
Controller: LAN1: Intel 82578DM; LAN2: Intel 82583V
Mechanical and Environmental
Dimensions (L x W): 304.8 x 244 mm (12” x 9.6”)
Power supply voltage: +3.3 V, +5 V, ±12 V, 5 Vsb
Power consumption: Maximum: +5 V at 4.23 A, +3.3 V
at 0.96 A, +12 V at 3.93 A, +5 Vsb at 1.18 A, -12 V at 0.01
A (Intel i5 660 3.3 GHz processor and disable C state , 4
x 2 GB DDR3 Memory)
Operating temperature: 0 ~ 60° C (depending on CPU)
Weight: 0.5 kg (weight of board)
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Specications
Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
http://www.advantech.com/support
This manual is for the AIMB-780 series Rev. A1
Part No. 2002078010
Print in China
1st Edition,
May 2010
2 AIMB-780 Startup Manual
The board has a number of jumpers that allow you to con-
figure your system to suit your application. The table below
lists the function of each jumper and connector.
Connector / Jumper List
Label Function
JWDT1 Watchdog Reset
FDD1 FDD connector
LPT1 Parallel port, Parallel port x 1, supports
SPP/ EPP/ECP mode
LAN1_USB12 LAN1 / USB port 1, 2
LAN2_USB34 LAN2 / USB port 3, 4
VGA1 VGA connector
DVI11 DVI Connector
COM1
COM2
COM4
Serial port: RS-232
COM3 Serial port: COM3; RS-232/422/485
(9-pin connector)
JSETCOM3 COM3 RS-232/422/485 Jumper Setting
KBMS1 PS/2 Keyboard and Mouse connector
KBMS2 External Keyboard connector (6-pin)
JIR1 Infrared connector
JFP3
Keyboard Lock and Power LED
Suspend: Fast ash (ATX/ AT)
System On: ON (ATX/ AT)
System Off: OFF (AT)
System Off: Slow ash (ATX)
JFP2 External speaker / SATA HDD LED con-
nector / SM Bus connector
JFP1 Power Switch / Reset connector
JCASE1 Case Open
PSON1 AT(1-2) / ATX(2-3)
VOLT1 Voltage Display
JOBS1 Close: Enable OBS Alarm
Open: Disable OBS Alarm
CPUFAN1 CPU FAN connector (4-pin)
SYSFAN1 System FAN connector (4-pin)
SYYFAN2 System FAN connector (4-pin)(4-pin)
LANLED1 LAN1/2 LED extension connector
AUDIO1 Audio connector
FPAUD1 HD Audio Front Panel Pin Header
USB56 USB port 5, 6
USB78 USB port 7, 8
USB910 USB port 9, 10
USB1112 USB port 11,12
USB1314 USB port 13,14
SATA1 Serial ATA1
SATA2 Serial ATA2
SATA3 Serial ATA3
SATA4 Serial ATA4
SATA5 Serial ATA5
SATA6 Serial ATA6
ATX12V1 ATX 12V Auxiliary power connector
(for CPU)
EATXPWR1
ATX 24 Pin Main power connector
(for System)
SPDIF_OUT1 SPDIF Audio out pin header
SPI_CN1 SPI ash card pin header
JCMOS1
CMOS and ME clear
JCMOS1: CMOS and ME clear function
Pins
Result
1-2 Keep CMOS and ME data*
2-3
Clear CMOS and ME data
*: Default
Jumpers and Connectors
Keep CMOS data Clear CMOS data
Jumpers and Connectors
1 2 3
1 2 3
RS232 RS422 RS485
1 2 3
1 2 3
1 2 3
1 2 3
AIMB-780 Startup Manual 3
The CD disc contains a driver installer program that will
lead you through the installation of various device drivers
needed to take full advantage of your motherboard.
The computer is supplied with a battery-powered realtime
clock circuit. There is a danger of explosion if battery is
incorrectly replaced. Replace only with same or equivalent
type recommended by the manufacturer. Discard used bat-
teries according to manufacturer’s instructions.
This device complies with the requirements in Part 15 of
the FCC rules. Operation is subject to the following two
conditions:
This device may not cause harmful interference.
This device must accept any interference received,
including interference that may cause undesired opera-
tion.
1.
2.
Jumpers and Connectors
AT Mode 1-2 closed ATX Mode 2-3 closed
Software Installation
Declaration of Conformity

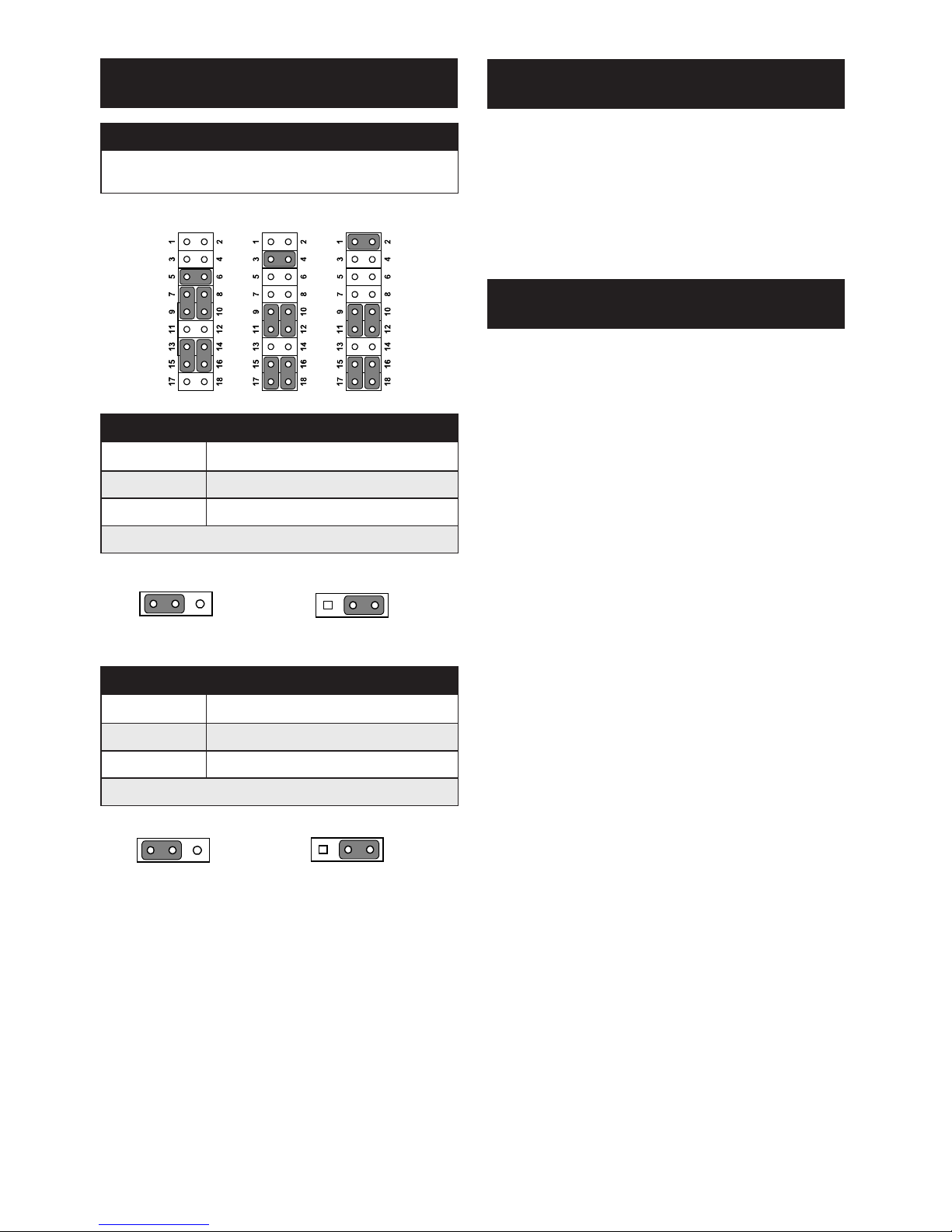

JSETCOM3: COM3 RS-232/422/485 Mode Selector
Users can use JSETCOM3 to select RS-232, RS-422 or
RS-485 mode for COM3. The default setting is RS-232.
JWDT1: Watchdog timer output option
Closed Pins
Result
1-2 NC
2-3 System reset*
*: Default
PSON1: ATX, AT mode selector
Closed Pins
Result
1-2 AT Mode
2-3 ATX Mode*
*: Default
IRQ11 1-2 Closed System Reset 2-3 Closed
4 AIMB-780 Startup Manual

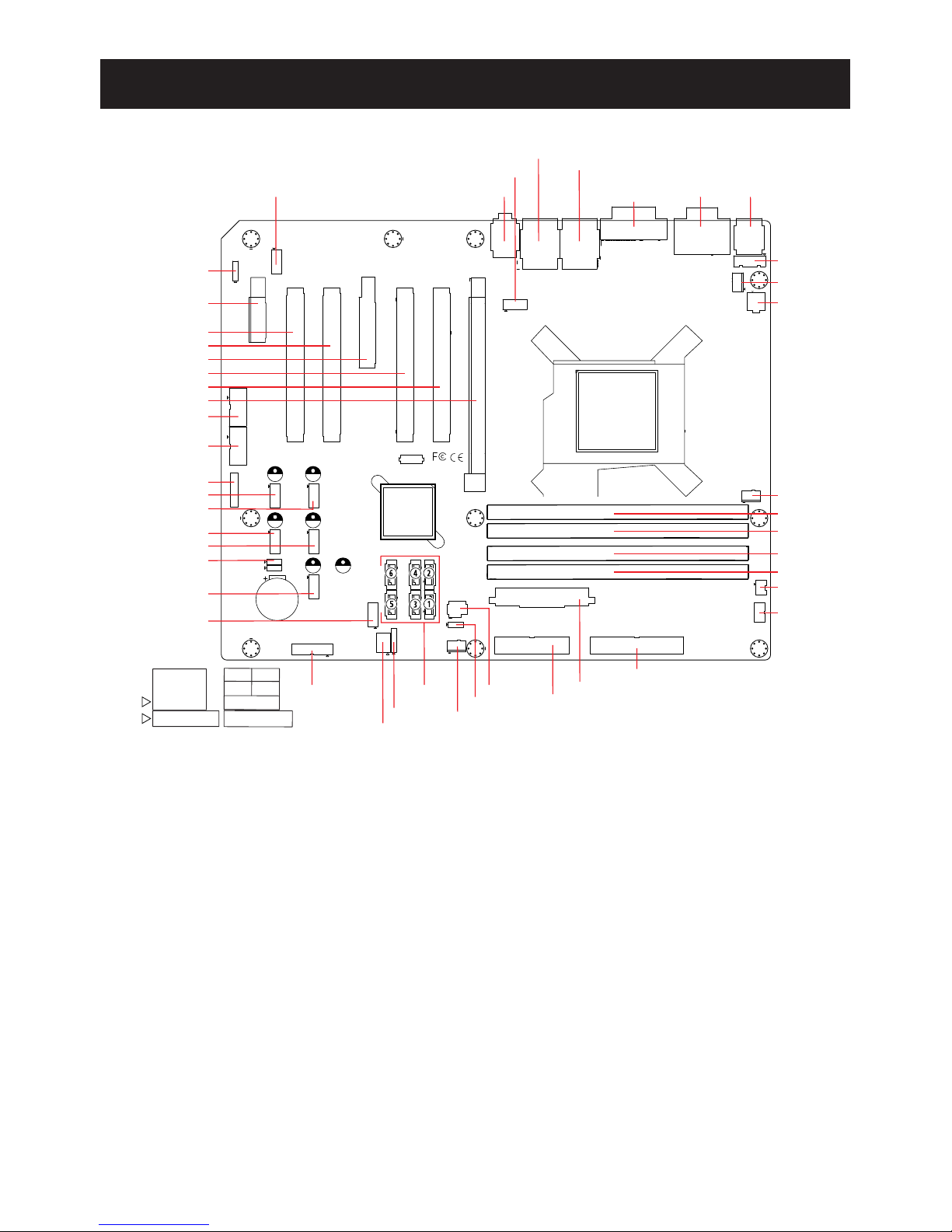

Board Layout
FPAUD1
LAN1_USB12
LAN2_USB34
AUDIO1
LANLED1
COM12
VGA1+
DVI1 KBMS1
ATX12V1
SYSFAN1
KBMS2
JCASE1
DIMMB1
DIMMB2
DIMMA1
DIMMA2
CPUFAN1
PSON1
SYSFAN2
SPI_CS_CN1
SPI_CN1
LPT1
EATXPWR1
FDD1
JIR1+JWDT1+
JOBS1
VOLT1
JFP1+JFP2
JFP3
SPDIF_OUT1
USB56
JSETCOM3
USB1314
USB1112
USB910
USB78
JCMOS1
COM3
PCIEX1_1
PCI4
PCI3
PCIEX4_1
PCI2
PCI1
PCIEX16_1
COM4
SATA
PWRSW RESET
PWRLED & KEYLOCK
SPEAKER
HDDLED SM_BUS
JFP1
&
JFP2
JFP3
3 6 9 12
12345
2 5 8 11
1 4 7 10
Board Layout: Jumper and Connector Locations
