Advantech AIMB-232 Manuel d'installation et d'exploitation

AIMB-232 Startup Manual 1

Before you begin installing your card, please make sure that

the following items have been shipped:

1. AIMB-232 Intel®SKYLAKE U Dual Core Mini-ITX

motherboard

2. SATA HDD cable x 2

3. SATA Power cable x 2

4. Fanless Heatsink x1

5. I/O port bracket x 1

6. Startup manual x 1

7. Warranty card x 1

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

Note: Acrobat Reader is required to view any PDF ﬁle.

Acrobat Reader can be downloaded at: www.adobe.com/

Prodindex/acrobat/readstep.html (Acrobat is a trademark

of Adobe).

AIMB-232

Intel

SKYLAKE U Dual Core Mini-ITX with HDMI/

LVDS(eDP)/DP++, 2 COM, and Dual LAN

Startup Manual

Standard SBC functions

• CPU: Supports Intel®SKYLAKE U Dual Core i3/i5/i7/

Celereon

• BIOS: AMI uEFI 16 Mbits, SPI

• Chipset: Intel®SUNRISE Point LP

• System memory: Up to 32 GB in two 260-pin SODIMM

sockets. Supports DDR4 2133 MHz SDRAM

Note: Due to the inherent limitations of PC architecture, the

system may not fully detect 16 GB RAM when 16 GB RAM

is installed.

• SATA3 Interface: Two on-board Serial ATA3 connectors

with a data transmission rate of up to 600 MB/s support-

ing Advanced Host Controller Interface (AHCI) technology

• mSATA Interface:

- One mSATA slot with data transmission

(Celereon sku does not support it)

• Serial ports: Two serial ports

• Keyboard/mouse connector: Supports 5-pin wafer

PS/2 keyboard and mouse

• Watchdog timer: 1~255 level timer intervals

• USB 2.0: Supports up to two USB 2.0 ports

• USB 3.0: Supports up to two USB 3.0 ports

Graphic Interface

• Chipset: Supports Intel HD Graphics Support DirectX

11.2, OpenGL 5.0, OpenCL 2.1, full HW accelerated

video decoding for AVC/VC1/MPEG2/HEVC/VP8/JPEG.

• Resolution: Supports HDMI 2.0 for HD Video playback

Max resolution up to 4096x2304 at 60 Hz on DisplayPort,

4096x2160 at 60 Hz on HDMI and single channel 24-bit/

dual channel 48-bit LVDS, Max 1920 x 1200 @ 60 Hz

Ethernet Interface

• Interface: 10/100/1000 Mbps

• Controller:

- LAN1: Intel Clarkville i219LM GbE PHY;

- LAN2: Intel Springville i211AT GbE

Mechanical and Environmental

• Dimensions (L x W): 170 x 170 mm

• Power supply voltage: DC 12V

• Operating temperature:

- 0 ~ 60° C (Standard Operating Temperature),

- -20-70° C (Wide Temperature)

• Weight: 0.365 kg (weight of board)

Specications Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and service, please visit our

support website at:

http://www.advantech.com/support

This manual is for the AIMB-232 series Rev.A1.

Part No. 2006B23200

Printed in China

1st Edition,

May 2017

2 AIMB-232 Startup Manual

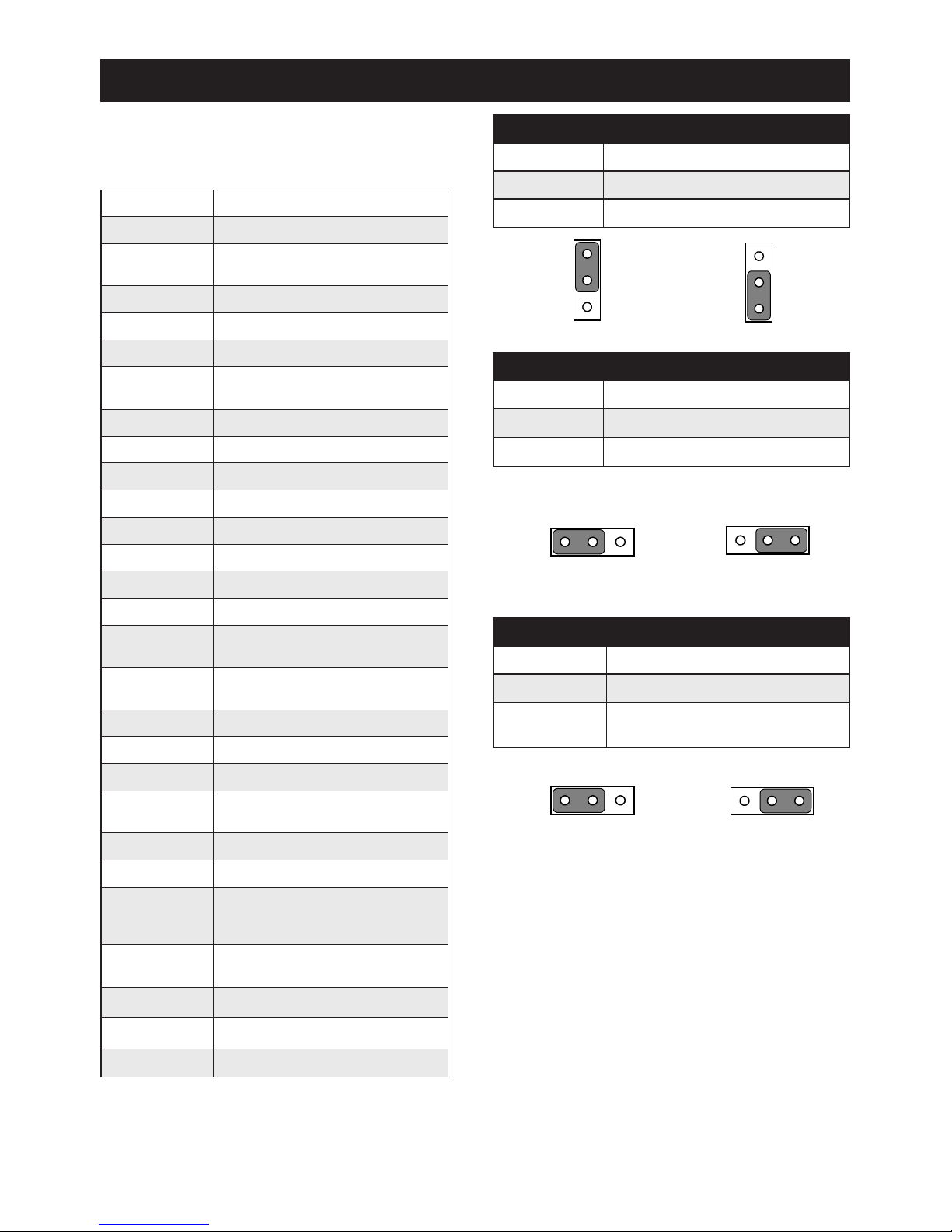

The board has a number of connectors and jumpers that

help conﬁgure the system to suit your application require-

ments. The tables below list the functions of the connectors

and jumpers.

Label Function

SATA1 ~ SATA2 SATA Signal Connector

SATA_PWR1 ~

SATA_PWR2 SATA Power Connector

ATX12V2 ATX 12V Power Supply Connector

USB56 USB Header

LVDS1 LVDS Panel Connector

INV1 LVDS Backlight Inverter Power

Connector

HDMI1 HDMI Connector

DP1 DP++ Connector

LAN12,LAN2 RJ45 Connector

COM1, COM2 COM Port

MINIPCIE1 F/S MINIPCIE & mSATA Connector

MINIPCIE2 F/S MINIPCIE & SIM card holder

CPUFAN1 CPU FAN Power Connector

SYSFAN1 SYSTEM FAN Power Connector

JFP2 HDD LED/SMBUS/Speaker Pin

Header

KBMS1 PS/2 Keyboard and Mouse 5-pin

Wafer

BAT1 Battery Wafer

U92 CPU

JFP1 Power Switch/Reset Switch

DIMMA1,

DIMMB1 DDR3 SO-DIMM Socket

GPIO1 General Purpose I/O Pin Header

SPDIF_O1 HD Digital Audio Interface

AUDIO1,

AUDIO2,

FP_AUDIO1

HD Analog Audio Interface

ATX12V1,

ATX12V2 ATX Power Supply Connector

DCIN1 12 V DC Input

BIOS1 BIOS Socket

LPC1 Low Pin Count Header

CMOS1: Clear CMOS

Closed Pins Result

1-2*

Keep CMOS data*

2-3 Clear CMOS data

* Default

PSON1: ATX, AT Mode Selector

Closed Pins Result

1-2

AT Mode

2-3* ATX Mode*

* Default

JWDT1: Watchdog Timer Output Option

Closed Pins Result

1-2

NC (Watchdog Timer Disabled)

2-3* System reset* (Reset System when

Watchdog Timer Triggered)

* Default

Keep CMOS data Clear CMOS

Jumpers and Connectors

NC 1-2 Closed System Reset 2-3 Closed

AT Mode ATX Mode

1-2 closed 2-3 closed

AIMB-232 Startup Manual 3

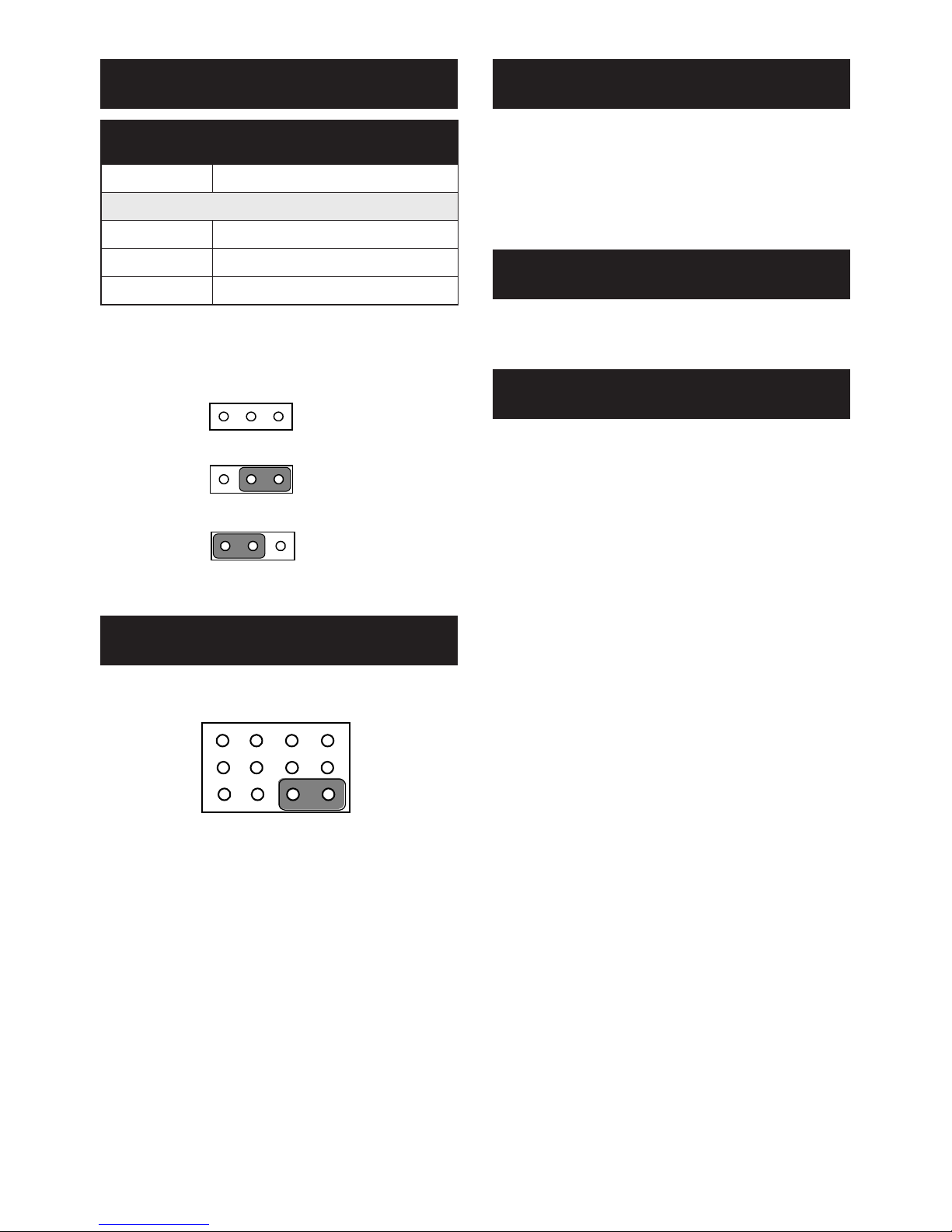

JLVDS1/JLVDS2: Voltage 3.3 V / 5 V / 12 V Selec-

tor Connector

Closed Pins Result

JLVDS1

3-4

For 12 V LVDS Panel

4-6 For 3.3 V LVDS Panel

2-4 For 5 V LVDS Panel

JLVDS1

12 V

5 V

3.3 V

Software Installation

CAUTION

Jumpers and Connectors

Declaration of Conformity

The device complies with the requirements in Part 15 of

the FCC rules. Operation is subject to the following two

conditions:

1. This device may not cause harmful interference;

2. This device must accept any interference received,

including interference that may cause undesired opera-

tion.

You can download driver from advantech website.

www.advantech.com.tw.

The computer is supplied with a battery-powered real-time

clock circuit. There is a danger of explosion if the battery is

incorrectly replaced. Replace only with same or equivalent

type recommended by the manufacturer. Discard used bat-

teries according to manufacturer’s instructions.

Installation Note

JFP1

PWR_BTN

HDD_LED

SPEAKER

JFP2

RST_BTN

SM_BUS

JFP1+JFP2

4 AIMB-232 Startup Manual

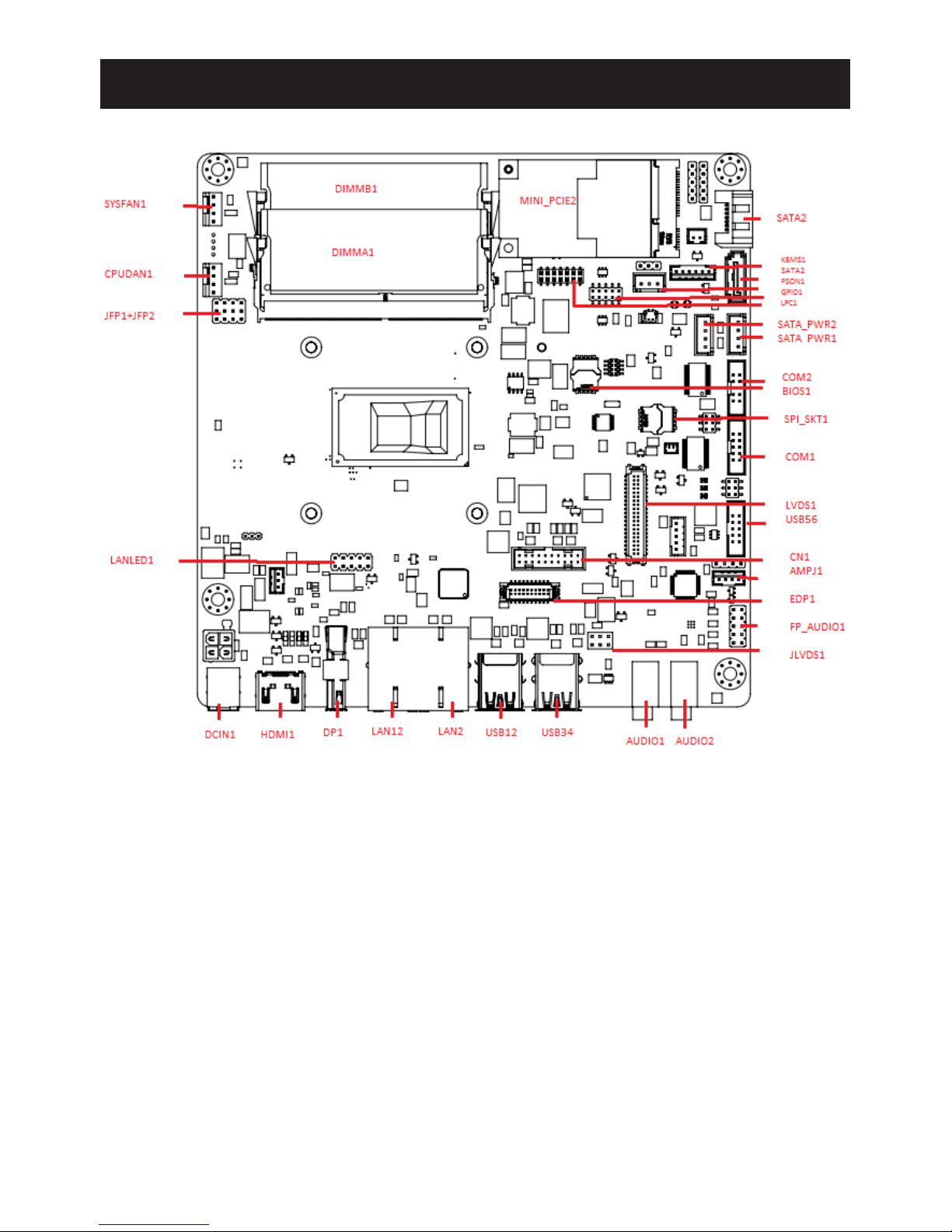

Board Diagram
