Model PCL-813Model PCL-813

Model PCL-813

32-Channel Single-Ended

Isolated Analog Input Card

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

This documentation and the software included with this product are

copyrighted 1994 by Advantech Co., Ltd. All rights are reserved.

Advantech Co., Ltd. reserves the right to make improvements to the

products described in this manual at any time without notice.

No part of this manual or software may be reproduced, copied,

translated or transmitted, in any form or by any means without the

prior written permission of Advantech Co., Ltd. Information provided

in this manual is intended to be accurate and reliable. However,

Advantech Co., Ltd. assumes no responsibility for its use, nor for any

infringements of rights of third parties which may result from its use.

Acknowledgments

PC-LabCard is a trademark of Advantech Co., Ltd. IBM, PC and

PC/XT/AT are trademarks of International Business Machines

Corporation. MS-DOS, MASM, QuickBASIC, Microsoft C and MS-

PASCAL are trademarks of Microsoft Corporation. Intel is a trade-

mark of Intel Corporation. Turbo C and Turbo PASCAL are trade-

marks of Borland International. MOXA is a trademark of 404

Technologies Inc.

Part No. 2003813030, 4th Edition

Printed in Taiwan, August, 1994

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Contents

CHAPTER 1 INTRODUCTION ...............................................1

Features ................................ 2

Specifications ............................ 3

General Specifications ....................... 3

CHAPTER 2 INSTALLATION ................................................ 5

Initial Inspection .......................... 6

Switch and Jumper Settings ................... 7

Connector Pin Assignment .................... 9

Plugging the PCL-813 into your PC ............. 10

CHAPTER 3 SIGNAL CONNECTION .................................... 11

Analog Input Connection .................... 12

CHAPTER 4 REGISTER STRUCTURE

AND FORMAT ................................................ 13

I/O Port Address Map ...................... 14

A/D Data Registers ........................ 16

Gain Control Register ...................... 17

Multiplexer Scan Register ................... 18

How to Initiate an A/D Conversion .............. 19

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

CHAPTER 5 SOFTWARE .................................................... 21

Introduction ............................. 22

Parameter Table .......................... 22

Parameter Descriptions ..................... 27

Function List ............................ 28

Function Description ....................... 29

Language Interface ........................ 31

BASICA ............................... 31

GWBASIC (version 3.20) ................... 31

QuickBASIC 4.0 and 4.5 .................... 32

Microsoft C ............................. 32

Turbo C ............................... 33

Borland C++ ............................ 33

Microsoft PASCAL ........................ 34

Turbo PASCAL .......................... 34

APPENDIX A CALIBRATION ................................................ 3 5

VR Assignments .......................... 36

VR location ............................. 37

A/D Calibration .......................... 38

APPENDIX B PCLD-881 INDUSTRIAL

TERMINATION BOARD ................................ 39

Introduction ............................. 40

Features ............................... 40

Applications ............................ 41

Technical Diagrams ....................... 42

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Chapter 1 Introduction 11

INTRODUCTION

CHAPTER

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

2 PCL-813 User's Manual

INTRODUCTION

The PCL-813 32 Channel Single-Ended Isolated Analog Input Card is

an easy to use and cost effective IBM PC/XT/AT compatible data-

acquisition card. The specifications and the user-friendly software

driver of this card make it a popular solution for a wide range of

industrial and laboratory applications. Such applications include:

measurement of transducer and sensor data, waveform acquisition and

measurement, process monitoring, and vibration and transient

analysis.

Features

• 32 Single-ended, isolated analog inputs

• 12-Bit resolution A/D conversion

• Programmable analog input ranges: ±5 V, ±2.5 V, ±1.25 V, ±0.625 V,

0~10 V, 0~5 V, 0~2.5 V, 0~1.25 V

• Supports software trigger

• Versatile language drivers including BASIC, PASCAL, C and C++

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Chapter 1 Introduction 33

Specifications

Analog Input (A/D Converter)

ChannelsChannels

Channels: 32 Single-ended with isolation

ResolutionResolution

Resolution: 12-bit, successive approximation

Input RangeInput Range

Input Range:

Bipolar:

±5 V, ±2.5 V, ±1.25 V, ±0.625 V, software programmable

Unipolar: 0 ~ 10 V, 0 ~ 5 V, 0 ~ 2.5 V, 0 ~ 1.25 V, software

programmable

(Bipolar or Unipolar is selected by JP100)

ConverterConverter

Converter: AD574 or equivalent, with 25 ms conversion time

Data transfer rateData transfer rate

Data transfer rate: 25 Kbps maximum, software control only

Isolation voltageIsolation voltage

Isolation voltage: >500 VDC from input to output

AccuracyAccuracy

Accuracy: 0.01% of reading ±1 LSB

NonlinearityNonlinearity

Nonlinearity: ±1 bit maximum

AmplificationAmplification

Amplification: x1, x2, x4, x8, software programmable

Trigger modeTrigger mode

Trigger mode: By software trigger

Temp. coefficientTemp. coefficient

Temp. coefficient: ±25 ppm/OC

OvervoltageOvervoltage

Overvoltage: Continuous ±30 V maximum

Input impedanceInput impedance

Input impedance: >10 MW

General Specifications

Power consumptionPower consumption

Power consumption: +5 V: 660 mA, typical

+12 V: 140 mA, typical

I/O connectorI/O connector

I/O connector: 37-pin D-type connector (analog input port)

Operating temp.Operating temp.

Operating temp.: 0 to 50OC (32 to 122OF)

Storage temp.Storage temp.

Storage temp.: -20 to 50OC (-4 to 149OF)

Board dimensionsBoard dimensions

Board dimensions: 99 mm x 219 mm

WeightWeight

Weight: 210 gm (7.42 oz.)

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Chapter 2 Installation 55

INSTALLATION

CHAPTER

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

6 PCL-813 User's Manual

INSTALLATION

Initial Inspection

When you receive your PCL-813 you should find enclosed:

• One PCL-813 32-Channel Single-Ended Isolated Analog Input Card

• User's Manual

• Utility Diskette, which includes the card's software driver

The PCL-813 was carefully inspected both mechanically and electri-

cally before shipment. It should be free of marks and scratches and in

perfect electrical order on receipt.

When unpacking, check the unit for signs of shipping damage

(damaged box, scratches, dents, etc). If there is damage to the unit or

it fails to meet specifications, notify our service department or your

local sales representative immediately. Also, call the carrier im-

mediately and retain the shipping carton and packing material for the

inspection by the carrier. We will make arrangements to repair or

replace the unit.

Remove the PCL-813 card from its protective packaging

carefully. Keep the anti-vibration package. Whenever you are not

using the board, please store it in the package for protection.

Discharge any static electricity by touching the back of the system

unit before you handle the board. You should avoid contact with

materials that create static electricity such as plastic, vinyl, and

styrofoam. The board should be handled only by the edges to avoid

static electric discharge which could damage the integrated circuits on

the PCL-813.

Warning! Discharge your body’s static electric charge by

touching the back of the grounded chassis of the

system unit (metal) before handling the board.You

should avoid contact with materials that hold a static

charge such as plastic, vinyl and styrofoam. Handle

the board only by its edges to avoid static damage to

its integrated circuits. Avoid touching the exposed

circuit connectors.

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Table des matières

Autres manuels Advantech Système d'E/S

Advantech

Advantech MIOe-220 Manuel d'installation et d'exploitation

Advantech

Advantech USB-5801 Manuel utilisateur

Advantech

Advantech B+B SmartWorx Zlinx ZZ24D-NA-SR Manuel utilisateur

Advantech

Advantech USB-5817 Manuel d'installation et d'exploitation

Advantech

Advantech WISE-4050 Manuel utilisateur

Advantech

Advantech AMAX-5000 Series Manuel utilisateur

Advantech

Advantech ADAM-6100EI Series Manuel utilisateur

Advantech

Advantech PCI-1750 Manuel utilisateur

Advantech

Advantech 98910770500 Manuel d'installation et d'exploitation

Advantech

Advantech ADAM-6156PN Manuel utilisateur

Advantech

Advantech AIIS-E730 Manuel d'installation et d'exploitation

Advantech

Advantech WISE-4060 Manuel d'installation et d'exploitation

Advantech

Advantech WISE-4610 Series Manuel utilisateur

Advantech

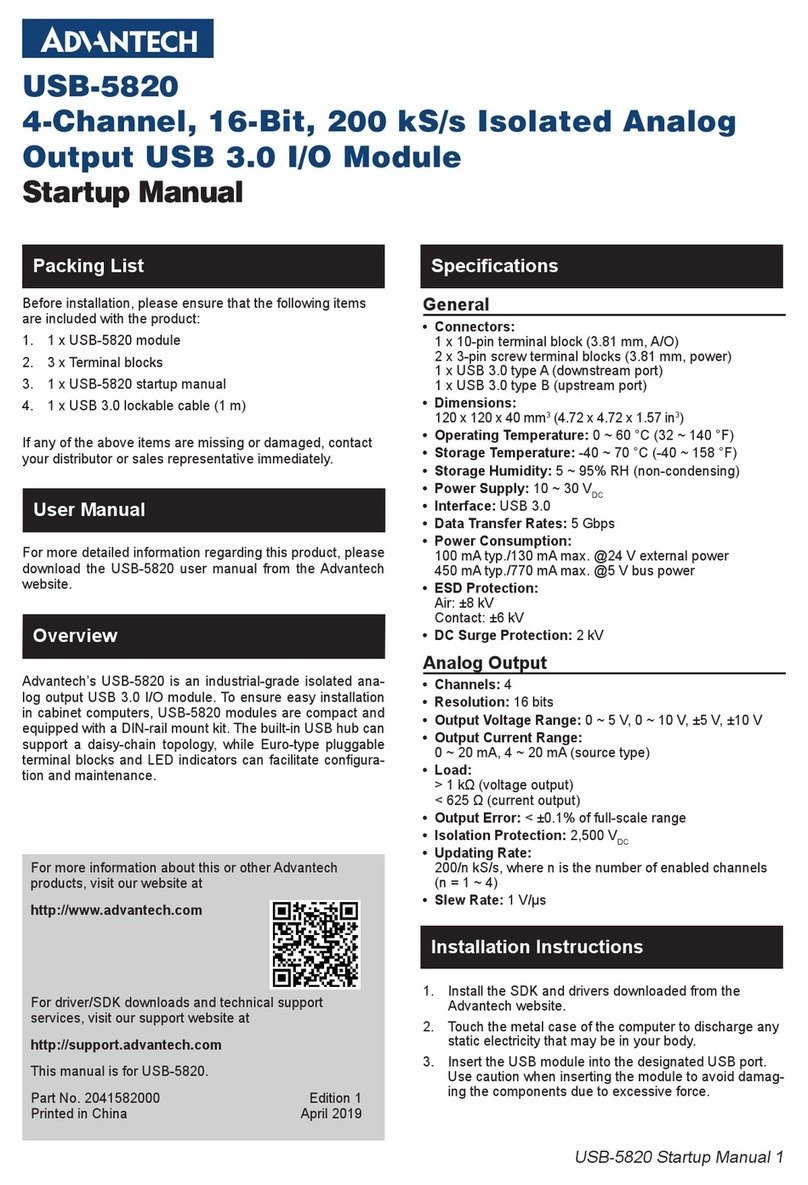

Advantech USB-582 Manuel d'installation et d'exploitation

Advantech

Advantech PCM-3753I-AE Manuel utilisateur

Advantech

Advantech ADAM-3600-A1F Manuel utilisateur

Advantech

Advantech PCM-3730 Manuel utilisateur

Advantech

Advantech WISE-4610 Series Manuel utilisateur

Advantech

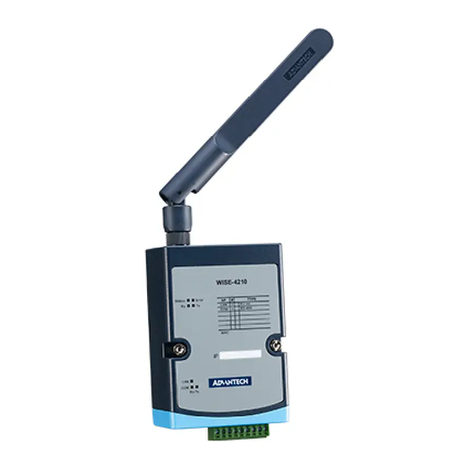

Advantech WISE-4210 Series Manuel utilisateur

Advantech

Advantech ADAM-6000 series Manuel utilisateur

Advantech

Advantech ADAM-3013 Manuel utilisateur

Advantech

Advantech APAX-5000 Series Manuel utilisateur

Advantech

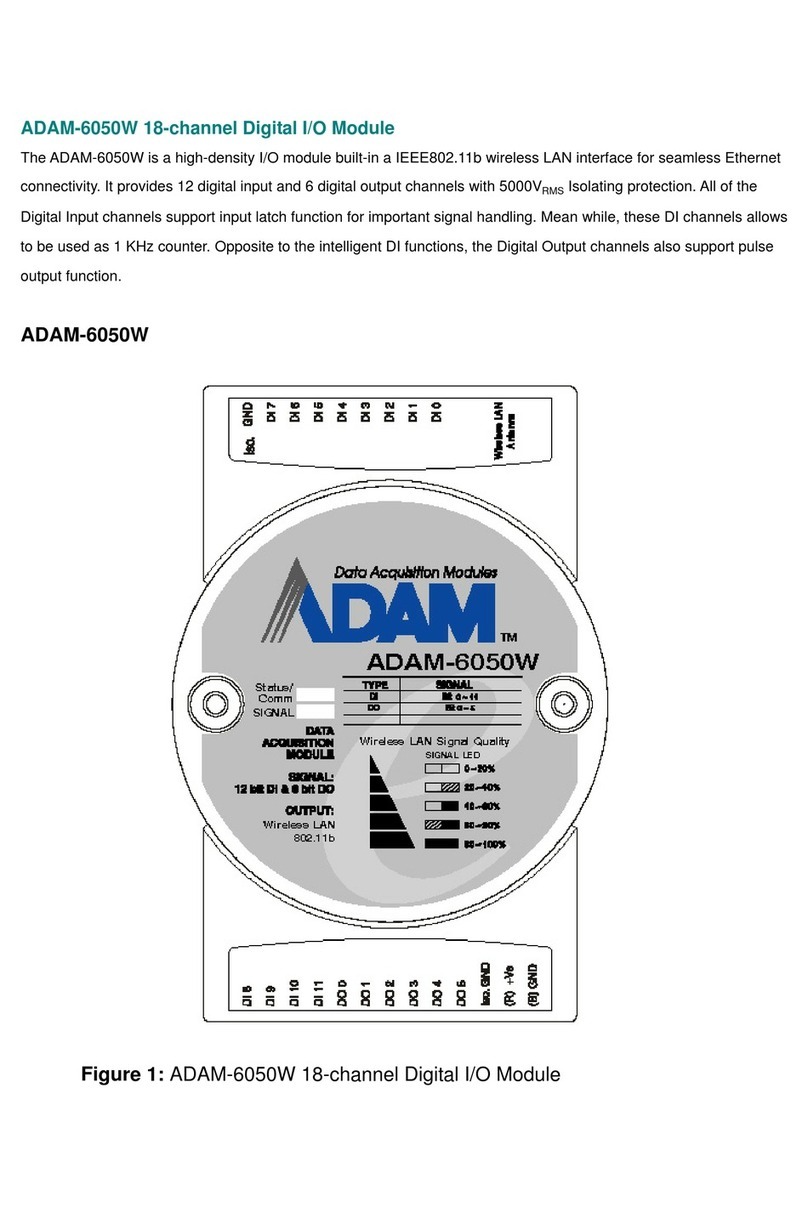

Advantech ADAM-6050W Manuel utilisateur

Advantech

Advantech AIIS-1750 Manuel d'installation et d'exploitation

Manuels Système d'E/S populaires d'autres marques

WAGO

WAGO 750-344 Manuel utilisateur

Teknim

Teknim TWM-1887 Mode d’emploi

Intelligent Appliance

Intelligent Appliance IA-2662-E Manuel utilisateur

BERGHOF

BERGHOF ECC DIO 16/16 Mode d’emploi

Festo

Festo CP-E08-M12-CL Manuel utilisateur

Measurement Computing

Measurement Computing PCI-DAS64/M1/16 Manuel utilisateur

Hitachi

Hitachi HX-RIO3 Series Manuel utilisateur

NUUO

NUUO SCB-A08 Manuel utilisateur

M-system

M-system R3Y-RS8 Manuel utilisateur

jablotron

jablotron JB-110N Manuel utilisateur

Omron

Omron SYSMAC C200H Manuel utilisateur

DOLD

DOLD SAFEMASTER M Manuel utilisateur

ABB

ABB OPT-MF-001 Manuel utilisateur

Omron

Omron SYSMAC C2000H Manuel utilisateur

Helmholz

Helmholz TB20 Manuel utilisateur

ICP DAS USA

ICP DAS USA tM-AD2 Manuel utilisateur

Automationdirect.com

Automationdirect.com DL305 Manuel utilisateur

WAGO

WAGO I/O-SYSTEM 750 Manuel utilisateur
