INTRODUCTION

This manual has been prepared to help you get

the most from your PACEMAKER/MATADOR. Read

it thoroughly before operating the machine;

A SAFETY' PRECAUTIONS

AWARNING

DO NOT USE THIS MACHINE IN AREAS WHERE FLAMMABLE

LIQUIDS OR VAPORS ARE PRESENT.

®WAR.NING

DISCONNECTPOWER FROM-MACHINE BEFORE ATTEMPTING

.ANY SERVICE.OR MATNTENANCE WORK.

NOTE:

For additional information, cautions and

warnings, read operator's manu.al before running

machine.

-20313^65M

Source: https://www.industrydocuments.ucsf.edu/docs/tzmx0000

AWARNING

THIS MACHINE MUST BE PROPERLY GROUNDED TO PROTECT THE OPERATOR

FROM ELECTRICAL SHOCK. READ THE SAFETY INSTRUCTIONS BELOW BEFORE

OPERATING THIS MACHINE.

115 or 120 VOLT MACHINES HAVE

THIS KIND OF 3 PRONG PLUG AT

THE END OF A 3 WIRE ELECTRICAL

CORD.

THE GROUNDING PIWON

THIS PLUG GROUNDS THEMACHIRE

WHEN IT IB PLUGGED INTO A 3

PRONG OUTLET. .

3 PRONG GROUNDED

OUTLET

A GROUNDING ADAPTER MUST BE

INSTALLED, AS SHOWN HERE^-IF

ONLY 2 PRONG OUTLETS ARE

AVAILABLE.

THE OUTLET BOX

MUST BE GROUNDED AND THE

GROUNDING TAB (OR WIRE) ON THE

ADAPTER MUST BE INSTALLED

UNDER THE HEAD OF THE SCREW IN

THE CENTER OF THE OUTLET COVER.

GROUNDING ADAPTERS FOR 115 OR

120 VOLT PLUGS ARE AVAILABLE

AT MOST HARDWARE STORES.

NOTEs

GROUNDING ADAPTERS ARE NOT,

APPROVED FOR USE IN CANADA.

240 VOLT MACHINES HAVE THIS

TYPE OF . 3 PRONG PLUG, ATc:,TRE...

END OF ::11^"3 i1.IR8 ELECTRICAL'-'

CORD

j'PR_E

GROUNOING=PIY ON

THIS PLi1G CROUNQSTHE MACHINE

WHE1i IT 'IS PLUGGED INTO A 3

PRONG OUTLET AS SHOMN HERE.

ADAPTERB ARE NOT AVAILABLE FOR

240 VOLT PLUGS.

REPLACE THE PLUG IF THE GROUNDING PIN IS DAMAGED OR BROKEN.

THE GREEN (OR GREEN AND YELLOW ) WIRE IN THE CORD IS THE GROUNDING

WIRE.

WHEN REPLACING A PLUG, THIS NIRE MUST BE ATTACHED TO THE

GROUNDING PIN ONLY.

EXTENSION CORDS CONNECTED TO THIS MACHINE SHOULD BE 12 GAUGE, 3

WIRE CORDS WITH 3 PRONCPLUGS AND OUTLETS. DO NOT USE EXTENSION

CORDS MORE THAN 50 PT. (15 M) LONG.

'tY^:

Source: https://www.industrydocuments.ucsf.edu/docs/tzmx0000

PREPARING THE hif1CHINE FOR USE

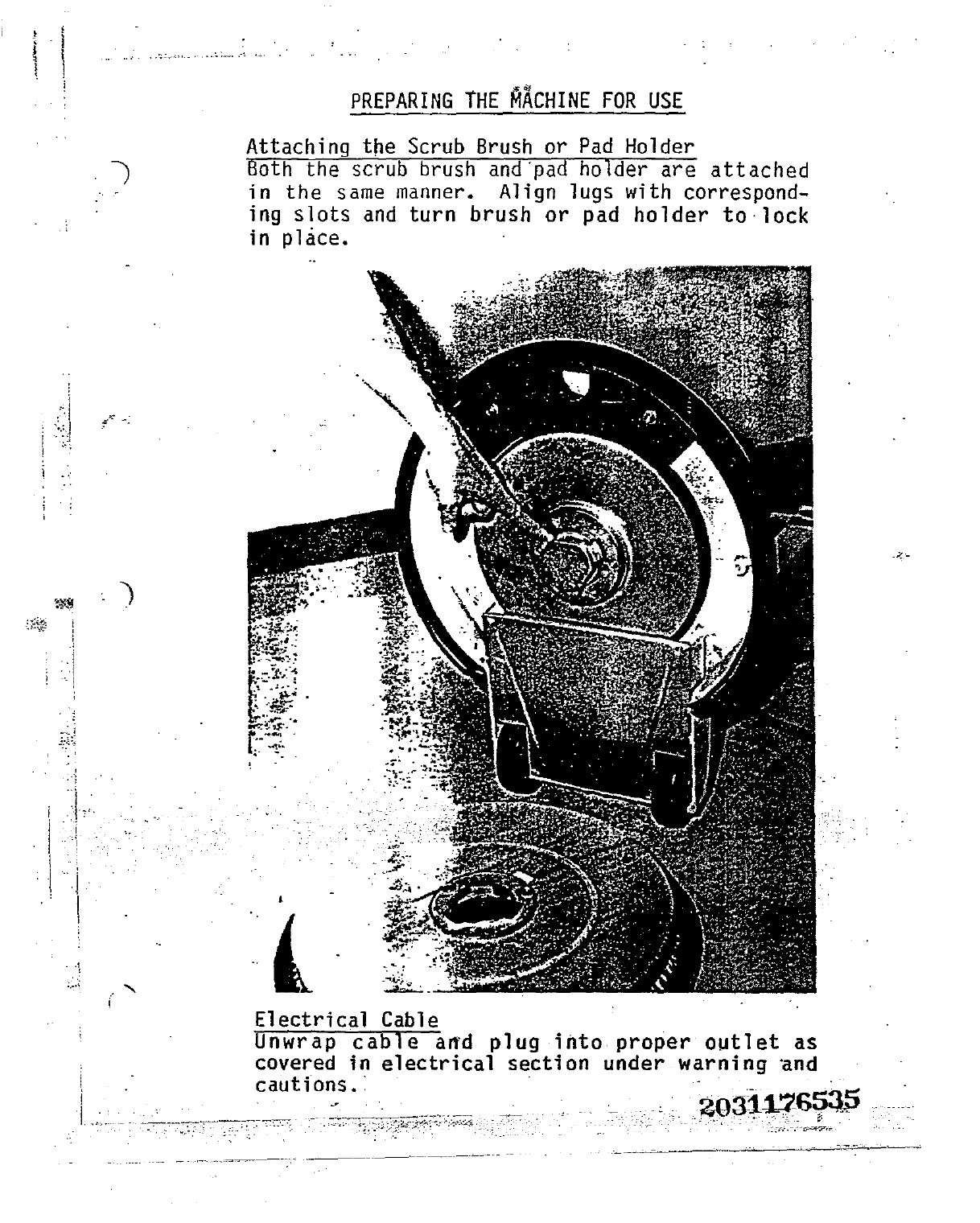

Attaching the Scrub Brush or Pad Holder

oth the scrub brush and 'pad holder are attached

in the same manner. Align lugs with correspond-

ing slots and turn brush or pad holder to lock

in place.

Electrical Cable

Unwrap ca e and plug into proper outlet as

covered in electrical section under warning and

cautions.

Source: https://www.industrydocuments.ucsf.edu/docs/tzmx0000

Spray Buff/Mister (optional)

chemical bottle (2 qts.) with appropriate

chemical.

Check nozzle on rnachine base for

clogs and ensure proper airning of mist.

Pressurize bottle by pumping hand lever.

Source: https://www.industrydocuments.ucsf.edu/docs/tzmx0000

a *

Splash Guard (optional)

Splash guard prevents splashing of chemical onto

furniture, baseboards, etc., during wet opera-

tion.

Source: https://www.industrydocuments.ucsf.edu/docs/tzmx0000

4 it

OPERATING THE PACEMAKER/MATADOR

With the machine prepared as covered in the pre-

vious section, you are ready to operate the

Pacemaker/Matador.

Handle positioner is located on handle at

operator's right.

Pull on lever to unlock

handle.

Adjust handle lever as required and

release lever.

Source: https://www.industrydocuments.ucsf.edu/docs/tzmx0000

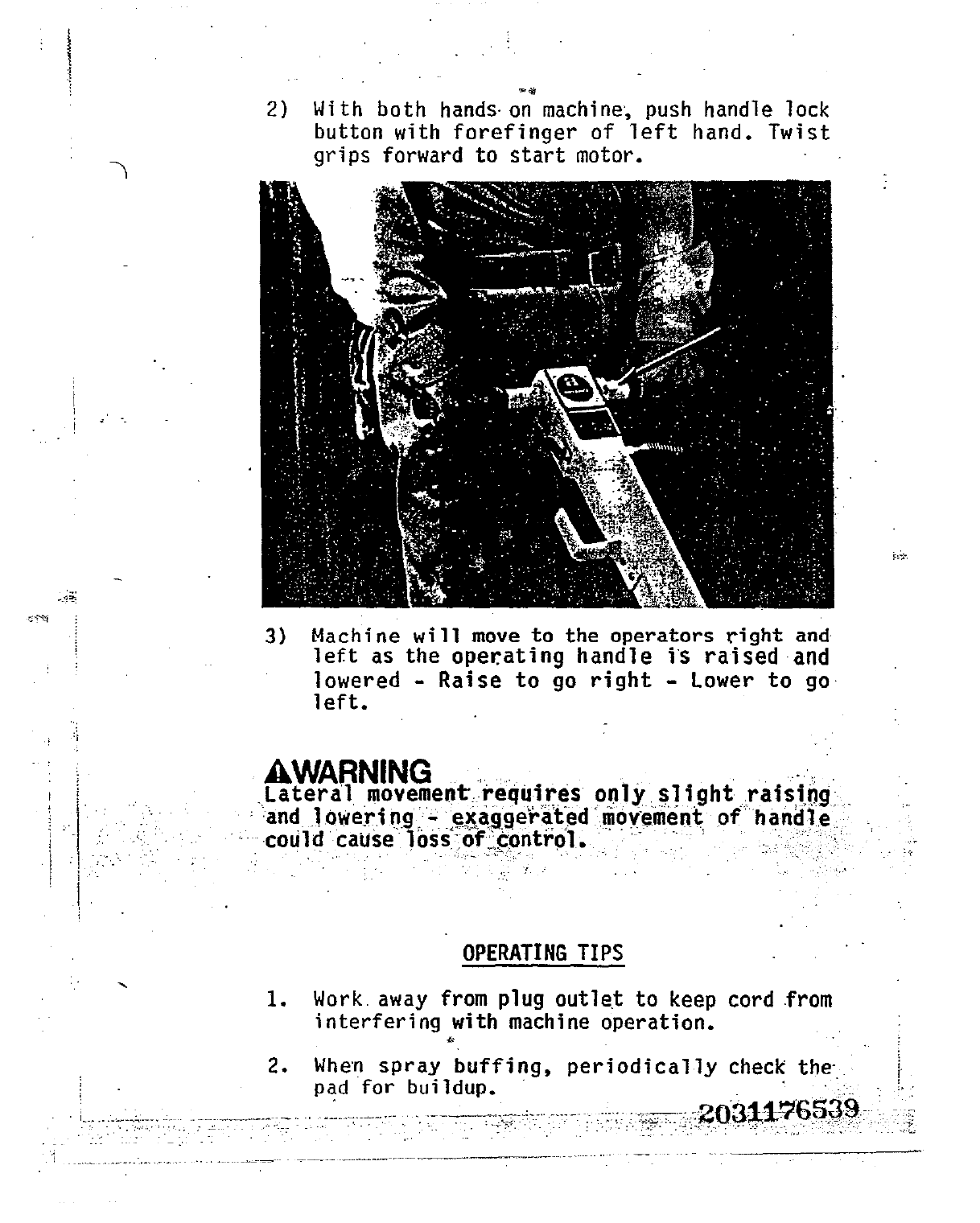

With both hands•on machine, push handle lock

button with forefinger of left hand. Twist

grips forward to start motor.

Machine will move to the operators right and

left as the operating handle is raised and

lowered - Raise to go right - Lower to go

left.

AWARNING

Lateral movement• requires only.slight raising ,

`and l oweri ng - exag<gerated movement of handa e

could cause loss oUcantrol.

OPERATING TIPS

Work. away from plug outlet to keep cordfrom

interfering with machine operation.

When spray buffing, periodically check the-.

pad for buildup.

:zQ3^a165a9

Source: https://www.industrydocuments.ucsf.edu/docs/tzmx0000

4-M

AFTER USING THE PACEMAKER/MATADOR

Flush spray buff system with warm water.

Remove pad holder or brush from machine for

separate storage.

Never store machine with

pad holder or brush on machine.

Wash scrub brush and store separately.

Wrap cable around cord hooks.

Wipe entire machine with clean damp cloth -

wipe underside of brush'housing after wet

use..

:Z03117G540

Source: https://www.industrydocuments.ucsf.edu/docs/tzmx0000

Maintenance of Pacemaker%^atador

©WARNING

Disconnect power from machine before attempting

any service or mainteance work.

Circuit Breaker (High Speed Matador) - Designed

o protect motor from damage by over oad condi-

tion.

Normally, tripping of circuit breaker is

caused by one or more of the following condi-

tions:

Loaded pad when spray cleaning, scrubbing or

polishing

Excessive use of material when spray cleaning

Too-aggressive-pad for operation

Use of other than soft-touch brush for carpet

shampooing.

Too little, or absence of, solution when sham-

pooing or bonnet cleaning carpet

When cause of circuit breaker tripping is deter-

mined, remedy and re-set external button by push-

ing in to position where it doesn't return.

NOTE:

If button does not stay pushed in, allow

time for cooling and try`again.

Source: https://www.industrydocuments.ucsf.edu/docs/tzmx0000
