ADJ ENCORE BURST 100 IP Manuel utilisateur

User Instructions

ENCORE BURST 100 IP

instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying

product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection

claimed includes all forms and matters of copyrightable materials and information now allowed by

statutory or judicial law or hereinafter granted. Product names used in this document may be

trademarks or registered trademarks of their respective companies and are hereby acknowledged.

All non-ADJ Products, LLC brands and product names are trademarks or registered trademarks of

their respective companies.

ADJ Products, LLC and all aliated companies hereby disclaim any and all liabilities for property,

equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic

loss associated with the use or reliance of any information contained within this document, and/or as

a result of the improper, unsafe, unsucient and negligent assembly, installation, rigging, and opera-

tion of this product.

Europe Energy Saving Notice

Energy Saving Matters (EuP 2009/125/EC)

Saving electric energy is a key to help protecting the enviroment. Please turn o all electrical products when

they are not in use. To avoid power consumption in idle mode, disconnect all electrical equipment from power

when not in use. Thank you!

Date Document

Version

Software

Version

DMX

Channel

Modes

Notes

02/21/19 1 1.1 1/2/3/4 Initial Release

FCC STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

FCC RADIO FREQUENCY INTERFERENCE WARNINGS & INSTRUCTIONS

This product has been tested and found to comply with the limits as per Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful interference in a residential installa-

tion. This device uses and can radiate radio frequency energy and, if not installed and used in accordance

with the included instructions, may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this device does cause harmful

interference to radio or television reception, which can be determined by turning the device off and on, the

user is encouraged to try to correct the interference by one or more of the following methods:

· Reorient or relocate the device.

· Increase the separation between the device and the receiver.

· Connect the device to an electrical outlet on a circuit different from which the radio receiver is

connected.

· Consult the dealer or an experienced radio/TV technician for help.

DOCUMENT VERSION

Due to additional product features and/or enhancements, an updated version of this document

may be available online.

Please check www.adj.com for the latest revision/update of this manual before beginning

installation and/or programming.

ADJ Products, LLC - www.adj.com - Encore Burst 100 IP User Manual Page 2

Encore Burst 100 IP Table of Contents

Introduction

Features I Warranty Registration

Safety Guidelines

IP Notice

Installation

Overview

DMX Set Up

DMX Addressing

DMX Modes

System Menu

Operating Instructions

Multiple Unit Power Linking I Dimmer Curve Chart

Dimensional Drawing I Trouble Shooting I Cleaning

Limited Warranty (USA Only)

Specications

ADJ Products, LLC - www.adj.com - Encore Burst 100 IP User Manual Page 3

Encore Burst 100 IP Introduction

Unpacking: Thank you for purchasing the Encore Burst 100 IP by ADJ Products, LLC. Every Encore

Burst 100 IP has been thoroughly tested and has been shipped in perfect operating condition. Carefully

check the shipping carton for damage that may have occurred during shipping. If the carton appears

to be damaged, carefully inspect your xture for any damage and be sure all accessories necessary

to operate the unit has arrived intact. In the case damage has been found or parts are missing, please

contact our toll free customer support number for further instructions. Do not return this unit to your

dealer without rst contacting customer support.

Introduction: The ADJ Encore Burst 100 IP is a DMX intelligent, high powered LED fixture. To optimize

the performance of this product, please read these operating instructions carefully to familiarize yourself

with the basic operations of this unit. These instructions contain important safety information regarding

the use and maintenance of this unit. Please keep this manual with the unit, for future reference.

Customer Support: Contact ADJ Service for any product related service and support needs. Also visit

forums.adj.com with questions, comments or suggestions.

Parts: To purchase parts online visit http://parts.americandj.com

ADJ SERVICE USA - Monday - Friday 8:00am to 4:30pm PST

Voice: 800-322-6337 | Fax: 323-832-2941 | [email protected]

ADJ SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET

Voice: +31 45 546 85 60 | Fax: +31 45 546 85 96 | [email protected]

ADJ PRODUCTS LLC USA

6122 S. Eastern Ave. Los Angeles, CA. 90040

323-582-2650 | Fax 323-532-2941 | www.adj.com | info@adj.com

ADJ SUPPLY Europe B.V

Junostraat 2 6468 EW Kerkrade, The Netherlands

+31 (0)45 546 85 00 | Fax +31 45 546 85 99

www.adj.eu | [email protected]

ADJ PRODUCTS GROUP Mexico

AV Santa Ana 30 Parque Industrial Lerma, Lerma, Mexico 52000

+52 (728) 282-7070

Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself,

doing so will void your manufactures warranty. In the unlikely event your unit may require service

please contact ADJ Products, LLC.

PLEASE recycle the shipping carton when ever possible.

Encore Burst 100 IP Features

• Electronic Dimming 0-100%

• DMX-512 protocol

• 4 DMX Modes 1/2/3/4

• 5-Pin In/Out DMX Connection

• Frequency Adjustment

• Gamma Adjustment

• Tungsten Effect

• 6 Dimmer Curves With Dimmer Adjustment Speed

• Multiple Unit Power Linking (See page 18)

Included:

1 x Seetronic IP65 Cable

Encore Burst 100 IP Warranty Registration

The Encore Burst 100 IP carries a 2 year limited warranty. Please fill out the enclosed warranty card

to validate your purchase. All returned service items whether under warranty or not, must be freight

pre-paid and accompany a return authorization (R.A.) number. The R.A. number must be clearly writ-

ten on the outside of the return package. A brief description of the problem as well as the R.A. num-

ber must also be written down on a piece of paper included in the shipping carton. If the unit is under

warranty, you must provide a copy of your proof of purchase invoice. You may obtain a R.A. number

by contacting our customer support team on our customer support number. All packages returned to

the service department not displaying a R.A. number on the outside of the package will be returned to

the shipper.

ADJ Products, LLC - www.adj.com - Encore Burst 100 IP User Manual Page 4

ADJ Products, LLC - www.adj.com - Encore Burst 100 IP User Manual Page 5

Encore Burst 100 IP Safety Precautions

For Your Own Personal Safety, Please Read and Understand This Manual Completely Before

You Attempt To Install Or Operate This Unit!

• To reduce the risk of electrical shock or re, do not expose this unit rain or moisture

• Do not spill water or other liquids into or on to your unit.

• Be sure that the local power outlet match that of the required voltage for your unit.

• Do not attempt to operate this unit if the power cord has been frayed or broken.

• Do not attempt to remove or break o the ground prong from the electrical cord. This prong is used

to reduce the risk of electrical shock and re in case of an internal short.

• Disconnect from main power before making any type of connection.

• Do not remove the cover under any conditions. There are no user serviceable parts inside.

• Never operate this unit when it’s cover is removed.

• Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 6”

(15cm) between this device and a wall.

• Do not attempt to operate this unit, if it becomes damaged.

• This unit is intended for indoor use only, use of this product outdoors voids all warranties.

• Always mount this unit in safe and stable matter.

• Power-supply cords should be routed so that they are not likely to be walked on or pinched by

items placed upon or against them, paying particular attention to cords at plugs, convenience

receptacles, and the point where they exit from the appliance.

• Cleaning -The fixture should be cleaned only as recommended by the manufacturer. See page 23

for cleaning details.

• Heat -This fixture should be situated away from heat sources such as radiators, heat registers,

stoves, or other appliances (including amplifiers) that produce heat.

• The fixture should be serviced by qualified service personnel when:

A. Objects have fallen, or liquid has been spilled into the appliance.

B. The appliance has been exposed to rain or water.

C. The appliance does not appear to operate normally or exhibits a marked change in performance.

ADJ Products, LLC - www.adj.com - Encore Burst 100 IP User Manual Page 6

Encore Burst 100 IP IP Notice

IP65 RATED

An IP rated lighting xture is one, which is commonly installed in outdoor environments

and has been designed with an enclosure that eectively protects the ingress (entry)

of external foreign objects such as dust and water. The International Protection (IP)

rating system is commonly expressed as "IP" (Ingress Protection) followed by two

numbers (i.e. IP65) where the numbers dene the degree of protection. The rst digit

(Foreign Bodies Protection) indicates the extent of protection against particles entering

the xture and the second digit (Water Protection) indicates the extent of protection

against water entering the xture. An IP65 rated lighting xture is one, which has been

designed and tested to protect against the ingress of dust (6) and high-pressure water

jets from any direction (5).

MARINE/COASTAL ENVIRONMENT INSTALLATIONS

NOT suitable for marine and/or coastal environment installations. Installing

this xture in a marine and/or coastal environment may cause corrosion and/

or excessive wear to the interior and/or exterior components of the xture.

Damages and/or performance issues resulting from installation in a marine

and/or coastal environment will void the manufactures warranty and will NOT be subject

to any warranty claims and/or repairs.

ADJ Products, LLC - www.adj.com - Encore Burst 100 IP User Manual Page 7

Encore Burst 100 IP Installation

Always ensure that the unit is rmly xed to avoid vibration and slipping while operating. Always

ensure that the structure to which you are attaching the unit is secure and is able to support a weight

of 10 times the unit’s weight. ALWAYS use safety cables that can hold 12 times the weight of the

unit when installing the xture.

This equipment must be installed by a professional, and it must be installed in a place where it is out

of the reach of people’s grasp.

Ensure ALL connections and end caps are properly sealed with a non-conductive dielectric

grease (available at most electrical suppliers) to prevent water ingress/condensation and/or

corrosion.

The Encore Burst 100 IP is fully operational in three dierent mounting positions; hanging upside-

down, mounted sideways on trussing, or set on a at level surface. Be sure this xture is kept at

least 12m (40ft) away from any ammable materials (decoration etc.).

Screw one clamp via a M12 screw and nut into the Omega bracket. Insert the quick-lock fasteners of

the Omega bracket into the respective holes of the adjustable mounting bracket. Tighten the quick-

lock fasteners fully clockwise. Pull the safety-cable through the opening located on the rear of the

unit and over the trussing system or a safe xation spot. Insert the end in the carabine and tighten

the safety screw. ALWAYS use and install the supplied safety cable as a safety measure to prevent

accidental damage and/or injury in the event the clamp fails.

CLAMP

OMEGA BRACKET

SAFETY CABLE

RIGGING POINT

ADJ Products, LLC - www.adj.com - Encore Burst 100 IP User Manual Page 8

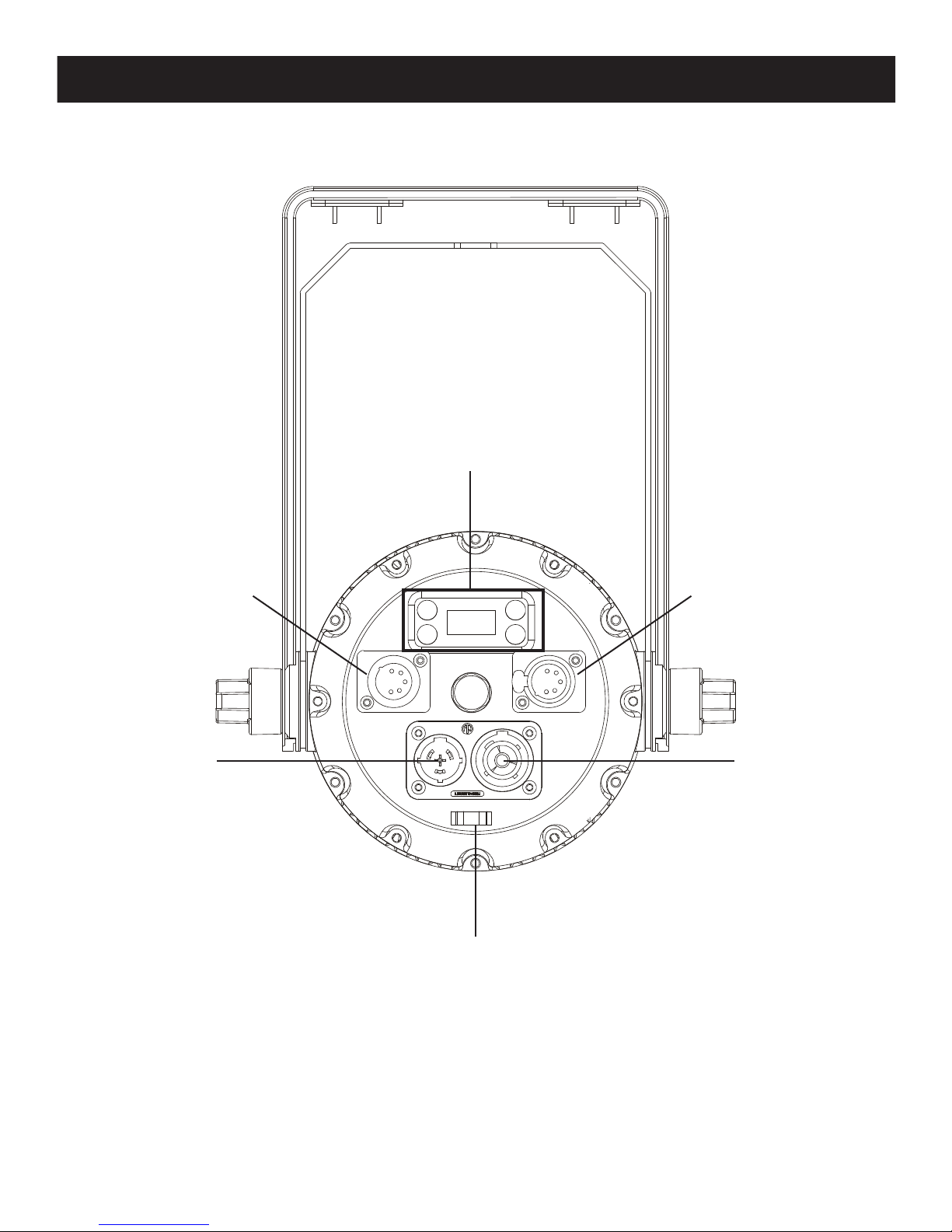

Encore Burst 100 IP Overview

CONTROL PANEL & LCD SCREEN

(MODE/UP/DOWN/ENTER BUTTONS)

SAFETY CABLE

RIGGING POINT

5-PIN DMX OUT5-PIN DMX IN

POWER IN POWER OUT

ADJ Products, LLC - www.adj.com - Encore Burst 100 IP User Manual Page 9

Encore Burst 100 IP DMX Set Up

DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form of communication

between intelligent fixtures and controllers. A DMX controller sends DMX data instructions from

the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the

DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only have a

DATA “OUT” terminal).

DMX Linking: DMX is a language allowing all makes and models of dierent manufactures to be

linked together and operate from a single controller, as long as all xtures and the controller are DMX

compliant. To ensure proper DMX data transmission, when using several DMX fixtures try to use

the shortest cable path possible. The order in which fixtures are connected in a DMX line does not

influence the DMX addressing. For example; a fixture assigned a DMX address of 1 may be placed

anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a fixture is

assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that

unit, no matter where it is located in the DMX chain.

Data Cable (DMX Cable) Requirements (For DMX Operation): The Encore Burst 100 IP can be controlled

via DMX-512 protocol. The Encore Burst 100 IP has 4 DMX channel modes. Your unit and your DMX

controller requires a 5-pin XLR connector for data input and data output. We recommend Accu-Cable

DMX cables. If you are making your own cables, be sure to use standard 110-120 Ohm shielded cable

(This cable may be purchased at almost all pro lighting stores). Your cables should be made with a male

and female XLR connector on either end of the cable. Also remember that DMX cable must be daisy

chained and cannot be split.

Special Note: Line Termination.

When longer runs of cable are used, you may need to use a terminator

on the last unit to avoid erratic behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is connected

between pins 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted in the female

XLR connector of the last unit in your daisy chain to terminate the line. Using a cable terminator (ADJ

part number Z-DMX/T) will decrease the possibilities of erratic behavior.

Table des matières

Autres manuels ADJ Matériel de DJ

ADJ

ADJ Mega QPlus GO Manuel utilisateur

ADJ

ADJ 18P HEX IP Manuel de l'opérateur

ADJ

ADJ DMX OPERATOR 384 Manuel utilisateur

ADJ

ADJ UV Panel HP Manuel utilisateur

ADJ

ADJ Encore Profile 1000 WW Manuel utilisateur

ADJ

ADJ POCKET PRO Manuel utilisateur

ADJ

ADJ MOD STQ Manuel utilisateur

ADJ

ADJ MOD TWIOO Manuel utilisateur

ADJ

ADJ BOOM BOX FX3 Manuel utilisateur

ADJ

ADJ Startec STINGER Manuel utilisateur

ADJ

ADJ NINJA 5RX Manuel utilisateur

ADJ

ADJ American DJ FUSION FX BAR 1 Manuel utilisateur

ADJ

ADJ REVO 4 IR Manuel utilisateur

ADJ

ADJ INNO ROLL HP Manuel utilisateur

ADJ

ADJ Mega Go Bar 50 Manuel d'utilisation et d'entretien

ADJ

ADJ ENCORE BURST RGBW IP Manuel utilisateur

ADJ

ADJ VIZI BEAM 12RX Manuel utilisateur

ADJ

ADJ Mega GO Bar 50 RGBA Manuel utilisateur

ADJ

ADJ FOCUS BEAM LED Manuel utilisateur

ADJ

ADJ HEX206 Manuel utilisateur

ADJ

ADJ Bubbletron Go Manuel utilisateur

ADJ

ADJ VF FLURRY Manuel utilisateur

ADJ

ADJ POCKET PRO Manuel utilisateur

ADJ

ADJ ENCORE PROFILE PRO WW Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
