ADJ POCKET PRO Manuel utilisateur

User Manual

POCKET PRO &

POCKET PRO PEARL

instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying

product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection

claimed includes all forms and matters of copyrightable materials and information now allowed by

statutory or judicial law or hereinafter granted. Product names used in this document may be trade-

marks or registered trademarks of their respective companies and are hereby acknowledged. All

non-ADJ Products, LLC brands and product names are trademarks or registered trademarks of their

respective companies.

ADJ Products, LLC and all aliated companies hereby disclaim any and all liabilities for property,

equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic

loss associated with the use or reliance of any information contained within this document, and/or as

a result of the improper, unsafe, unsucient and negligent assembly, installation, rigging, and opera-

tion of this product.

Europe Energy Saving Notice

Energy Saving Matters (EuP 2009/125/EC)

Saving electric energy is a key to help protecting the enviroment. Please turn o all electrical products when

they are not in use. To avoid power consumption in idle mode, disconnect all electrical equipment from power

when not in use. Thank you!

ADJ Products, LLC - www.adj.com - Pocket Pro / Pocket Pro Pearl User Manual Page 2

DOCUMENT VERSION

Please check www.adj.com for the latest revision/update of this guide.

Date Document

Version

Software

Version

DMX Channel

Mode Notes

07/24/17 1 1.1 11 / 13 Ch. Initial Release

10/27/20 2 1.3 11 / 13 Ch. Primary/Secondary Mode Update

02/05/21 3 N/C No Change Added Pocket Pro Pearl

ADJ Products, LLC - www.adj.com - Pocket Pro / Pocket Pro Pearl User Manual Page 3

Unpacking: Thank you for purchasing the Pocket Pro / Pocket Pro Pearl by ADJ Products, LLC. Every

Pocket Pro / Pocket Pro Pearl has been thoroughly tested and has been shipped in perfect operating

condition. Carefully check the shipping carton for damage that may have occurred during shipping. If

the carton appears to be damaged, carefully inspect your xture for any damage and be sure all equip-

ment necessary to operate the unit has arrived intact. In the event damage has been found or parts are

missing, please contact our toll free customer support number for further instructions. Please do not

return this unit to your dealer without contacting customer support rst.

Introduction: The Pocket Pro / Pocket Pro Pearl is a DMX intelligent, moving head, mini LED xture.

The Pocket Pro / Pocket Pro Pearl can operate as a stand alone xture or in a Primary/Secondary con-

guration. The Pocket Pro / Pocket Pro Pearl has three operating modes; a sound active, show mode,

DMX controlled. This xture is suitable for theaters, studios, retail stores, and other similar locations.

For best results use fog or special eects smoke to enhance the beams projections.

Customer Support: ADJ Products, LLC provides a toll free customer support line, to provide help and

to answer any question should you encounter problems during your set up or initial operation. You

may also visit us on the web at www.adj.com for any comments or suggestions. Service Hours are

Monday through Friday 8:00 a.m. to 4:30 p.m. Pacic Standard Time.

Voice: (800) 322-6337

Fax: (323) 582-2941

E-mail: [email protected]

Warning! To prevent or reduce the risk of electrical shock or re, do not expose this unit to rain or

moisture.

Warning! This may cause severe eye damage. Avoid looking directly into the light source at all times!

Pocket Pro / Pocket Pro Pearl General Information

Pocket Pro / Pocket Pro Pearl General Instructions

To optimize the performance of this product, please read these operating instructions carefully to

familiarize yourself with the basic operations of this unit. These instructions contain important safety

information regarding the use and maintenance of this unit. Please keep this manual with the unit, for

future reference.

Pocket Pro / Pocket Pro Pearl Warranty Registration

The Pocket Pro / Pocket Pro Pearl carries a 2 year (730 days) limited warranty. Please fill out the

enclosed warranty card to validate your purchase and warranty. You may also register your product

online at www.adj.com. All returned service items whether under warranty or not, must be freight pre-

paid and accompany a return authorization (R.A.) number. If the unit is under warranty you must pro-

vide a copy of your proof of purchase invoice. Please contact ADJ Products, LLC customer support

for a R.A. number

ADJ Products, LLC - www.adj.com - Pocket Pro / Pocket Pro Pearl User Manual Page 4

Pocket Pro / Pocket Pro Pearl Features

• DMX-512 Protocol Compatible (11 DMX Channels or 13 Channels)

• 7 Colors + White

• Gobo Wheel with 7 Replaceable Gobos + Spot

• 3 Operating Modes - Sound Active, Show Mode, & DMX Control

• Internal Microphone

• Digital Display for Address and Function Setting

• 4 Preprogrammed Shows

• UC IR Compatible (Not Included) & Airstream App Compatible

Pocket Pro / Pocket Pro Pearl Handling Precautions

Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself,

doing so will void your manufacturer’s warranty. In the unlikely event your unit may require service

please contact ADJ Products, LLC.

During operation the housing may become extremely hot. Avoid touching the unit with bare hands

while in use.

ADJ Products, LLC will not accept any liability for any resulting damages caused by the non-obser-

vance of this manual or any unauthorized modification to this unit.

ADJ Products, LLC - www.adj.com - Pocket Pro / Pocket Pro Pearl User Manual Page 5

Pocket Pro / Pocket Pro Pearl Safety Precautions

For Your Own Personal Safety, Please Read and Understand This Manual Completely Before

You Attempt To Install Or Operate This Unit!

• To reduce the risk of electrical shock or fire, do not expose this unit rain or moisture

• Do not spill water or other liquids into or on to your unit.

• Be sure that the local power outlet match that of the required voltage for your unit.

• Do not attempt to operate this unit if the power cord has been frayed or broken.

• Do not attempt to remove or break off the ground prong from the electrical cord. This prong is

used to reduce the risk of electrical shock and fire in case of an internal short.

• Disconnect from main power before making any type of connection.

• Do not remove the cover under any conditions. There are no user serviceable parts inside.

• Never operate this unit when it’s cover is removed.

• Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 6”

(15cm) between this device and a wall.

• Do not attempt to operate this unit, if it becomes damaged.

• This unit is intended for indoor use only, use of this product outdoors voids all warranties.

• Always mount this unit in safe and stable matter.

• Power-supply cords should be routed so that they are not likely to be walked on or pinched

by items placed upon or against them, paying particular attention to cords at plugs, convenience

receptacles, and the point where they exit from the appliance.

• Cleaning - The fixture should be cleaned only as recommended by the manufacturer.

• Heat - This fixture should be situated away from heat sources such as radiators, heat registers,

stoves, or other appliances (including amplifiers) that produce heat.

• The fixture should be serviced by qualified service personnel when:

A. Objects have fallen, or liquid has been spilled into the fixture.

B. The fixture has been exposed to rain or water.

C. The fixture does not appear to operate normally or exhibits a marked change in performance.

D. The fixture has fallen and/or subjected to extreme handling.

ADJ Products, LLC - www.adj.com - Pocket Pro / Pocket Pro Pearl User Manual Page 6

RISK GROUP 3 - RISK OF EXPOSURE TO ULTRAVIOLET (UV) RADIATION!

FIXTURE EMITS HIGH INTENSITY ULTRAVIOLET (UV) LIGHT AT A WAVELENGTH OF 390NM -

410NM.

WEAR PROPER EYE AND SKIN PROTECTION.

AVOID PROLONGED PERIODS OF EXPOSURE.

AVOID WEARING WHITE COLOR CLOTHING AND/OR USING (UV) PAINTS ON SKIN.

AVOID DIRECT EYE AND/OR SKIN EXPOSURE AT DISTANCES SHORTER THAN 11 feet (3.3m).

DO NOT OPERATE FIXTURE WITH DAMAGED OR MISSING EXTERNAL COVER PROTECTIVE

LENS.

DO NOT LOOK DIRECTLY INTO THE (UV) LIGHT AND/OR VIEW (UV) LIGHT DIRECTLY WITH

OPTICAL INSTRUMENTS THAT MAY CONCENTRATE THE LIGHT/RADIATION OUTPUT.

INDIVIDUALS SUFFERING FROM A RANGE OF EYE CONDITIONS, SUNLIGHT EXPOSURE

DISORDERS, OR INDIVIDUALS USING PHOTO-SENSITIVE MEDICATION, MAY RECEIVE

DISCOMFORT IF EXPOSED TO THE ULTRAVIOLET (UV) LIGHT EMITTED FROM THIS FIXTURE.

Pocket Pro / Pocket Pro Pearl Safety Precautions

ADJ Products, LLC - www.adj.com - Pocket Pro / Pocket Pro Pearl User Manual Page 7

When installing the unit, the trussing or area of installation must be able to hold 10 times the weight

without any deformation. When installing the unit must be secured with a secondary safety attach-

ment, e.g. and appropriate safety cable. Never stand directly below the unit when mounting, remov-

ing, or servicing the unit.

Overhead mounting requires extensive experience, including calculating working load limits, installa-

tion material being used, and perodic safety inspection of all installation material and unit. If you lack

these qualications, do not attempt the installation yourself.

The installaiton should be checked by a skilled person once a year.

Pocket Pro / Pocket Pro Pearl Mounting

The Pocket Pro / Pocket Pro Pearl is fully operational in three dierent mounting positions: hanging

upside-down from a ceiling, mounted sideways on trussing, or set on a at level surface. Be sure

this xture is kept at least 0.5m away from any ammable materials (decoration etc.). Always use

and install the supplied safety cable as a safety measure to prevent accidental damage and/or injury

in the event the clamp fails (see next page).

ADJ Products, LLC - www.adj.com - Pocket Pro / Pocket Pro Pearl User Manual Page 8

Pocket Pro / Pocket Pro Pearl Mounting

NOTICE: The suitable enviromental temperature for this lighting xture is between -25˚ C to 45˚ C.

Do not place this lighting xture in an enviroment where the temperatures are under or above the

temperatures stated above. This will allow the xture to run at its best and help prolong the xture

life.

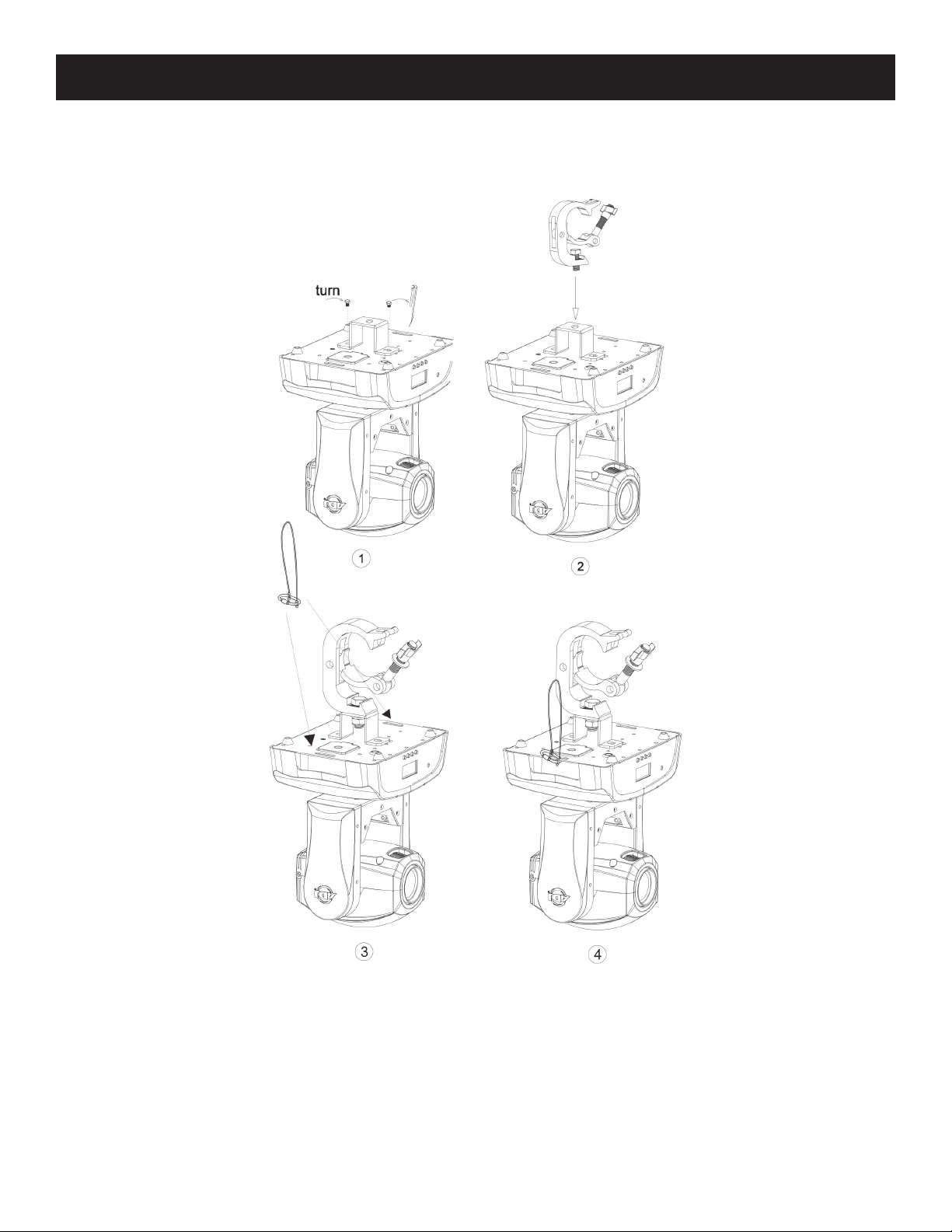

Screw one clamp via a M12 screw and nut to the included bracket. Attach the bracket using the in-

cluded screws to the bottom of the Pocket Pro / Pocket Pro Pearl. Pull the safety-cable through the

side holes located underneath the handles. Run the safety cable over the trussing system or a safe

xation spot. Insert the end in the carabine and tighten the safety screw.

ADJ Products, LLC - www.adj.com - Pocket Pro / Pocket Pro Pearl User Manual Page 9

Pocket Pro / Pocket Pro Pearl DMX Set Up

Power Supply: The ADJ Pocket Pro / Pocket Pro Pearl contains an automatic voltage switch, which

will automatically sense the voltage when it is plugged into the power source. With this switch there

is no need to worry about the correct power voltage. This unit can be plugged in anywhere.

DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used by most lighting and

controller manufactures as a form of communication between intelligent xtures and controllers. A

DMX controller sends DMX data instructions from the controller to the xture. DMX data is sent as

serial data that travels from xture to xture via the DATA “IN” and DATA “OUT” XLR terminals locat-

ed on all DMX xtures (most controllers only have a DATA “OUT” terminal).

DMX Linking: DMX is a language allowing all makes and models of dierent manufacturers to be

linked together and operate from a single controller, as long as all xtures and the controller are DMX

compliant. To ensure proper DMX data transmission, when using several DMX xtures try to use

the shortest cable path possible. The order in which xtures are connected in a DMX line does not

inuence the DMX addressing. For example; a xture assigned a DMX address of 1 may be placed

anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. Therefore, the rst

xture controlled by the controller could be the last xture in the chain. When a xture is assigned

a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit, no

matter where it is located in the DMX chain.

Data Cable (DMX Cable) Requirements (For DMX and Primary/Secondary Operation): The

Pocket Pro / Pocket Pro Pearl can be controlled via DMX-512 protocol. The xture has two DMX

channel modes; 11 channel mode & 13 channel mode. The DMX address is set using the controls on

the front panel of the unit. Your unit and your DMX controller require a approved DMX-512 110 Ohm

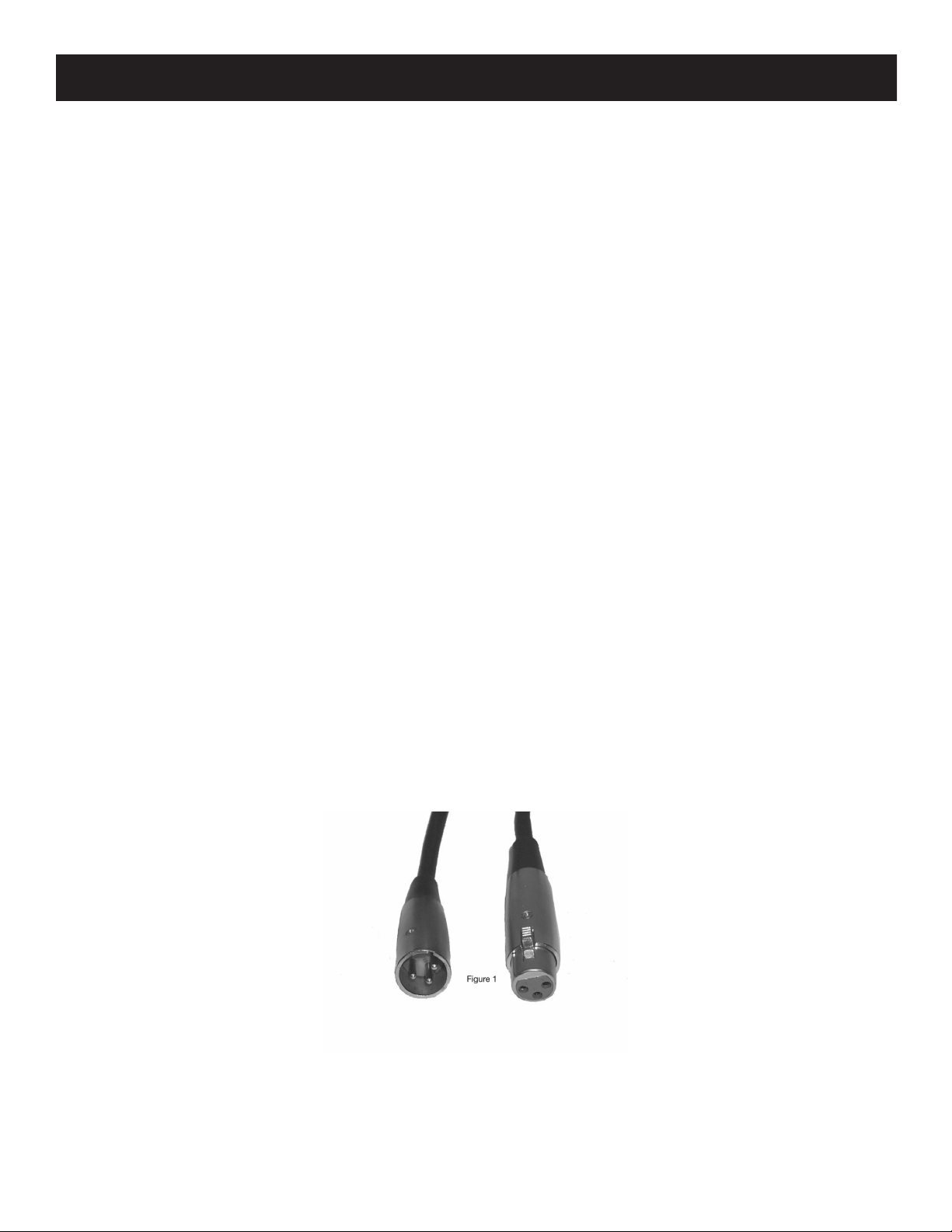

Data cable for data input and data output (Figure 1). We recommend Accu-Cable DMX cables. If you

are making your own cables, be sure to use standard 110-120 Ohm shielded cable (This cable may

be purchased at almost all professional sound and lighting stores). Your cables should be made with

a male and female XLR connector on either end of the cable. Also remember that DMX cable must

be daisy chained and cannot be split.

ADJ Products, LLC - www.adj.com - Pocket Pro / Pocket Pro Pearl User Manual Page 10

5-Pin XLR DMX Connectors. Some manufactures use 5-pin XLR connectors for DATA transmission

in place of 3-pin. 5-pin XLR fixtures may be implemented in a 3-pin XLR DMX line. When inserting

standard 5-pin XLR connectors in to a 3-pin line a cable adaptor must be used, these adaptors are

readily available at most electric stores. The chart below details a proper cable conversion.

3-pin XLR to 5-pin XLR Conversion

Conductor 3-pin XLR Female (out) 5-pin XLR Male (In)

Ground/Shield Pin 1 Pin 1

Data Compliment (- signal) Pin 2 Pin 2

Data True (+ signal) Pin 3 Pin 3

Not Used Pin 4 - Do Not Use

Not Use Pin 5 - Do Not Use

Notice: Be sure to follow gures two and three when making your own cables. Do not use the

ground lug on the XLR connector. Do not connect the cable’s shield conductor to the ground lug

or allow the shield conductor to come in contact with the XLR’s outer casing. Grounding the shield

could cause a short circuit and erratic behavior.

Special Note: Line Termination. When longer runs of cable are used, you may need to use a ter-

minator on the last unit to avoid erratic behavior. A terminator is a 110-120 ohm 1/4 watt resistor

which is connected between pins 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is

inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a

cable terminator (ADJ part number Z-DMX/T) will decrease the possibilities of erratic behavior.

Pocket Pro / Pocket Pro Pearl DMX Set Up

Autres manuels pour POCKET PRO

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ADJ Matériel de DJ

ADJ

ADJ Eliminator Lighting FROST FX BAR W Manuel utilisateur

ADJ

ADJ Mega Bar RGBA Manuel utilisateur

ADJ

ADJ DOTZ PAR 100 Manuel utilisateur

ADJ

ADJ INNO POCKET ROLL Manuel utilisateur

ADJ

ADJ ENCORE BURST RGBW IP Manuel utilisateur

ADJ

ADJ VF FLURRY Manuel utilisateur

ADJ

ADJ MDF2PSUX156 Guide de l'utilisateur

ADJ

ADJ MIRAGE Q6 PAK Manuel utilisateur

ADJ

ADJ PAR Z120 RGBW Manuel utilisateur

ADJ

ADJ Encore Profile 1000 Color Manuel utilisateur

ADJ

ADJ VIZI CMY 16RX Manuel utilisateur

ADJ

ADJ ENCORE FR150Z Manuel utilisateur

ADJ

ADJ Dotz Par Manuel utilisateur

ADJ

ADJ 32 HEX PANEL IP Manuel utilisateur

ADJ

ADJ STARTEC BOOM BOX FX2 Manuel utilisateur

ADJ

ADJ PinPoint Gobo COLOR Manuel utilisateur

ADJ

ADJ SCENE SETTER 48 Manuel utilisateur

ADJ

ADJ 1226100361 Manuel utilisateur

ADJ

ADJ Vizi BSW 300 Manuel utilisateur

ADJ

ADJ FS3000LED Manuel utilisateur

ADJ

ADJ MB DMX II Manuel utilisateur

ADJ

ADJ WiFly QA5 IP Manuel utilisateur

ADJ

ADJ INNO ROLL HP Manuel utilisateur

ADJ

ADJ SABER BAR 6 Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
