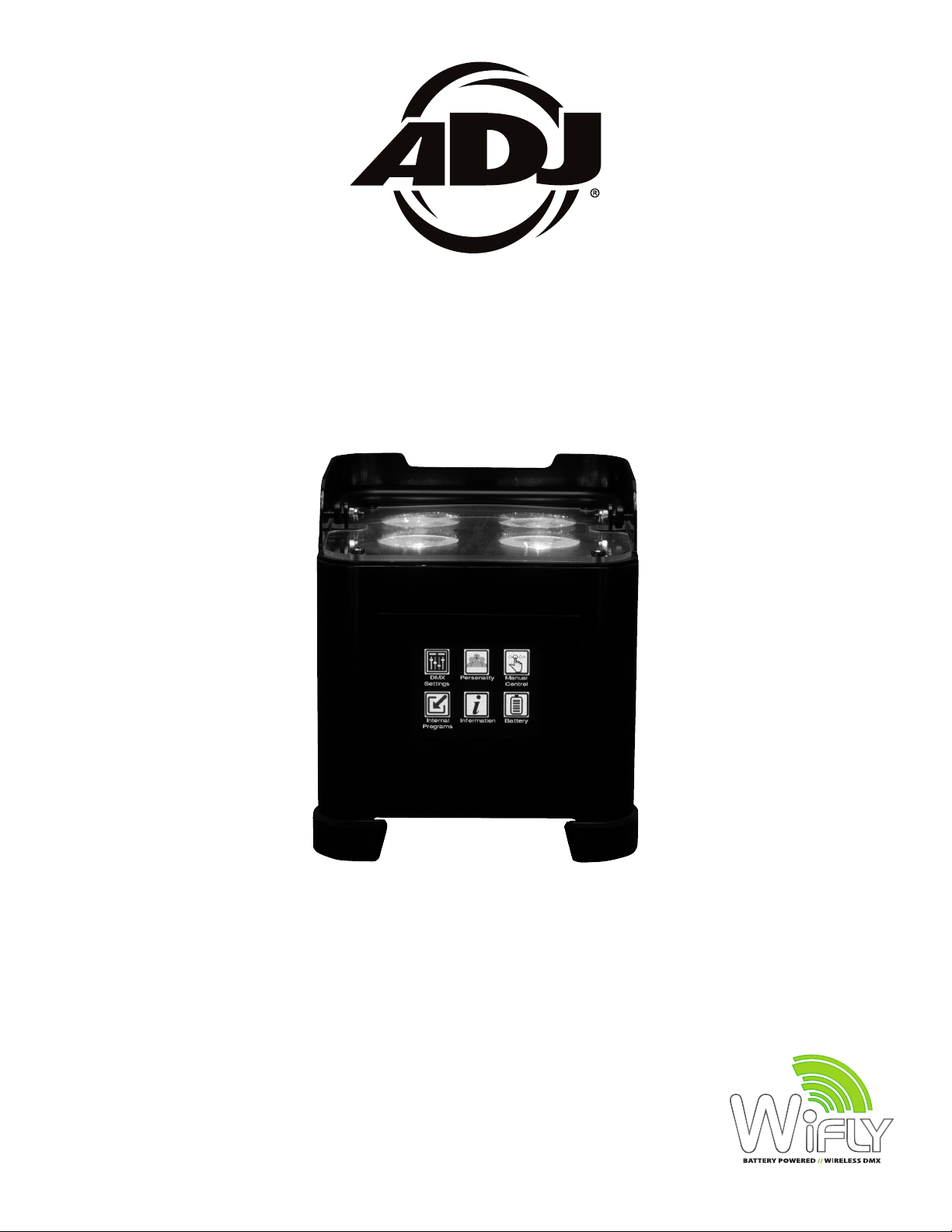

ADJ ELEMENT ST HEX Manuel utilisateur

User Instructions

ELEMENT ST HEX

USA# ELE457

EU# 1226100379

UPC# 818651027853

ITF-14# 10818651027850

Europe Energy Saving Notice

Energy Saving Matters (EuP 2009/125/EC)

Saving electric energy is a key to help protecting the enviroment. Please turn o all electrical prod-

ucts when they are not in use. To avoid power consumption in idle mode, disconnect all electrical

equipment from power when not in use. Thank you!

instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying

product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection

claimed includes all forms and matters of copyrightable materials and information now allowed by

statutory or judicial law or hereinafter granted. Product names used in this document may be

trademarks or registered trademarks of their respective companies and are hereby acknowledged.

All non-ADJ Products, LLC brands and product names are trademarks or registered trademarks of

their respective companies.

ADJ Products, LLC and all aliated companies hereby disclaim any and all liabilities for property,

equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic

loss associated with the use or reliance of any information contained within this document, and/or as

a result of the improper, unsafe, unsucient and negligent assembly, installation, rigging, and opera-

tion of this product.

FCC STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

FCC RADIO FREQUENCY INTERFERENCE WARNINGS & INSTRUCTIONS

This product has been tested and found to comply with the limits as per Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful interference in a residential installation.

This device uses and can radiate radio frequency energy and, if not installed and used in accordance with

the included instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this device does cause harmful

interference to radio or television reception, which can be determined by turning the device off and on, the

user is encouraged to try to correct the interference by one or more of the following methods:

· Reorient or relocate the device.

· Increase the separation between the device and the receiver.

· Connect the device to an electrical outlet on a circuit different from which the radio receiver is

connected.

· Consult the dealer or an experienced radio/TV technician for help.

DOCUMENT VERSION

Due to additional product features and/or enhancements, an updated version of this document

may be available online.

Please check www.adj.com for the latest revision/update of this manual before beginning

installation and/or programming.

02/05/20 1 1.00 6/7/8/11/12 Initial Version

Date Document

Version

Software

Version > DMX Channel Mode Notes

ADJ Products, LLC - www.adj.com - Element ST Hex User Manual Page 2

Element ST Hex Table of Contents

Introduction

Features I Warranty Registration I Installation

Safety Guidelines

Battery Precautions

Battery Status & Charging

Overview

Installation

DMX Addressing

DMX Modes

Color Macro Chart

System Menu

WiFly Set Up I WiFly Master-Slave Set Up

UC IR & Airstream Control

Dimmer Curve Chart

Dimensional Drawings I Tilt Adjustment Angles

Trouble Shooting I Cleaning

Limited Warranty (USA Only)

Technical Specications

ADJ Products, LLC - www.adj.com - Element ST Hex User Manual Page 3

Element ST Hex Introduction

Unpacking: Thank you for purchasing the Element ST Hex by ADJ Products, LLC. Every Element ST

Hex has been thoroughly tested and has been shipped in perfect operating condition. Carefully check

the shipping carton for damage that may have occurred during shipping. If the carton appears to be

damaged, carefully inspect your xture for any damage and be sure all accessories necessary to oper-

ate the unit has arrived intact. In the case damage has been found or parts are missing, please contact

our toll free customer support number for further instructions. Do not return this unit to your dealer

without rst contacting customer support.

Introduction: The Element ST Hex is a rechargeable lithium battery powered, DMX intelligent, LED

par fixture with ADJ’s WiFly TransCeiver with wireless DMX built-in. WiFly control and battery power

gives you the freedom to set up your unit where ever you wish without the restrictions of power or DMX

cabling. This unit can be used in a stand alone mode or connected in a Master/Slave set up. To optimize the

performance of this product, please read these operating instructions carefully to familiarize yourself

with the basic operations of this unit. These instructions contain important safety information regarding

the use and maintenance of this unit. Please keep this manual with the unit, for future reference.

Customer Support: Contact ADJ Service for any product related service and support needs. Also visit

forums.adj.com with questions, comments or suggestions.

Parts: To purchase parts online visit http://parts.americandj.com

ADJ SERVICE USA - Monday - Friday 8:00am to 4:30pm PST

Voice: 800-322-6337 | Fax: 323-582-2941 | [email protected]

ADJ SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET

Voice: +31 45 546 85 60 | Fax: +31 45 546 85 96 | [email protected]

ADJ PRODUCTS LLC USA

6122 S. Eastern Ave. Los Angeles, CA. 90040

323-582-2650 | Fax 323-532-2941 | www.adj.com | info@adj.com

ADJ SUPPLY Europe B.V

Junostraat 2 6468 EW Kerkrade, The Netherlands

+31 (0)45 546 85 00 | Fax +31 45 546 85 99

www.adj.eu | [email protected]

ADJ PRODUCTS GROUP Mexico

AV Santa Ana 30 Parque Industrial Lerma, Lerma, Mexico 52000

+52 (728) 282-7070

Warning! To prevent or reduce the risk of electrical shock or re, do not expose this unit to rain or

moisture.

Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself,

doing so will void your manufactures warranty. In the unlikely event your unit may require service

please contact ADJ Products, LLC.

PLEASE recycle the shipping carton when ever possible.

Element ST Hex Features

Element ST Hex Warranty Registration

The Element ST Hex carries a 2 year limited warranty. Please fill out the enclosed warranty card to

validate your purchase. All returned service items whether under warranty or not, must be freight pre-

paid and accompany a return authorization (R.A.) number. The R.A. number must be clearly written on

the outside of the return package. A brief description of the problem as well as the R.A. number must

also be written down on a piece of paper included in the shipping carton. If the unit is under warranty,

you must provide a copy of your proof of purchase invoice. You may obtain a R.A. number by con-

tacting our customer support team on our customer support number. All packages returned to the

service department not displaying a R.A. number on the outside of the package will be returned to the

shipper.

ADJ Products, LLC - www.adj.com - Element ST Hex User Manual Page 4

• Multiple Operating Modes

• Electronic Dimming 0-100%

• RGBWA+UV Color Mixing

• 5 Selectable Dimming Curves

• 63 Color Macros

• Built in Microphone

• Multiple DMX Channel Modes

• Battery Powered with Rechargeable Lithium Battery

• Built-In ADJ’s WiFly TransCeiver Wireless DMX

• ADJ UC IR & Airstream IR compatible

Incuded Accessories:

1 x 12.6V/2A DC Power Adapter

1 x UC IR Remote Control

1 x Airstream IR Transmitter

ADJ Products, LLC - www.adj.com - Element ST Hex User Manual Page 5

Element ST Hex Safety Guidelines

• To reduce the risk of electrical shock or re, do not expose this unit rain or moisture

• Do not attempt to operate this unit if the power cord has been frayed or broken. Do not attempt to

remove or break o the ground prong from the electrical cord. This prong is used to reduce the risk

of electrical shock and re in case of an internal short.

• Disconnect from main power before making any type of connection.

• Do not remove the cover under any conditions. There are no user serviceable parts inside.

• Never operate this unit when it’s housing is removed.

• Never plug this unit in to a dimmer pack

• Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 6” (15cm)

between this device and a wall.

• Do not attempt to operate this unit, if it becomes damaged.

• During long periods of non-use, disconnect the unit’s main power.

• Always mount this unit in safe and stable matter.

• Power supply cords should be routed so that they are not likely to be walked on or pinched by

items placed upon or against them, paying particular attention to the point they exit from the unit.

• Cleaning -The fixture should be cleaned only as recommended by the manufacturer. See page 22

for cleaning details.

• Heat -The appliance should be situated away from heat sources such as radiators, heat registers,

stoves, or other appliances (including amplifiers) that produce heat.

• The fixture should be serviced by qualified service personnel when:

A. The power-supply cord or the plug has been damaged.

B. The appliance does not appear to operate normally or exhibits a marked change in performance.

C. The fixture has fallen and/or subjected to extreme handling.

Element ST Hex Safety Precautions

RISK GROUP 3 - RISK OF EXPOSURE TO ULTRAVIOLET (UV) RADIATION!

FIXTURE EMITS HIGH INTENSITY ULTRAVIOLET (UV) LIGHT FROM THE UV LED.

WEAR PROPER EYE AND SKIN PROTECTION.

AVOID PROLONGED PERIODS OF EXPOSURE TO THE UV LED.

AVOID WEARING WHITE COLOR CLOTHING AND/OR USING (UV) PAINTS ON SKIN.

AVOID DIRECT EYE AND/OR SKIN EXPOSURE AT DISTANCES SHORTER THAN 11 feet (3.3m).

DO NOT OPERATE FIXTURE WITH DAMAGED OR MISSING EXTERNAL COVER.

DO NOT LOOK DIRECTLY INTO THE (UV) LIGHT AND/OR VIEW (UV) LIGHT DIRECTLY WITH

OPTICAL INSTRUMENTS THAT MAY CONCENTRATE THE LIGHT/RADIATION OUTPUT.

INDIVIDUALS SUFFERING FROM A RANGE OF EYE CONDITIONS, SUNLIGHT EXPOSURE

DISORDERS, OR INDIVIDUALS USING PHOTOSENSITIVE MEDICATION, MAY RECEIVE

DISCOMFORT IF EXPOSED TO THE ULTRAVIOLET (UV) LIGHT EMITTED FROM THIS FIXTURE.

ADJ Products, LLC - www.adj.com - Element ST Hex User Manual Page 6

ADJ Products, LLC - www.adj.com - Element ST Hex User Manual Page 7

Element ST Hex Battery Precautions

1. Handling of Batteries

1.1 Do Not Short Circuit the Battery

Try to never short circuit the battery. It generates a very high current which could cause the battery

to overheat which may result in electrolyte gel leakage, harmful fumes, or explosion. The LIR tabs

may easily short-circuit by placing them on conductive surface. A short circuit may lead to heat build

up and damage of the battery. An appropriate circuitry with PCM is employed to protect accidental

short circuit of the battery pack.

1.2 Mechanical shock

Droping the unit, impact hit, bending, etc. may cause failure or shortend life of the LIR battery.

3. Other

3.1 Battery connection

1). Direct soldering of wire leads or devices to the battery is strictly prohibited.

2). Lead tabs with pre-soldered wiring shall be spot welded to the batteries. Direct soldering may

cause damage of components, such as separator and insulator, by heat build up.

3.2 Prevention of short circuit within a battery pack

There is enough insulation layers between wiring and the batteries to provide extra safety protection.

The battery pack is constructed in a way that no short circuit will occur which may cause smoke or

re.

3.3 Do No Disassemble the Batteries

1). Never disassemble the batteries.

Doing this may cause a internal short circuit in the battery, which may lead to harmful fumes, re,

explosion, or other problems.

2). Electrolyte Gel is harmful

Electrolyte Gel should not leak from the LIR battery. Should the electrolyte gel come into contact

with the skin or eyes, ush the area of contact immediately with fresh water and seek medical atten-

tion immediately.

3.4 Do Not Expose the Battery to Heat or Fire

Never incinerate or dispose of the batteries in re. This may cause an explosion, which would be

very dangerous.

3.5 Do Not Expose the Battery to water or liquids

Never soak/drop the batteries in liquids such as water, seawater, drinks such as soft drinks, juices,

coee or other.

3.6 Battery Replacement

For battery replacement please contact ADJ customer support (800) 322-6337.

3.7 Do Not use a damaged Battery

The battery could be damaged during shipping, caused by shock. Should the battery be found dam-

aged, including damages to the plastic casing of the battery, deformation of the battery package,

smelling of an electrolyte, or leakage of the electrolyte gel, or other, DO NOT use the battery. A bat-

tery with a odor of electrolyte or a gel leakage should be placed away from re to avoid re or explo-

sion.

ADJ Products, LLC - www.adj.com - Element ST Hex User Manual Page 8

Element ST Hex Battery Precautions

4. Battery Storage

When storing the battery, it should be stored at room temperature, with a charge of at least 50%. We

recommend that during long periods of storage that the battery be charged every 6 months. Doing

this will prolong the life of the battery and will also make sure that the battery charge does not fall

below the 30% mark.

5. Other Chemical Reaction

Because batteries utilize a chemical reaction, battery performance will deteriorate over time even if

stored for a long period of time without being used. In addition, if the various usage conditions such

as charge, discharge, ambient temperature, etc. are not maintained within the specied ranges, the

life expectancy of the battery maybe shortened or the device in which the battery is used may be

damaged by electrolyte gel leakage. If the batteries cannot maintain a charge for long periods of

time, even when they are charged correctly, this may indicate it is time to change the battery.

6. Battery Disposal

Please dispose of battery according to local regulations.

Battery Status:

This function is used to check the battery life status.

1. Plug the fixture in and press the BATTERY icon.

2.Press the UP or DOWN buttons to highlight CURRENT LIFE and press ENTER. The number that is

displayed is the remaining battery life.

Never let the battery fully die, this severly shortens the life of the battery.

Battery Charging:

This function is used to check the battery charging status.

1. Plug the fixture in and press the BATTERY icon.

2.Press the UP or DOWN buttons to highlight CHARGING TIME and press ENTER. The number that

is displayed is the remaining battery life.

To recharge the battery, plug the supplied power adapter into the input located on the bottom of the

unit and plug the other end into a matching power source. TO CHARGE THE BATTERY, THE POWER

SWITCH MUST BE IN THE “ON” POSITION. It takes about 5 hours to reach full charge.

NOTE: CHARGING TIME will display “------------” when:

- The power adapter is NOT connected.

- The POWER SWITCH is “ON” but the LOAD setting is set to “OFF”.

- The power adapter is connected but the POWER SWITCH is “OFF”.

Note: When unplugging the unit from charging and then applying power via battery, there will

be a minimal charge drop.

For faster charging, turn the POWER SWITCH “ON” and the LOAD setting to “OFF”.

Element ST Hex Battery Status & Charging

ADJ Products, LLC - www.adj.com - Element ST Hex User Manual Page 9

Element ST Hex Overview

1. Service Port: This port is used for software updates.

2. Tilt Adjustment Leg: This tilt adjustment leg is used to angle the unit to various degrees. There

are 7 dierent angled levels. See page 21 for more information.

NOTE: Sliding the adjustment leg out to far will cause the leg to “dislodge” from the unit.

3. Voltage Adapter Input: This input is used to connect the included voltage adapter. After connecting

the adapter, plug the other end into a matching power source.

NOTE: Please only use the provided power adapter that is included with the unit.

4. Power On/O Switch: This switch is used to power ON/OFF the unit.

Table des matières

Autres manuels ADJ Matériel de DJ

ADJ

ADJ ENCORE BURST 100 IP Manuel utilisateur

ADJ

ADJ Encore Profile 1000 WW Manuel utilisateur

ADJ

ADJ PinPoint Gobo COLOR Manuel utilisateur

ADJ

ADJ Gobo Motion LED Instructions d'installation

ADJ

ADJ COB CannOn Wash DW Manuel utilisateur

ADJ

ADJ 15 HEX BAR IP Manuel utilisateur

ADJ

ADJ MB DMX II Manuel utilisateur

ADJ

ADJ HYD320 Manuel utilisateur

ADJ

ADJ ENCORE BURST 200 Manuel utilisateur

ADJ

ADJ DOTZ PAR 100 Manuel utilisateur

ADJ

ADJ Eliminator Lighting FROST FX BAR W Manuel utilisateur

ADJ

ADJ REVO 4 IR Manuel utilisateur

ADJ

ADJ ENCORE BURST RGBW IP Manuel utilisateur

ADJ

ADJ MDF2-9SYS Manuel utilisateur

ADJ

ADJ HYDRO WASH X7 Manuel utilisateur

ADJ

ADJ VIZI CMY 16RX Manuel utilisateur

ADJ

ADJ MEGA HEX PAR Manuel utilisateur

ADJ

ADJ HEX700 Manuel utilisateur

ADJ

ADJ HYDRO BEAM X1 Manuel utilisateur

ADJ

ADJ ELEMENT H6 FC Manuel utilisateur

ADJ

ADJ wifly bar qa5 Manuel utilisateur

ADJ

ADJ Encore Profile 1000 Color Manuel utilisateur

ADJ

ADJ XPress LED Manuel utilisateur

ADJ

ADJ MOD QW100 Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
