ADJ ADJ-610 Manuel utilisateur

User Instructions

CONTENTS

1. SafetyInstructions............................................................................................................................2

2. TechnicalSpecifications....................................................................................................................4

3. ControlPanel....................................................................................................................................5

4. Howtosetthefixture......................................................................................................................6

4.1Menu..............................................................................................................................................6

4.2OffsetAdjust.................................................................................................................................10

5. ControlbyDMX512controller......................................................................................................12

5.1DMXConnection..........................................................................................................................12

5.2DMXAddressSetting....................................................................................................................12

5.3DMXConfiguration.......................................................................................................................13

6. Troubleshooting.............................................................................................................................26

7. FixtureCleaning.............................................................................................................................27

1. SafetyInstructions

WARNING

PleasekeepthisUserGuideforfutureconsultation.Ifyouselltheunittoanotheruser,besure

thattheyalsoreceivethisinstructionbooklet.

Unpackandcheckcarefullythereisnotransportationdamagebeforeusingtheunit.

Beforeoperating,ensurethatthevoltageandfrequencyofpowersupplymatchthepower

requirementsoftheunit.

It’simportanttogroundtheyellow/greenconductortoearthinordertoavoidelectricshock.

Theunitisforindooruseonly.Useonlyinadrylocation.

Theunitmustbeinstalledinalocationwithadequateventilation,atleast50cmfromadjacent

surfaces.Besurethatnoventilationslotsareblocked.

Disconnectmainpowerbeforereplacementorservicing.

Makesuretherearenoflammablematerialsclosetotheunitwhileoperatingasitisfirehazard.

Usesafetycablewhenfixesthisunit.DONOThandletheunitbytakingitsheadonly,butalways

bytakingitsbase.

MaximumambienttemperatureisTa:40℃.DONOToperateitwherethetemperatureishigher

thanthis.

Unitsurfacetemperaturemayreachupto75℃.DONOTtouchthehousingbare‐handduringits

operation.Turnoffthepowerandallowabout15minutesfortheunittocooldownbefore

replacingorserving.

Intheeventofseriousoperatingproblem,stopusingtheunitimmediately.Nevertrytorepair

theunitbyyourself.Repairscarriedoutbyunskilledpeoplecanleadtodamageormalfunction.

Pleasecontactthenearestauthorizedtechnicalassistancecenter.Alwaysusethesametype

spareparts.

DONOTtouchanywireduringoperationashighvoltagemightbecausingelectricshock.

Pleasereadcarefullytheinstruction,whichincludesimportant

informationabouttheinstallation

usa

eandmaintenance.

Warning:

Topreventorreducetheriskofelectricalshockorfire,donotexposetheunittorainor

moisture.

DONOTopentheunitwithinfiveminutesafterswitchingoff.

Thehousing,thelenses,ortheultravioletfiltermustbereplacediftheyarevisiblydamaged.

Caution:

Therearenouserserviceablepartsinsidetheunit.DONOTopenthehousingorattemptany

repairsyourself.Intheunlikelyeventyourunitmayrequireservice,pleasecontactyournearest

dealer.

Installation:

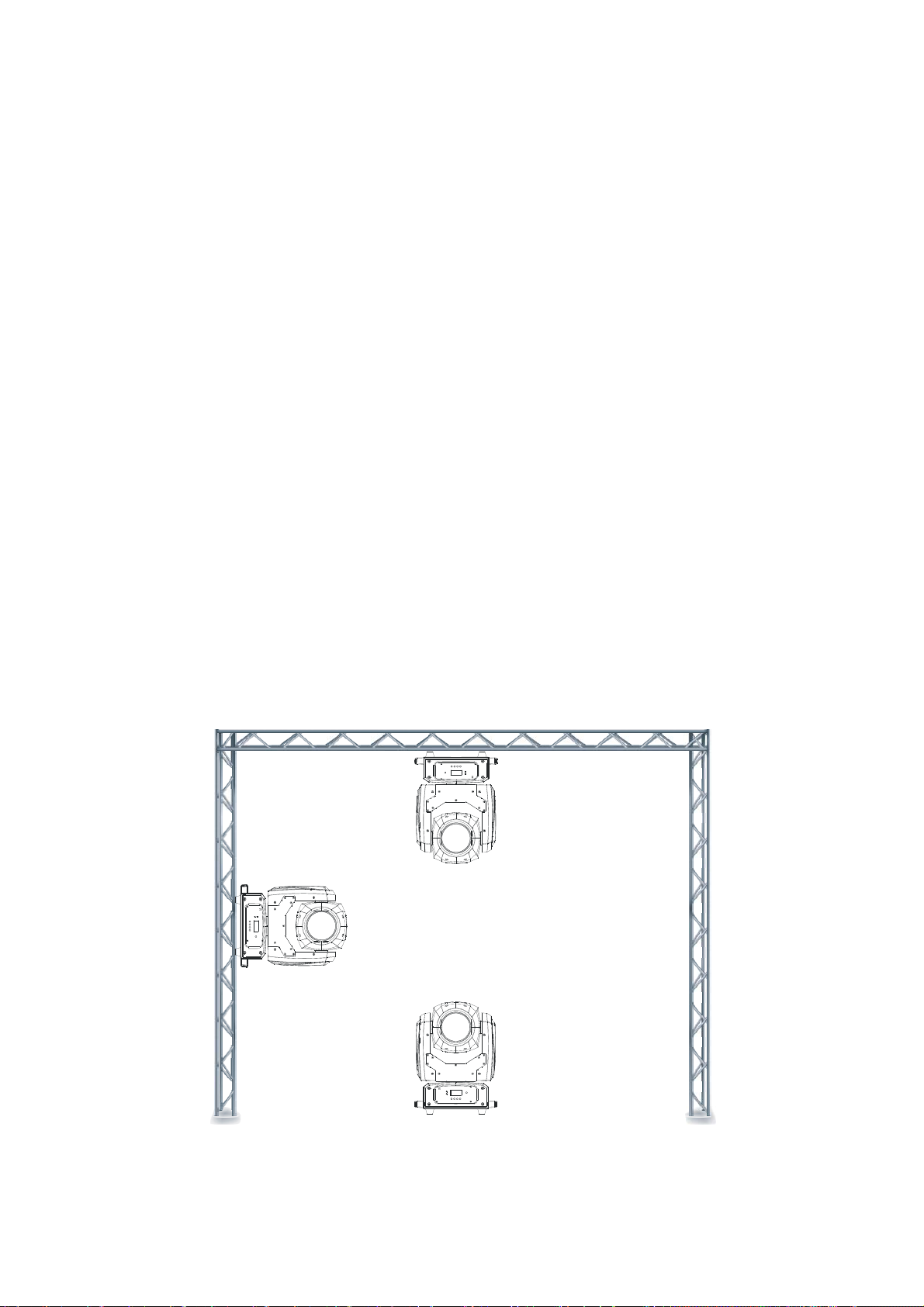

Theunitisfullyoperationalinthreedifferentmountingpositions,hangingupside‐downfroma

ceilingorsetonaflatlevelsurface.Toavoidinternaldamagetotheunit,nevermounttheuniton

itssideasillustratedabove.Besurethisfixtureiskeptatleast0.5mawayfromanyflammable

materials(decorationetc.).Alwaysuseandinstallthesuppliedsafetycableasasafetymeasureto

preventaccidentaldamageand/orinjuryintheeventtheclampfails.

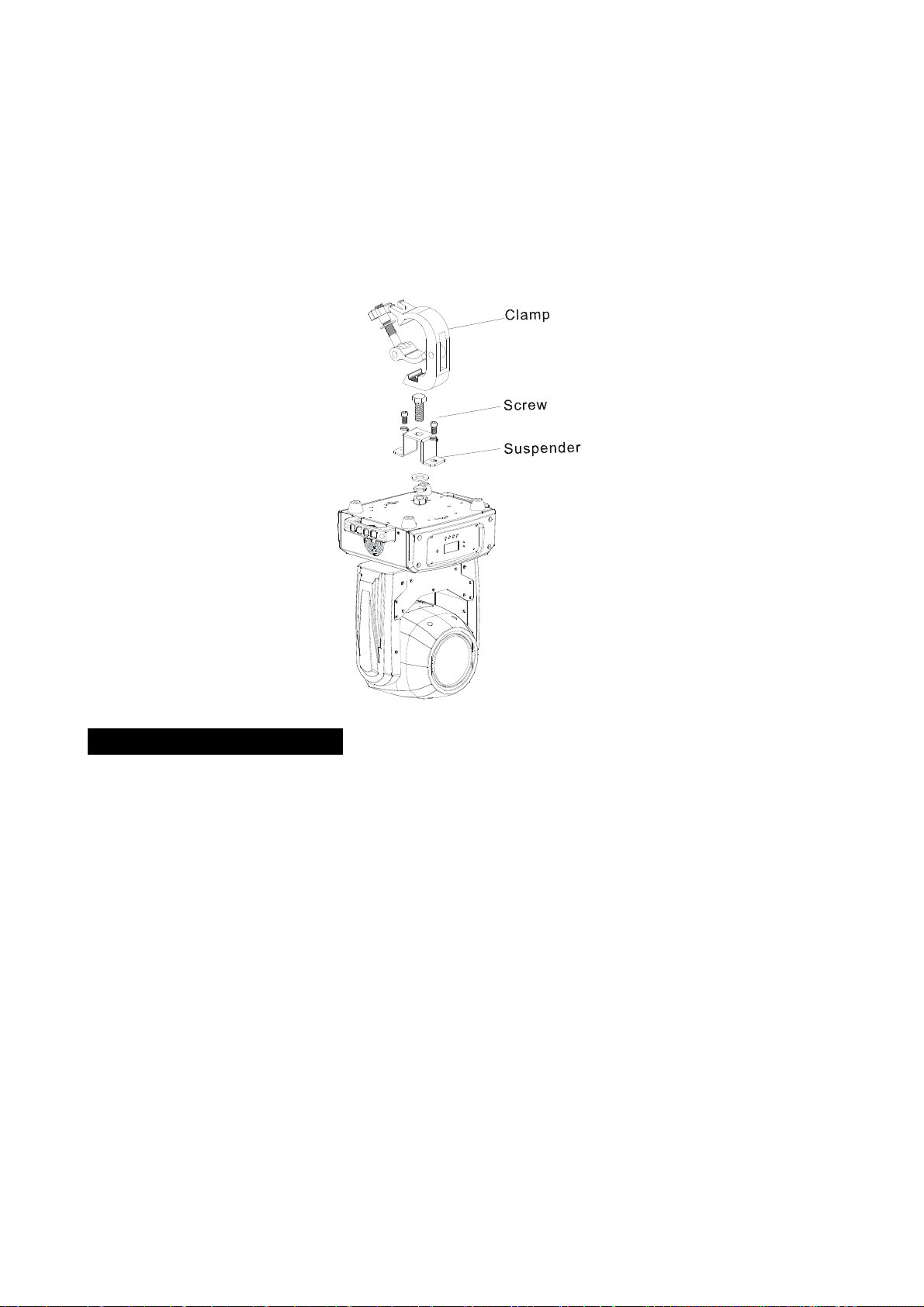

1. BolteachclamptotheOmegaholderwithscrewandlocknutthroughtheholeintheholder.

2. Fastertheomegaholdersonthebottomofthebasebyinsertingquick‐lockfastenersintothe

holesofthebaseandtightenfullyclockwise.

3. Hangthefixturetothesupportthroughclampandfasterthescrews,Fasterthesafetycable

throughthebottomofthebaseandoverthesupport.

2. TechnicalSpecifications

DMXChannels:15/17channelsmode

LCDdisplayforeasynavigation

Perfectforstage,theatre,TVstudio,rentalanddiscotheques

Voltage: AC100~240V,50/60Hz

Powerconsumption: 199W

LED: OSRAMSIRIUSHRI100W

Fuse:

PowerCordDaisyChain:

T5Amp

8Fixtures(120V/60Hz);16Fixtures(230V/50Hz)

BeamAngle: 3Degree

Dimension: 279x225x387mm

Weight: 9.2Kgs

3. ControlPanel

1. Button:

MENUToselecttheprogrammingfunctions

DOWNTogoforwardintheselectedfunctions

UPTogobackwardintheselectedfunctions

ENTERToconfirmtheselectedfunctions

2. Microphone:Toreceivemusicforsoundactive;

3. LED:

POWEROnPowerOn

DMXOnDMXinputpresent

4. FunctionDisplay:Usedtoshowthevariousmenusandtheselectedfunction;

5. IRReceiver:ToreceivetheIRsignal;

6. Fuse:Protectstheunitfromover‐voltageorshortcircuit;

7. PowerIn/out:Usedtoconnecttosupplypower.

8. DMXIn/out:Waterproofcablewith3‐pinXLRconnectorsforDMX512operation;

4. Howtosetthefixture

4.1Menu

Toselectanyofthegivenfunctions,presstheMENUbuttonuptowhentherequiredoneis

showingonthedisplay.SelectthefunctionbytheENTERbuttonandthedisplaywillblink.Usethe

DOWNandUPbuttontochangethemode.Oncetherequiredmodehasbeenselected,pressthe

ENTERbuttontosetup,togobacktothefunctionswithoutanychangepresstheMENUbutton

again.HoldandpresstheMENUbuttonaboutonesecondorwaitforoneminutetoexitthemenu

mode.

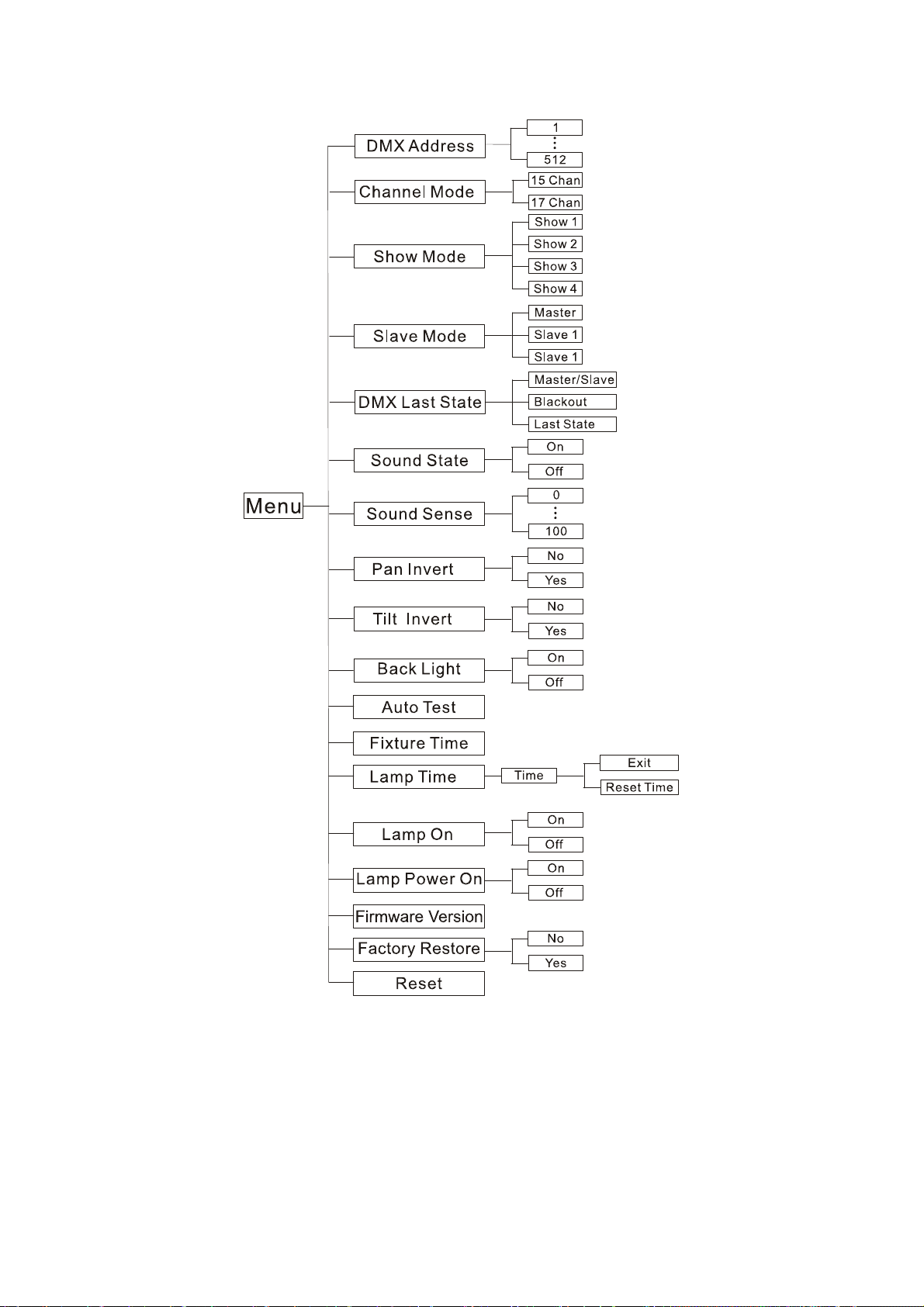

Themainfunctionsareshowingbelow:

DMXAddress

PresstheMENUbuttonuptowhentheDMXAddressisshownonthedisplay.PressingENTER

buttonandthedisplaywillblink.UseDOWNandUPbuttontochangethevalue.Oncetheaddress

hasbeenselected,pressENTERbuttontosetuporautomaticallyexitmenumodewithoutany

changeafter10seconds.BacktothepreviousfunctionswithoutanychangepressMENUbutton.

ChannelMode

PresstheMENUbuttonuptowhentheChannelModeisshownonthedisplay.Pressingthe

ENTERbutton.UseDOWNandUPbuttontoselectthe15Chanor17Chanmode.Onceselect,

presstheENTERbuttontosetuporautomaticallyexitmenumodewithoutanychangeafter10

seconds.TogobacktothefunctionswithoutanychangepresstheMENUbutton.

ShowMode

PresstheMENUbuttonuptowhentheShowModeisshownonthedisplay.PressingtheENTER

button.UseDOWNandUPbuttontoselecttheShow1,Show2,Show3orShow4mode.Once

select,presstheENTERbuttontosetuporautomaticallyexitmenumodewithoutanychange

after10seconds.TogobacktothefunctionswithoutanychangepresstheMENUbutton.

SlaveMode

PresstheMENUbuttonuptowhentheSlaveModeisshownonthedisplay.PressingtheENTER

button.UseDOWNandUPbuttontoselecttheMaster,Slave1orSlave2.Onceselect,pressthe

ENTERbuttontosetuporautomaticallyexitmenumodewithoutanychangeafter10seconds.To

gobacktothefunctionswithoutanychangepresstheMENUbutton.

DMXLastState

PresstheMENUbuttonuptowhentheDMXLastStateisshownonthedisplay.PresstheENTER

button,useDOWNandUPbuttontoselecttheMasterSlave,BlackoutorLastState.Onceselect,

pressENTERbuttontostoreorautomaticallyexitmenumodewithoutanychangeafter10

seconds.TogobacktothefunctionswithoutanychangepresstheMENUbutton.

SoundState

PresstheMENUbuttonuptowhentheSoundStateisshownonthedisplay.PressingENTER

button,UseDOWNandUPbuttontoselecttheOnorOff.Onceselect,pressENTERbuttonto

setuporautomaticallyexitmenumodewithoutanychangeafter10seconds.Togobacktothe

functionswithoutanychangepresstheMENUbutton.

SoundSense

PresstheMENUbuttontoshowSoundSenseonthedisplay.PresstheENTERbuttonandthe

displaywillblink.UsetheDOWNandUPbuttontoadjustthevaluefrom0to100,pressthe

ENTERbuttontosetup,togobacktothefunctionswithoutanychangepresstheMENUbutton

again.HoldandpresstheMENUbuttonaboutonesecondorwaitforoneminutetoexitthemenu

mode.

PanInvert

PresstheMENUbuttonuntilPanInvertisshowingonthedisplay.PressingtheENTERbuttonand

thedisplaywillblink.UsetheDOWNandUPbuttontoselecttheNoorYes,presstheENTER

buttontoconfirmorautomaticallyreturntothemainfunctionswithoutanychangeafter8

seconds.TogobacktothefunctionswithoutanychangepresstheMENUbuttonagain.

TiltInvert

PresstheMENUbuttonuntilTiltInvertisshowingonthedisplay.PressingtheENTERbuttonand

thedisplaywillblink.UsetheDOWNandUPbuttontoselecttheNoorYes,presstheENTER

buttontoconfirmorautomaticallyreturntothemainfunctionswithoutanychangeafter8

seconds.TogobacktothefunctionswithoutanychangepresstheMENUbuttonagain.

BackLight

PresstheMENUbuttonuntilBackLightisshowingonthedisplay.PressingtheENTERbuttonand

thedisplaywillblink.UsetheDOWNandUPbuttontoselecttheOfforOn,presstheENTER

buttontoconfirmorautomaticallyreturntothemainfunctionswithoutanychangeafter8

seconds.TogobacktothefunctionswithoutanychangepresstheMENUbuttonagain.

AutoTest

PresstheMENUbuttonuptowhentheAutoTestisblinkingonthedisplay.PresstheENTER

buttonandtheunitwillrunthebuilt‐inprogrammerforself‐test.Togobacktothefunctionspress

theMENUbutton.

FixtureTime

PresstheMENUbuttonuptowhentheFixtureTimeisblinkingonthedisplay.PresstheENTER

buttonandthedisplaywillshowthenumberofworkinghoursoftheunit.Togobacktothe

functionspresstheMENUbutton.

LampTime

PresstheMENUbuttonuptowhentheLampTimeisblinkingonthedisplay.PresstheENTER

buttonandthedisplaywillshowthenumberofworkinghoursofthelamp.PresstheENTERbuton

andusetheDOWNandUPbuttontoselecttheExitorResetTime.Togobacktothefunctions

presstheMENUbutton.

LampOn
