ADJ DOTZ PAR 100 Manuel utilisateur

User Manual

DOTZ PAR 100

instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying

product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection

claimed includes all forms and matters of copyrightable materials and information now allowed by

statutory or judicial law or hereinafter granted. Product names used in this document may be trade-

marks or registered trademarks of their respective companies and are hereby acknowledged. All

non-ADJ Products, LLC brands and product names are trademarks or registered trademarks of their

respective companies.

ADJ Products, LLC and all aliated companies hereby disclaim any and all liabilities for property,

equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic

loss associated with the use or reliance of any information contained within this document, and/or as

a result of the improper, unsafe, insucient and negligent assembly, installation, rigging, and opera-

tion of this product.

Europe Energy Saving Notice

Energy Saving Matters (EuP 2009/125/EC)

Saving electric energy is a key to help protecting the enviroment. Please turn o all electrical products when

they are not in use. To avoid power consumption in idle mode, disconnect all electrical equipment from power

when not in use. Thank you!

Date Document

Version

Software

Version DMX Channels Notes

09/2020 1.0 1.0 3 / 4 / 5 / 9 Channels Initial Release.

10/25/2021 1.1 1.10 No Change Updated Formatting

DOCUMENT VERSION

Due to additional product features and/or enhancements, an updated version of

this document may be available online.

Please check www.adj.com for the latest revision/update of this manual

before beginning installation and/or programming.

TABLE OF CONTENTS

Introduction 4

General Instruction | Features | Warranty Registration 5

Safety Precautions 6

Setup 7

System Menu 9

Universal DMX Control | Primary-Secondary Configuration 11

Dotz Par RF Remote 12

DMX Traits 13

Color Macro Chart 15

Photometrics 16

Dimmer Curve Chart | Power Cord Daisy Chain 17

Fuse Replacement | Cleaning | Trouble Shooting 18

Limited Warranty (USA Only) 19

Specifications 20

Unpacking: Thank you for purchasing the Dotz Par 100 by ADJ Products, LLC. Every Dotz Par 100

has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the

shipping carton for damage that may have occurred during shipping. If the carton appears to be dam-

aged, carefully inspect your xture for any damage and be sure all accessories necessary to operate

the unit have arrived intact. In the event that damage has been found or parts are missing, please

contact our toll free customer support number for further instructions. Do not return this unit to your

dealer without rst contacting customer support.

Introduction: The Dotz Par 100 is part of ADJ’s continuing pursuit for creating high quality aordable

intelligent xtures. The Dotz Par 100 is a high performance, DMX intelligent, moving head LED xture.

This xture is a great piece for retail stores, displays, mood, architectural, interior and exterior decora-

tion, and clubs. This unit can be used as a stand alone, or in a Primary/Secondary conguration. The

unit can also be controlled via DMX controller. This xture is suitable for theaters, studios, retail stores,

and other similar locations.

Customer Support: ADJ Products, LLC provides a toll free customer support line to answer any question

s that may arise during set up or initial operation. You may also visit us on the web at www.adj.com for

any comments or suggestions. Service Hours are Monday through Friday 8:00 a.m. to 4:30 p.m. Pacic

Standard Time.

Voice: (800) 322-6337

Fax: (323) 582-2941

E-mail: [email protected]

To purchase parts online visit http://parts.adj.com.

Warning! To prevent or reduce the risk of electrical shock or re, do not expose this unit to rain or

moisture.

CAUTION! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself,

as doing so will void your manufacturer’s warranty. In the unlikely event your unit may require service,

please contact ADJ Products, LLC.

Do not discard the shipping cartoon in the trash. Please recycle when ever possible.

INTRODUCTION

GENERAL INSTRUCTIONS

Please read these operating instructions carefully to familiarize yourself with the basic operations of

this unit. These instructions contain important safety information regarding the use and maintenance

of this unit. Please keep this manual with the unit for future reference.

FEATURES

• RGB Color Mixing

• Strobing

• Electronic Dimming 0-100%

• Built in Microphone

• DMX-512 protocol

• Four DMX Modes: 3 Channel Mode, 4 Channel Mode, 5 Channel Mode, & 9 Channel Mode

• 4 Operating Modes - Sound Active, Auto Run, Built-In Programs, or DMX Control

• Power Cord Daisy Chain Capability (see Power Cord Daisy Chain section of this manual)

WARRANTY REGISTRATION

The Dotz Par 100 carries a 2 year (730 days) limited warranty. Please ll out the enclosed warranty

card to validate your purchase and warranty. You may also register your product online at our web site:

www.adj.com. All returned service items, whether under warranty or not, must be freight pre-paid and

accompanied by a return authorization (R.A.) number. If the unit is under warranty, you must provide

a copy of your proof of purchase invoice. Please contact ADJ Products, LLC customer support for an

R.A. number.

SAFETY PRECAUTIONS

• To reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture.

• Do not spill water or other liquids into or on to your unit.

• Be sure that the power outlet that is used matches the required voltage for your unit.

• Do not attempt to operate this unit if the power cord has been frayed or broken.

• Do not attempt to remove or break off the ground prong from the electrical cord. This prong is

used to reduce the risk of electrical shock and fire in case of an internal short.

• Disconnect from main power before making any type of connection.

• Do not remove the cover for any reason. There are no user serviceable parts inside.

• Never operate this unit with its cover removed.

• Never plug this unit into a dimmer pack.

• Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 6”

(15cm) between this device and a wall.

• Do not attempt to operate this unit if it has been damaged in any way.

• This unit is intended for indoor use only. Use of this product outdoors voids all warranties.

• During long periods of non-use, disconnect the unit from main power.

• Always mount this unit in safe and stable matter.

• Power-supply cords should be routed so that they are not likely to be walked on or pinched by

items placed upon or against them, paying particular attention to the point at which they exit from

the unit.

• Cleaning - The fixture should be cleaned only as recommended by the manufacturer. See the

Cleaning section of this manual for details.

• Heat - The appliance should be situated away from heat sources such as radiators, heat registers,

stoves, or other appliances (including amplifiers) that produce heat.

• The fixture should be serviced by qualified service personnel when:

A. The power-supply cord or the plug has been damaged.

B. Objects have fallen onto, or liquid has been spilled into, the appliance.

C. The appliance has been exposed to rain or water.

D. The appliance does not appear to operate normally or exhibits a marked change in perfor-

mance.

SETUP

Power Supply: The ADJ Dotz Par 100 contains an automatic voltage switch, which will automatically

sense the voltage when it is plugged into a power source. With this switch there is no need to worry

about the correct power voltage, and this unit can be plugged in anywhere.

DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form of commu-

nication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions

from the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture

via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only

have a DATA “OUT” terminal).

DMX Linking: DMX is a language allowing all makes and models of different manufacturers to be

linked together and operate from a single controller, as long as all fixtures and the controller are DMX

compliant. To ensure proper DMX data transmission, try to use the shortest cable length possible

when linking several DMX fixtures. The order in which fixtures are connected in a DMX line does not

influence the DMX addressing. For example, a fixture assigned a DMX address of 1 may be placed

anywhere in a DMX line: at the beginning, at the end, or anywhere in the middle. When a fixture is

assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that

unit, no matter where it is located in the DMX chain.

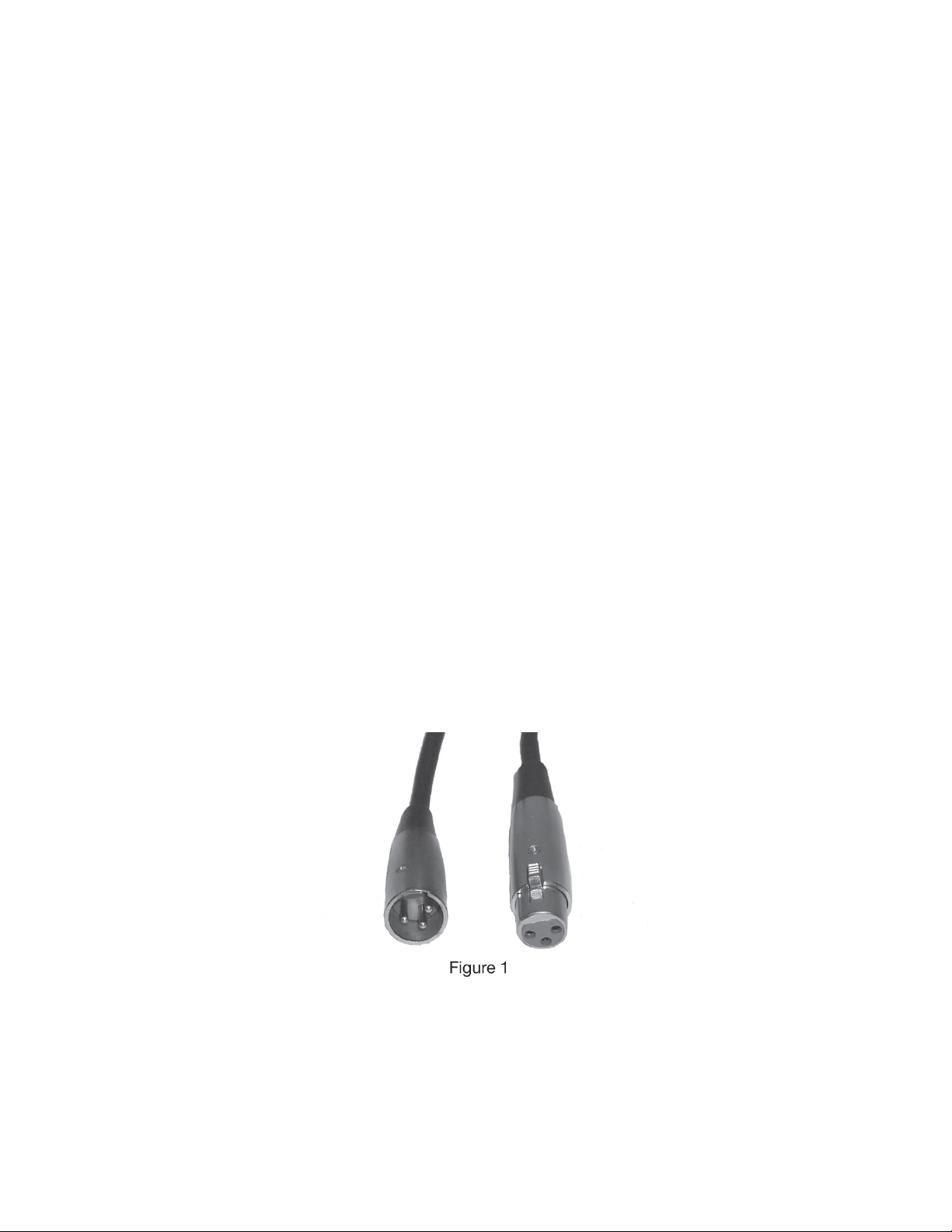

Data Cable (DMX Cable) Requirements (For DMX Operation): The Dotz Par 100 can be controlled

via DMX-512 protocol. The Dotz Par 100 has 4 DMX Channel Modes. The DMX address is set on the

rear panel of the Dotz Par 100. Your unit and your DMX controller require a approved DMX-512 110

Ohm Data cable for data input and data output (Figure 1). We recommend Accu-Cable DMX cables.

If you are making your own cables, be sure to use standard 110-120 Ohm shielded cable (This cable

may be purchased at almost all professional sound and lighting stores). Your cables should be made

with a male XLR connector at one end and a female XLR connector at the other. Also remember that

DMX cable must be daisy chained and cannot be split.

SETUP

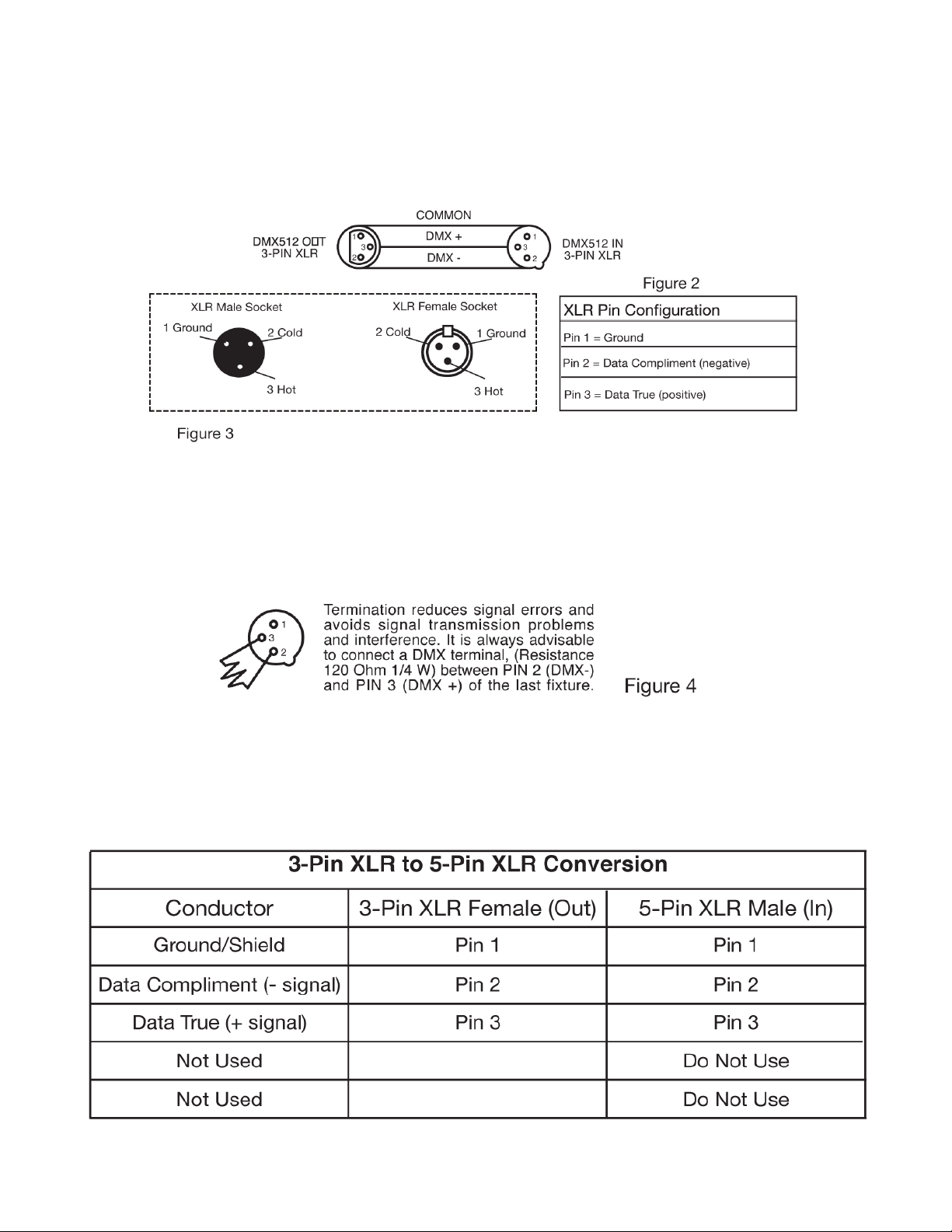

Notice: Be sure to follow figures two and three when making your own cables. Do not use the

ground lug on the XLR connector. Do not connect the cable’s shield conductor to the ground lug or

allow the shield conductor to come into contact with the XLR’s outer casing. Grounding the shield

could cause a short circuit and erratic behavior.

Special Note: Line Termination. When longer runs of cable are used, you may need to use a ter-

minator on the last unit to avoid erratic behavior. A terminator is a 90-120 ohm 1/4 watt resistor

which is connected between pins 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is

inserted in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a

cable terminator (ADJ part number Z-DMX/T) will decrease the risk of erratic behavior.

5-Pin XLR DMX Connectors. Some manufacturers use 5-pin XLR connectors for DATA transmis-

sion in place of 3-pin. 5-pin XLR fixtures may be implemented in a 3-pin XLR DMX line. When insert-

ing standard 5-pin XLR connectors in to a 3-pin line, a cable adaptor must be used. These adaptors

are readily available at most electric stores. The chart below details a proper cable conversion:

SYSTEM MENU

Control Panel Lock: The control panel will lock itself after 30 seconds if nothing is pressed. To

unlock the control panel, press the MODE button for 3 seconds.

DMX Mode - Set the DMX Address and DMX Channel Mode.

1. Press the MODE button until “AXXX” is displayed. “XXX” represents the currently set address.

2. Use the UP or DOWN buttons to change the DMX address.

3. After setting your DMX address press ENTER. You can now select your desired DMX channel

mode. Use the UP or DOWN buttons to find your desired DMX channel mode, then press ENTER

when you find your desired DMX channel mode.

4. After you press ENTER you can now set your dimmer curve. There are 5 dimmer curve settings.

See Dimmer Curve below for the different curves. Select your desired dimmer curve setting, and

press ENTER.

5. After you press ENTER, you can set your NO DMX setting. This setting defines how the fixture

will behave in the event that the DMX signal is lost or interrupted. Press ENTER when you are fin-

ished to return to the DMX address setting.

Dimmer Curve - This setting will let you select your desired dimmer curve.

1. Press the MODE button until “AXXX” is displayed. “XXX” represents the currently selected

address.

2. Press the SET UP button until “dcXX” is displayed, then press ENTER.

3. 1 of 5 dimming curve settings will be displayed: Standard, Stage, TV, Architectural, or Theatre.

Use the UP and DOWN buttons to select your desired dimming curve and press ENTER to con-

firm.

NO DMX - This mode can be used as a precaution mode, and defines how the device will

behave in the event that the DMX signal is lost, interrupted, or power is lost. You can also set

this as the operating mode you would like the unit to return to when power is applied.

1. Press the MODE button until “AXXX” is displayed. “XXX” represents the currently selected

address.

2. Press ENTER until one of the following is displayed; “Soun”, “blc”, or “Hold”. Use the UP or

DOWN buttons to choose an operating mode you would like the unit to start up in when power is

applied or the DMX signal is lost.

• Soun (Sound) - If the DMX signal is lost, interrupted, the unit will automatically go into sound

active mode.

• blc (Blackout) - If the DMX signal is lost or interrupted, the unit will automatically go into stand

by mode.

• Hold - If the DMX signal is lost the fixture will stay in the last DMX setting. If power is applied

and this mode is set, the unit will automatically go into the last DMX set up.

3. Press ENTER to confirm your desired set up.

Secondary Mode - This will let you set your unit as a secondary unit in a primary/secondary

configuration.

1. Press the MODE button until “SEcd” is displayed.

2. Your unit will now follow the Primary.

SYSTEM MENU

RGB Dimmer Mode - Select your desired color to remain static or adjust the RGB colors to

create your desired color.

1. Plug the fixture in and press the MODE button until “Manual Dimmer” is displayed, then press

ENTER.

2. When “r.XXX” is displayed you are in Red dimming mode. Press the UP and DOWN buttons to

adjust intensity.

3. When “G.XXX” is displayed you are in Green dimming mode. Press the UP and DOWN buttons to

adjust intensity.

4. When “b.XXX” is displayed you are in Blue dimming mode. Press the UP and DOWN buttons to

adjust intensity.

Color Macro - Select your desired color macro to remain static.

1. Press the MODE button until “C-XX” is displayed. “XX” represents the currently selected macro

number.

2. Use the UP and DOWN button to scroll through the 32 color macros until you find your desired

color.

Built-In Programs - Select your desired Built-In program.

1. Press the MODE button until “P-XX” is displayed. “XX” represents the current selected program

number. Use the UP and DOWN buttons to scroll through 7 different programs.

2. Press ENTER to move through the various adjustments of each program, and use the UP and

DOWN buttons to make adjustments.

Sound Mode - In this mode the unit will run in sound active mode.

1. Press the MODE button until “Sound Mode” is displayed.

2. Use the UP and DOWN buttons to adjust the sound sensitivity. “0” is the least sensitive, and “30”

is the most sensitive.

RF Active - This menu will let you activate the RF remote control.

1. Press the MODE button until “RFXX” is displayed, then press ENTER. “XX” represents the cur-

rently selected setting: either “on” or “off”.

2. Use the UP or DOWN buttons to activate (On) or deactivate (Off) the remote.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ADJ Matériel de DJ

ADJ

ADJ HYD320 Manuel utilisateur

ADJ

ADJ ELEMENT HEXIP Manuel utilisateur

ADJ

ADJ Encore Profile 1000 WW Manuel utilisateur

ADJ

ADJ UB 12H Manuel utilisateur

ADJ

ADJ ENCORE BURST 100 IP Manuel utilisateur

ADJ

ADJ ENTOUR HAZE PRO Manuel utilisateur

ADJ

ADJ Par Z100 3K Manuel utilisateur

ADJ

ADJ Royal 3D Manuel utilisateur

ADJ

ADJ COB CannOn Wash DW Manuel utilisateur

ADJ

ADJ STARTEC BOOM BOX FX2 Manuel utilisateur

ADJ

ADJ M-101HD Manuel utilisateur

ADJ

ADJ ENCORE PROFILE MINI COLOR Manuel utilisateur

ADJ

ADJ XPress LED Manuel utilisateur

ADJ

ADJ COB CannOn Wash DW Manuel utilisateur

ADJ

ADJ ELEMENT H6 FC Manuel utilisateur

ADJ

ADJ VF FLURRY Manuel utilisateur

ADJ

ADJ Mega GO Bar 50 RGBA Manuel utilisateur

ADJ

ADJ HYDRO WASH X7 Manuel utilisateur

ADJ

ADJ Par Z Move RGBW Manuel utilisateur

ADJ

ADJ MDF2-9SYS Manuel utilisateur

ADJ

ADJ UV 72IP Manuel utilisateur

ADJ

ADJ MINI DEKKER LZR Manuel utilisateur

ADJ

ADJ 32 HEX PANEL IP Manuel utilisateur

ADJ

ADJ ELEMENT QA Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
