ADF Web AXIS HD67177-A1 Manuel utilisateur

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFIBUS Slave / SNMP Manager

Document code: MN67177_ENG Revision 1.000 Pa ina 1 di 22

User Manual

Revision 1.000

En lish

PROFIBUS Slave / SNMP Manager -

Converter

(Order Code: HD67177-A1)

for Website information:

www.adfweb.com?Product=HD67177

for Price information:

www.adfweb.com?Price=HD67177-A1

Benefits and Main Features:

Very easy to confi ure

Electrical isolation

Temperature ran e: -40°C/85°C (-40°F/185°F)

For others SNMP products, see also the followin links:

Converter SNMP Manager to

www.adfweb.com?Product=HD67170 (BACnet Slave)

www.adfweb.com?Product=HD67171 (CAN)

www.adfweb.com?Product=HD67172 (CANo en)

www.adfweb.com?Product=HD67173 (DeviceNet Slave)

www.adfweb.com?Product=HD67174 (EtherNet/IP)

www.adfweb.com?Product=HD67175 (Modbus Slave)

www.adfweb.com?Product=HD67176 (Modbus TCP Slave)

www.adfweb.com?Product=HD67178 (PROFINET)

Do you have an your customer protocol?

www.adfweb.com?Product=HD67003

Do you need to choose a device? do you want help?

www.adfweb.com?Cmd=helpme

User Manual

Axis Solutions Pvt Ltd is the Authorized Distributor of $')ZHE in India

www.axisindia.in | [email protected]

Axis Solutions Pvt Ltd is the Authorized Distributor of $')ZHE in India

www.axisindia.in | [email protected]

Axis Solutions Pvt Ltd is the Authorized Distributor of $')ZHE in India

www.axisindia.in | [email protected]

Axis Solutions Pvt Ltd is the Authorized Distributor of $')ZHE in India

www.axisindia.in | [email protected]

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFIBUS Slave / SNMP Manager

Document code: MN67177_ENG Revision 1.000 Pa ina 2 di 22

INDEX:

Pa e

INDEX 2

UPDATED DOCUMENTATION 2

REVISION LIST 2

WARNING 2

TRADEMARKS 2

SECURITY ALERT 3

EXAMPLE OF CONNECTION 4

CONNECTION SCHEME 5

CHARACTERISTICS 6

CONFIGURATION 6

POWER SUPPLY 7

FUNCTION MODES 8

LEDS 9

PROFIBUS 10

ETHERNET 10

USE OF COMPOSITOR SW67177 11

NEW PROJECT / OPEN PROJECT 12

SOFTWARE OPTIONS 13

SET COMMUNICATION 14

SNMP MANAGER 15

UPDATE DEVICE 17

MECHANICAL DIMENSIONS 19

ORDERING INFORMATIONS 20

ACCESSORIES 20

DISCLAIMER 21

OTHER REGULATIONS AND STANDARDS 21

WARRANTIES AND TECHNICAL SUPPORT 22

RETURN POLICY 22

UPDATED DOCUMENTATION:

Dear customer, we thank you for your attention and we remind you that

you need to check that the followin document is:

Updated

Related to the product you own

To obtain the most recently updated document, note the “document code”

that appears at the top ri ht-hand corner of each pa e of this document.

With this “Document Code” o to web pa e www.adfweb.com/download/

and search for the correspondin code on the pa e. Click on the proper

“Document Code” and download the updates.

REVISION LIST:

WARNING:

ADFweb.com reserves the ri ht to chan e information in this manual about

our product without warnin .

ADFweb.com is not responsible for any error this manual may contain.

TRADEMARKS:

All trademarks mentioned in this document belon to their respective

owners.

Revision

Date Author Cha ter

Descri tion

1.000 09/02/2015

Ff All First Release

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFIBUS Slave / SNMP Manager

Document code: MN67177_ENG Revision 1.000 Pa ina 3 di 22

SECURITY ALERT:

ENERAL

NFORMATION

To ensure safe operation, the device must be operated accordin to the instructions in the manual. When usin the device, le al and

safety re ulation are required for each individual application. The same applies also when usin accessories.

NTENDED

Machines and systems must be desi ned so the faulty conditions do not lead to a dan erous situation for the operator (i.e.

independent limit switches, mechanical interlocks, etc.).

UALIFIED

ERSONNEL

The device can be used only by qualified personnel, strictly in accordance with the specifications.

Qualified personnel are persons who are familiar with the installation, assembly, commissionin and operation of this equipment and

who have appropriate qualifications for their job.

ESIDUAL

ISKS

The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and

operated by untrained personnel. These instructions refer to residual risks with the followin symbol:

This symbol indicates that non-observance of the safety instructions is a dan er for people that could lead to serious injury or

death and / or the possibility of dama e.

CONFORMITY

The declaration is made by our company. You can send an email to [email protected]om or ive us a call if you need it.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFIBUS Slave / SNMP Manager

Document code: MN67177_ENG Revision 1.000 Pa ina 4 di 22

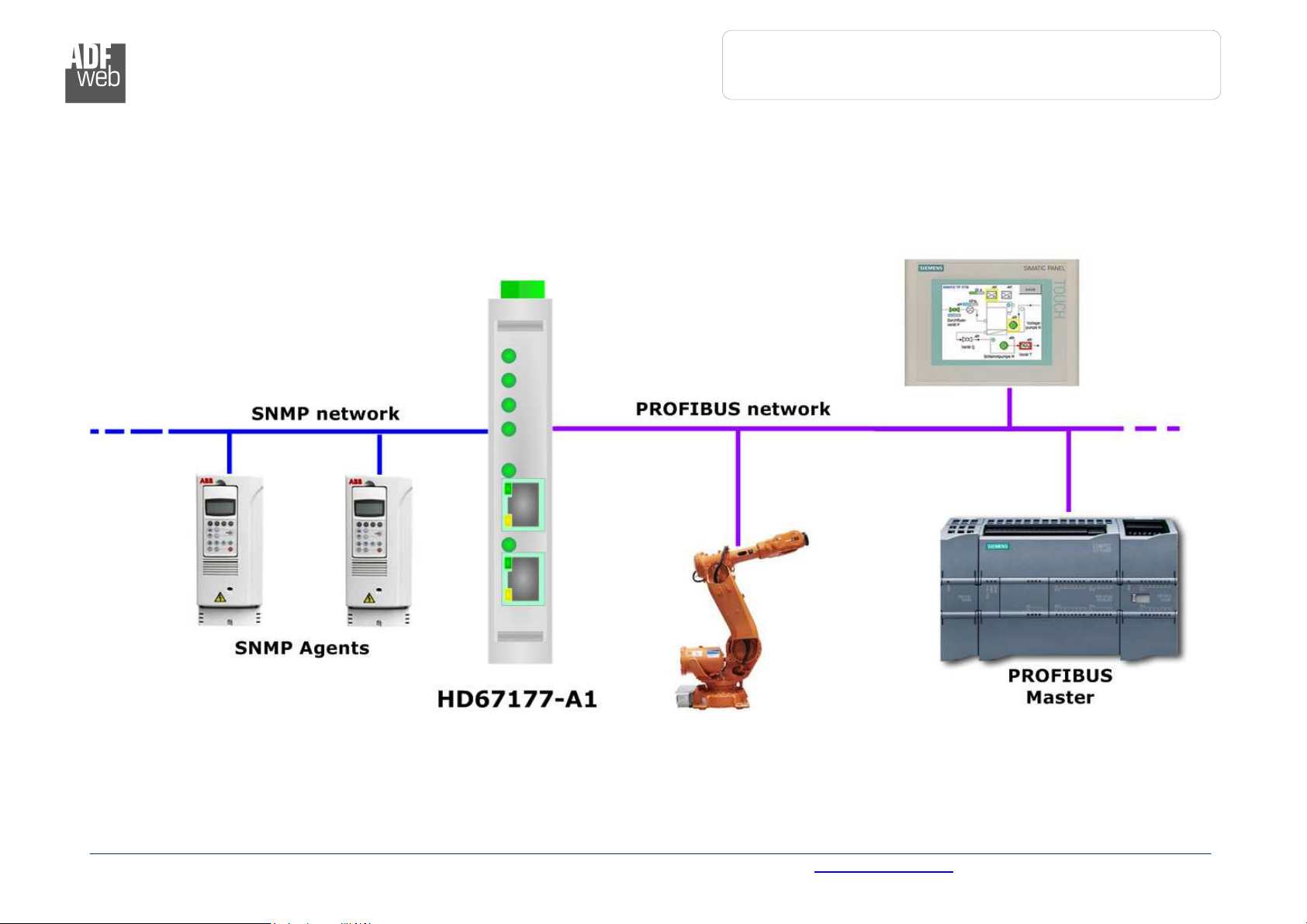

EXAMPLE OF CONNECTION:

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFIBUS Slave / SNMP Manager

Document code: MN67177_ENG Revision 1.000 Pa ina 5 di 22

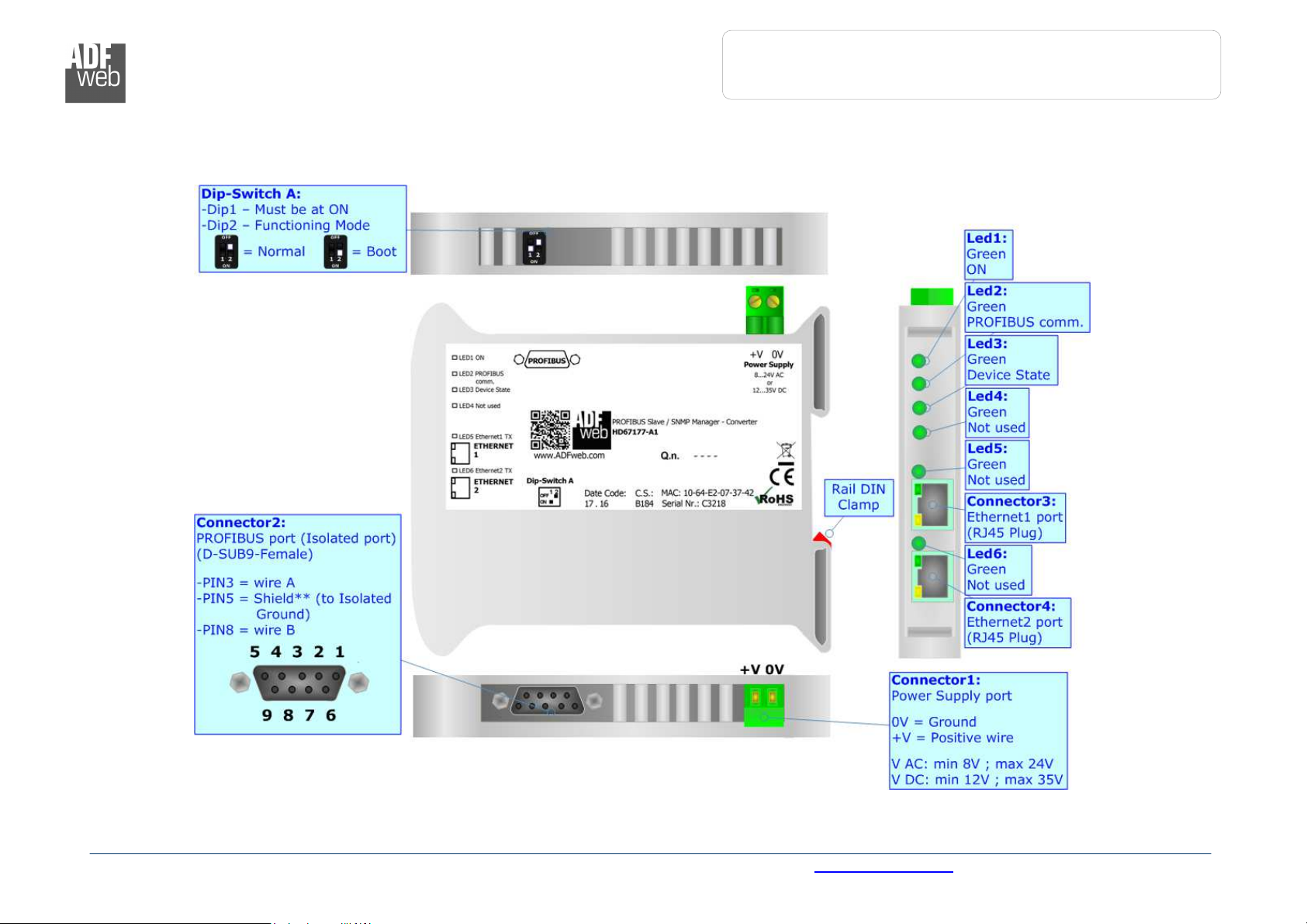

CONNECTION SCHEME:

Figure 1: Connection scheme for HD67177-A1

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFIBUS Slave / SNMP Manager

Document code: MN67177_ENG Revision 1.000 Pa ina 6 di 22

CHARACTERISTICS:

The HD67177-A1 is a PROFIBUS Slave / SNMP Mana er - Converter.

It has the followin characteristics:

Up to 244 bytes in readin and 244 bytes in writin ;

Isolation between Power Supply – Ethernet - PROFIBUS.

Two-directional information between PROFIBUS bus and SNMP bus;

Mountable on 35mm Rail DIN;

Wide power supply input ran e: 8…24V AC or 12…35V DC;

Wide temperature ran e: -40°C / 85°C [-40°F / +185°F].

CONFIGURATION:

You need Compositor SW67177 software on your PC in order to perform the followin :

Define the parameter of SNMP line;

Define the parameter of PROFIBUS line;

Define the SNMP requests to send to the SNMP A ents;

Update the device.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFIBUS Slave / SNMP Manager

Document code: MN67177_ENG Revision 1.000 Pa ina 7 di 22

POWER SUPPLY:

The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.

VAC

VDC

Vmin Vmax Vmin Vmax

8V 24V 12V 35V

Consumption at 24V DC:

Device Consum tion [W/VA]

HD67177-A1 3.5

Caution: Not reverse the

olarity ower

HD67177

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFIBUS Slave / SNMP Manager

Document code: MN67177_ENG Revision 1.000 Pa ina 8 di 22

FUNCTION MODES:

The device has ot two functions mode dependin of the position of the ‘Dip2 of Dip-Switch A’:

The first, with ‘Dip2 of Dip-Switch A’ at “OFF” position, is used for the normal workin of the device.

The second, with ‘Dip2 of Dip-Switch A’ at “ON” position, is used for upload the Project and/or Firmware.

For the operations to follow for the updatin , see ‘UPDATE DEVICE’ section.

Accordin to the functionin mode, the LEDs will have specifics functions, see ‘LEDS’ section.

Warnin :

Dip1 of ‘Dip-Switch A’ must be at ON position for workin even if the Ethernet cable isn’t inserted.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFIBUS Slave / SNMP Manager

Document code: MN67177_ENG Revision 1.000 Pa ina 9 di 22

LEDS:

The devices have ot six LEDs that are used to ive information of the functionin status.

The various meanin s of the LEDs are described in the table below.

1: ON [supply volta e ]

( reen)

ON: Device powered

OFF: Device not powered

ON: Device powered

OFF: Device not powered

2: PROFIBUS comm. ( reen) Blinks when PROFIBUS communication is workin Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in pro ress

3: Device state ( reen) Blinks slowly (~1Hz) Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in pro ress

4: Not used ( reen) OFF Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in pro ress

5: Not used ( reen) OFF Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in pro ress

6: Not used ( reen) OFF Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in pro ress

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

PROFIBUS Slave / SNMP Manager

Document code: MN67177_ENG Revision 1.000 Pa ina 10 di 22

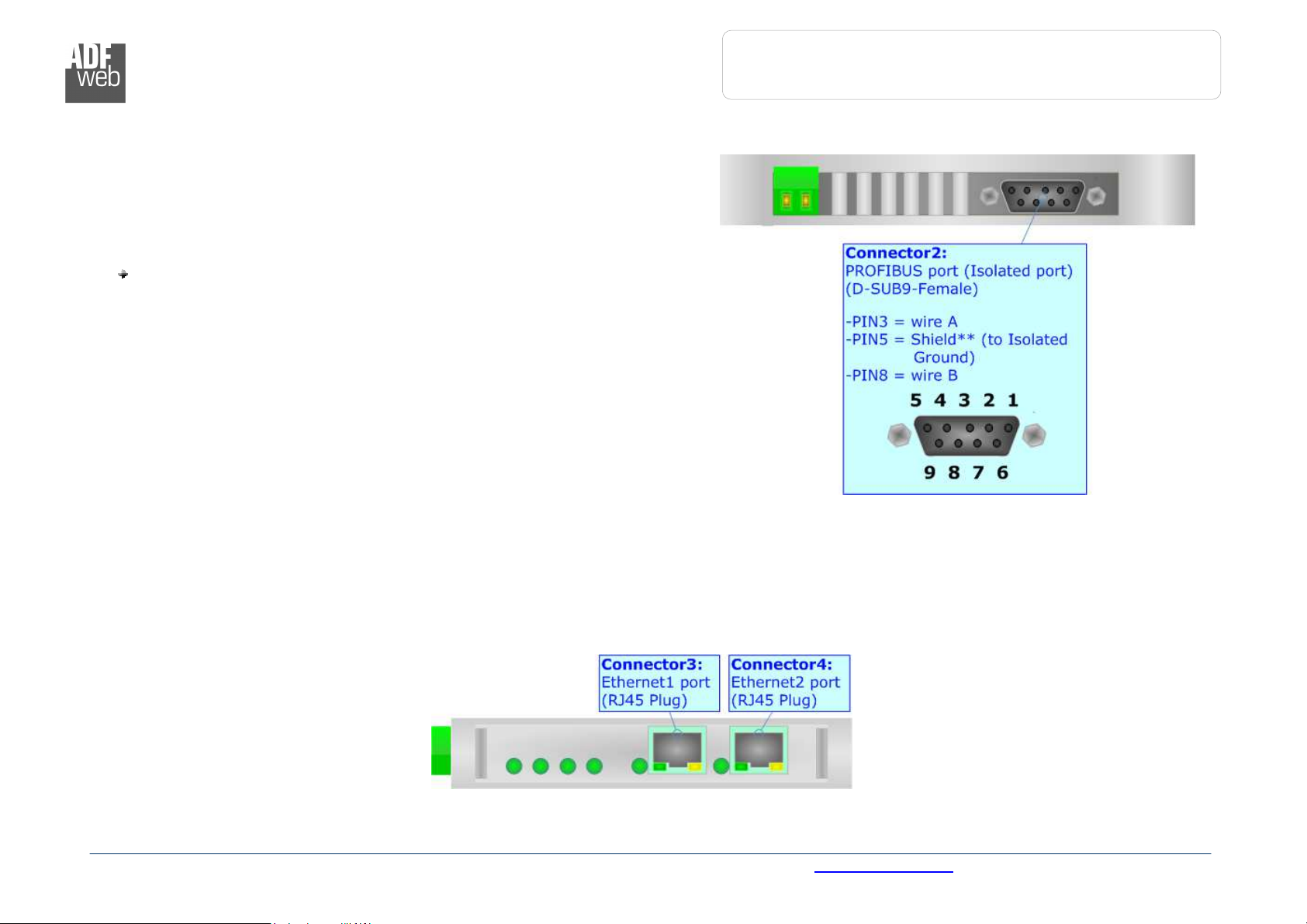

PROFIBUS:

The PROFIBUS uses a 9-pin D-SUB connector. The pin assi nment is defined

like in the ri ht fi ure.

Here some codes of cables:

Belden: p/n 183079A - Continuous Armor DataBus® ISA/SP-50

PROFIBUS Cable.

ETHERNET:

The SNMP communication and the firmware/confi uration updatin must be made usin Connector3 or Connector4 of HD67177-A1 with at

least a Cate ory 5E cable. The maximum len th of the cable should not exceed 100m. The cable has to conform to the T568 norms relative

to connections in cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is recommended the use of a strai ht cable, to connect the

device to a PC/other is recommended the use of a cross cable.
