ADF Web HD67973-B2-IA Manuel utilisateur

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

Link Slave / EtherNet/IP Master

Document code: MN67973_ENG Revision 1. Page 1 of 28

User Manual

Revision 1.

English

IO-Link Slave / EtherNet/IP Master - Converter

(Order Code: HD67973-B2-IA, HD67973-B2-IB)

For Website information:

www.adfweb.com?Product=HD67973-B2

For Price information:

www.adfweb.com?Price=HD67973-B2-IA

www.adfweb.com?Price=HD67973-B2-IB

Benefits and Main Features:

Very easy to configure

Power Supply 18…35V DC and 8…24 V AC

Temperature range: -4 °C/+85°C (-4 °F/+185°F)

For others IO-Link Slave products, see also the following links:

Converter IO-Link Slave to

www.adfweb.com?Product=HD67961 (Mod us Master)

www.adfweb.com?Product=HD67962 (Mod us Slave)

www.adfweb.com?Product=HD67963 (Mod us TCP Master)

www.adfweb.com?Product=HD67964 (Mod us TCP Slave)

www.adfweb.com?Product=HD67965 (BACnet Master)

www.adfweb.com?Product=HD67966 (BACnet Slave)

www.adfweb.com?Product=HD67967 (CAN)

www.adfweb.com?Product=HD67968 (CANopen)

www.adfweb.com?Product=HD67969 (DeviceNet Master)

www.adfweb.com?Product=HD6797 (DeviceNet Slave)

www.adfweb.com?Product=HD67971 (EtherCAT Slave)

www.adfweb.com?Product=HD67974 (EtherNet/IP Slave)

www.adfweb.com?Product=HD67977 (J1939)

www.adfweb.com?Product=HD67978 (MQTT)

www.adfweb.com?Product=HD67979 (NMEA0183)

www.adfweb.com?Product=HD6798 (NMEA2000)

www.adfweb.com?Product=HD67983 (PROFINET Master)

www.adfweb.com?Product=HD67984 (PROFINET Slave)

www.adfweb.com?Product=HD67985 (S7comm)

www.adfweb.com?Product=HD67986 (SNMP Manager)

www.adfweb.com?Product=HD67987 (SNMP Agent)

Do you have an your customer protocol?

www.adfweb.com?Product=HD67 3

Do you need to choose a device? do you want help?

www.adfweb.com?Cmd=helpme

User Manual

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

Link Slave / EtherNet/IP Master

Document code: MN67973_ENG Revision 1. Page 2 of 28

INDEX:

Page

INDEX 2

UPDATED DOCUMENTATION 2

REVISION LIST 2

WARNING 2

TRADEMARKS 2

SECURITY ALERT 3

EXAMPLE OF CONNECTION 4

CONNECTION SCHEME 5

CHARACTERISTICS 7

CONFIGURATION 7

IO-LINK 8

POWER SUPPLY FOR ACTUATORS UA (for IO-Link

Class B)

FUNCTION MODES 11

LEDS 12

ETHERNET 13

USE OF COMPOSITOR SW67973 14

NEW CONFIGURATION / OPEN CONFIGURATION 15

SOFTWARE OPTIONS 16

SET COMMUNICATION 18

IO-LINK SET ACCESS 19

ETHERNET/IP ACCESS 21

IO-LINK IODD FILE 22

UPDATE DEVICE 23

MECHANICAL DIMENSIONS 25

ORDERING INFORMATIONS 26

DISCLAIMER 27

OTHER REGULATIONS AND STANDARDS 27

WARRANTIES AND TECHNICAL SUPPORT 28

RETURN POLICY 28

UPDATED DOCUMENTATION:

Dear customer, we thank you for your attention and we remind you that

you need to check that the following document is:

Updated

Related to the product you own

To obtain the most recently updated document, note the “document code”

that appears at the top right-hand corner of each page of this document.

With this “Document Code” go to web page www.adfweb.com/download/

and search for the corresponding code on the page. Click on the proper

“Document Code” and download the updates.

REVISION LIST:

WARNING:

ADFweb.com reserves the right to change information in this manual about

our product without warning.

ADFweb.com is not responsible for any error this manual may contain.

TRADEMARKS:

All trademarks mentioned in this document belong to their respective

owners.

Revision

Date Author Chapter

Description

1. 8/11/2 21

Ff All First release version

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

Link Slave / EtherNet/IP Master

Document code: MN67973_ENG Revision 1. Page 3 of 28

SECURITY ALERT:

ENERAL

NFORMATION

To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and

safety regulation are required for each individual application. The same applies also when using accessories.

NTENDED

Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.

independent limit switches, mechanical interlocks, etc.).

UALIFIED

ERSONNEL

The device can be used only by qualified personnel, strictly in accordance with the specifications.

Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and

who have appropriate qualifications for their job.

ESIDUAL

ISKS

The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and

operated by untrained personnel. These instructions refer to residual risks with the following symbol:

This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or

death and / or the possibility of damage.

CONFORMITY

The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

Link Slave / EtherNet/IP Master

Document code: MN67973_ENG Revision 1. Page 4 of 28

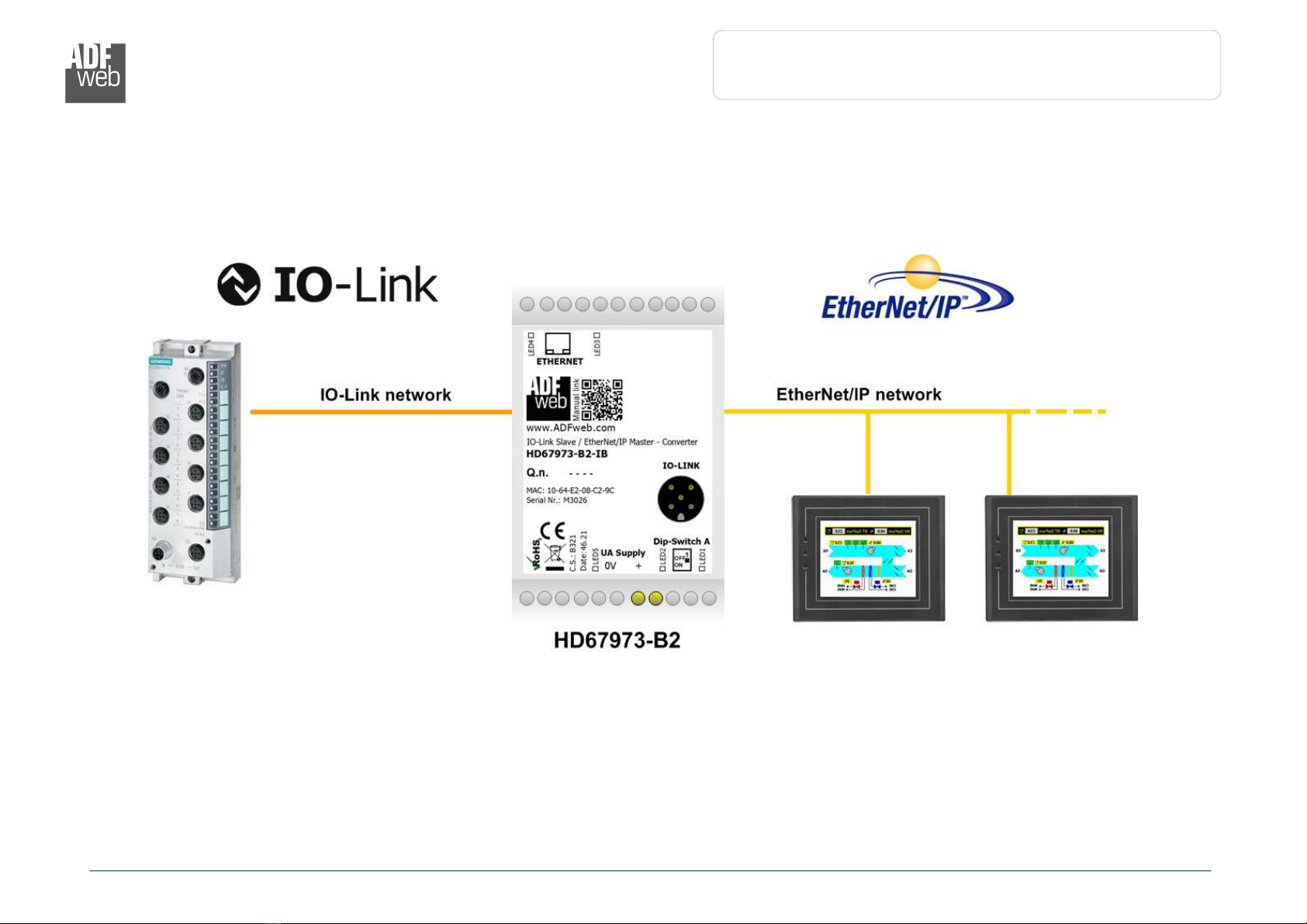

EXAMPLE OF CONNECTION:

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

Link Slave / EtherNet/IP Master

Document code: MN67973_ENG Revision 1. Page 5 of 28

CONNECTION SCHEME:

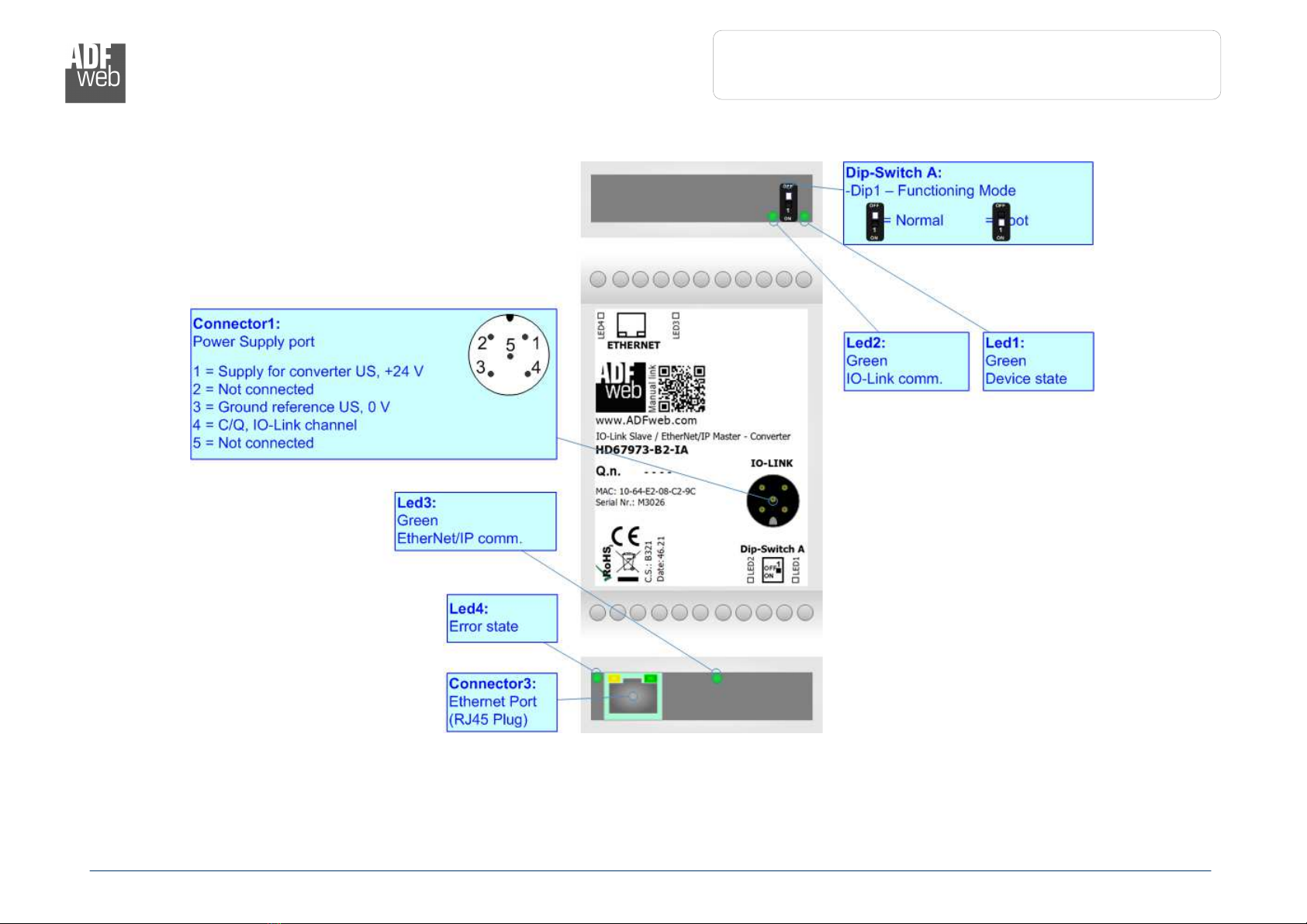

Figure 1a: Connection scheme for HD67973 B2 IA

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

Link Slave / EtherNet/IP Master

Document code: MN67973_ENG Revision 1. Page 6 of 28

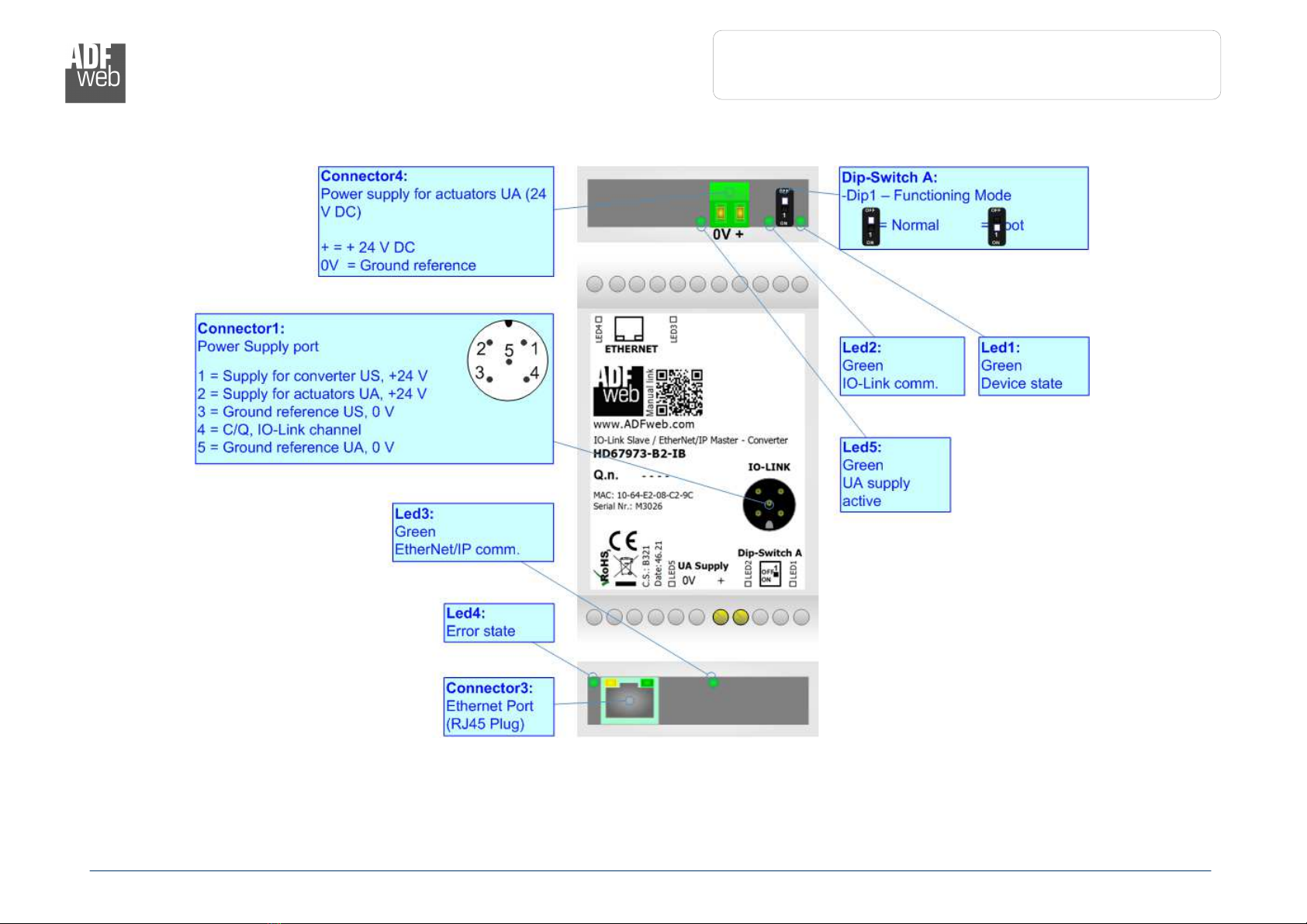

Figure 1b: Connection scheme for HD67973 B2 IB

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

Link Slave / EtherNet/IP Master

Document code: MN67973_ENG Revision 1. Page 7 of 28

CHARACTERISTICS:

The HD67973-B2 is a IO-Link Slave / EtherNet/IP Master Converter.

It allows the following characteristics:

Up to 15 bytes in reading and 15 bytes in writing;

Mountable on 35mm Rail DIN;

Two-directional information between EtherNet/IP and IO-Link;

Possibility to have Class A or Class B version in relation to the order code;

Wide temperature range: -4 °C / 85°C [-4 °F / +185°F].

CONFIGURATION:

You need Compositor SW67973 software on your PC in order to perform the following:

Define the parameter of IO-Link line;

Define the parameter of EtherNet/IP line;

Define the Process Data and parameters of IO-Link side of the converter;

Define the list of EtherNet/IP slaves to read/write;

Export the IODD file for the IO-Link Master;

Update the device.

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

Link Slave / EtherNet/IP Master

Document code: MN67973_ENG Revision 1. Page 8 of 28

IO-LINK:

IO-Link is the first globally standardized IO technology (IEC 61131-9) that communicates from the controller down to the lowest automation

level. This universally applicable interface is a fieldbus-neutral point-to-point connection which uses standard unshielded cables. IO-Link

sends all the sensor and actuator signals to the controller and in turn carries controller data to the sensor/actuator level with revolutionary

consequences.

It is possible to have IO-Link device of two different type: IO-Link Class A and IO-Link Class B. ADFweb.com’s converters can manage both

of them in relation to the product code selected.

In both cases, the power supply is taken directly from IO-Link interface and it has a maximum consumption of 2 W (8 mA).

IO-L

INK

LASS

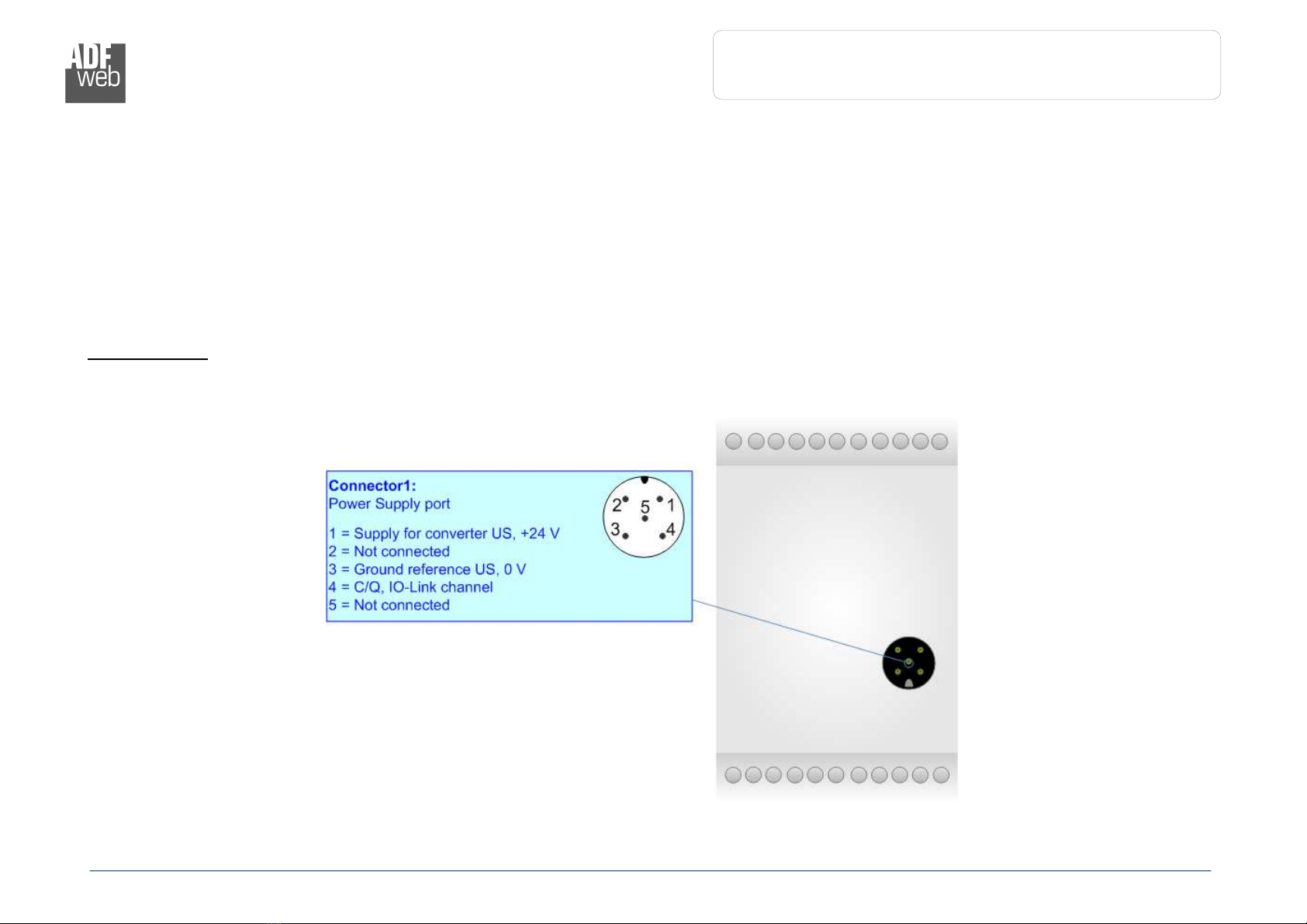

IO-Link Class A devices uses 3 pins on connectors.

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

Link Slave / EtherNet/IP Master

Document code: MN67973_ENG Revision 1. Page 9 of 28

IO-L

INK

LASS

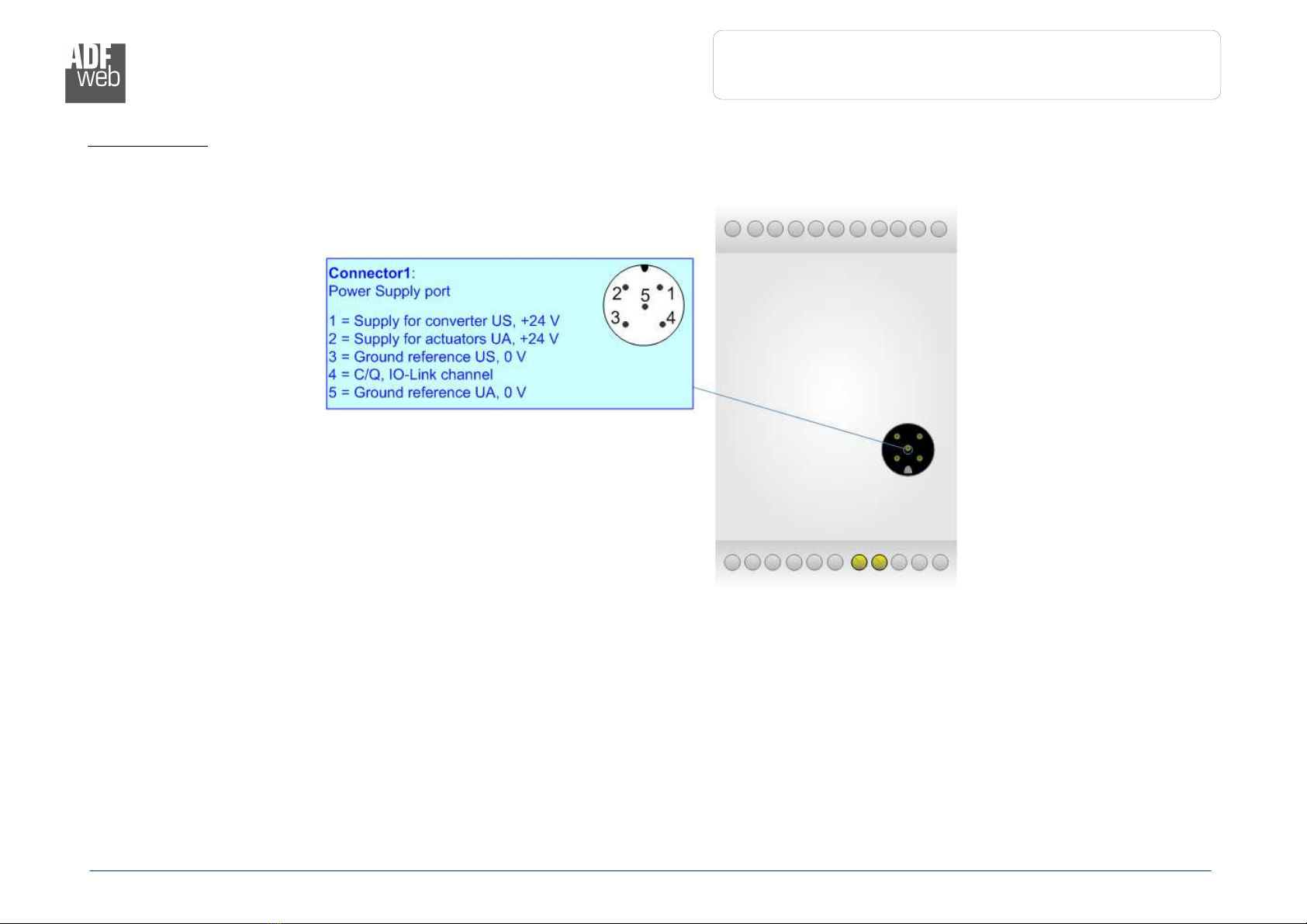

IO-Link Class B devices uses 5 pins on connectors and they allow to provide an external auxiliary power UA to feed external actuators.

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

Link Slave / EtherNet/IP Master

Document code: MN67973_ENG Revision 1. Page 1 of 28

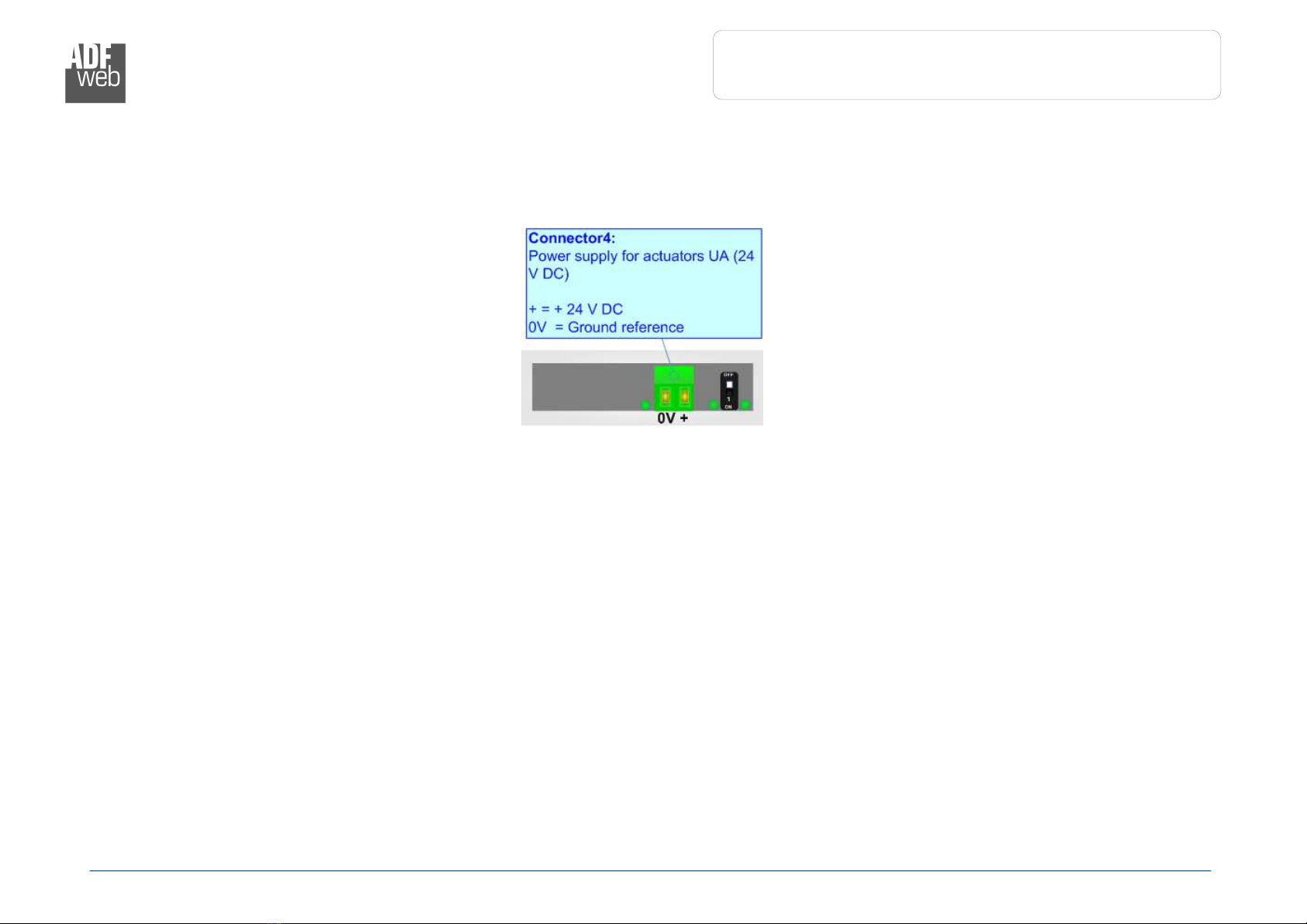

POWER SUPPLY FOR ACTUATORS UA (for IO-Link Class B):

The Power Supply for actuators UA is used to provide an additional power supply and it is available just for Class B version.

The output voltage is typically to 24 V DC, but it can arrive up to 35 V DC. The maximum current that can pass is 1 A.
