TWIMO RF Modules
Starter Kit
User Guide
208474A_UG_Starter kit_TWIMO_V1.0
Table of contents
Preliminary information 4
Precautions 4
1. Product overview 5
2. Kit content 5
3. Getting around the TWIMO Starter Kit 5
3.1. Extension board overview
3.2. Open4 platform overview 6
4. Before starting 7
4.1. Connect the extension board to the Open4 platform 7
4.2. Turn on the system 7
5. Running the evaluation 8
5.1. Start-up screen 8
5.2. Home screen 9
5.3. Select the type of module 9
5.4. Modifytheconguration 9
5.4.1 RF Power 9
5.4.2 RF data rate 10
5.4.3 Channel (frequency) 10
6. Test mode 11
6.1. TX/RX mode 11
6.2. «Received level» mode 12
6.3. «Scanner» mode 13
6.4. USB mode 14
6.5. Running screen 14
6.6. General notes 14
7. Verify or Evaluate an installation 15
7.1. Method # 1 15
7.2. Method # 2 15
8. Products references 15
9. DECLARATION OF CONFORMITY (CE0081) 16
3
208474A_UG_Starter kit_TWIMO_V1.0
English
4
208474A_UG_Starter kit_TWIMO_V1.0
Preliminary information
Precautions
Likemostevaluationkits,thisproductisdesignedforuseinofceandlaboratoryenvironments.
The following practices will help ensure its proper operation.
This product uses low power CMOS circuits which can be damaged by electrostatic discharge. Partially da-
maged circuits can function erroneously, leading to misleading results.
Observe ESD precautions at all times when handling this product.
Documents
This document and any copy or extract of it, can’t be disclosed without Adeunis-rf’s formal agreement.
This document is subject to change without notice. All trademarks mentioned in this guide are the property of
their respective owners.
ADEUNIS RF
283 rue Louis Néel
38920 Crolles
France
Phone +33 (0)4 76 92 01 62
Fax +33 (0)4 76 08 97 46
Web www.adeunis-rf.com
5
208474A_UG_Starter kit_TWIMO_V1.0
1. Product overview
This Starter Kit is designed to help the user to achieve his objectives as quickly as possible. The new generation
of Adeunis RF starter kit consists on the addition of an Adeunis extension board (embedding the TWIMO module)
and a Raisonance Open4 platfom.
Evaluate the Adeunis-RF products
TheusercantransferdatafromoneStarterKittoanotherStarterKit.Thisenablestheusertoquicklyndout
howwelltheAdeunis-RFproductsttheintendedapplication.
Perform RF measurements
ThroughtheAdeunisRFapplicationsoftware,runningintotheOpen4platform,theusercanconguretheradio
module with custom parameters that suit the intended application and easily measure sensitivity, output power
and other RF parameters.
• The documentation can be downloaded on the Adeunis website : www.adeunis-rf.com
2. Kit content
In order to perform tests with the TWIMO extension board, you must use at least one Raisonance Open4 plate-
form («received level» and «scanner» modes) or two plateforms with extension boards if you wish to run «TX/RX
mode».
Each Extension board includes :
• 1 x Soldered TWIMO module (ARF7581AA or ARF7580AA).
• 1 x 869 MHz antenna (LINX)
• 1 x User’s guide
Each Open4 platform includes :
• 1xUSBcable

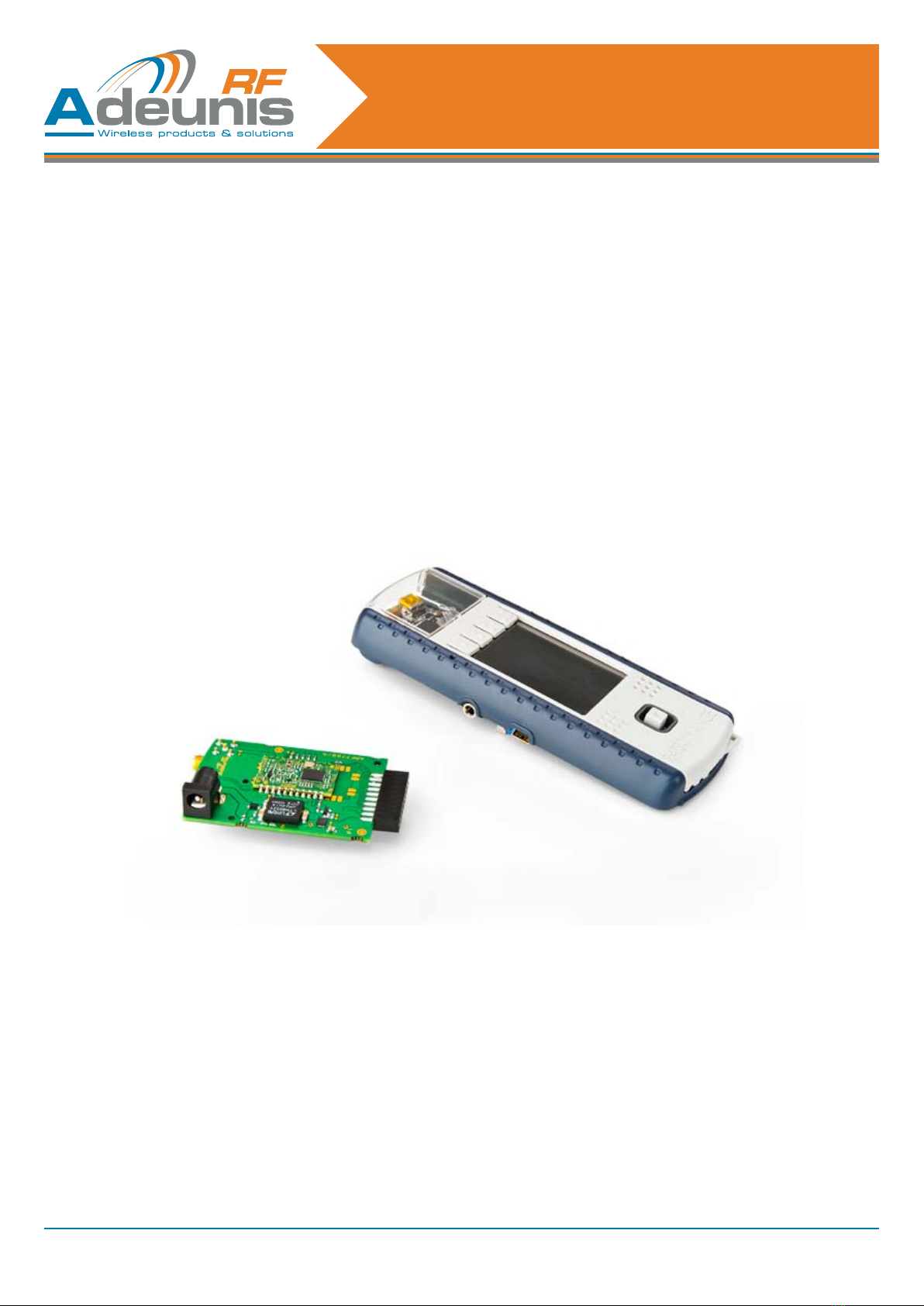

Adeunis RF
TWIMO extension board
Adeunis RF
TWIMO extension board
&
Raisonance Open4 platform
3. Getting around the TWIMO Starter Kit
The Adeunis RF extension board must be combined to the Raisonance Open4 platform to run the evaluation.
The Open 4 platform embeds the Adeunis RF application software, the user’s interface (LCD screen) and the
battery, all mandatory to implement the TWIMO module.
6
208474A_UG_Starter kit_TWIMO_V1.0
3.1. Extension board overview
Antenna socket
TWIMO module
Extension board to Open 4
platform connector
External power supply
3.2. Open4 platform overview
LCD touch screen : allows
to navigate into the menu
USB connector : power
supply & PC connection
Joystick : allows to navigate
into the menu
Adeunis RF extension board
Raisonance target board
All needed and usefull information can be found on the Raisonance website (www.raisonance.com). User
manual of the OPEN4 platform can be found here : Open4 manual
7
208474A_UG_Starter kit_TWIMO_V1.0
4. Before starting
4.1. Connect the extension board to the Open4 platform
The extension board must be connected to the Open4 platform. Procedure :
• Unscrew the bottom case of the Open 4 by removing the four screws.
• Remove the bottom cover.
• Install the extension board as showed below. The module must faces you. Gently push on the extension
(see red arrow) board to insure a proper connection. Be very careful when proceeding. The extension socket
must be held when inserting the extension board as showed with the orange arrow !!
• Re-install the bottom cover and screws.
• Install the antenna on the extension board antenna socket.
4.2. Turn on the system
To turn on the system, you must activate the On/Off switch located above the target board. See picture below.
8
208474A_UG_Starter kit_TWIMO_V1.0
The Open4 platform must be charged before use. It can be charged on a PC through the USB cable supplied
with the package.
Note concerning the power supply : in the case of evaluating an Adeunis RF module functionning at 500mW,
you may have to use an external power supply to run the maximum module power for more than an hour. The
extension board is equiped with an external power supply socket (Jack 3.5). Please contact us for details and
powersupplyspecications.
• WhenswitchingontheStarterkit,thesystemwillrstaskyoutocalibratethescreen,proceed.
• When the screen calibration has been done, press the «one dot» button to launch the Adeunis RF applica-
tion.
«one dot» button
5. Running the evaluation
The evaluation can be ran on three different modes :
• TX/RX mode
• Received level mode
• Scanner mode
Set-up the Starter Kit
When the Adeunis RF application has been launched, the following screens will assist you in the set-up pro-
cedure.
5.1. Start-up screen
The home screen shows the application software version and the battery level. Press «Go» to access the menu.
Version Battery level
«Go» icon
9
208474A_UG_Starter kit_TWIMO_V1.0
5.2. Home screen
The following screen allows to :
• select the type of module to be evaluated.
• modifytheconguration.
• run the evaluation.
• switch to USB mode.
5.3. Select the type of module
Press the «change» icon. A list of the available Adeunis RF extension
board appears.
Select the proper board and press the «validate» icon.
Module type & set-up
Set-up the module
Module type selection
Run the evaluation
USB mode
5.4. Modify the conguration
5.4.1 RF Power
Pressthe«Cong»icon.
Choose the RF Power :
• TWIMO MP (17dBm, 14dBm, 10dBm)
• TWIMO HP (27dBm, 23dBm, 20dBm)
Press the «validate» icon
10
208474A_UG_Starter kit_TWIMO_V1.0
5.4.2 RF data rate
Following the RF Power mode, the RF Data rate must be selected.
Choose the RF Data rate :
• TWIMO MP & HP : 10kbps, 38.4kbps, 57.6kbps
Press the «validate» icon
5.4.3 Channel (frequency)
Following the RF Data rate, the Channel must be selected.
Choose the channel
Press the «validate» icon
Importante note :
According to the RF Power and Data rate previously chosen, the list of avai-
lable channels is adapted to the European regulation and standards. Please
refer to the table below :
Power RF Data Rate Available Channels (frequencies)
27dBm
10kbps
38.4kbps
57.6kbps
869.525MHz
23dBm
10kbps
38.4kbps
57.6kbps
869.525MHz
20dBm
10kbps
38.4kbps
57.6kbps
869.525MHz
17dBm
10kbps
38.4kbps
57.6kbps
869.525MHz
14dBm
10kbps 869.525MHz
38.4kbps
869.525MHz
868.420MHz
868.320MHz
868.220MHz
868.120MHz
57.6kbps 869.525MHz
10dBm
10kbps 869.525MHz
38.4kbps
869.525MHz
868.420MHz
868.320MHz
868.220MHz
868.120MHz
57.6kbps 869.525MHz
