Adeunis RF ARF62 Manuel utilisateur

RF62

Bluetooth® Class1

RS232 Dongle

User Guide

No part of this document may be reproduced or transmitted (in electronic or

paper version, photocopy) without Adeunis RF consent.

This document is subject to change without notice.

All trademarks mentioned in this guide are the property of their respective

owner.

ADEUNIS RF

283, rue Louis Néel

38920 Crolles

France

Phone +33 (0)4 76 92 07 77

Fax +33 (0)4 76 08 97 46

Ref. 11-07-V3-ffr

RF62

User Guide

Ref. 11-07-V3-ffr p 1

Table of Contents

Table of Contents.............................................................................. 1

About this Document ........................................................................ 2

Declaration of conformity................................................................. 3

Compliance to FCC US/CAN .............................................................. 4

Overview........................................................................................... 5

Interface........................................................................................... 6

Mechanical specification.....................................................................6

Power supply input ............................................................................6

External Power Supply & RI Power Supply........................................... 6

Signal description ..............................................................................7

Profiles.............................................................................................. 7

SPP wiring and configuration..............................................................8

DUN wiring and configuration.............................................................9

Dongle operating mode .................................................................. 10

Command mode.............................................................................. 10

Transparent mode ........................................................................... 11

Remote control configuration......................................................... 11

AT Commands................................................................................. 12

Description...................................................................................... 12

Set of commands............................................................................. 12

Specifications.................................................................................. 18

Annex 1 : Firmware and document updates ................................... 19

RF62

User Guide

Ref. 11-07-V3-ffr p 2

About this Document

This guide describes the A

RF62

devices, their options and accessories.

RF62

User Guide

Ref. 11-07-V3-ffr p 3

Declaration of conformity

Manufacturer’s name: ADEUNIS R.F.

Manufacturer’s address:Parc Technologique PRE ROUX IV

283 rue Louis NEEL

38920 CROLLES - FRANCE

declares that the product if used and installed according to the user guide available on

our web site www.adeunis-rf.com

Product Name: ARF62

Product Number(s): ARF7501B/ARF7502B/ARF7503C/ARF7509A

is designed to comply with the RTTE Directive 99/5/EC:

EMC: according to the harmonized standard EN 301 489.

Safety: according to the standard EN 60950-1/2001

Radio: according to harmonized standard EN 300-328 covering essential

radio requirements of the RTTE directive.

Notes: - Conformity has been evaluated according to the procedure

described in Annex III of the RTTE directive.

- Receiver class (if applicable): 3.

Exposure to radio frequency signals, according to the 1999/519/EC recommendation,

minimum distance between the product and the body could be required depending on

the dongle integration.

Crolles, December 5th, 2008

VINCENT Hervé / Quality manager

Download of the user guide

Thank you for having chosen the ADEUNIS RF products.

User guides can be uploaded directly on our web site www.adeunis-rf.com

Index Products

Paragraph Bluetooth® solutions > 'Ready to use' Bluetooth® products

Print version available upon request

Tel : +33 4 76 92 07 77

Email : [email protected]

RF62

User Guide

Ref. 11-07-V3-ffr p 4

Compliance to FCC US/CAN

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

-- Consult the dealer or an experienced radio/TV technician for help.

CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY ADEUNIS RF

COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

RF Exposure Warning: During operation, the user may keep a minimum

separation distance of 20 cm with the RF devices.

RF62

User Guide

Ref. 11-07-V3-ffr p 5

Overview

The A

RF62

Bluetooth class 1 dongle enables Bluetooth®compliant duplex

communications over a 150-meter range in the worldwide 2.45 GHz

frequency band.

The A

RF62

dongle fully complies with the V2 Bluetooth®standard and air data

rate goes up to 723 kbps. Data exchange and set-up are only done through

an UART data port, under SPP or DUN profile. A miniature antenna is

integrated.

RF62

can be used in two modes: command mode and transparent mode. The

command mode is used to established Bluetooth communications and set/get

parameters. The transparent mode is used for data exchange.

The dongle converts data from a serial link into a Bluetooth®radio frame to

be sent to a similar piece of equipment. The communication is half-duplex.

The operating parameters of the Bluetooth dongle (serial link, Bluetooth®

management…) can be fully updated through AT commands via the serial

link.

We recommend reading the “specification of the Bluetooth®system core 2.0

+ EDR” document available at the www.bluetooth.com web site.

RF62

User Guide

Ref. 11-07-V3-ffr p 6

Interface

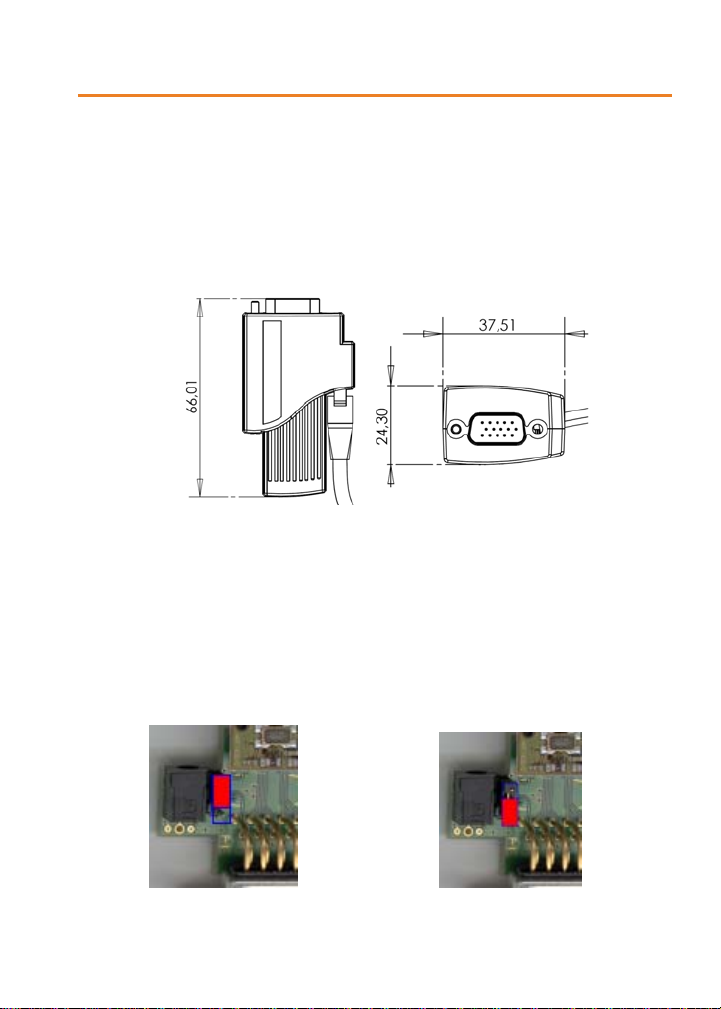

Mechanical specification

65 x 40 x 25 mm

Power supply input

ARF62 dongles may be supplied using an external power supply through

µJack plug (default) or through RI pin / DB connector. Selection is done with

an internal onboard jumper:

External Power Supply RI Power Supply

RF62

User Guide

Ref. 11-07-V3-ffr p 7

NOTE :

ARF62 external power supply is done through a female ∅3.5 mm DC µJack

(Positive on inner pin ∅1.3 mm)

Signal description

ARF750X Bluetooth Dongles pinout.

Profiles

The dongle supports 2 different profiles: SPP and DUN.

A basic dongle configuration is provided as a guideline for each profile (for

more details or customisation see § AT commands).

The dongle can be configured using a terminal at 9600 baud, 8 bits, 1 stop,

HW flow control (default serial configuration)

Interface

Pin Interface

Pin Name Description

RF7501

Fem DB9

DCE

RF7502

Mal DB9

DTE

RF7503

Mal DB15HD

DTE Digital interface

5 5 9 GND Ground

3 (I) 3 (O) 2 (O) TXD Serial data transmission

2 (O) 2 (I) 6 (I) RXD Serial data reception

8 (O) 8 (I) 11 (I) CTS Clear To Send

7 (I) 7 (O) 12 (O) RTS Request To Send

4 (I) 4 (O) 8 (O) DTR Data Terminal ready

6 (O) 6 (I) 7 (I) DSR Data Set Ready

9 (O) 9 (I) 13 (I) RI Ring Indicator / (DC Supply Input -if

selected-)

1 (O) 1 (I) 1 (I) DCD Data Carrier Detect

RF62

User Guide

Ref. 11-07-V3-ffr p 8

SPP wiring and configuration

SPP (Serial Port Profile) is the standard Bluetooth®profile.

SPP configuration guideline : in the following example, the Master is

configured to performed an auto-connection on reset.

Master configuration : enters the command mode using the A+++ sequence.

When the <OK> answer is receive, send the following commands :

ATS202=1 (auto-connect on reset)

ATS220=1 (SPP profile, default value)

ATS203= slave BT address (use ATINQ 0,10 command to discover

the slave @)

AT&W (save the configuration)

Slave configuration : enters the command mode and then send the following

commands :

ATS202=0 (auto-connect disable, default value)

ATS220=1 (SPP profil)

AT&W (save the configuration)

Perform a power cycle on both dongles. The dongles are now in transparent

mode; the link will be established automatically on reset by the master.

When the link is established data can be exchanged using the serial link.

(DTE)

DCDRI

DSR

DTR

CTS

RTS

ARF62

Bluetooth

Dongle

Master

GND

DTR

CTS

RTS

DCD

DSR

ARF62

Bluetooth

Dongle

Slave

DCD

DSR

DTR

CTS

RTS

(DTE)

GND

DTR

CTS

RTS

DCD

DSR
