Adam,Rouilly AR253 Manuel utilisateur
Instruction Manual
AR253/AR253-B SKIN AND VEIN KIT
2
Do not mark the skin with ink from ball point pens, marking pens or newsprint
as these cannot be removed.
Safety and Precautions
Thank you for purchasing this AR253/AR253-B Skin and Vein Kit for our AR251/AR251-B
Venepuncture and Infusion Arm.
Please read this instruction manual carefully and retain it for future reference.
Contents
Lubricant supplied contains a dilute solution of bactericidal detergent and
water (50 ml)
Causes skin irritation
Causes serious eye damage
Wear eye protection
Wear protective gloves
Wash hands thoroughly after handling
IF IN EYES: rinse cautiously with water for several minutes. Remove contact
lenses if present and easy to do so.
If eye irritation persists: get medical advice/attention.
IF ON SKIN: wash with plenty of soap and water.
If skin irritation occurs: get medical advice/attention.
Parts 3
Replacing the Skin and Veins
- Remove the Old Skin
- Identify Your Arm Core
5
5
Vein Kit Installation for Cores with Fingers 7
Vein Kit Installation for Cores with One Vein Loop 9
Vein Kit Installation for Cores with Two Vein Loops 11
Installing the New Skin 15
The veins in this arm contain natural latex which may cause an allergic
reaction to some individuals. If a reaction occurs, discontinue use immediately
and seek medical advice.
3
a
Parts
aArm skin
c
c
Latex vein
bLubricant spray
b
Scan the QR code to access the product video.
https://youtu.be/or1dsIFGunA
4
Replacing the Skin and Veins
1b
1c
1a
x2
1d 2
iii iii
5
Pull the old arm skin o the inner arm core and throw away.
Remove the Old Skin
Identify the Core
1. Remove the Old Skin and Vein System
The veins in this arm contain natural latex which may cause an allergic
reaction to some individuals. If a reaction occurs, discontinue use immediately
and seek medical advice.
1b
1c
1a
1d
Remove the two blue vein connectors from each arm vein.
Keep these safely for re-fitting onto the new vein set later.
Detach the white end cap from the shoulder of the arm and pull off from the two
veins completely.
Detach the white end cap from the shoulder of the arm and pull off from the two
veins completely.
ii
Depending on which version of the AR251 core you have, preparation for the new
skin and vein set varies slightly.
Identify which arm core you have after removing the skin by looking at the back of
the hand on the core (note that the core colour may vary also):
iii For arm cores with two vein loops go to Step 3.3a, Page 11
For arm core hands with a single vein loop go to Step 3.2a, Page 9
iFor arm core hands with fingers go to Step 3.1a, Page 7
6
Removing the Fingers (for Arm Cores with Fingers)
3.1a 3.1b
7

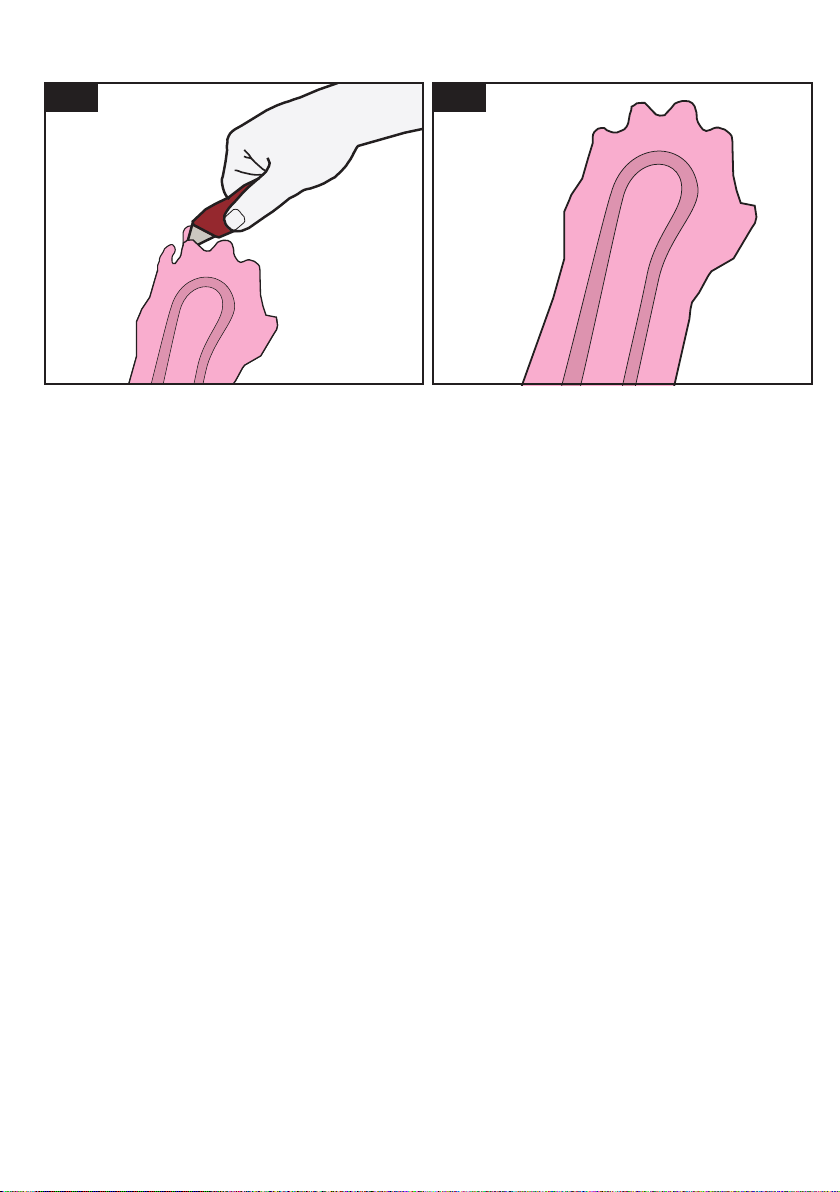

Remove the Old Vein System and Cut off the Fingers
3.1a
3.1b
Remove the old vein system from the core by carefully removing it from the
channel in the arm core. Using a sharp knife or scissors, cut the fingers off close to
the knuckles of the hand.
With the fingers removed, the arm core is now ready for the new vein set to be
installed. Go to Step 3.2a, next page.
The new skin supplied in this kit now has solid fingers already integrated.
Before fitting the new skin the fingers from the core will need to be removed.
iThis step is for arm core hands with fingers
8
Inserting the New Vein (for Arm Cores with a Single Vein Loop)
3.2a
1/21/2
3.2b
3.2c
9
Remove the old vein system from the core by carefully removing it from the
channel in the arm core.
Take the new vein and halve it exactly. Place the halfway point in the loop channel
on the back of the hand.
Install the new Vein System
3.2a
3.2b Press each half of the new vein into its corresponding channel in the arm core.
The arm is now ready for the new skin to be fitted. Please see Step 4, Page 14
iThis step is for arm core hands with fingers (now removed)
ii This step is for arm core hands with a single vein loop
3.2c
10
Inserting the New Vein (for Arm Cores with Two Vein Loops)
3.3a
1/2
1/2
