Introduction

Congratulations on purchasing the T3200BV Bonded VDSL2 /G.fast Wireless

AC Gateway Router. The Gateway is a single platform device that supports

universal WAN access, FTTN, FTTdp, FTTB, or FTTP. With support for

advanced 802.11ac 4x4 WiFi, the Gateway enables blazing fast HD video

streaming, with multi-channel HD video throughput. The Gateway also offers an

unprecedented level of security, helping protect your network resources. It has

also been designed to deliver unparalleled WiFi performance, using dual-band

WiFi supporting speeds up to 2.3 Gbps.

Package Contents

• Black Power adapter

• Yellow cable (Ethernet, 6 ft.)

• White cable (Ethernet, 10 ft.)

• Quick Start Guide

• Installation Guide

• Wall-mount template

• Vertical stand

Minimum System Requirements

• Active ADSL2+ service

• Computer with an 10 Mbps or 10/100/1000 Mbps Ethernet connection

• Microsoft Windows 10, 8, 7; Mac OS OS X+

• TCP/IP network protocol installed on each computer

T3200BV Gateway

Features

• ADSL2+, VDSL2, G.fast, WAN Ethernet and Fiber in a single CPE

• Dual Band WiFi delivering up to 2.3 Gbps with 802.11ac 4x4 5GHz and

802.11n 3x3 2.4GHz

• Optimized for IPTV and Video over WiFi

• SFP cage for G.fast or EPON/GPON ONT modules

Getting to Know the Gateway

This section contains a quick description of the Gateway’s lights, ports, and other

features. The Gateway has several indicator lights (LEDs) and a button on its front

panel, and a series of ports and switches on its rear panel.

Front Panel

The front panel of the Gateway features 2 LEDs (Internet and Wi-Fi), and a WPS

(Wireless Protected Setup) button.

Internet

The Internet LED illuminates green when the Gateway is properly connected to

a WAN Internet connection.

Wi-Fi LED

The Wi-Fi LED illuminates green when the Gateway’s wireless network is oper-

ating and properly configured.

WPS Button

The WPS button is used when connecting a wireless device to the Gateway’s

wireless network using WPS.

Introduction

Rear Panel

The rear panel of the Gateway features 10 ports, and a Reset button.

Power Port

The Power port is used to connect the Power cord (Model No. CDS036-

W120U,made by Adapter Technology Co Ltd) to the Gateway.

Reset Button

Depressing the Reset button for 10 seconds will restore the Gateway’s factory

default settings. The reset process will start after releasing the button.

WARNING! Do not unplug the Power cord from the Gateway

during the reset process. Doing so may result in permanent damage

to the Gateway.

SFP Cage

The SFP cage is used to connect the Gateway to a service provider connection

via optical fiber cable.

WAN Ethernet Port

The WAN Ethernet port is used to connect the Gateway to a WAN connection

via an Ethernet cable.

LAN Ethernet Ports (4)

The LAN Ethernet ports are used to connect computers to the Gateway via

Ethernet cable. The Ethernet ports are 10/100/1000 Mbps auto-sensing ports,

and either a straight-through or crossover Ethernet cable can be used when con-

necting to the ports.

USB Port

The USB port is used to connect the Gateway to a USB device.

T3200BV Gateway

DSL Ports (2)

The DSL ports are used to connect the Gateway to a DSL wall outlet via DSL

cable. For single line DSL, use the DSL 1 port.

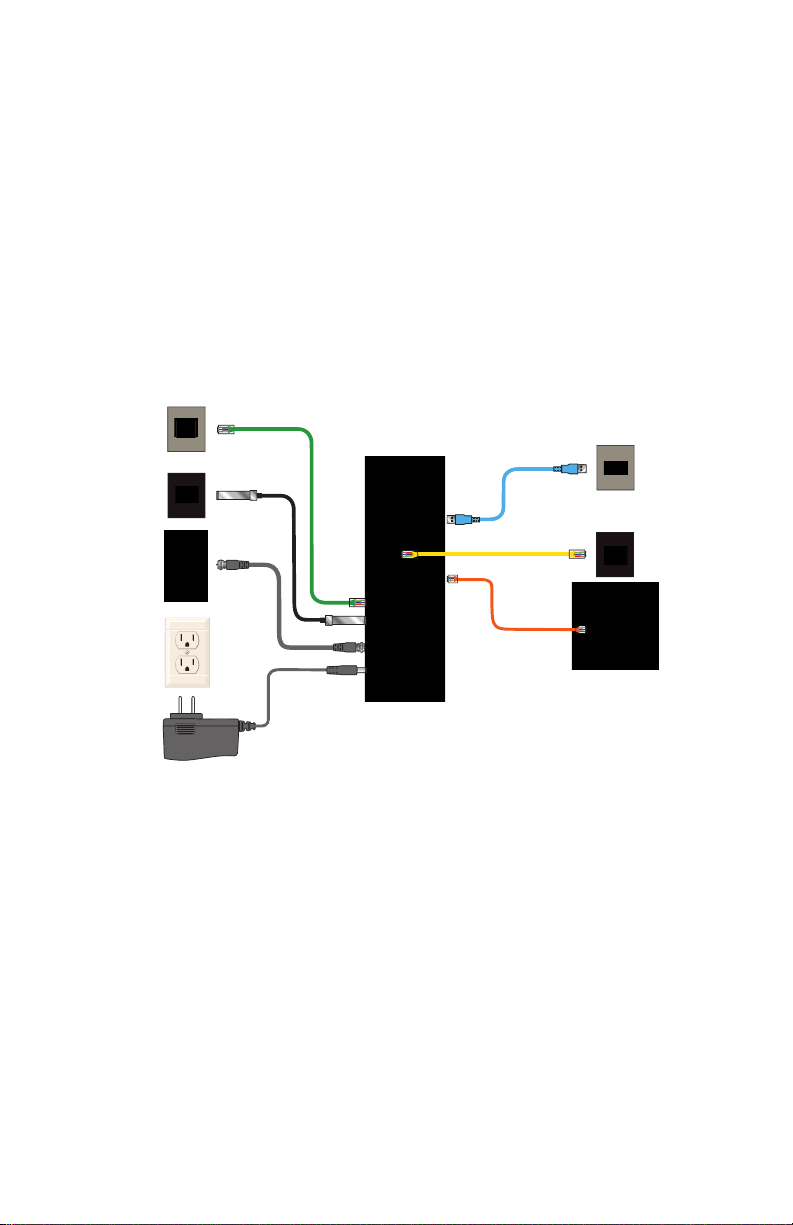

Connecting the Gateway

There are many variables involved when connecting the Gateway, depending on

the type of Internet service available. The figure below shows all of the possible

connections available for the Gateway.

Power

Outlet

Power

Adapter

Coaxial

Outlet

MoCA

Cable

T3200M

Optical

Fiber

Cable

WAN Ethernet

Cable

LAN Ethernet

Cable

Ethernet

Port of

Device

WAN

Ethernet

Port

USB

Cable

USB

Port of

Device

Service

Provider

onnection

(Rear Panel)

DSL

Cable

DSL

Outlet

Connecting a Computer to the Gateway

To connect a computer to the Gateway to access the Gateway’s graphical user

interface (GUI):

Introduction

1. Get the Gateway and black Power cord from the box.

2. Plug the black Power cord in the black port on the back of the Gateway and

then into a power outlet.

3. Plug the yellow Ethernet cable from the box into one of the four yellow

Ethernet ports on the back of the Gateway.

4. Make sure the computer is powered on, then plug the other end of the

yellow Ethernet cable into an Ethernet port on the computer.

5. Make sure that the LED on the LAN port into which the Ethernet cable is

plugged glows steadily green. This may take a few moments.

6. The computer should either be configured with a statically defined IP address

and DNS address, or instructed to automatically obtain an IP address using

the Network DHCP server. The Gateway is set up, by default, with an active

DHCP server, and it is recommended to leave this setting as is.

Accessing the

Home Screen

This chapter gives a short overview of the Home screen of the Gateway’s graphical

user interface (GUI).

Accessing the Home Screen

To access the Home screen:

1. Open a Web browser on computer connected, via Ethernet cable, to one of the

Gateway’s LAN ports. In the Address text box, type:

http://192.168.0.1

then press Enter on the keyboard.
