ActionTec Wireless PC Card Driver 802CAT1 Manuel utilisateur

User Manual

11 Mbps

Wireless

PC Card

Table of Contents

1Introduction 1

Package Contents 1

Minimum System Requirements 1

Technical Support 2

2Setting Up the Wireless PC Card 3

Connecting the PC Card 3

3Using the Wireless LAN Monitor Utility 9

Opening the Monitor Utility Window 9

Using the Wireless LAN Monitor 10

Windows XP 18

4Using the Wireless LAN Config. Utility 19

Opening the Configuration Utility Window 19

Using the Wireless LAN Configuration Utility 20

Windows XP 26

AReference 27

Locating Computer Information 27

Locating Windows Operating System Files 28

BSpecifications 31

General 31

Wireless Operating Range 31

Environmental 32

CGlossary 33

Notices 37

Regulatory Compliance Notices 37

Modifications 37

Limited Warranty 39

Actiontec 11 Mbps Wireless PC Card User Manual

Introduction

Thank you for purchasing the Actiontec 11 Mbps Wireless PC Card. This easy-to-

set-up, easy-to-use PC Card is perfect for the mobile home or small office comput-

er user, and features the latest in wireless networking technology. If you want to

take your computing to the next level, the Actiontec 11 Mbps Wireless PC Card is

sure to be one of the keys to your success.

Package Contents

Actiontec 11 Mbps Wireless PC Card

Installation CD (includes user manual)

Quick start guide

Warranty and registration card

Minimum System Requirements

Notebook computer with CD-ROM drive, available PCMCIA slot, and at

least 500 Kbytes of free disk space

Microsoft Windows 98, 98 Second Edition (SE), Millennium Edition (Me),

2000, or XP

TCP/IP network protocol installed

Actiontec 11 Mbps Wireless PC Card User Manual

Technical Support

Actiontec Electronics prides itself on making durable, high-quality, high-perform-

ance products. If you need assistance, the Actiontec Technical Support Department is

available 24 hours a day, every day, to provide professional support.

Actiontec Electronics, Inc.

760 N. Mary Avenue

Sunnyvale, CA 94085

Technical Support

Phone: 719.884.8300

E-mail: techsupp@actiontec.com

Internet: www.actiontec.com/support

Setting Up the

Wireless PC Card

The instructions that follow parallel the steps contained in the Actiontec Installation

Buddy™,which provides a visual guide to setting up the Pc card. It is recommended the

user run the Installation Buddy first, before attempting any other procedures.

To set up the PC Card, it must be connected to and configured with a computer,

and then connected to a wireless network. To do this, use the following instructions.

Connecting the PC Card

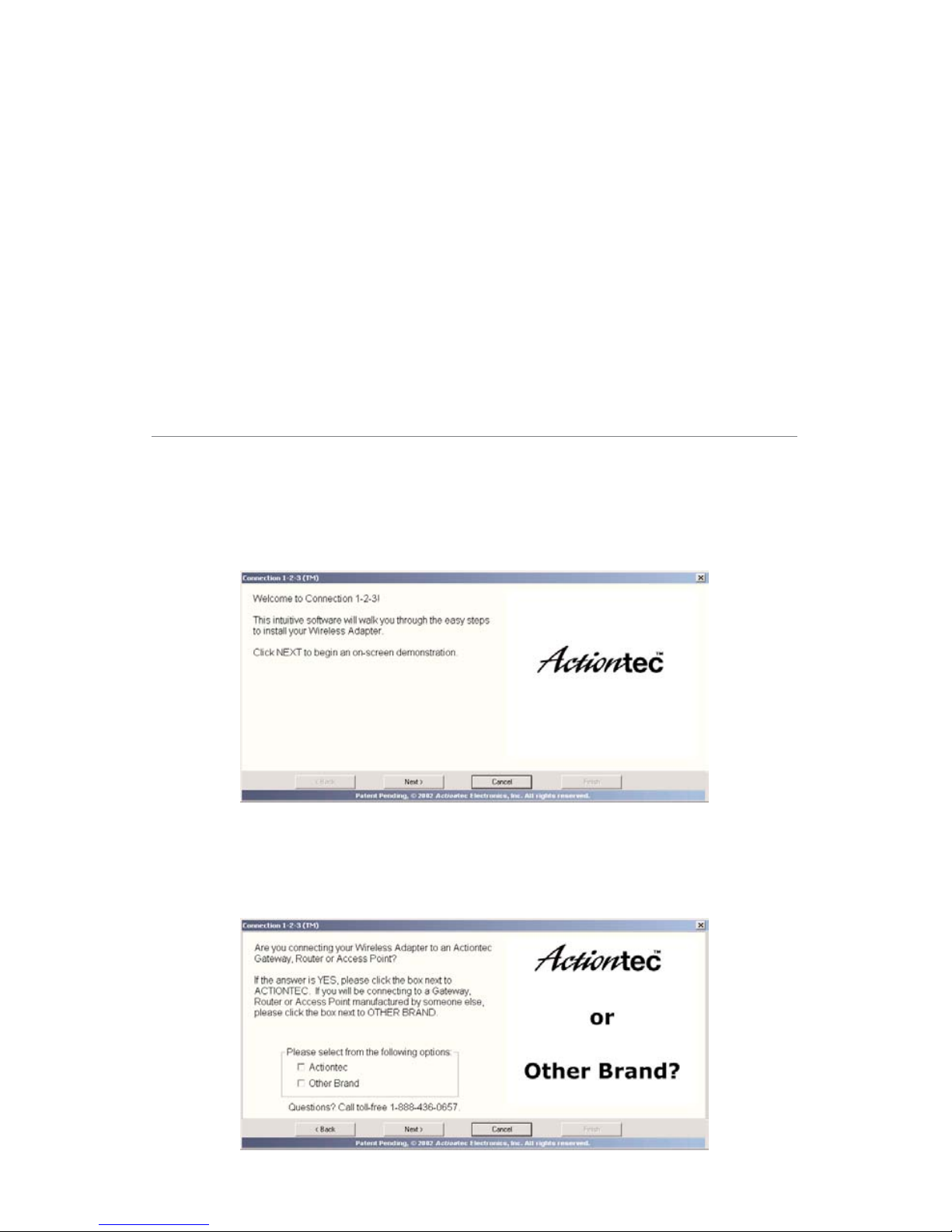

1. Insert the Actiontec Installation Buddy CD-ROM in the CD-ROM drive of the

computer. The Installation Buddy will start automatically. Wait until the fol-

lowing screen appears, read the onscreen instructions, then click Next.

2. The next window appears. Select the kind of router, gateway, or access point

the PC Card will connect to (Actiontec or Other Brand) by clicking in the

proper check box, then click Next.

Actiontec 11 Mbps Wireless PC Card User Manual

3. In the next window, click in the check box next to Wireless PC Card and

click Next.

4. The next window appears. Read the onscreen instructions, then click Next.

5. When the next window appears, read the information concerning the items

needed to set up the PC Card, then click Next.

Chapter 2 Setting Up the Wireless PC Card

6. If Actiontec was chosen in step 2, the following window appears. Read the

instructions concerning the gateway, router, or access point, then click Next.

If Other Brand was chosen in step 2, the following window appears. Read the

instructions concerning the gateway, router, or access point, then click Next.

7. When the next window appears, insert the PC Card into an available

PCMCIA slot on the computer. Click Next.

☞Note:The PCMCIA slot(s) are either on the right or left side of

the computer.

Actiontec 11 Mbps Wireless PC Card User Manual

8. When the next window appears, check that the light on the end of the PC Card is

glowing solid green, then click Next.

9. As shown in the next window, select whether Windows XP is used on the

computer by clicking Ye s or No.Then, click Next.

10. If Ye s (Windows XP is running on the computer) was selected in step 9, the

window below appears, instructing the user to click Start,Settings,and

Network Connections from the desktop. Then, click Next in the Installation

Buddy.

If No was selected in step 9, go to step 13.

Chapter 2 Setting Up the Wireless PC Card

11. The next window appears, as well as the “Network Connections” window on

the desktop. In the Network Connections window, double-click on the

Wireless Network Connection,then click Next in the Installation Buddy.

12. When the next window appears, follow the onscreen instructions. In the

“Connect to Wireless Networks” window on the desktop, select the wireless

network the PC Card will be connected to, then click Next in the Installation

Buddy.

13. The next window appears as the Installation Buddy connects the PC Card to

the wireless network.
