Quick Installation Guide
GNR-410
64-Channel 8-Bay Rackmount Standalone NVR
V2017.02.15
2 Standalone NVR Quick Installation Guide
Thank you for purchasing ACTi Standalone Network Video Recorder. This guide
contains all the information you need to quickly set up ACTi GNR server system via
local interface.
For detailed instructions on installation, operation and how to log in to GNR as a
web client, please refer to the product manuals provided on ACTi corporate website.
The items below are prerequisite for installation:
• Network cameras
• Network cables
• Network switch
• Monitor (with VGA or HDMI cable)
• USB or PS/2 mouse
• AtleastoneACTi-certied3.5-inchSATAharddisk
Findthecertieddiskmodelsathttp://www.acti.com/hddselector
BEFORE YOU START
Standalone NVR Quick Installation Guide 3
Power Switch USB Ports x 4
HARDWARE INSTALLATION
AT A GLANCE
Storage Disk Bays x 8
USB Ports x 2
Display Port
eSATA Port
Power Button
Power Status LED Indicator
AC Power Connector LAN1 Port
LAN2 Port
Front Panel
Rear Panel
This package contains:
• GNR x 1
• HDD Tray Keys Pack x 1
• Disk Screws Pack x 1
• Front Cover x 1
UNPACK
• Power Cord x 1
• Universal Converter x 1
• Warranty Card x 1
• Quick Installation Guide x 1
VGA Port
Audio Line In
Audio Out
Display Port /
HDMI Port
Serial Port
Audio Mic In
4 Standalone NVR Quick Installation Guide
RACKMOUNT THE UNIT
This unit is designed to be mounted on a standard server rack, which occupies 2U
(3.5″)ofverticalspace.
GNR Sliding Rail Kit
HARD DISK INSTALLATION
REMOVE THE TRAY
Step 1
Slide the lock tab aside,
and the hinge tab will
pop out by itself.
Step 2
Hold the tab lever and
pull out the tray.
INSTALL THE TRAY
Step 4
Place your thumb on the
lock to push the tray into
position in the chassis.
Step 5
Press the hinge tab until
it clicks into place.
MOUNT THE DISK
Step 3
Loosen the two screws
on the tray to remove the
dummy disk. Secure the
hard disk on the tray with
the provided disk screws.
Make sure the disk
connector faces towards
the SATA contacts inside
the unit.
Make sure this unit is turned off, and insert the hard disks into the disk bays
following the sequence of tray numbers.
1. Allowaminimumof5cmclearanceatthefront
andtherearforfront-to-backairowoftheunit.
2. Prepare a rack shelf rated for the unit’s weight
or purchase the rail kit from ACTi, and install
that to support the entire unit.
3. Secure the unit onto the rack.
Standalone NVR Quick Installation Guide 5
CONNECT THE DEVICES
The example below displays a network consisting of only GNR, network cameras
and required peripherals. Please remember to enable the DHCP service on your
router for GNR to obtain an IP address automatically.
Note
To assign a static IP address to GNR, enter
Windowsandcongurethenetwork
settings in Network and Sharing Center.
START-UP
ATTACH THE FRONT COVER
AfteryounishconguringGNRsystem,remembertolockthedisktraysusingthe
provided keys and attach the front cover to the unit’s front panel.
Step 2
Press the latch and push the right end towards
Step 1
Align the left end hooks
to the holes on the unit’s
left handle.
1. On the unit’s rear panel, press down the Power Switch
to the side with “ l ” mark.
2. On the unit’s front panel, press down Power Button to turn on the unit.
3. As this unit starts up, you will enter Windows logon screen, and input the
password “123456“ to log in as administrator.
the unit’s right handle
until it clicks into place.
Without Front Cover
With Front Cover
Power Source
eSATA Storage USB Devices
Monitor
Switch
Cameras
6 Standalone NVR Quick Installation Guide
CREATE DISK VOLUMES
Use Windows Disk Management to create disk volumes so that GNR can access
the available storage space.
1. In Windows Search Box, search and enter “computer management”.
SOFTWARE CONFIGURATION
2. Select “Disk Management”, right-click on a disk title and select “Initialize
Disk”, choose “GPT” as the partition style and click on“OK”.
3. Right-click on the initialized disk and select the volume type to make a new
volume.
Standalone NVR Quick Installation Guide 7
4. On New Volume Wizard window, make sure you assign the desired drive letter
and give a proper label name to this volume.
Note
TomakeaStripedvolume,aMirroredvolumeoraRAID-5volume,itisrecommendedtoselect
disks of the same model and capacity.
Note
For detailed instructions on choosing the RAID types and troubleshooting hard disk issues,
please refer to System Administrator’s manual provided on ACTi Download Center at
http://www.acti.com/downloadcenter
5. After the volume is created, it is shown on volume list and is ready for
recording.
8 Standalone NVR Quick Installation Guide
LOG IN
On Windows Destop, double-click on
to enter NVR interface. Input the default
account and password to log in.
Account: admin
Password: 123456
“123456”isthedefaultpasswordofNVRsystem
administrator’s user account. For security
reasons, please remember to change it.
CREATE USERS
On NVR screen, click Setup button to enter Setup page and then Users tab.
1. Select “User Groups”, click “Add” to start adding a new user group.
2. Input group ID and click “Apply”.
3. Click on the title bar of Users panel, click “Add” to start adding a new user.
4. Input user’s Account, Password, Email address and select its User Group, and
then click “Apply”.
Standalone NVR Quick Installation Guide 9

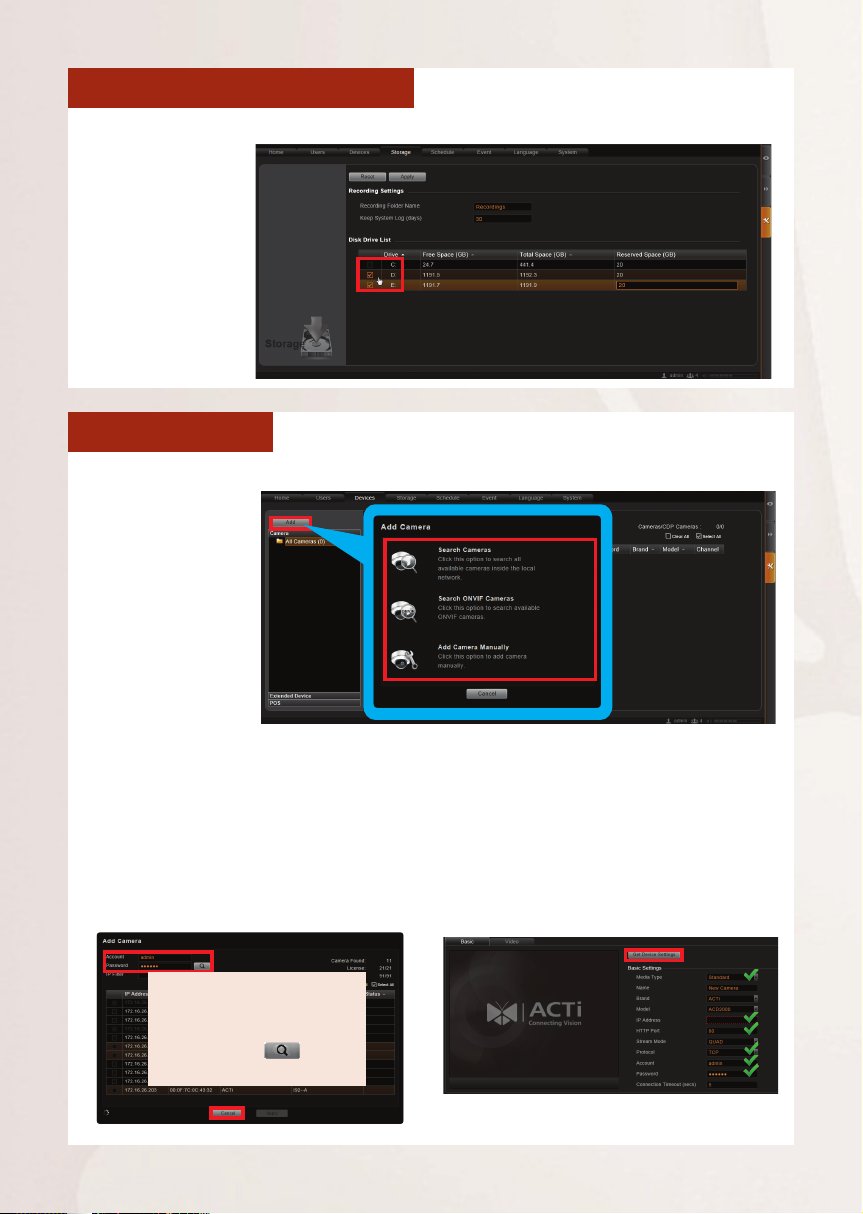

SELECT STORAGE DRIVES
1. Go to Setup page and then Storage tab.
ADD CAMERAS
1. Go to Setup page and then Devices tab.
Search Cameras
Use “Search Cameras” to auto-
search the network for ACTi cameras,
or “Search ONVIF Cameras” for
ONVIF-compliant cameras of any brand.
After selecting your desired cameras,
click “Apply”.
Add Camera Manually
If you are adding a camera located in
another network, use “Add Camera
Manually”. Fill in Media Type, IP
Address, HTTP Port, Protocol, Account
and Password. Finally, click “Get Device
Settings” and then “Apply”.
To nd ONVIF-compliant
cameras, input the correct
account and passowrd rst,
and then click to start
searching.
2. Click “Add”.
3. Choose a search
method based
on your network
environment
and the brand of
the camera.
2. On Disk Drive
List, de-select C
Drive, and select
other storage
drives.
3. Click “Apply“.
10 Standalone NVR Quick Installation Guide
CONFIGURE CAMERA SETTINGS
1. Go to Setup page and then Devices tab. Choose the camera from Camera List.
2. Select Basic, Video, PTZ, or Preset Tourtabtocongurerelatedsettings.
SET RECORDING SCHEDULE
NVR will automatically start full-time recording for a newly added camera. You can
modify the recording schedule to suit your needs.
1. Go to Setup page and then Schedule tab. Select the camera from Camera List.
2. Choose a recording mode: or
Schedule Recording: Records video continuously during the scheduled session.
Event Recording:Recordsvideobasedonspecictriggerslikewhenamotionis
deteced by the camera.
3. Dragonthetimetabletodenethetimesession.
4. Click “Apply“.
3.Cllick “Apply“
to save the
settings.
