ACTi GNR-310 Manuel utilisateur

Quick Installation Guide

GNR-310

64-Channel 6-Bay RAID Tower Standalone NVR

2 Standalone NVR Quick Installation Guide

Thank you for purchasing ACTi Standalone Network Video Recorder. This guide

contains all the information you need to quickly set up ACTi GNR server system via

local interface.

For detailed instructions on installation, operation and how to log in to GNR as a

web client, please refer to the product manuals provided on ACTi corporate website.

The items below are prerequisite for installation:

• Network cameras

• Network cables

• Network switch

• Monitor (with VGA or HDMI cable)

• USB or PS/2 mouse

• AtleastoneACTi-certied3.5-inchSATAharddisk

Findthecertieddiskmodelsathttp://www.acti.com/hddselector

BEFORE YOU START

Standalone NVR Quick Installation Guide 3

AT A GLANCE

StorageDiskBaysx5

System Disk

Power Button

Power Status LED Indicator

USB Ports x 2

Front Panel

Rear Panel

HARDWARE INSTALLATION

This package contains:

• INR x 1

• HDD Tray Keys Pack x 1

• Disk Screws Pack x 1

• Power Cord x 1

UNPACK

USB Ports x 4

VGA Port

LAN2 Port

eSATA Port

AC Power Connector

This package contains:

• GNR x 1

• HDD Tray Keys Pack x 1

• Disk Screws Pack x 1

• Quick Installation Guide x 1

• Power Cord x 1

• Universal Converter x 1

• Warranty Card x 1

HDMI Port

Power Switch

Audio Output

Audio Input

LAN1 Port

PS/2 Mouse

Connector

PS/2 Keyboard

Connector

4 Standalone NVR Quick Installation Guide

HARD DISK INSTALLATION

TURN OFF THIS UNIT before you move the trays. Repeat the following steps to

install the disks into Storage Disk bays.

REMOVE THE TRAY

Step 1

Slide the lock tab up,

the hinge tab will pop

out by itself.

Step 2

Pull the hinge tab to 90

degress from the front,

and pull out the tray.

INSTALL THE TRAY

Step 4

Place your thumb on the lock to push

the tray into position in the chassis.

Step 5

Press the hinge tab until it clicks into

place.

MOUNT THE DISK

Step 3

Mount the disk by locking it

with supplied disk screws to

the bottom of the tray.

CONNECT THE DEVICES

The examle below displays a network consisting of only GNR, network cameras and

required peripherals. Please remember to enable the DHCP service on your router

for GNR to obtain an IP address automatically.

Power Source

Switch

Cameras

eSATA

Storage

USB Devices

Monitor

Note

To assign a static IP address to GNR, enter

Windowsandcongurethenetwork

settings in Network and Sharing Center.

Standalone NVR Quick Installation Guide 5

START-UP

CREATE HARDWARE RAID

1. On the unit’s rear panel, press down the Power Switch

to the side with “ l” mark.

2. On the unit’s front panel, press down Power Button to turn on the unit.

3.Asthisunitstartsup,youwillenterWindowslogonscreen.Inputthe

password “123456“ to log in as administrator.

Note

Before removing or insert-

ing the hard disk trays,

please make sure the unit is

turned off.

Moving the trays while the

unit is operating can cause

damage to the disk.

AsthisunitsupportshardwareRAIDconguration,youcanmakediskarrays

using the bundled software utility.

1. On Windows Desktop, double-click on the shortcut to initialize the

RAID management utility.

2. On Basic RAID Conguration tab, select a RAID type and click on “Apply“.

3.Afterthecongurationiscomplete,theRAIDinformationwillappear.

6 Standalone NVR Quick Installation Guide

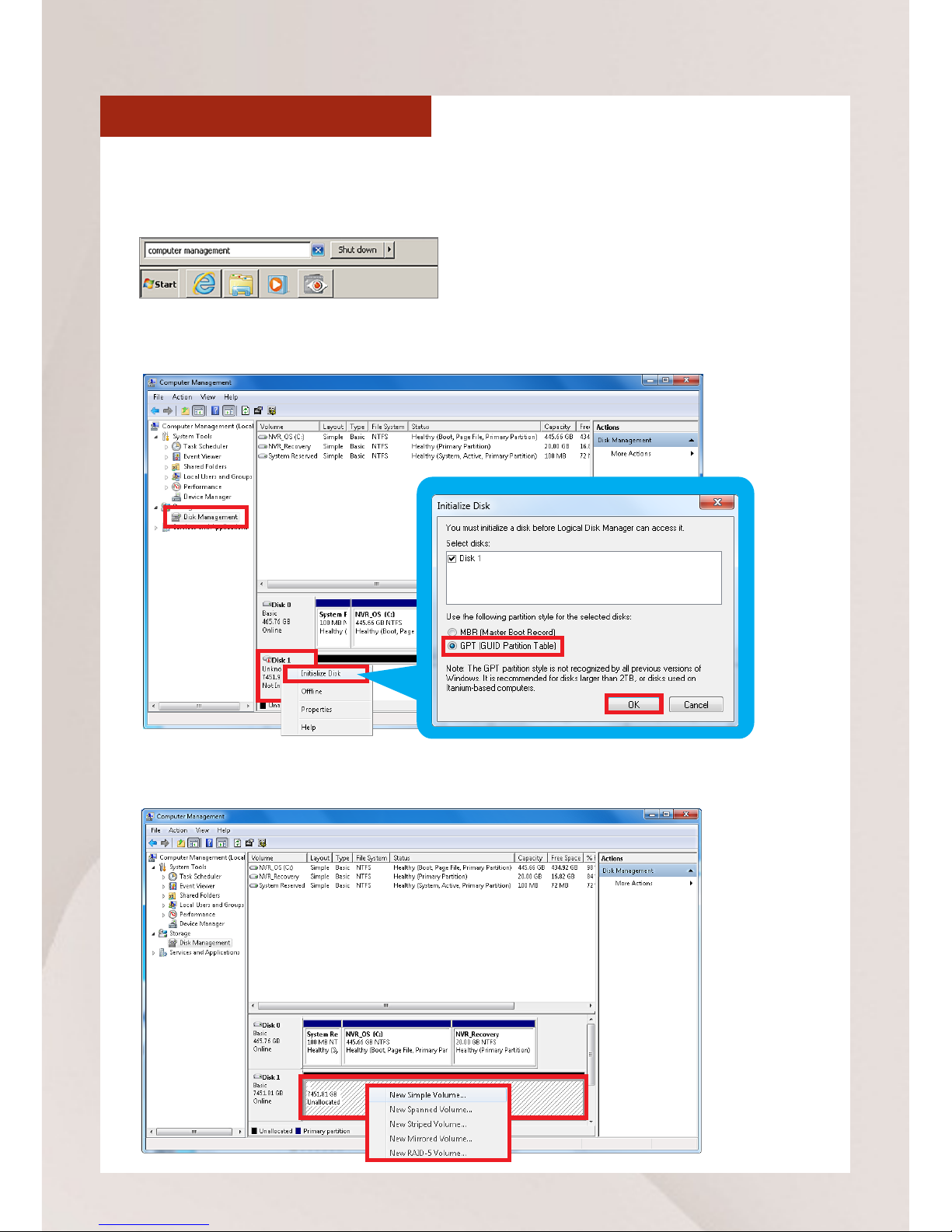

CREATE DISK VOLUMES

Use Windows Disk Management to create disk volumes so that GNR can access

the available storage space.

1. In Windows Search Box, search and enter “computer management”.

SOFTWARE CONFIGURATION

2. Select “Disk Management”, right-click on a disk title and select “Initialize Disk”,

choose “GPT” as the partition style and click on“OK”.

3. Right-click on the initialized disk and select the volume type to make a new

volume.

Standalone NVR Quick Installation Guide 7

4. On New Volume Wizard window, make sure you assign the desired drive letter

and give a proper label name to this volume.

Note

TomakeaStripedvolume,aMirroredvolumeoraRAID-5volume,itisrecommendedtoselect

disks of the same model and capacity.

Note

For detailed instructions on choosing the RAID types and troubleshooting hard disk issues,

please refer to System Administrator’s manual provided on ACTi Download Center at

http://www.acti.com/downloadcenter

5. After the volume is created, it is shown on volume list and is ready for recording.

8 Standalone NVR Quick Installation Guide

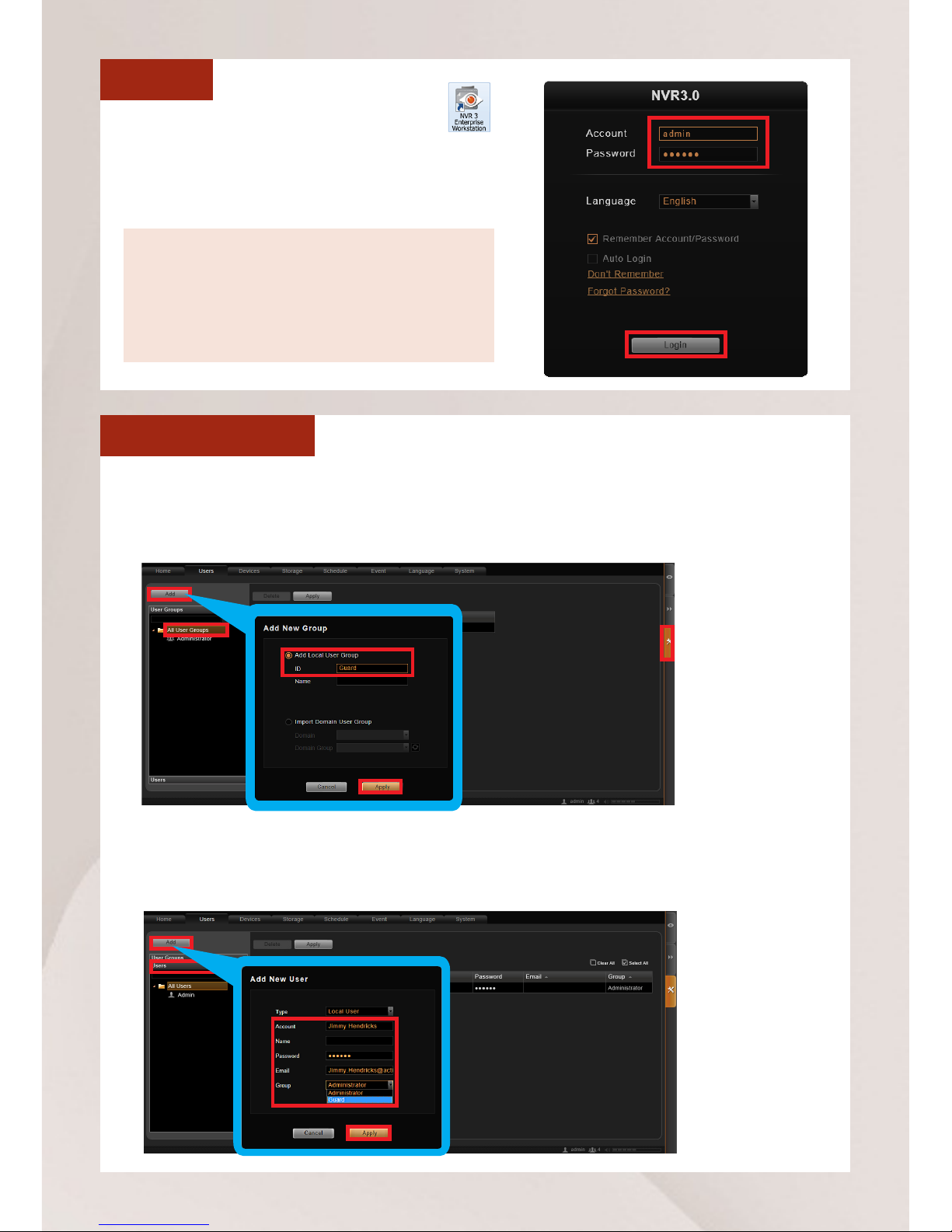

Account: admin

Password: 123456

“123456”isthedefaultpasswordofNVRsystem

administrator’s user account. For security

reasons, please remember to change it.

CREATE USERS

On NVR screen, click Setup button to enter Setup page and then Users tab.

1. Select “User Groups”, click “Add” to start adding a new user group.

2. Input group ID and click “Apply”.

3. Click on the title bar of Users panel, click “Add” to start adding a new user.

4. Input user’s Account, Password, Email address and select its User Group, and

then click “Apply”.

On Windows Destop, double-click on

to enter NVR interface. Input the default

account and password to log in.

Standalone NVR Quick Installation Guide 9

SELECT STORAGE DRIVES

1. Go to Setup page and then Storage tab.

ADD CAMERAS

1. Go to Setup page and then Devices tab.

Search Cameras

Use “Search Cameras” to auto-

search the network for ACTi cameras,

or “Search ONVIF Cameras” for

ONVIF-compliant cameras of any

brand. After selecting your desired

cameras, click “Apply”.

Add Camera Manually

If you are adding a camera located in

another network, use “Add Camera

Manually”. Fill in Media Type, IP

Address, HTTP Port, Protocol, Account

and Password. Finally, click “Get Device

Settings” and then “Apply”.

To nd ONVIF-compliant

cameras, input the correct

accountandpassowrdrst,

and then click to start

searching.

2. Click “Add”.

3. Choose a search

method based

on your network

environment

and camera

brand.

2. On Disk Drive

List, de-select C

Drive, and select

other storage

drives.

3. Click “Apply“.

10 Standalone NVR Quick Installation Guide

CONFIGURE CAMERA SETTINGS

1. Go to Setup page and then Devices tab. Choose the camera from Camera List.

2. Select Basic, Video, PTZ, or Preset Tourtabtocongurerelatedsettings.

SET RECORDING SCHEDULE

NVR server will automatically start full-time recording for a newly added camera.

You can modify the recording schedule to suit your needs.

1. Go to Setup page and then Schedule tab. Select the camera from Camera List.

2. Choose a recording mode: or

Schedule Recording: Records video continuously during the scheduled session.

Event Recording:Recordsvideobasedonspecictriggerslikewhenamotionis

deteced by the camera.

3. Dragonthetimetabletodenethetimesession.

Note

If you have any question during system installation, please feel free to contact our engineers

via ACTi Customer Help Desk platform at http://www.acti.com/CHD

4. Click “Apply“.
