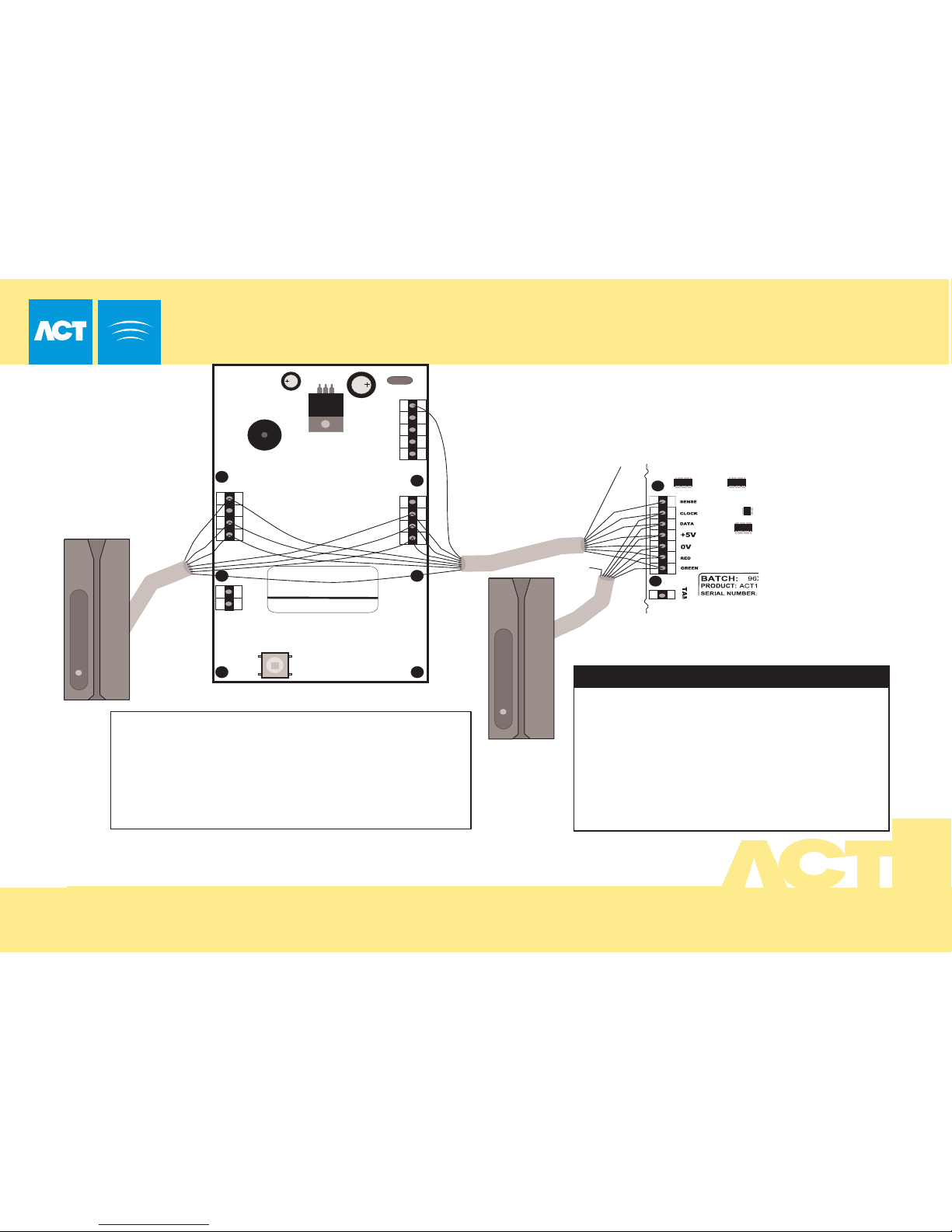

ACT20 Pin Pad Installation Diagram
Cable: 8 Core Screened,
Max 30m
Controller
ENTRY/EXIT READER
0 1 2 3 4 5 6 7 8 9
BATCH:
PRODUCT:
SERIAL NUMBER:
98XX-1
ACT20 REV2.1
012345
OP2
OP3
BUZZER
0V 0V
DOOR
CONTACT
PUSH
BUTTON
INTERLOCK
(PB2)
TAMPER
12-24V
AC/DC
+
-
WHITE
GREEN
BLUE
BROWN
YELLOW
BLACK
RED
ORANGE
SENSE
UNUSED
OPTIONAL EXIT READER
ENTRY READER
The ACT20 connects in parallel
between the reader and the controller.
An extra line (ORANGE) is used to
bring +12VDC power to the ACT20.
The shields should be joined.
Controller Cable ACT20
Sense White Buzzer
Clock Green OP2
Data Blue OP3
+5V Red
0V Black 0V
Red LED Brown Door Contact
Grn LED Yellow Push Button
+12V Orange +12V
ORANGE
Connect to
12Vdc
U nit 8 IDA B us iness Park, W hitestown, T allaght, Dublin 24, Ireland.
T elephone: 353 1 462 2585. Telefax : 353 1 462 2587. E -mail: s ales @ actrl.com W eb: www .actrl.com
U nit 8 T allaght Bus iness Centre, W hitestown, T allaght, Dublin 24, Ireland.
Telephone: 353 1 462 2585. Telefax: 353 1 462 2587. E-m ail: sales @ acces scontrol.ie W eb: ww w.acces s control.com
