Acrosser Technology AR-B1675 Manuel utilisateur

AR-B1675 User’s Guide

AR-B1675 1

AR-B1675

VIA Mark CoreFusion 800MHz, Half Size ,On Board

SDRAM,VGA,LVDS with One SDRAM SO-DIMM, built in

LAN,CF Type-II

Edition: 2.0

Book Number: AR-B1675-06.11.17

AR-B1675 User’s Guide

AR-B1675 2

Manual first edition Apr 11, 2006

The information in this document is subject to change without prior

notice in order to improve reliability, design and function and does not

represent a commitment on the part of the manufacturer.

In no event will the manufacturer be liable for direct, indirect, special,

incidental, or consequential damages arising out of the use or inability to

use the product or documentation, even if advised of the possibility of

such damages.

This document contains proprietary information protected by copyright.

All rights are reserved. No part of this manual may be reproduced by

any mechanical, electronic, or other means in any form without prior

written permission of the manufacturer.

Trademarks

AR-B1675 is registered trademarks X-Fire Acrosser, IBM PC is a

registered trademark of International Business Machines Corporation.

Pentium is a registered trademark of Intel Technologies, Inc. Award is

registered trademarks of Award Software International, Inc. Other

product names mentioned herein are used for identification purposes

only and may be trademarks and/or registered trademarks of their

respective companies.

AR-B1675 User’s Guide

AR-B1675 3

Contents

Contents................................................................ 3

Introduction............................................................. 5

1.1 Specifications:........................................................................... 5

1.2 What You Have......................................................................... 6

Installation .............................................................. 7

2.1 AR-B1675’s Layout................................................................... 7

2.2 Power Button Setting................................................................ 9

2.3 CMOS Reset........................................................................... 10

2.4 Jumper description ................................................................. 10

Connection............................................................ 12

3.1 Ultra ATA33 IDE Disk Drive Connector(IDE2)........................ 12

3.2 Serial Ports(COM2) ................................................................ 13

3.3 Keyboard / Mouse Connector(MS_KB1,2)............................. 13

3.4 USB Port Connector(USB1~4)............................................... 14

3.5 Fan Connector (FAN1) ........................................................... 14

3.6 LAN RJ45 Connector (J4)....................................................... 15

3.7 Compact Flash Storage Card Socket(CF1)............................ 15

3.8 VGA Connector(VGA1)........................................................... 16

AR-B1675 User’s Guide

AR-B1675 4

3.9 AUDIO Connector(AUDIO1)................................................... 17

3.10 SDRAM SODIMM Socket (DIMM1)...................................... 17

3.11 8-BIT GPIO Connector(CN1)................................................ 17

3.12 Parallel port(LPT1)................................................................ 18

3.13 LVDS Connector(LVDS1)..................................................... 18

Award BIOS Setup................................................ 20

4.1 Introduction............................................................................. 20

4.2 Starting Setup......................................................................... 20

4.3 Using Setup ............................................................................ 21

4.4 Main Menu.............................................................................. 22

4.5 Advanced BIOS Features....................................................... 25

4.6 PnP/PCI Configuration Setup................................................. 27

4.7 Peripheral................................................................................ 28

4.8 H/W Monitor............................................................................ 29

4.9 Boot……………...…………………………………………………30

4.10 Exit Selecting…………………………………………………….31

AR-B1675 User’s Guide

AR-B1675 5

Introduction

1.1 Specifications:

CPU : Onboard VIA Mark CoreFusion 800MHz CPU.

Chipset : VIA VT82C686B South Bridge

RAM memory : Onboard 128M SDRAM and One SDRAM SO-DIMM Socket

support to 1 GB/133MHz.

Display Controller: MARK integrated ProSavage 4 3D/2D Graphic Controller.

Ultra DMA 133 IDE Interface : One PCI Enhance IDE channel.

CompactFlashTM interface : Supports CompactFlashTM Type II socket for

Compact Flash Disk or IBM Micro Drive.

Series ports : Two high-speed 16C550 compatible UARTs ports.COM2 can

also support RS-422/485.

Parallel Port: IEEE-1284 compliant. Supports SPP/EPP/ECP mode.

USB port : Support Four USB 2.0 compatible ports.

Audio Connector: supports Line-in, Line-out, MIC-in.

Digital IO: Supports four digital-in, and four digital-out TTL-level I/O ports.

PS/2 Mouse/Keyboard Connector

Watchdog timer : Time setting form 1 to 4096 second / minute System Reset

generate when CPU did not periodically trigger the timer.

Intel LAN Controller: 1 ports IEEE 802.3u Auto-Negotiation support for

Realtek RTL8100C 10/100BASE-TX Connected to your LAN through RJ45

connector.

Power Consumption : 5V / 2.75A

AR-B1675 User’s Guide

AR-B1675 6

Operating Temperature : 0°~ 60°C

Dimension: 122mm(W) X 185mm(L)

1.2 What You Have

In addition to this User's Manual, the AR-B1675 package includes the

following items:

AR-B1675 board

Setting Manual

Software utility CD

Serial port wired cable

Audio wired cable

PS/2 Mouse& Keyboard interface Y-cable

Hard disk drive adapter cable

USB port on one bracket cable

Parallel port cable

AR-B1675 User’s Guide

AR-B1675 7

Installation

This chapter describes how to install the AR-B1675. At first, the

layout of AR-B1675 is shown, and the unpacking information that you

should be careful is described. The jumpers and switches setting for

the AR-B1675’s configuration

2.1 AR-B1675’s Layout

Top Placement

AR-B1675 User’s Guide

AR-B1675 8

Bottom Placement

AR-B1675 User’s Guide

AR-B1675 9

2.2 Power Button Setting

•CN3 : Power Connector

•PWRON1 : Power Button Connector

•HDLED1 : HardDisk LED Connector

•RST1 : Reset Button Connector

•CN2 : Power ON Pin Header

PIN DESCRIPTION

1 12V

2 GND

3 GND

4 5V

Pin DESCRIPTION

Open Showdown

Short Power ON

Pin DESCRIPTION

1 +5V

2 HD_LED

Pin DESCRIPTION

Open Normal

Short Reset System

Pin DESCRIPTION

1 5VSB

2 GND

3 PS_ON

AR-B1675 User’s Guide

AR-B1675 10

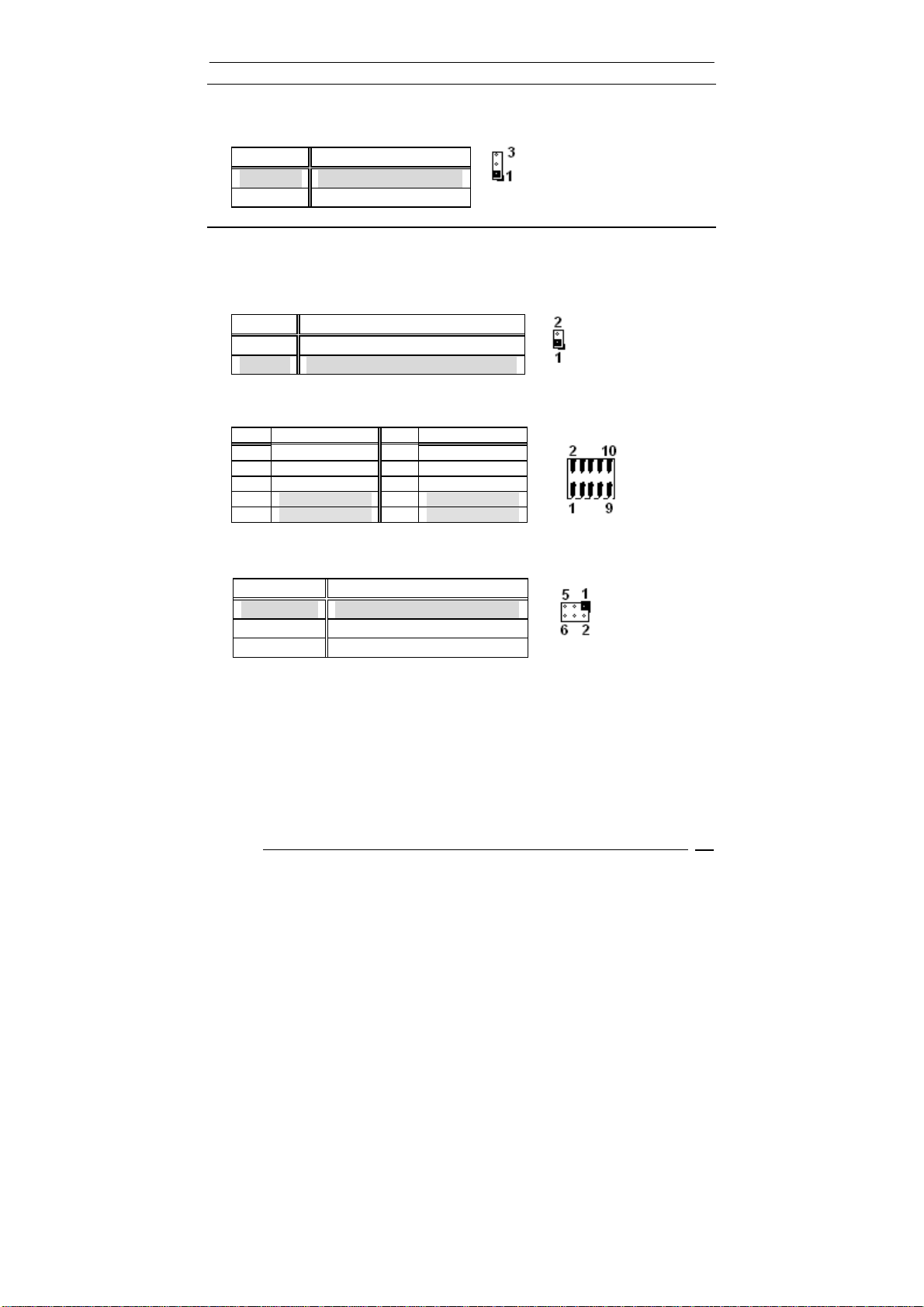

2.3 CMOS Reset

•CMOS1 : CMOS pin header

2.4 Jumper description

•JP2 : Select CF Master or Slave mode

•JP3 : COM1/2 Select RI is 12V/5V or signal

•J2 : Select COM2 is RS232 or RS422/485

CMOS1 DESCRIPTION

1-2 Normal Operation

2-3 Reset CMOS

JP2 DESCRIPTION

Short Master

Open Slave

PIN DESCRIPTION PIN DESCRIPTION

1 12V 2 12V

3 COM_RI1 4 COM_RI2

5 5V 6 5V

7 COM_RI1 8 COM_RI2

9 NRI1 10 NRI2

J2 DESCRIPTION

1-2 RS232

3-4 RS422

5-6 RS485
