Acnodes PC 8717 Manuel utilisateur

PC 8717

Industrial Panel PC

User Manual

PC8717:17”IndustrialTouchPanelPCwith

Corei3-2330E 2.2GHz Processor

14628 Central Ave,

Chino, CA 91710

tel:909.597.7588, fax:909.597.1939

are subject to change without noti ce. For latest product information,

please visit Acnodes’web site at www.acnodes.com.

Warning!_______________________________

This equipment generates, uses and can radiate radio frequency energy and if not installed and

used in accordance with the instructions manual, it may cause interference to radio

communications.

It has been tested and found to comply with the limits for a Class A computing device pursuant to

FCC Rules, which are designed to provide reasonable protection against such interference when

operated in a commercial environment. Operation of this equipment in a residential area is likely to

cause interference in which case the user at his own expense will be required to take whatever

measures may be required to correct the interference.

Electric Shock Hazard –Do not operate the machine with its back cover removed. There are

dangerous high voltages inside.

Packing List

Accessories (as ticked) included in this package are:

□

AC power cable

□

Driver & manual CD disc

□

Other._ (please specify)

Safety Precautions

Follow the messages below to avoid your systems from damage:

◆

Avoid your system from static electricity on all occasions.

◆

Prevent electric shock. Don

’t

touch any components of this card when the card is

power-on. Always disconnect power when the system is not in use.

◆

Disconnect power when you change any hardware devices. For instance, when you

connect a jumper or install any cards, a surge of power may damage the electronic

components or the whole system.

Table of Contents

Warning!…………………………………………………………………………….……..….2

Packing List...................................................................................................................3

Safety Precautions........................................................................................................3

Chapter 1 Getting Started

1.1 Specifications………………………………………….………….……...…..7

1.2 Dimensions…………………………………...……………….…………......8

1.3 Brief Description of PC8717…………...………………….………………10

Chapter 2 Hardware Installation

2.1 Mainboard Specifications………………………..…………….…………11

2.2 Jumpers Setting and Connectors………………………….……………14

Chapter 3 BIOS Setup

3.1 Operations after POST Screen.............................................................30

3.2 BIOS SETUP UTILITY................................................................30

3.3 System Overview.......................................................................31

3.4 Advanced Settings................................................................... 32

3.5 Chipset Settings................................................................................... 39

3.6 Boot Settings....................................................................................... 48

3.7 Security Settings.................................................................................. 49

3.8 Save & Exit Settings............................................................................ 50

Chapter 4 Installation of Drivers

4.1 Intel Chipset Driver.…………………………...……………………………54

4.2 Intel (R) VGA Chipset Driver..…................…......……………….......…..57

4.3 Intel(R) Network adapter Driver…........…..................................……….62

4.4 Realtek HD Audio Driver Installation………………….…………………66

4.5 Microsoft .NET Framework 3.5 Service.................................................68

Chapter 5 Touch Screen Installation

5.1 Introduction to Touch Screen Controller Board………………………....70

5.2 Windows 2000/XP USB Driver Installation………………….………..….70

Chapter 1 Getting Started

1.1 Specifications

Model No.

Specs

PC 8717

PLP-A717

PLP-A719

System

Processor

Support Core i3-2330E 2.2GHz processor

System Chipset

Intel QM67 PCH

System Memory

2 x SO-DIMM(204pins) up to 16GB DDRIII 1066/1333MHz FSB

Storage

2 x 2.5" SATA HDD space

External I/O Port

Onboard

2 x DB9 RS-232 (COM1.2)

1 x DVI-I

1 x HDMI

2 x RJ45 GbE LAN

4 x USB 2.0

1 x Mic-in, Line-Out

1 x DC Power 3 Pin terminal block connector

1 x 2 Pin remote power switch connector

2 x LED indication

--------------------------------------------------------------------------------------------------------

By cable

1 x RS-232 COM4

1 x RS-422/485 default RS-485 COM3

1 x CF slot

1 x Rocker switch for power on/off

1 x 8 Pin terminal block 3 in/out/VCC/Ground for option

Expansion Slots

1 x PCIe x16 or 1 x PCI slot, default 1 x PCIe x16

OS support

Windows XP embedded, Windows embedded standard 7, Windows 7 Pro for

embedded

LCD

Display Type

17”

Max. Resolution

1280X1024

Max. Color

16.7M

Luminance (cd/m2)

350

ViewAngle

170:160

Backlight Lifetime

50,000 hrs

Touch Screen

Type

Resistive Touch

Light Transmission

80%

Power Supply

Power Input

DC 9~32V

Mechanical

Construction

Steel black

IP Rating

Front Panel IP65

Mounting

Panel mount

Dimensions (WxHxD)

17.28” x 13.7” x 4.69”

Environmental

Operating Temperature

0~50 ﾟC

Storage Temperature

-20~60 ﾟC

Storage Humidity

10~90% @40 ﾟC non-condensing

Certificate

CE/FCC Class A

1.2 Dimensions

Figure 1.1 : Dimensions of PC 8717

1.3 Brief Description of PC 8717

The PC8717 is the fanless and high performance panel-mount industrial panel PC with 17”TFT

LCD. It powered by QM67 chipset and support Core i3-2310M 2.1GHz Processor. The panel PC

has a rich variety of functions and peripherals. It comes with 2 x 2.5-inch hard disk drive and 1 x CF

space for data storage , support DDR3 memory up to 16G, support rich i/O, wide range 9~32V DC

input, and also provide 1 x PCIe x 16 slot, it can ensure simplified connectivity to a variety of external

peripheral devices. The OS supports windows XP embedded, Windows embedded standard 7. The

unit deal for a wide range of applications including digital surveillance, data/image acquisition,

factory automation and industrial applications.

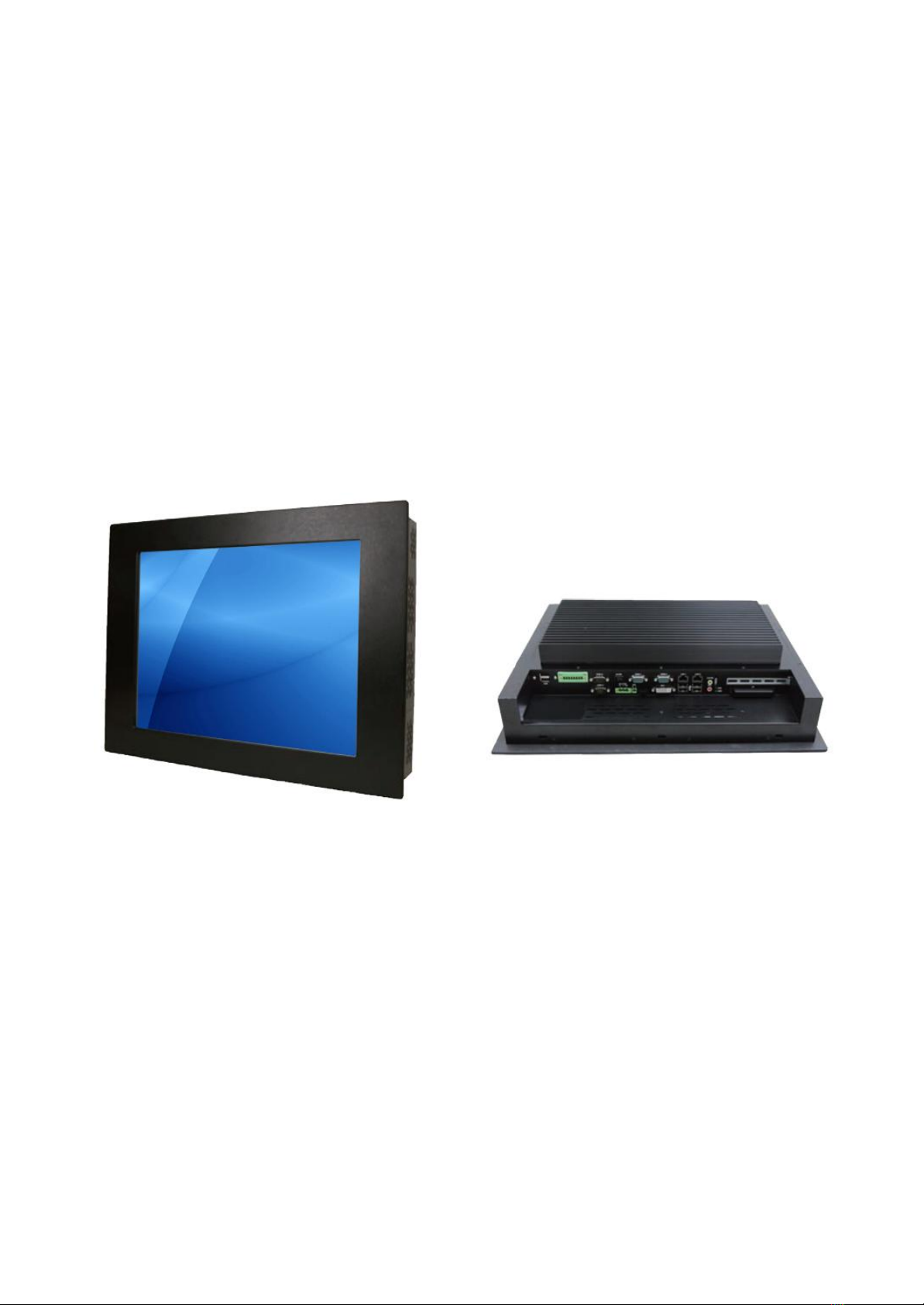

Figure 1.2: Overview of PC 8717

Chapter 2 Hardware Installation

2.1 Mainboard Specifications

Introduction

Figure 2.1: Mainboard Overview
