Acnodes PC 1080 Manuel utilisateur

Quick Guide

PC 1080 / 1090

April. 2006 (V1.0)

CONTENTS

Chapter 1 Unpacking -------------------------------------------------------------------------------- 3

Chapter 2

Specification

-------------------------------------------------------------------------------- 5

2.1 Specification

2.2 I/O Ports

Chapter 3 Installation --------------------------------------------------------------------------------- 7

3.1 OS Installation

3.2 Touch Driver Installation

3.3 MSR / I Button PS2 Interface Installation

3.4 Wall Mount Kit Installation

3.5 Cash Drawer

Chapter 4 Jumper Definition -----------------------------------------------------------------16

4.1 Main Board Layout

4.2 LCD Power Setting

4.3 COM1/2 Power Selection

4.4 COM 3 Power Selection

4.5 IDE Disk Drive Connector

4.6 FAN Connector

4.7 Serial Port

4.8 Power Connector

4.9 VGA connector

4.10 LCD & Inverter Connector

4.11 USB Port Connector

4.12 Audio Connector

4.13 LED

4.14 Power & Reset Button

4.15 Cash Drawer

4.16 Keyboard & Mouse Connector

4.17 Touch Connector

Chapter

Unpacking

Unpacking the Panel PC, please check the following items are presented and in good conditions:

a. Main Unit

b. CD: User’s Manual & Driver Bank

The driver disk includes user’s manual and all of driver software of peripheral, such as touch

screen, VGA, LAN….etc.

c. Wall Mount Bracket

d. Power Adapter

e. Power Cord: Optional USA, Europe, UK or Australia type.

Chapter

Specification

2.1 Specification

The Panel PC system configuration including 8.4” 12.1” and 15” as followings,

Main Board

CPU AMD Geode LX-800

System Memory 1 x DDR400 SO-DIMM Socket, up to 1GB

Display

TFT LCD Size 8.4” 12.1” 15”

Brightness 180nits 300nits 250nits

Resolution 800x600 1024x768

Touch Screen 5 Wire Resistive Type

Storage Device

HDD No Support 2.5” Slim Type

Compact Flash 1 x Type II, Slot

I/O Ports

Serial 2x RS232 (Pin9 with 5/12V Selected)

2x RS232 (Internal Touch & MSR Used)

USB 2 x USB2.0

2 x USB2.0 Internal Stand By

LAN 1 x RJ45, 10/100 Base-T

Cash Drawer 1 x RJ11 (Power 12V)

Audio AC97 2.0 Compliant, Speaker 2 x 2W

Others

Power Supply External, 12V / 80W, ATX

Compliance FCC / CE

Weight (Kgs) 1.4 2.8 4.0

Dimension (mm) 230x118x43 313x256x46.5 369x298x47

Operating Temperature 5 ~ 40 ﾟC

Optional Accessory

Wireless LAN 802.11g, USB I/F

Wall Mount Kits VESA Standard

Arm Mount Kits VESA Standard

MSR ISO STD 3 Tracks, KB I/F

2.2 I/O ports

Following ports show all of ports of system.

a. DC IN: connector for power adapter input 12VDC.

b. Cash Drawer: provide IO port address 280H for cash drawer control by RJ11.

c. COM 1/2: standard D sub serial port with 5V / 12VDC selected on pin9.

d. LAN: 10 / 100 base-T by RJ45 connector.

e. USB: play and plug USB 2.0.

f. Power Switch: toggle switch for power on.

g. MSR PS2: for attached MSR PS2 interface connection.

3.1 OS Installation

3.1.1 Embedded WEPOS / WinCE

Chapter

Installation

CD ROM Driver with USB interface

If you bought the system including WEPOS / WinCE operation system, please follow up

below procedure.

a. Connect CDROM to the USB port of system.

b. Turn on the system and enter completely into WEPOS.

c. Up load your application software into WEPOS platform.

d. Complete installation and execute the AP.

Note: We suggest that you buy and use factory recommend CD-ROM with USB interface while you are

placed first sample unit.

3.1.2 Win XP

If you would like to install the Win XP, we suggest the system’s configuration include 256MB RAM and

HDD.

a. Connect CDROM to the USB port of system.

b. Turn on the system and press “ Del” key enter to CMOS setup.

c. Select icon “Advanced BIOS Features“.

Phoenix – Award BIOS CMOS Setup Utility

Standard CMOS Features

Advanced BIOS Features

Advanced Chipset Features

Integrated Peripherals

Power Management Setup

PnP / PCI Configuration

PC Health Status

ESC: Quit

F10: Save & Exit Setup

d. Select “First Boot Device” to “USB-CDROM”.

e. Press “F10” to save setup change and quit.

f. Install the Win XP, follow up the OS installation guide.

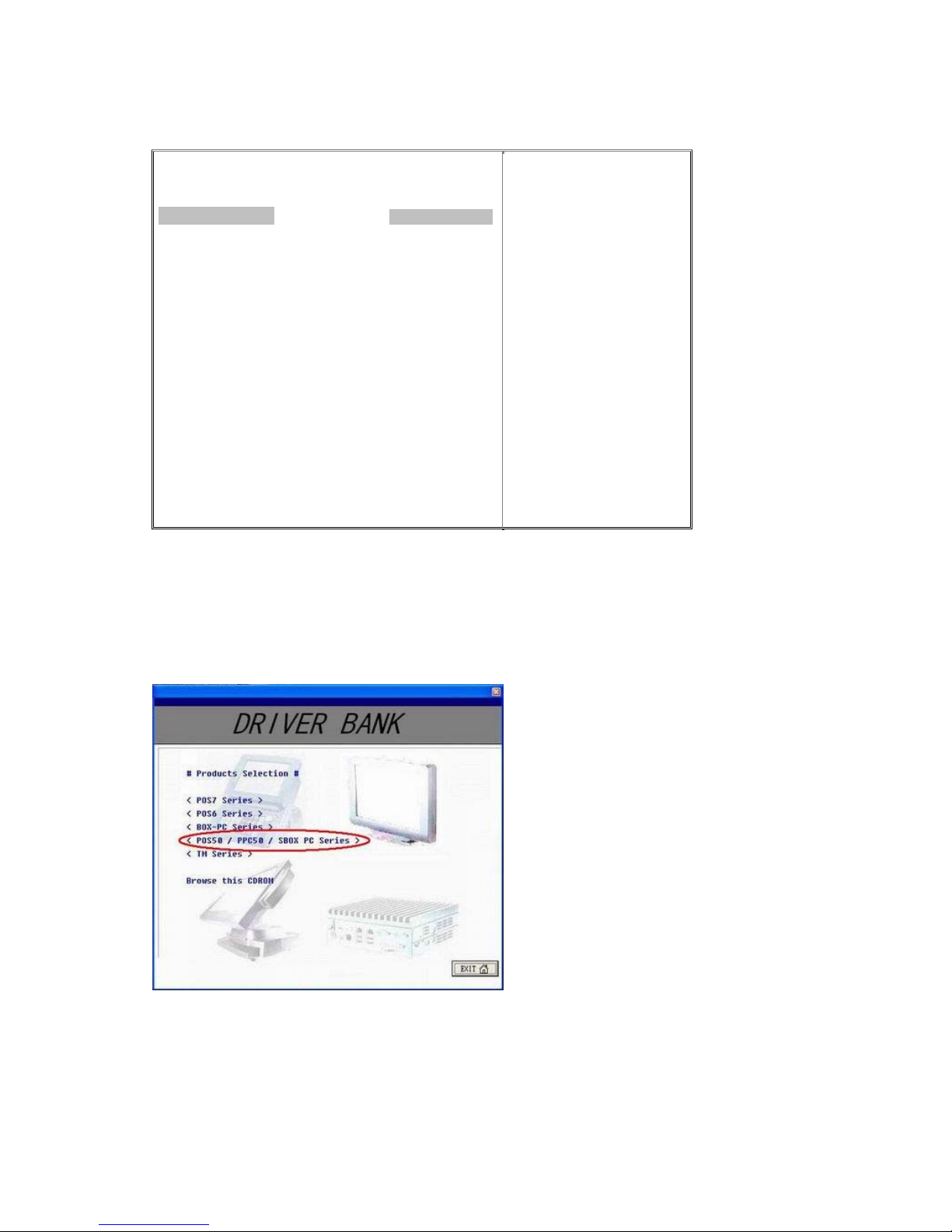

Phoenix – Award BIOS CMOS Setup Utility

Advanced BIOS Features

Virus Warning

CPU Internal Cache

Boot From Lan Control

First Boot Device

Second Boot Device

Third Boot Device

Boot Other Device

Boot UP NumLock Status

Gate A20 Option

Typematic Rate Setting

Typematic Rate (Chars/Sec)

Typematic Delay (Msec)

Security Option

OS Select For DRAM > 64MB

Small Logo(EPA) Show

[Disabled]

[Enabled]

[Disabled]

[USB-CDROM]

[HDD-0]

[CDROM]

[Enabled]

[On]

[Fast]

[Disabled]

250

[Setup]

[Non-OS2]

[Disabled]

3.2 Touch Driver Installation

Refer to list procedure of touch driver as followings, which is based on Win XP as example.
