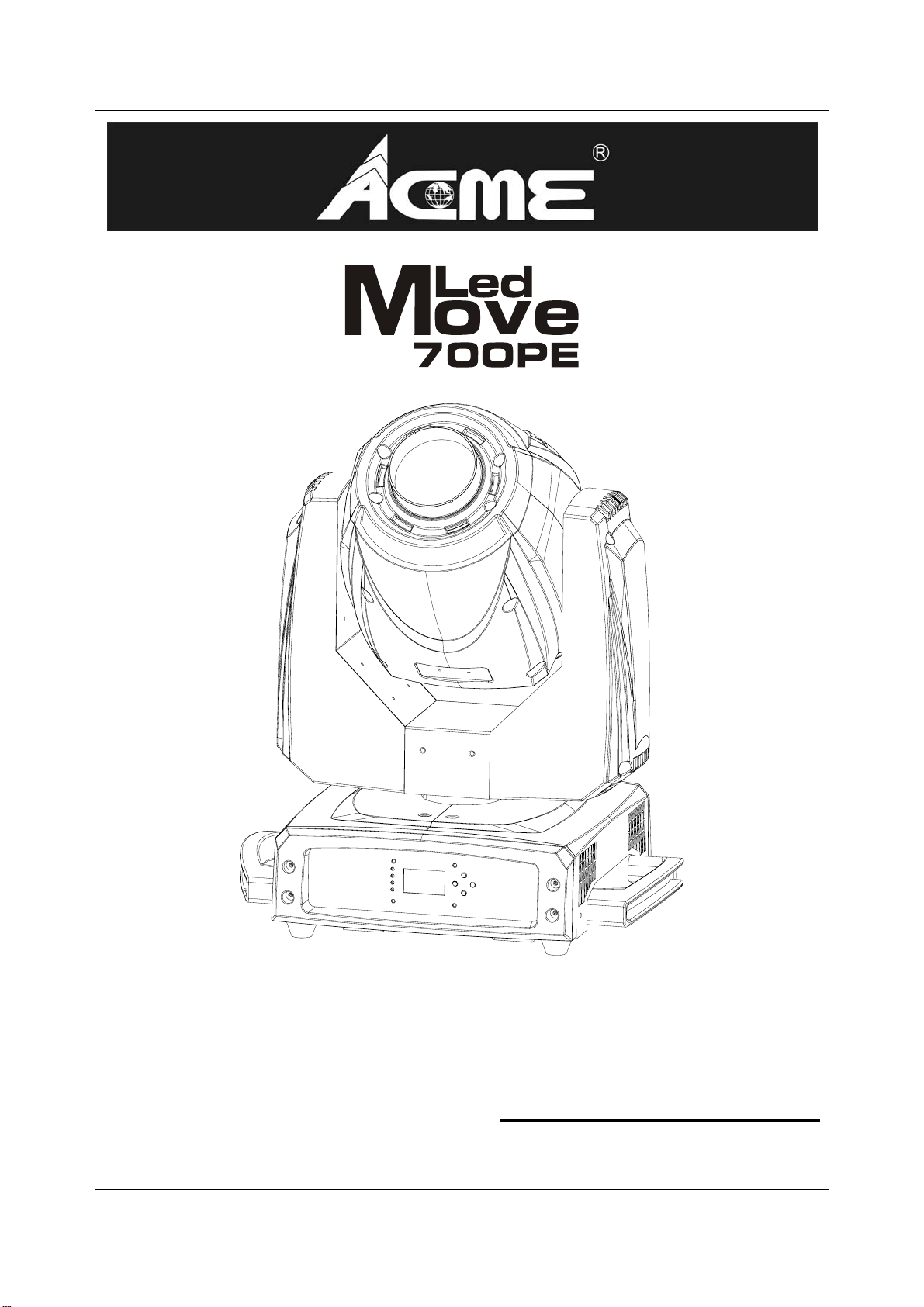

ACME LED?MS700PE Manuel utilisateur

LED‐MS700PE

UserGuide

ProfessionalLEDMovingHead

CONTENTS

1. Safety Instruction ..............................................................................................2

2. Installations .......................................................................................................3

3. Technical Specifications....................................................................................4

4. How To Set The Unit.........................................................................................5

4.1 Control Panel...............................................................................................5

4.2 Gobo Wheel.................................................................................................6

4.3 Power On Display .......................................................................................6

4.4 Main Function .............................................................................................7

4.5 Home Position Adjustment........................................................................16

5. Control By Universal DMX Controller...........................................................18

5.1 DMX 512 Connection...............................................................................18

5.2 DMX Address Setting ...............................................................................19

5.3 DMX512 Configuration............................................................................20

6. Troubleshooting...............................................................................................22

7. Fixture Cleaning..............................................................................................24

1. Safety Instruction

WARNING

Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that

they also receive this instruction manual.

Important:

Damages caused by the disregard of this user manual are not subject to warranty. The dealer will not

accept liability for any resulting defects or problems.

yUnpack and check carefully that there is no transportation damage before using the unit.

yThe unit is for indoor use only. Use only in a dry location.

yDO install and operate by qualified operator.

yDO NOT allow children to operate the fixture.

yUse safety chain when fixing the unit. Handle the unit by carrying its base instead of head only.

yThe unit must be installed in a location with adequate ventilation, at least 50cm from adjacent

surfaces.

yBe sure that no ventilation slots are blocked, otherwise the unit will be overheated.

yBefore operating, ensure that the voltage and frequency of power supply match the power

requirements of the unit.

yIt’s important to ground the yellow/green conductor to earth in order to avoid electric shock.

yMaximum ambient temperature Ta: 40℃. DO NOT operate it when the temperature is higher.

yDO NOT connect the device to any dimmer pack.

yDuring initial start-up some smoke or smell may arise. This is a normal process and does not

necessarily mean that the device is defective, and it will decrease gradually within 15 minutes.

yMake sure there are no flammable materials close to the unit while operating to avoid fire

hazard.

yExamine the power wires carefully, replace them immediately if there is any damage.

yUnit’s surface temperature may reach up to 85℃. DO NOT touch the housing bare-handed

during its operation, and allow about 15 minutes for cooling the unit down before replacing

bulb or maintenance as it could be very hot.

yAvoid any inflammable liquids, water or metal objects entering the unit. Once it happens, cut

off the mains power immediately.

yDO NOT operate in dirty or dusty environment, do clean fixtures regularly.

yDO NOT touch any wire during operation as there might be a hazard of electric shock.

Please read carefully the instruction, which includes important information

about the installation, usage and maintenance.

yAvoid power wires together twist other cables.

yDisconnect mains power before fuse/lamp replacement or servicing.

yReplace fuse/lamp only with the same type.

yIn the event of serious operating problem, stop using the unit immediately.

yNever turn on and off the unit time after time.

yThe housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.

yDO NOT open the unit as there are no user serviceable parts inside.

yNever try to repair the unit by yourself. Repairs carried out by unskilled people can lead to

damage or malfunction. Please contact the nearest authorized technical assistance center if

needed.

yDisconnect the mains power if the fixture is has not been used for a long time.

yDO use the original packing materials before transporting it again.

Caution：

yTo prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or

moisture.

yHot lamp explosion hazard. Do not open the unit within 15 minutes after switching off.

yDO replace the bulb once it is damaged, deformed or life-expired.

yDO NOT look directly at the light while the bulb is on.

yNever touch bulb with bare fingers, as it is very hot after using.

yDO NOT start on the unit without bulb enclosure or when housing is damaged.

Product Items：

yUser manual

y2 x Omega clamps

2. Installations

Unpacking the fixture (for flight case pack only)

1. Stop the flight case via the brake sheet above the wheels.

2. Unlock the lock module and open the cover board.

3. Prop the cover board with lid bracket.

4. Take out the fixture.

5. Unlock the lock module take out omega clamps.

Installations:

1. Bolt each clamp (1) to the Omega holder with screw and lock nut through the hole in the

holder.

2. Fasten the omega holders (2) on the bottom of the base by inserting quick-lock fasteners (3)

into the holes of the base and tighten fully clockwise.

3. Hang the fixture to the support (4) through clamp and fasten the screws (5). Fasten the safety

cable (6) through the bottom of the base and over the support.

Fig.1 Fig.2

Attention:

yAlways ensure that the structure to which you are attaching the unit is secure and is able to

support a weight of 10 times of the unit’s weight without any harming deformation.

yMake absolute sure that the unit is firmly fixed in way that no vibrating or slipping would

occur during operation.

yThe equipment must be installed beyond the areas where persons may walk by or be seated.

yThe rigging has to be operated by or under the guide of the skilled person.

3. Technical Specifications

yVery long 30,000 hour life span

yDMX Control: 16/17 channels

yMotorized focus through DMX control

yOperation Modes: DMX, Master/Slave, Sound Active

yBuilt-in programs under Master/Slave triggered by music

ySmooth 0-100% dimming and variable strobe speeds

yOne rotating gobo wheel with seven gobos and white

yOne fixed gobo wheel with eight gobos and white

yColor wheel with seven colors plus white

yPrism, rotating prism and iris included

yAutomatic pan/tilt position correction

yNo mercury, No IR or UV light radiation

yVoltage：AC 100-240V~50/60Hz

yPower consumption: 330W

yLight Source: 1 x180W LED

yBeam Angle: 13°

yFuse: 6.3A

yDimension: 436 x 344 x 588mm

yWeight: 17.5Kgs

4. How To Set The Unit

4.1 Control Panel

Frontview Rearview

①Display:

Show the various menus and the selected functions

②LED:

DMX On DMX input present

MASTER On Master Mode

SLAVE On Slave Mode

SOUND Flashing Sound activation

③Button:

MENU To select the programming functions

DOWN To go backward in the selected functions

UP To go forward in the selected functions

ENTER To confirm the selected functions

④DMX input/output:

For DMX512 link, use 3/5-pin XLR plug cable to link the unit together.

⑤Fuse (T 6.3A):

Protect the unit from damage of over current.

⑥Mains input:

Connect to supply mains power.

⑦Mains output:

Connect to supply mains power for the next unit.

4.2 Gobo Wheel

4.3 Power On Display

Every time you turn on the unit, it will run built-in program to reset all motors to their home

position, the display will show as following Fig1, you may hear some noises for about 20 seconds.

It will show warning sign if it goes wrong during resetting and you can press the MENU button to

view the error information. After that the unit will be ready to receive DMX signal and the display

will show as Fig2:

Fig1. Fig2.

DANGER!

Install the gobos with the device switched off only.

Unplug from mains before changing gobos!

Explanation:

001 Show start address

17 Channel Show channel mode is 17channels mode

Base 30°C Show temperature of base is 30°C

Lamp 29°C Show temperature of lamp is 29°C

4.4 Main Function

To select any of the given functions, press the MENU button up to when the required one is

showing on the display. Select the function by ENTER button and the display will blink. Use

DOWN and UP button to change the mode. Once the required mode has been selected, Press

ENTER button to store. Back to the main functions without any change press the MENU button or

wait for 8 seconds.

Hold MENU button to quit menu mode, the unit will run the built-in program you selected.

The main functions are shown below:

DMX Functions

Enter menu mode, select DMX Functions, press ENTER button to confirm, use UP/DOWN button

to select DMX Address, Mode or View DMX Value.

DMX Address—DMX512 address setting

Select DMX Address, press ENTER button to confirm, the present address will blink on the

display, use UP/DOWN button to adjust the address from 0to 512, press ENTER button to

store. Press MENU button back to the last menu or let the unit idle one minute to exit menu

mode.

Mode—Mode setting

Select Mode, press ENTER button to confirm, the present channel mode will blink on the

display, use UP/DOWN button to choose the channel mode(16 channel mode or 17 channel

mode), press ENTER button to store. Press MENU button back to the last menu or let the unit

idle one minute to exit menu mode.

View DMX Value

Select View DMX Value, press ENTER button to confirm. Channel function and its value

will show on the display, use UP/DOWN button to view other DMX value. Press MENU

button back to the last menu or let the unit idle one minute to exit menu mode.
