ACME 04XOZONE Manuel utilisateur

CONTENTS

1. Safety Instructions ......................................................................................... 2

2. Technical Specifications ................................................................................. 4

3. How To Set The Unit....................................................................................... 5

3.1 Control Panel ........................................................................................... 5

3.2 Main Function.......................................................................................... 6

3.3 Home Position Adjustment .................................................................... 14

4. Control By Universal DMX Controller ........................................................... 17

4.1 DMX512 Connection.............................................................................. 17

4.2 Address Setting ...................................................................................... 18

4.3 DMX 512 Configuration.......................................................................... 18

5. Error Information......................................................................................... 31

6. Troubleshooting........................................................................................... 34

7. Fixture Cleaning ........................................................................................... 34

1. Safety Instructions

WARNING

Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that

they also receive this instruction manual.

Important:

Damages caused by the disregard of this user manual are not subject to warranty. The dealer will

not accept liability for any resulting defects or problems.

Unpack and check carefully to ensure that there is no transportation damage before using the

unit.

This product is suitable for wet locations. Do not immerse in water.

DO install and operate by qualified operator.

DO NOT allow children to operate the fixture.

Use safety chain when fixing the unit. Handle the unit by carrying its base instead of head only.

The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent

surfaces.

Be sure that no ventilation slots is blocked, otherwise the unit will be overheated.

Before operation, ensure that you are connecting this product to the proper voltage in

accordance with the specifications in this manual or on the product’s specification label.

It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.

Minimum ambient temperature TA: 0℃. Maximum ambient temperature TA: 40℃.Do not

operate this product at a lower or higher temperature.

DO NOT connect the device to any dimmer pack.

Keep flammable materials away from the fixture while operating to avoid fire hazard.

Make sure the power cord is not crimped or damaged; replace it immediately if damaged.

Unit’s surface temperature may reach up to 75℃. DO NOT touch the housing bare-handed

during its operation.

Avoid any flammable liquids, water or metal from entering the unit. Once it happens, cut off

the mains power immediately.

Please read the instruction carefully which includes important information about

the installation, usage and maintenance.

DO NOT operate in a dirty or dusty environment. DO clean the fixture regularly.

DO NOT touch any wire during operation as there might be a hazard of electric shock.

Avoid entanglement of the power cord with other wires.

The minimum distance to objects/surface must be more than 0.5 meters.

Disconnect mains power before fuse replacement or servicing.

Replace fuse only with the same type.

In the event of serious operating problem, stop using the unit immediately.

Never turn on and off the unit time after time.

The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.

DO NOT open the housing as there are no user serviceable parts inside.

DO NOT attempt to operate this unit if it becomes damaged. DO NOT attempt any repairs

yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please

contact the nearest authorized technical assistance center if needed.

Disconnect this product from its power source before servicing.

DO use the original packaging if the device is to be transported.

Avoid direct eye exposure to the light source while the product is on.

DO NOT operate this product if you see damage on the housing, shields, or cables. Have the

damaged parts replaced by an authorized technician at once.

Installation:

The fixture should be fixed on the clamp. Always ensure that the unit is firmly fixed to avoid

vibration and slipping off during operation. Ensure that the trussing or area of installation must be

able to hold 10 times the weight without any deformation. Always install a safety cable that can

hold at least 12 times the weight of the fixture when installing.

DO install and operate by qualified operator. It must be installed in a place where there is out of the

reach of people.

2. Technical Specifications

Power Voltage:

100-240V~ 50/60Hz

Power Consumption:

990W

Light Source:

19x40W RGBW LED

Zoom Range:

6°~40°

Movement:

Pan: 540°

Tilt: 240°

Pan/Tilt Resolution: 16bit

Dimmer/Shutter:

0~100% smooth dimming, various strobe speed

Control:

DMX Channel: 17/2 1/86 Channels

Control Mode: DMX512, RDM

Firmware Upgrade: Update via DMX link or USB disk

Construction:

Display: Color display

Data In/Out: 5-pin IP XLR (3-pin IP XLR is optional)

Power In/Out: Waterproof Power Connector in/out

Protection Rating: IP66

Features:

Pixel control, outstanding color macro effect

Electronic linear zoom system

Integrated powerful beam and wash features

IP66 protection rating, can be used outdoors all year round

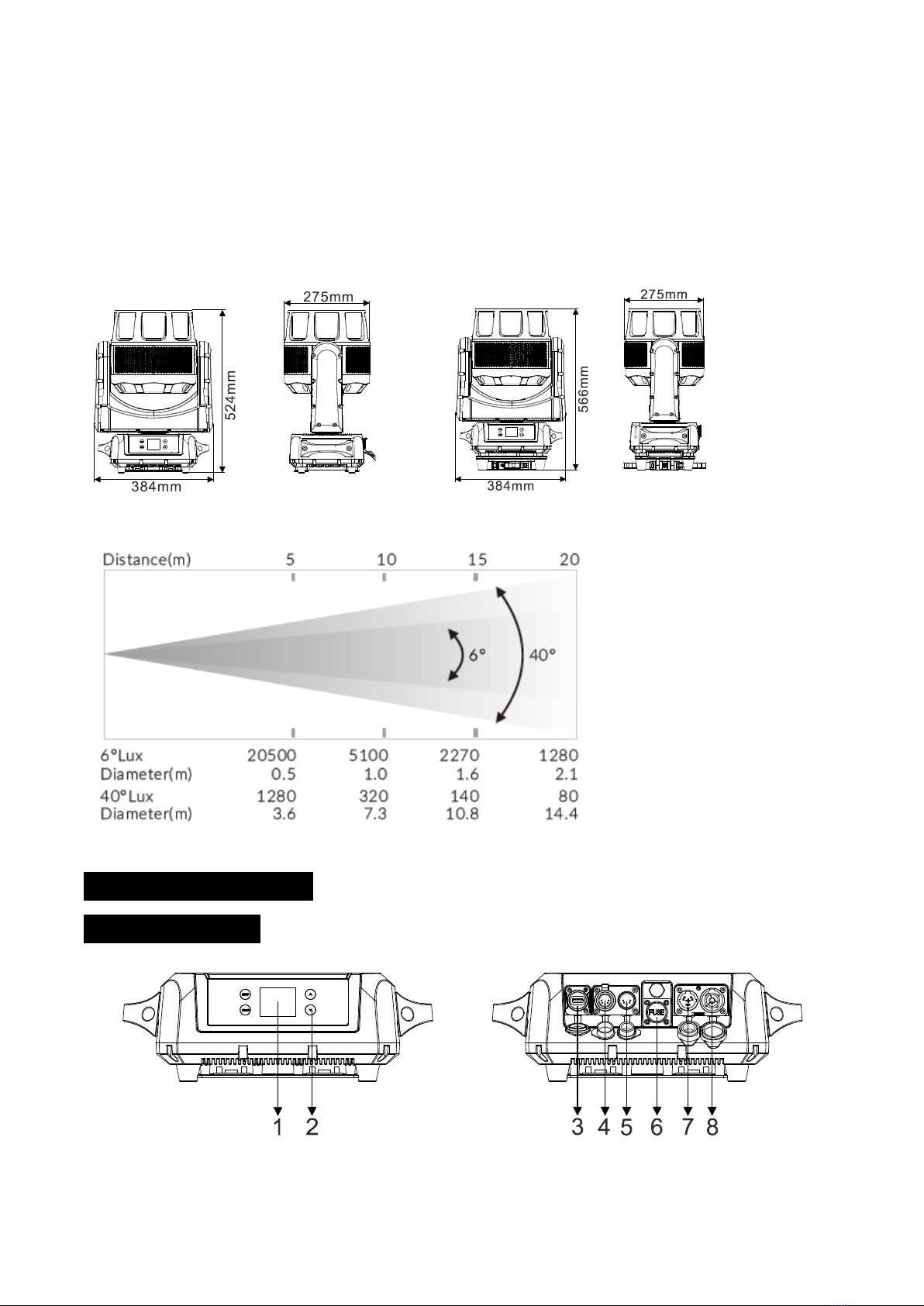

Dimension/Weight:

384x275x524mm, 24kgs

15"x10.8"x20.6"in, 53lbs

384x275x566mm, 25.8kgs (Version with clamp)

15"x10.8"x22.3"in, 57lbs (Version with clamp)

Photometric Diagram:

3. How To Set The Unit

3.1 Control Panel

1. Display: To show the various menus and the selected function

2. Button:

To enter into move backward or leave the menu

To go backward to move up in the menu

DOWN

To go forward to move down in the menu

ENTER

To perform the desired functions

3. FIRMWARE UPGRADE: Used to upgrade fixture’s firmware

4. DMX OUT:

For DMX512 link, use 5-pin XLR cable to link the next units (3-pin IP XLR cable is optional)

5. DMX IN:

For DMX512 link, use 5-pin XLR cable to link the unit and DMX controller (3-pin IP XLR is optional)

6. FUSE(T 15A):

To protect the unit from over-voltage or short circuit

7. POWER IN:

To connect to supply power

8. POWER OUT:

To connect to the next fixture

3.2 Main Function

Turn on the unit, press the MENU button into menu mode, and press the UP/DOWN button until

the required function is shown on the monitor. Select the function by pressing the ENTER button.

Use the UP/DOWN button to choose the submenu, press the ENTER button to store and

automatically return to the last menu. Press the MENU button or let the unit idle 30 seconds to exit

menu mode.

The screen will be automatically locked if there is no operation for a long time, and can be unlocked

by long-pressing the MENU button.

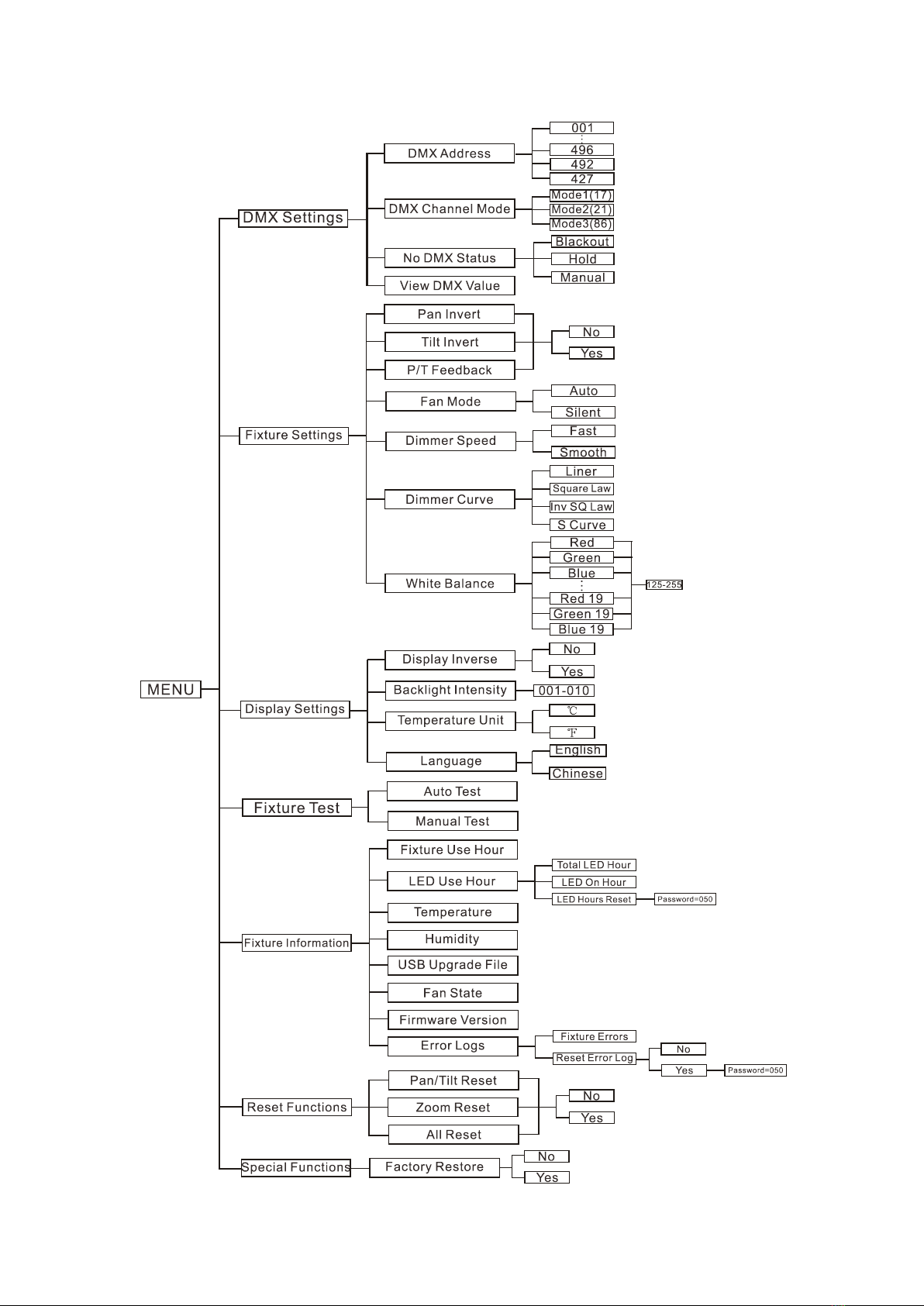

The main functions are shown below:

DMX Settings

To select DMX Settings, press the ENTER button to confirm, use the UP/DOWN button to select

DMX Address, DMX Channel Mode, No DMX Status or View DMX Value.

DMX Address

To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust the

address from 001 to 496/492/4 27, press the ENTER button to store. Press the MENU button back to

the last menu or let the unit idle 30 seconds to exit menu mode.

DMX Channel Mode

To select DMX Channel Mode, press the ENTER button to confirm. Use the UP/DOWN button to

select Mode1(17), Mode2(21) or Mode3(86), press the ENTER button to store. Press the MENU

button back to the last menu or let the unit idle 30 seconds to exit menu mode.

No DMX Status

To select No DMX Status, press the ENTER button to confirm. Use the UP/DOWN button to select

Blackout(fixture blacks out if DMX signal stops), Hold(fixture continues to obey the last command it

received Via DMX if DMX signal stops) or Manual(the fixture will automatically read the DMX value

in the “Manual Test” menu for operation after selecting this mode), press the ENTER button to store.

Press the MENU button back to the last menu or let the unit idle 30 seconds to exit menu mode.

View DMX Value

To select View DMX Value, press the ENTER button to confirm. Use the UP/DOWN button to view

the DMX channel value. Press the MENU button back to the last menu or let the unit idle 30

seconds to exit menu mode.

Fixture Settings

To select Fixture Settings, press the ENTER button to confirm, use the UP/DOWN button to select

Pan Invert, Tilt Invert, P/T Feedback, Fan Mode, Dimmer Speed, Dimmer Curve or White Balance.

Pan Invert

To select Pan Invert, press the ENTER button to confirm. Use the UP/DOWN button to select No

(normal) or Yes (pan invert), press the ENTER button to store. Press the MENU button back to the

last menu or let the unit idle 30 seconds to exit menu mode.

Tilt Invert

To select Tilt Invert, press the ENTER button to confirm. Use the UP/DOWN button to select No

(normal) or Yes (tilt invert), press the ENTER button to store. Press the MENU button back to the

last menu or let the unit idle 30 seconds to exit menu mode.

P/T Feedback

To select P/T Feedback, press the ENTER button to confirm. Use the UP/DOWN button to select No

(Pan or tilt’s position will not feedback while out of step) or Yes (Feedback while pan/tilt out of step),

press the ENTER button to store. Press the MENU button back to the last menu or let the unit idle

30 seconds to exit menu mode.

Fan Mode

To select Fan Mode, press the ENTER button to confirm. Use the UP/DOWN button to select Auto

or Silent, press the ENTER button to store. Press the MENU button back to the last menu or let the

unit idle 30 seconds to exit menu mode.

Dimmer Speed

To select Dimmer Speed, press the ENTER button to confirm. Use the UP/DOWN button to select

Fast or Smooth, press the ENTER button to store. Press the MENU button back to the last menu or

let the unit idle 30 seconds to exit menu mode.

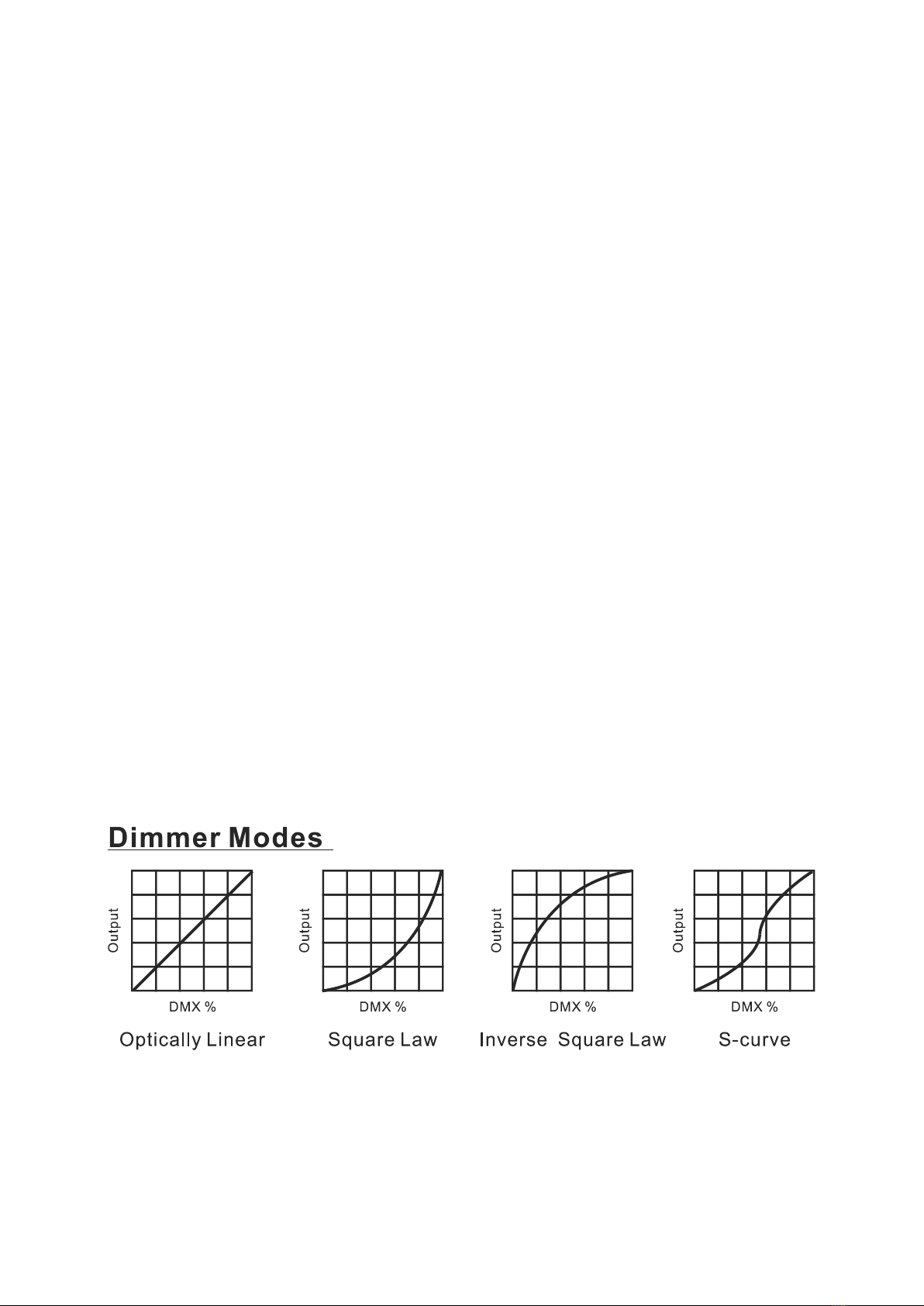

Dimmer Curve

To select Dimmer Curve, press the ENTER button confirm. Use the DOWN/UP button to select

Linear, Square law, Inv SQ law or S Curve. Press the MENU button back to the last menu or let the

unit idle 30 seconds to exit menu mode.

Optically Linear: The increase in light intensity appears to be linear as DMX value is increased.

Square Law:Light intensity control is finer at low levels and coarser at high levels.

Inverse Square Law: Light intensity control is coarser at low levels and finger at high levels.

S-Curve: Light intensity control is finger at low levels and high levels and coarser at medium levels.
