Acer PD320 Manuel utilisateur

English

Usage Notice

Precautions .......................................................................................... 2

Introduction

Product Features ................................................................................. 3

Package Overview ............................................................................... 4

Product Overview................................................................................ 5

Installation

Connecting the Projector ................................................................... 8

Powering On/Off the Projector .......................................................... 9

djusting the Projected Image .......................................................... 11

User Controls

Panel Control & Remote Control ....................................................... 13

On-Screen Display Menus ................................................................... 15

Appendices

Troubleshooting .................................................................................. 22

Changing the Lamp ............................................................................ 25

Specifications....................................................................................... 26

Compatibility Modes........................................................................... 27

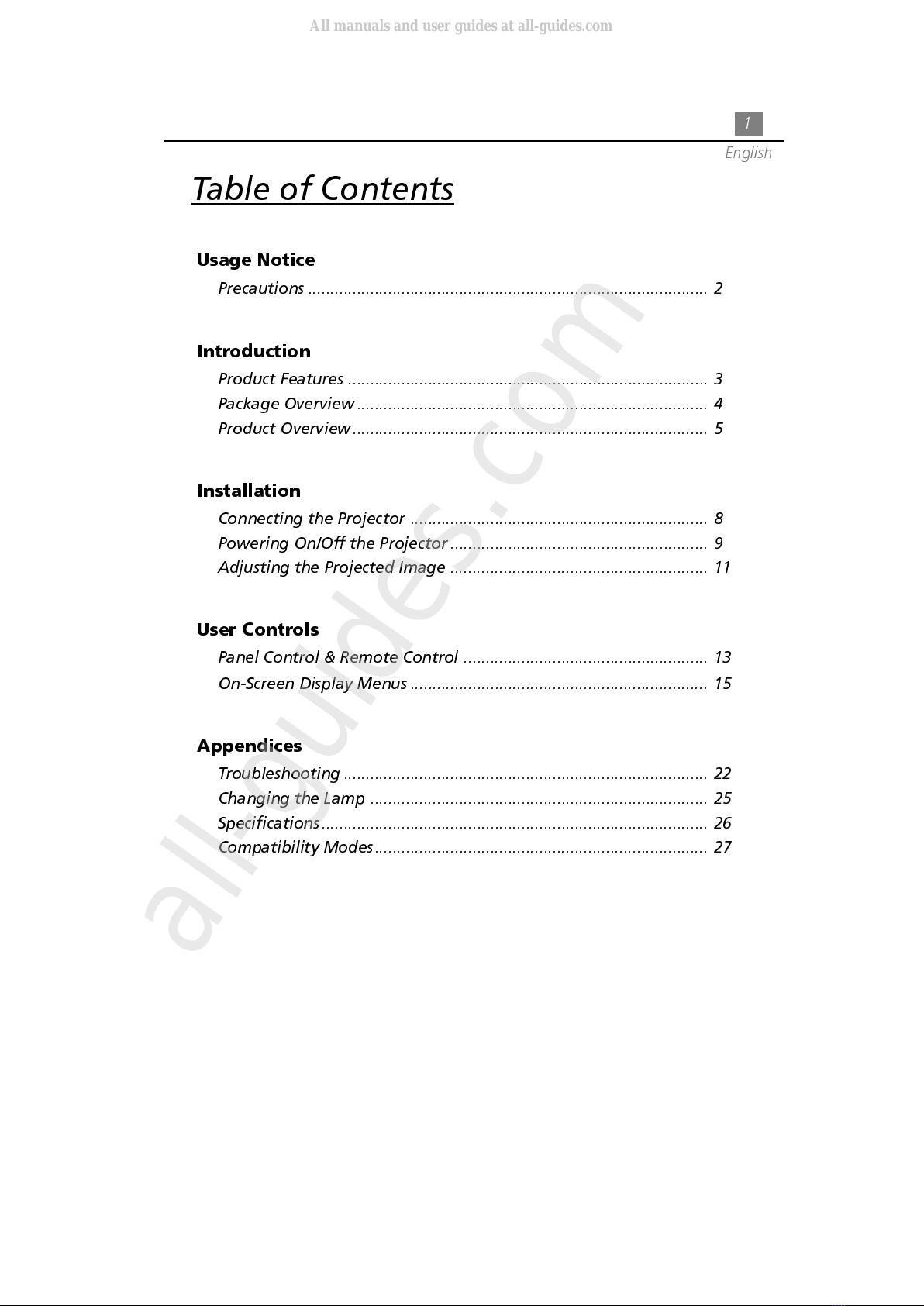

Table of Contents

All manuals and user guides at all-guides.com

all-guides.com

English

Precautions

Follow all warnings, precautions and maintenance as recommended in this

users manual to maximize the life of your unit.

Do:

Turn off the product before cleaning.

Use a soft cloth moistened with mild detergent to clean the display housing.

Disconnect the power plug from AC outlet if the product is not being used for a

long period of time.

Dont:

Block the slots and openings on the unit provided for ventilation.

Use abrasive cleaners, wa es or solvents for your cleaning.

Use under the following conditions:

- E tr emely hot, cold or humid environment.

- In areas susceptible to e cessive dust and dirt.

- Near any appliance generating a str ong magnetic field.

- Place in direct sunlight.

Usage Notice

Warning-

Do not look into the lens. The bright light may hurt your eyes.

Warning-

To reduce the risk of fir e or electric shock, do not expose this

product to rain or moistur e.

Warning-

Please do not open or disassemble the product as this may

cause electric shock.

Warning-

When changing the lamp, please allow unit to cool down, and

follow all changing instructions.

Warning-

This product will detect the life of the lamp itself. Please be

sure to change the lamp when it shows warning messages.

Warning-

After changing a new lamp, please reset the lamp life from

O D menu.

Warning-

Before switching of f the product, please keep the cooling fan

running for a few minutes.

Warning-

When connecting the projector to computer, please turn on

the projector first.

Warning-

To reduce the risk of injury to the eyes, do not look directly

into the laser light on the remote control and do not point the

laser light into anyones eyes. This remote control is equipped

with a Class II laser that emits radiation.

Warning-

When the lamp reaches the end of its life, it will burn out and

may make a loud popping sound. If this happens, the projec

tor will not turn back on until the lamp module has been

replaced. To replace the lamp, follow the procedur es listed

under Changing the Lamp.

All manuals and user guides at all-guides.com

English

Product Features

This product is an GA single chip 0.7 DLP

Projector. The outstanding

features of it are listed as follows:

True XGA, 1024 x 768 addressable pixels

3.3 lbs (1.5 kgs) lightweight compact design

ingle chip DLP

technology

XGA compression and VGA, VGA re-sizing

130 Watts user replaceable P-VIP lamp

Mac/NEC PC-98/FM Towns compatible

NT C/NT C4.43/PAL/PAL-M/PAL-N/ ECAM and HDTV (1080i,720P,480i/P)

compatible

Full function remote with mouse control and laser pointer

High-tech DVI Connection for digital and analog video connectivity

High definition TV compatibility

User friendly Multilingual on-screen display menu

Advanced electronic keystone correction

User friendly control panel with backlight

Luxurious carrying case included

Introduction

All manuals and user guides at all-guides.com

English

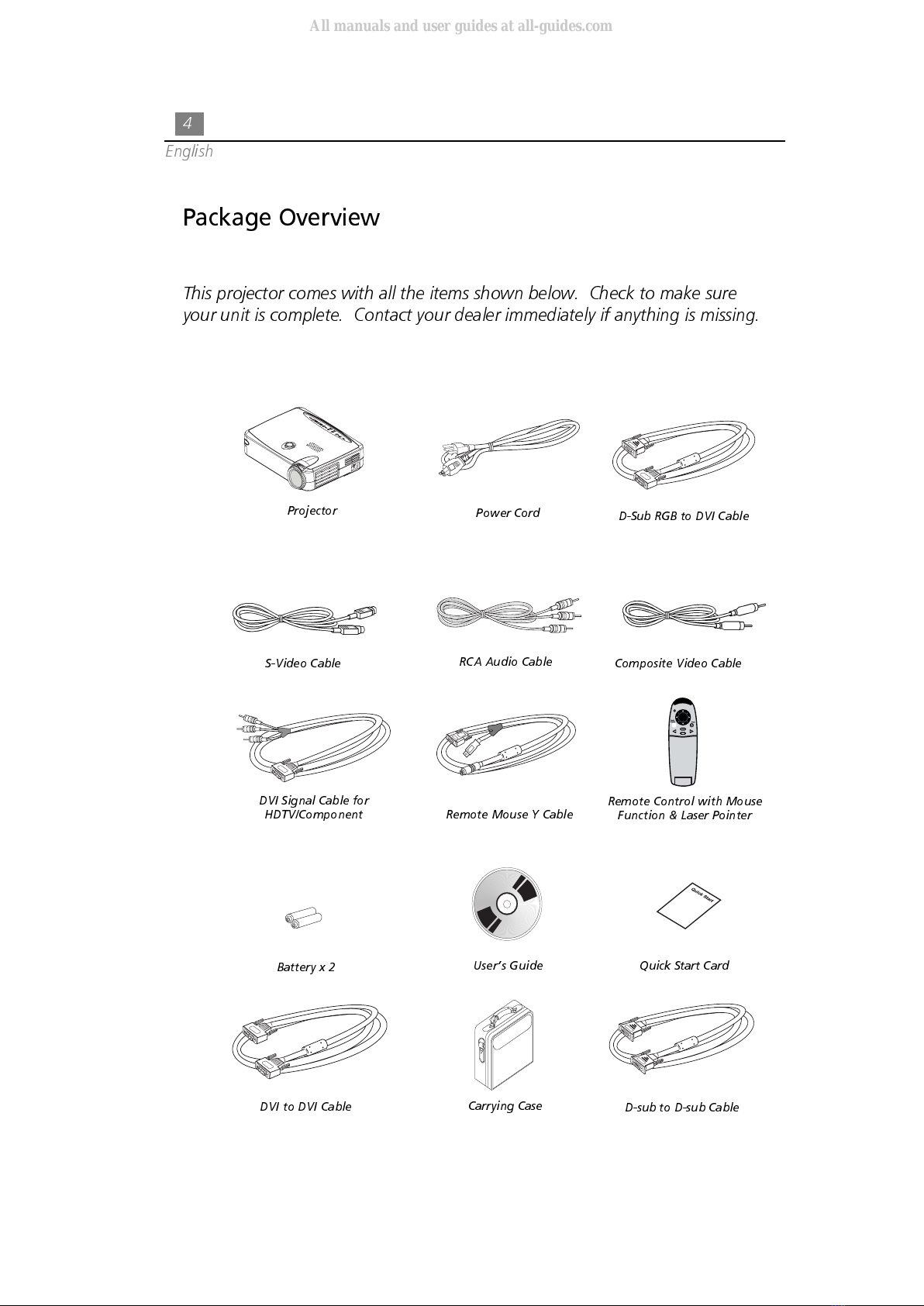

Package Overview

This projector comes with all the items shown below. Check to make sure

your unit is complete. Contact your dealer immediately if anything is missing.

Projector Power Cord

S-Video Cable RCA Audio Cable

D-Sub RGB to DVI Cable

Remote Control with Mouse

Function Laser Pointer

Carrying Case

DVI to DVI Cable

Composite Video Cable

DVI Signal Cable for

HDTV/Component

Quick Start Card

Remote Mouse Y Cable

Battery x 2 Users Guide

D-sub to D-sub Cable

All manuals and user guides at all-guides.com

English

Product Overview

Speaker

Focus Ring

Remote Control

Receiver

Zoom Ring

Zoom Lens

Power Connector

Elevator Button

Connection Ports

HDTV/Component Video

& Computer Input

Connector

S-video Input

Connector

Audio Input

Connector

Composite Video

Input Connector

Remote Mouse

Input Connector

Monitor Loop-

through Connector

Panel Control

Power On / StandbyMenu

(On/Off)

Enter /

Resync

Source

Four Directional

Select Keys

MuteVolume Lamp

Warning LED

Main Unit

Panel Control

Temperature

Warning LED

All manuals and user guides at all-guides.com

English

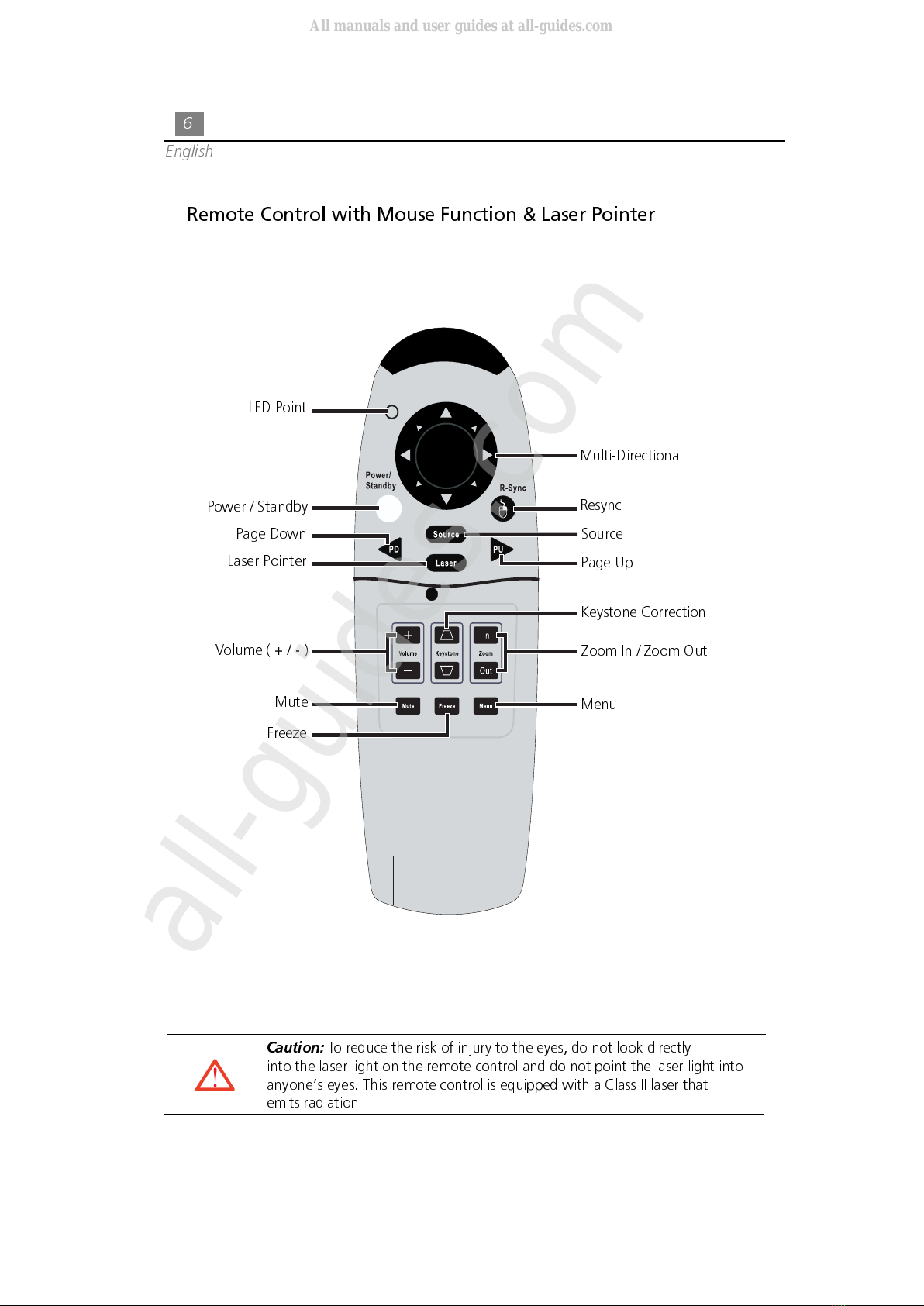

Remote Control with Mouse Function & Laser Pointer

Source

Resync

Freeze

Keystone Correction

Power / Standby

Volume ( + / - )

Mute

Multi-Directional

Laser Pointer

Zoom In / Zoom Out

Page Up

Page Down

LED Point

Caution:

To reduce the risk of injury to the eyes, do not look directly

into the laser light on the remote control and do not point the laser light into

anyones eyes. This remote contr ol is equipped with a Class II laser that

emits radiation.

All manuals and user guides at all-guides.com

all-guides.com

English

Enter Key

Laser Pointer Caution

All manuals and user guides at all-guides.com

English

Connecting the Projector

Installation

To ensure the projector works well with your computer, please configure the

display mode of your graphic card to make it less than or equal to 1024 768

resolution. Make sure timimg of the display mode is compatible with the

projecor. Refer to theCompatibility Modessection on page 27.

Power Cord

S-Video Output

Monitor Cable

S-Video Cable

Video Output

Audio Output

Remote Mouse Y Cable

D-Sub RGB to DVI Cable

D-Sub RGB to

DVI Cable

RGB Port

Digital Port

RGB Port

Digital Port

DVI Signal Cable for

DTV/Component

Composite Video Cable

RCA Audio Cable

RS232

USB

DVI Signal Cable for DVI

All manuals and user guides at all-guides.com

English

Powering On the Projector

1. Remove the lens cap.



2. Ensure that the power cord and signal cable are securely connected.

3. The Power/ tandby indicator will flash.



And press the Power/ tandby

button again to start on your projector.

The startup screen will display and count down for 20 seconds and the

Power/ tandby indicator will light solid amber.

4. Turn on your source (computer, notebook, or video player ,etc.). The projector

will detect your source automatically.

* If the screen displays No Signal , please make sure the signal cables

are securely connected.

* If you connect multiple sources at the same time, use the Source

button on the Remote Control or Panel Control to switch.

* Turn on the projector first and then the computer.

Power On/Off the Projector

Lens cap

Power /

Standby

All manuals and user guides at all-guides.com

English

Powering Off the Projector

1. Press the Power/ tandby button to turn off the pr ojector lamp.

2. After pressing the Power/ tandby button, you will see a message Power off the

lamp? on the on-screen display. Press the Power/ tandby button again to

confirm. Otherwise the message will disappear after 5 seconds.

3. Power/ tandby LED indicator will flash amber for about 30 seconds.

4. Disconnect the power cord from the electrical outlet and the projector.

* When the LAMP indicator lights solid orange; please change the lamp

module immediately.

* When the TEMP indicator lights solid orange, it indicates the projector

has been overheated. The display will automatically shut itself down.

Under normal conditions, the display can be switched on again for your

presentation. If the problem persists, you should contact your local dealer or

our service center.

* No matter the video source is input or not, if you pressPower/Standby by

accident, a Power off the lamp ? sign will display in screen. You can clear

the turn-off message by pressing any function key. Or you can just ignore this

message without pressing any function key; the message will disappear after

5 seconds and restore to previous status.
