Acer K11 Series Manuel utilisateur

Acer Projector

Multi-media

User's Guide

All manuals and user guides at all-guides.com

all-guides.com

Introduction 1

Multimedia Features 1

Getting Started 2

Connecting multi-media device to the projector 2

Control Panel and Remote Control 3

Onscreen Display (OSD) Menus 5

Presentation to Go 5

Setting 6

Photo Setting 7

Music Setting 8

Video Setting 9

Appendices 10

Troubleshooting 10

Problems and Solution 10

Multi-media format supported 11

1. Photo Format 12

2. Music Format 12

3. Video Format 13

Contents

All manuals and user guides at all-guides.com

English

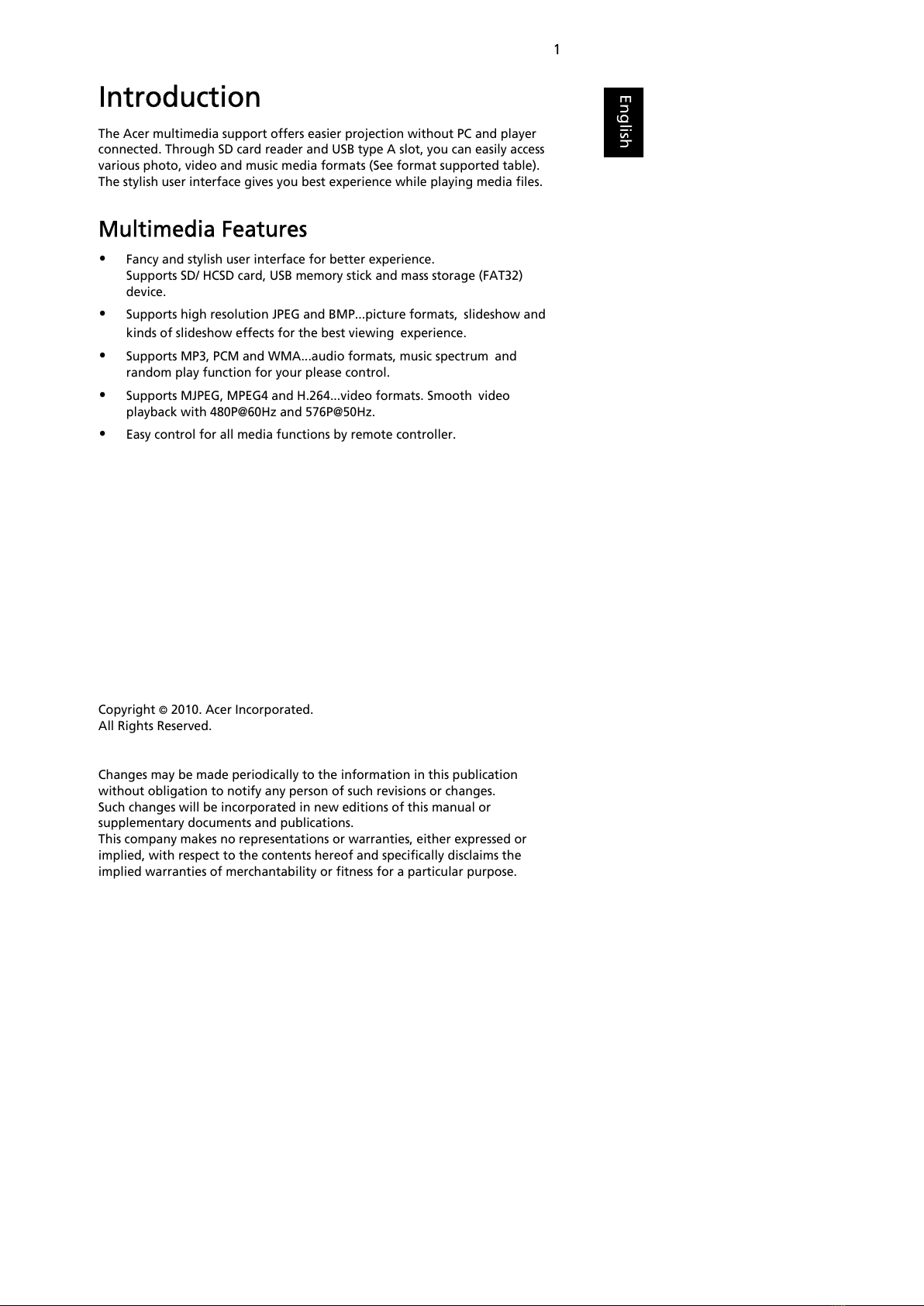

Introduction

The Acer multimedia support offers easier projection without PC and player

connected. Through SD card reader and USB type A slot, you can easily access

various photo, video and music media formats (See format supported table).

The stylish user interface gives you best experience while playing media files.

Multimedia Features

•Fancy and stylish user interface for better experience.

Supports SD/ HCSD card, USB memory stick and mass storage (FAT32)

device.

•Supports high resolution JPEG and BMP...picture formats, slideshow and

kinds of slideshow effects for the best viewing experience.

•Supports MP3, PCM and WMA...audio formats, music spectrum and

random play function for your please control.

•Supports MJPEG, MPEG4 and H.264...video formats. Smooth video

playback with 480P@60Hz and 576P@50Hz.

•Easy control for all media functions by remote controller.

Changes may be made periodically to the information in this publication

without obligation to notify any person of such revisions or changes.

Such changes will be incorporated in new editions of this manual or

supplementary documents and publications.

This company makes no representations or warranties, either expressed or

implied, with respect to the contents hereof and specifically disclaims the

implied warranties of merchantability or fitness for a particular purpose.

All manuals and user guides at all-guides.com

English

Getting Started

Connecting multi-media device to the

projector

Note: USB drive does not support power consumption over

500mA. Once you find OSD pop up "Drive USB failed, please have

external power for USB device".

#Icon Component Description

1 SD Card reader Connects to SD Card.

2 USB connector Connects to USB disk/stick

SD CARD

All manuals and user guides at all-guides.com

English

Control Panel and Remote Control

Icon Component Description

RESYNC(#) Back or stop function in multimedia controls.

SOURCE(*) Enter or play under certain control conditions.

Pre./Rewind Go to previous index or page in file list view.

Next/Fast forward Go to next index or page in file list view.

Enter/Play/Pause Confirm your selection of items or play/pause

media file.

Back/Stop Stop playing media file or go back to upper data

folder.

SD/USB Toggle between SD and USB sources.

MENU(*) Press to be back or stop function in multimedia

controls.

Direction Keys Press " " to select items or volume control

while media playing.

Press " " to enter or play function in most

multimedia controls.

Press " " to be back function in most

multimedia controls.

All manuals and user guides at all-guides.com

English

Note: "(#)" only for P3151/3251 series.

"(*)" only for K11 series.

e key(#) Enter or play function under certain control

conditions.

All manuals and user guides at all-guides.com

all-guides.com

English

Onscreen Display (OSD) Menus

The projector has multilingual OSD that allow you to make image adjustments

and change a variety of settings.

Presentation to Go

Photo: For access of photo files. Music : For access of music files.

Video: For access of video files. Setting: For access of kinds of settings.

Setting

Main menu

Sub menu

All manuals and user guides at all-guides.com

English

Setting

Photo Setting For access of photo settings.

Music Setting For access of music settings.

Video Setting For access of video settings.

All manuals and user guides at all-guides.com

English

Photo Setting

Display Mode Press or to select display mode while

entering the photo list.

•File list

•Slideshow

•Thumbnail

•Browse Mode

Display Ratio Press or to select display ratio.

•Auto: Keep original aspect ratio and resize to

fit horizontal or vertical direction of the

screen.

•Full: Fit full screen without keeping the

original aspect ratio.

Slideshow Duration Press or to select the slideshow duration.

Slideshow Repeat •Choose "On" to repeat slideshow always.

•Choose "Off" to stop slideshow when it goes

to the last page.

Slideshow Effect Press or to select what slideshow effect you

want. There are various kinds: Random, Snake,

Partition, Erase, Blinds, Lines, GridCross, Spiral,

Rect., Off.

All manuals and user guides at all-guides.com

English

Music Setting

Play Mode Press or to select the music play mode.

•Once

•Repeat Once

•Repeat

•Random.

Music Effect Press or to select what music effect you want.

There are various kinds: Rock, Pop, Classic, Soft, Jazz,

DBB, Normal.

Show Spectrum Choose "On" to show the spectrum plot while music

is playing.

Auto Play Choose "On" to play music automatically while

entering the music list.
