Acer 930 Manuel

ChapterChapter

BIOS Utility

BIOS Utility 2-1

The BIOS Utility allows you to view your system’s configuration settings.

Most systems are already configured by the manufacturer or the dealer.

There is no need to run Setup when starting the computer unless you get a

Run Setup message.

The Setup program loads configuration values into the battery-backed

nonvolatile memory called CMOS RAM. This memory area is not part of

the system RAM. If you repeatedly receive Run Setup messages,

the battery may be bad. In this case, the system

cannot retain configuration values in CMOS.

Ask a qualified technician for assistance.

2-2User’s Guide

2.1 Entering Setup

To enter Setup, press the key combination ++.

You must press + + while the

system is booting. This key combination does not

work during any other time.

The BIOS Utility main menu then appears:

BIOS Utility

System Information

Product Information

Disk Drives

Power Management

Startup Configuration

Advanced Configuration

System Security

Date and Time

Load Default Settings

Abort Settings Change

↑↓←→ = Move highlight bar, ↵= Select, Esc = Exit

The parameters on the screens show default

values. These values may not be the same as

those in your system.

BIOS Utility 2-3

2.2 System Information

The following screen appears if you select System Information from the

main menu.

System Information Page 1/2

Processor ......................Pentium

Processor Speed ................xxx MHz

Bus Frequency ..................xx MHz

Internal Cache .................xx KB, Enabled

External Cache .................xxx KB, Enabled

Floppy Drive A .................x.xx MB, x.x-inch

Floppy Drive B .................None

IDE Primary Channel Master......Hard Disk

IDE Primary Channel Slave.......None

IDE Secondary Channel Master....CD-ROM

IDE Secondary Channel Slave.....None

Total Memory ...................xx MB

1st Bank .....................EDO

2nd Bank .....................EDO

3rd Bank .....................EDO

4th Bank .....................EDO

PgDn/PgUp = Move Screen, Esc = Back to Main Menu

The System Information menu shows the current basic configuration of your

system.

The command line at the bottom of the menu tells you how to move from

one screen to another and return to the main menu.

Press to move to the next page or to return to the previous page.

Press to return to the main menu.

2-4User’s Guide

The following screen shows page 2 of the System Information menu.

System Information Page 2/2

Serial Port 1 ..................... Disabled

Serial Port 2 ..................... 2F8h, IRQ 3

Parallel Port .................... 378h, IRQ 7

Pointing Device ................... Installed

Memory Parity Mode ................ Disabled

Onboard USB ....................... Disabled

PgDn/PgUp = Move Screen, Esc = Back to Main Menu

The following sections explain the parameters.

The parameters in the System Information

screens show default settings. These settings are

non-configurable from these screens.Select

other configuration options from the BIOS Utility

main menu to change the settings.

2.2.1 Processor

The Processor parameter specifies the type of processor currently installed in

your system. The system is designed to support the Intel Pentium II CPU.

2.2.2 Processor Speed

The Processor Speed parameter specifies the speed of the CPU currently

installed in your system. The system supports Intel Pentium II CPUs running

at 233, 266, or 300 MHz.

2.2.3 Bus Frequency

The Bus Frequency parameter specifies the system external clock. The bus

frequency can be either 60 or 66 MHz.

BIOS Utility 2-5

2.2.4 Internal Cache

This parameter specifies the first-level or the internal memory size (i.e., the

memory integrated into the CPU), and whether it is enabled or disabled. For

information on how to configure the system memory, see section 2.7.3.

2.2.5 External Cache

This parameter specifies the second-level cache memory size currently

supported by the system, and whether it is enabled or disabled. For

information on how to configure the system memory, see section 2.7.3.

2.2.6 Floppy Drive A

This parameter specifies the type of drive designated as Floppy Drive A. For

information on how to configure the floppy drives, see section 2.4.1.

2.2.7 Floppy Drive B

This parameter specifies the system’s current floppy drive B settings. For

information on how to configure the floppy drives, see section 2.4.1.

2.2.8 IDE Primary Channel Master

This parameter specifies the current configuration of the IDE device

connected to the master port of the primary IDE channel. For information on

how to configure IDE devices, see section 2.4.2.

2.2.9 IDE Primary Channel Slave

This parameter specifies the current configuration of the IDE device

connected to the slave port of the primary IDE channel. For information on

how to configure IDE devices, see section 2.4.2.

2.2.10 IDE Secondary Channel Master

This parameter specifies the current configuration of the IDE device

connected to the master port of the secondary IDE channel. For information

on how to configure IDE devices, see section 2.4.2.

2-6User’s Guide

2.2.11 IDE Secondary Channel Slave

This parameter specifies the current configuration of the IDE device

connected to the slave port of the secondary IDE channel. For information

on how to configure IDE devices, see section 2.4.2.

2.2.12 Total Memory

This parameter specifies the total system memory. The memory size is

automatically detected by BIOS during the POST. If you install additional

memory, the system automatically adjusts this parameter to display the new

memory size.

1st Bank

This parameter indicates the type of DRAM installed in bank 1. The None

setting indicates that there is no DRAM installed. For the location of bank

1, refer to Figure 1-2.

2nd Bank

This parameter indicates the type of DRAM installed in bank 2. The None

setting indicates that there is no DRAM installed. For the location of bank

2, refer to Figure 1-2.

3rd Bank

This parameter indicates the type of DRAM installed in bank 3. The None

setting indicates that there is no DRAM installed. For the location of bank

3, refer to Figure 1-2.

4th Bank

This parameter indicates the type of DRAM installed in bank 4. The None

setting indicates that there is no DRAM installed. For the location of bank

4, refer to Figure 1-2.

2.2.13 Serial Port 1

This parameter indicates the serial port 1 address and IRQ setting.

BIOS Utility 2-7

2.2.14 Serial Port 2

This parameter indicates the serial port 2 address and IRQ setting.

2.2.15 Parallel Port

This parameter indicates the parallel port address and IRQ setting.

2.2.16 Pointing Device

The BIOS utility automatically detects if there is a mouse connected to the

system. If there is, this parameter displays the Installed setting.

Otherwise, this is set to None.

2.2.17 Memory Parity Mode

This parameter indicates the setting of the memory parity mode. It may be

set to Enabled or Disabled .

2.2.18 Onboard USB

This parameter specifies whether the onboard USB controller is enabled or

not. For information on how to enable or disable USB, see section 2.7.1.

2-8User’s Guide

2.3 Product Information

The Product Information contains general data about the system. It includes

the product name, serial number, BIOS version, etc. These information are

necessary for troubleshooting and may be required when asking for technical

support.

The following screen shows the Product Information items.

Product Information Page 1/1

Product Name .......................... xxxxxxxxx

System S/N ............................ xxxxxxxxx

Main Board ID ......................... xxxxxxxxx

Main Board S/N ........................ xxxxxxxxx

System BIOS Version ................... vx.xx

System BIOS ID ........................ xxx.xx xxx-xx

BIOS Release Date ..................... xx/xx/xx

Esc = Back to Main Menu

2.3.1 Product Name

This parameter specifies the official name of the system.

2.3.2 System S/N

This parameter specifies the system’s serial number.

2.3.3 Main Board ID

This parameter specifies the system board’s identification number.

2.3.4 Main Board S/N

This parameter specifies the system board’s serial number.

2.3.5 System BIOS Version

This parameter specifies the version of the BIOS utility.

BIOS Utility 2-9

2.3.6 System BIOS ID

This parameter specifies the identification number of the BIOS utility.

2.3.7 BIOS Release Date

This parameter specifies the official date the BIOS version is released.

2-10 User’s Guide

2.4 Disk Drives

The Disk Drives menu lets you configure the system hard disk and disk

drive settings. If your hard disk supports the enhanced IDE features, you

may set the functions using this menu.

The following screen shows the Disk Drives parameters and their default

settings:

Disk Drives Page 1/1

Floppy Drive A ........... [xx-MB, xx-inch]

Floppy Drive B ........... [xx-MB, xx-inch]

8IDE Primary Channel Master

8IDE Primary Channel Slave

8IDE Secondary Channel Master

8IDE Secondary Channel Slave

↑↓ = Move Highlight Bar, →←= Change Setting, F1 = Help

The triangle mark that precede an item within a

menu indicates that there is a detailed menu for

that particular item. Select the item to display

the menu.

Autres manuels pour 930

Table des matières

Autres manuels Acer Carte mère

Acer

Acer V70LA Manuel utilisateur

Acer

Acer V56LA Manuel utilisateur

Acer

Acer V12LC Manuel utilisateur

Acer

Acer AcerPower 6500 Manuel utilisateur

Acer

Acer Altos 900 Pro Manuel utilisateur

Acer

Acer V60N Manuel utilisateur

Acer

Acer Power SE Manuel utilisateur

Acer

Acer Veriton 9100 Manuel utilisateur

Acer

Acer V59LT Instructions d'installation

Acer

Acer Altos 21000 Series Manuel utilisateur

Acer

Acer V80M Manuel utilisateur

Acer

Acer Altos 1100 Series Manuel utilisateur

Acer

Acer M11E Manuel utilisateur

Acer

Acer V56LA Instructions d'installation

Acer

Acer V58 Manuel utilisateur

Acer

Acer 9000V Manuel utilisateur

Acer

Acer AcerPower 3000 Instructions d'installation

Acer

Acer M9D Manuel utilisateur

Acer

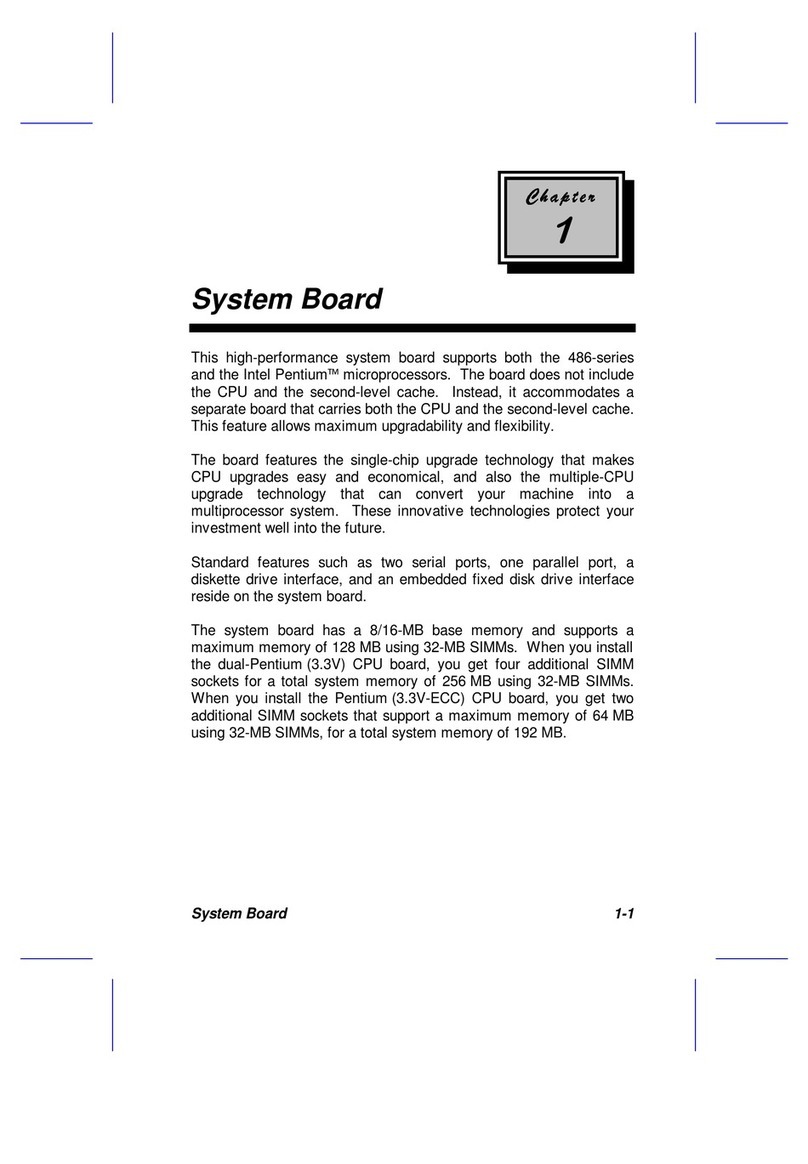

Acer 700ed Manuel utilisateur

Acer

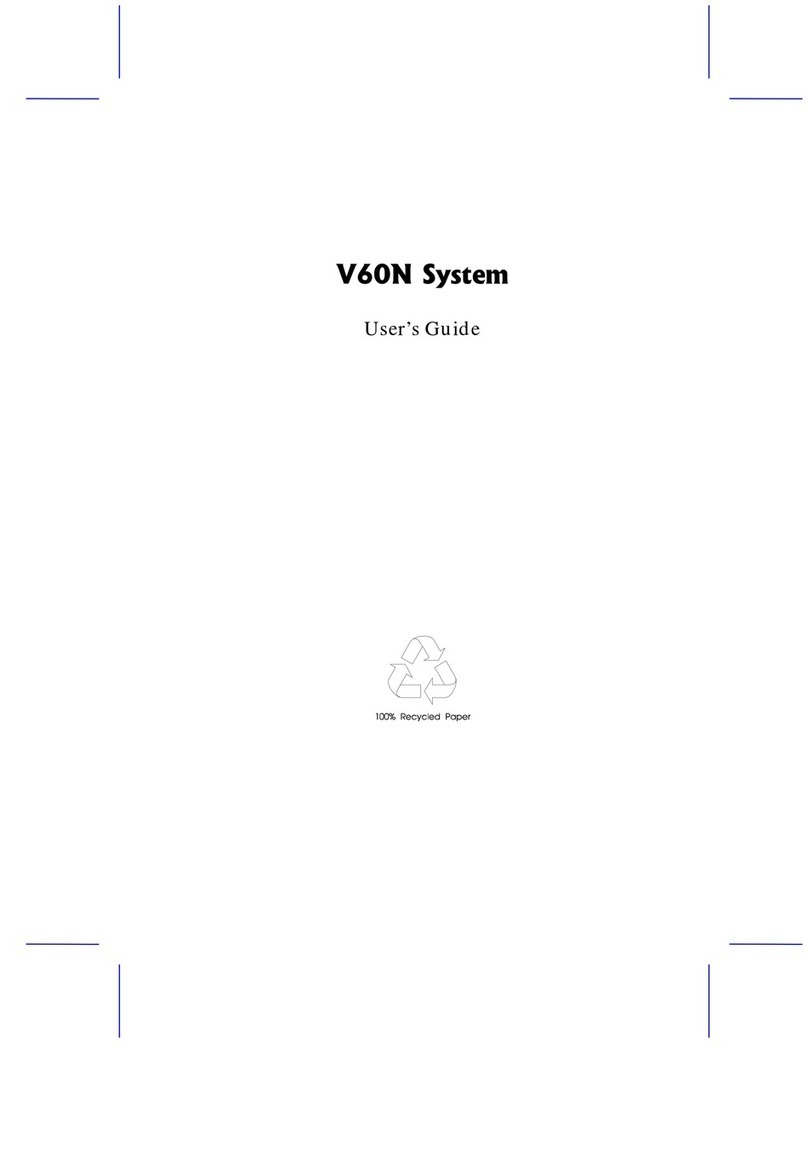

Acer V60N Instructions d'installation
