Explore the next sense

Getting Started Guide

Acconeer XE132

Entry Module Evaluation Kit

Sept 2020

PROPRIETARY AND CONFIDENTIAL

The XE132 is delivered non-flashed. This installation quick guide will show

you how to get the Acconeer XE132 Module Server up and running. For a

hands-on instruction video, please visit Acconeer channel.

https://youtu.be/PTcQ0FpRz7E

Installation guide

PROPRIETARY AND CONFIDENTIAL

The Evaluation kit for Our Entry Module (XM132) differs from previous

EVK in that it comes already soldered onto the breakout board. All you

need is the micro USB cable.

Preparing the HW Installation

XE132 EVK

* Not provided by Acconeer.

Additionally*:

•USB Micro Cable for

connection to PC

PROPRIETARY AND CONFIDENTIAL

HW Overview

XE132 EVK Front and Back Side

STM32G0

36 kb RAM

128 kb Flash

A111

USB1 USB2 is NoMount USB1

Power

Switch

GPIO:s

XM132

Serial

Debug

Reset

DFU

PROPRIETARY AND CONFIDENTIAL

The following applications will be required to complete an installation. Also,

they will be very useful when working with the Radar Sensor Module

Server. Please download and install:

•Acconeer Module SW Image for XM132: Available from https://developer.acconeer.com/

•Acconeer Exploration tool: https://github.com/acconeer/acconeer-python-exploration

For all users (Windows, Linux):

•Python: Available from https://python.org/downloads

Preparing the SW installation

PROPRIETARY AND CONFIDENTIAL

Installing python

•Start the installer file that you downloaded

from python.

•Make sure the Add Python to PATH option is

selected. (Pic 1)

•Click Install Now. No need for a customized

Installation. (Pic 2)

•Close once the installation is completed. (Pic 3)

PROPRIETARY AND CONFIDENTIAL

•Unzip the file downloaded from Acconeer.

Acconeer-python-exploration

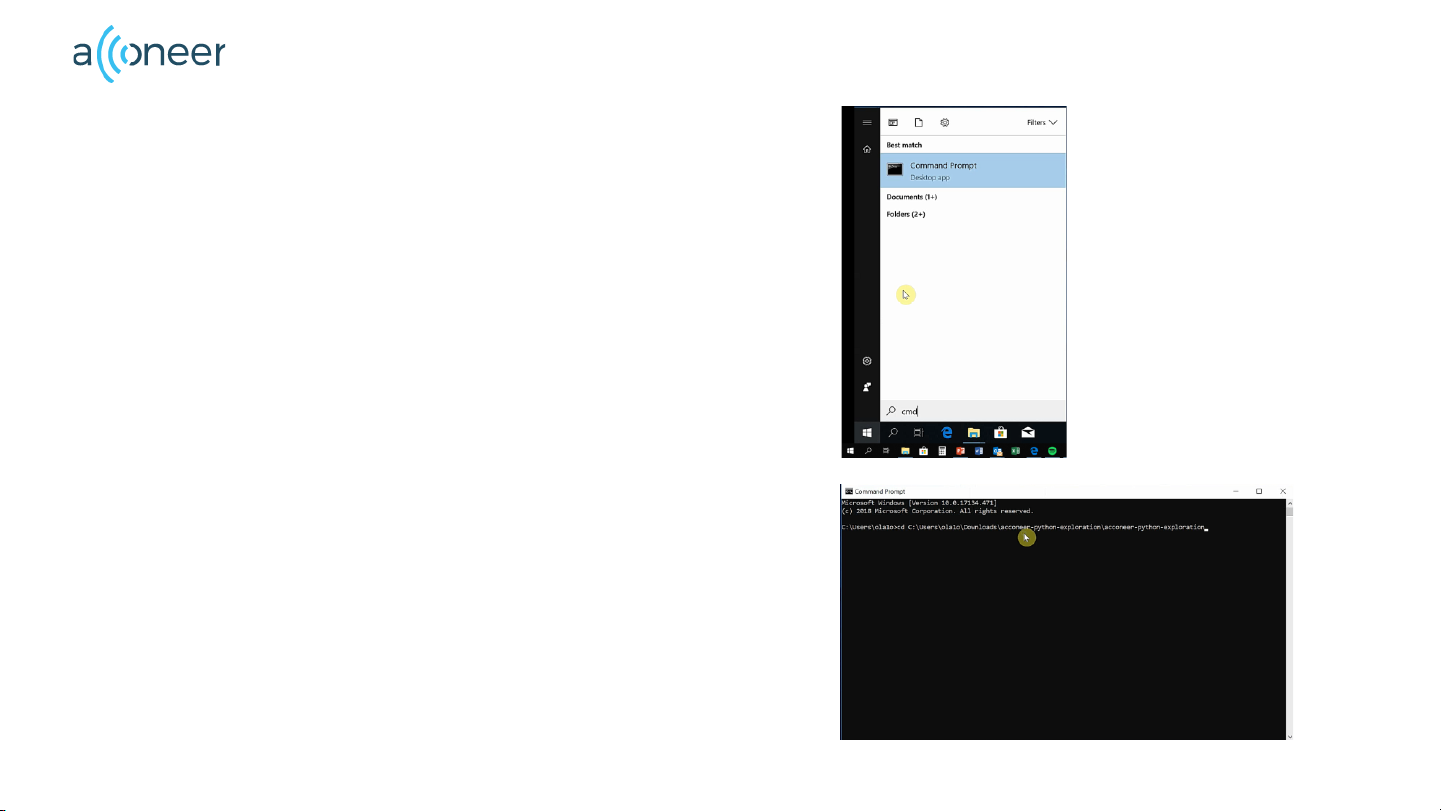

•Start windows command prompt. (Pic 1)

You can always find it by searching for

“cmd”.

•In the command prompt, change the

directory to where you unzipped the

exploration tool by typing the command cd

followed by the path to the folder. (Pic 2)

Installing Exploration tool 1

PROPRIETARY AND CONFIDENTIAL

•In Command Prompt: Run the command:

python -m pip install -U --user setuptools

wheel

•Then the command: pip install --user –r

requirements.txt (Pic 1)

•Wait until the installation has finished and

run the next command: python setup.py

install --user (Pic 2)

Installing Exploration tool 1

PROPRIETARY AND CONFIDENTIAL

1. Press the DFU-button and

hold it.

2. Press the RESET-button

and hold it.

3. Release the RESET-button.

4. Release the DFU-button

Now the module is in DFU

mode and ready to be flashed.

Start Boot Mode (DFU Mode)

RESET

DFU

PROPRIETARY AND CONFIDENTIAL

1. Start Device Manager in Windows

2. Find the COM-Port that the XE132 is

connected to. COM5 in our example.

3. Install the flashing utility: pip install

stm32loader

You might need to add stm32loader to the

PATH environment variable

4. In the command prompt directory where you

placed XE132 Entry Module Server run the

following command: stm32loader -p COM5 –

e –w –v acc_module_server_xm132.bin

5. Make sure COM5 above is replaced with your

COM port.

6. Now the XE132 is flashed and ready to use.

Make sure to restart the module by pressing

the RESET button.

Flashing
