ABSCO SHEDS PPCK Guide d'installation

Absco Industries Assembly Instruction Manual

ABSCO POOL PUMP COVER

MODEL: PPCK

1.52mW x 1.52mD x 1.49mH

Model: PPCK 1.0 1

27/4/23

DOWNLOAD

OUR APP FOR

ASSEMBLY

VIDEOS

PLEASE LEAVE A REVIEW

Tell us about your experience!

Visit www.abscosheds.com.au/review

AU: 1800 029 701

N Z: 0800 466 444

[email protected]

www.abscosheds.com.au

100

1620 mm

Absco Industries Assembly Instruction Manual

ABSCO POOL PUMP COVER

MODEL: PPCK

1.52mW x 1.52mD x 1.49mH

Model: PPCK 1.0 2

27/4/23

GENERAL INSTRUCTIONS

• Before commencing any assembly, read through these instructions in detail to gain a thorough

understanding of assembly methods and associated details.

• Unpack the carton and carefully identify and check off all the parts against the parts described

and illustrated on "COMPONENTS PACKING LIST" pages.

SITE PREPARATION

• The site for the shed must be level. An uneven surface may result in misalignment of parts.

• The shed shall be erected on top of a reinforced concrete slab and anchored down appropriately

illustrated on “FINAL CONSTRUCTION” page.

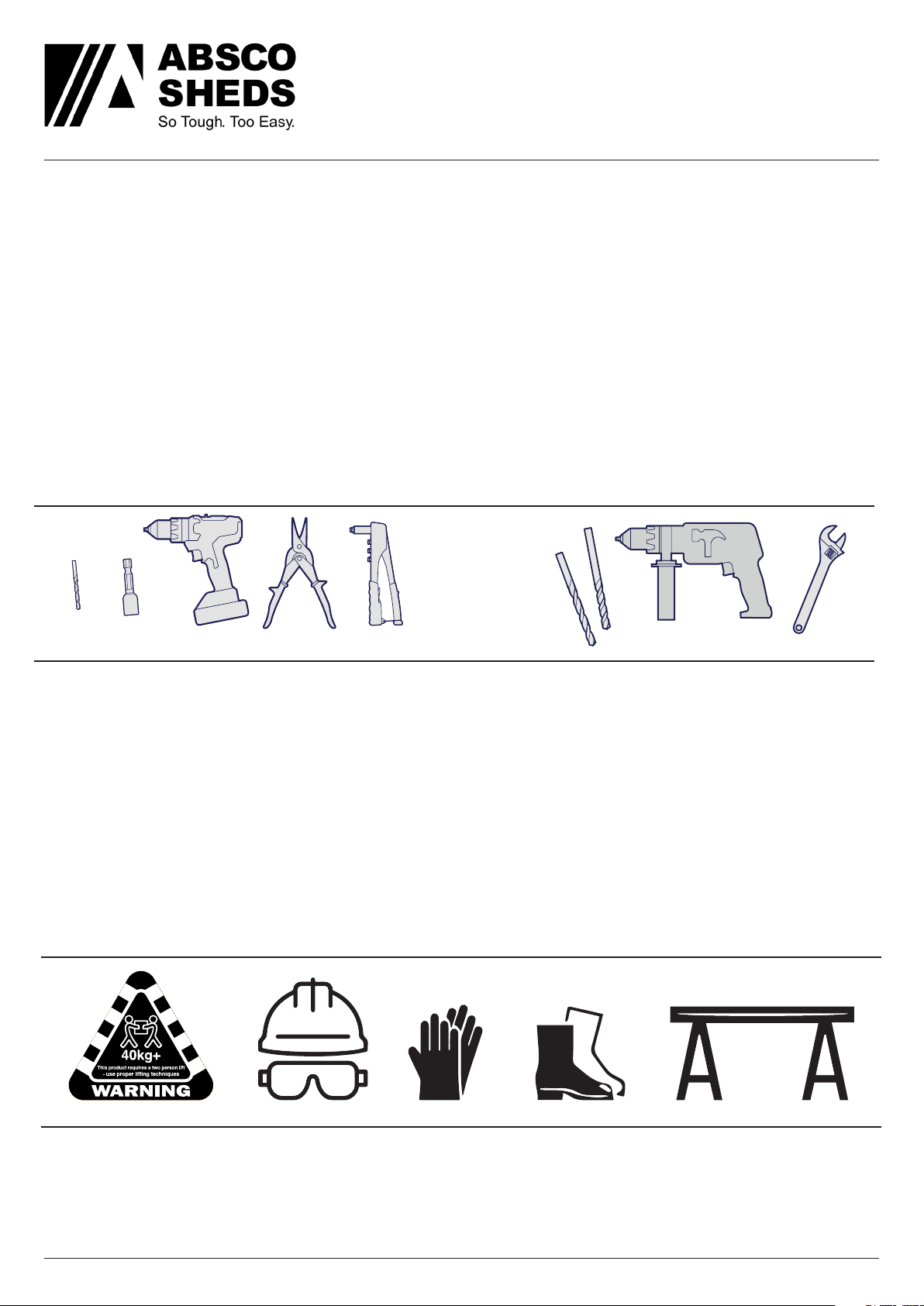

TOOLS REQUIRED

SAFETY NOTES

• Some parts may have sharp edges. It is advisable to wear gloves when handling these items and

safety glasses if drilling holes. Sensible shoes are highly recommended.

• Do not erect your shed in windy conditions.

• Ensure that the shed is securely anchored to a solid foundation immediately after construction is

completed.

• It is highly recommended to erect the shed with two or more people.

• Do not sit, stand or walk on the roof of your shed.

RECOMMENDED

5/16” Hex driver bit

Hammer drill Shifter

10mm metal drill bit

10mm masonry drill bit

Pop riveterTinsnipsCordless drill

4.5 mm drill bit

Absco Industries Assembly Instruction Manual

ABSCO POOL PUMP COVER

MODEL: PPCK

1.52mW x 1.52mD x 1.49mH

Model: PPCK 1.0 3

27/4/23

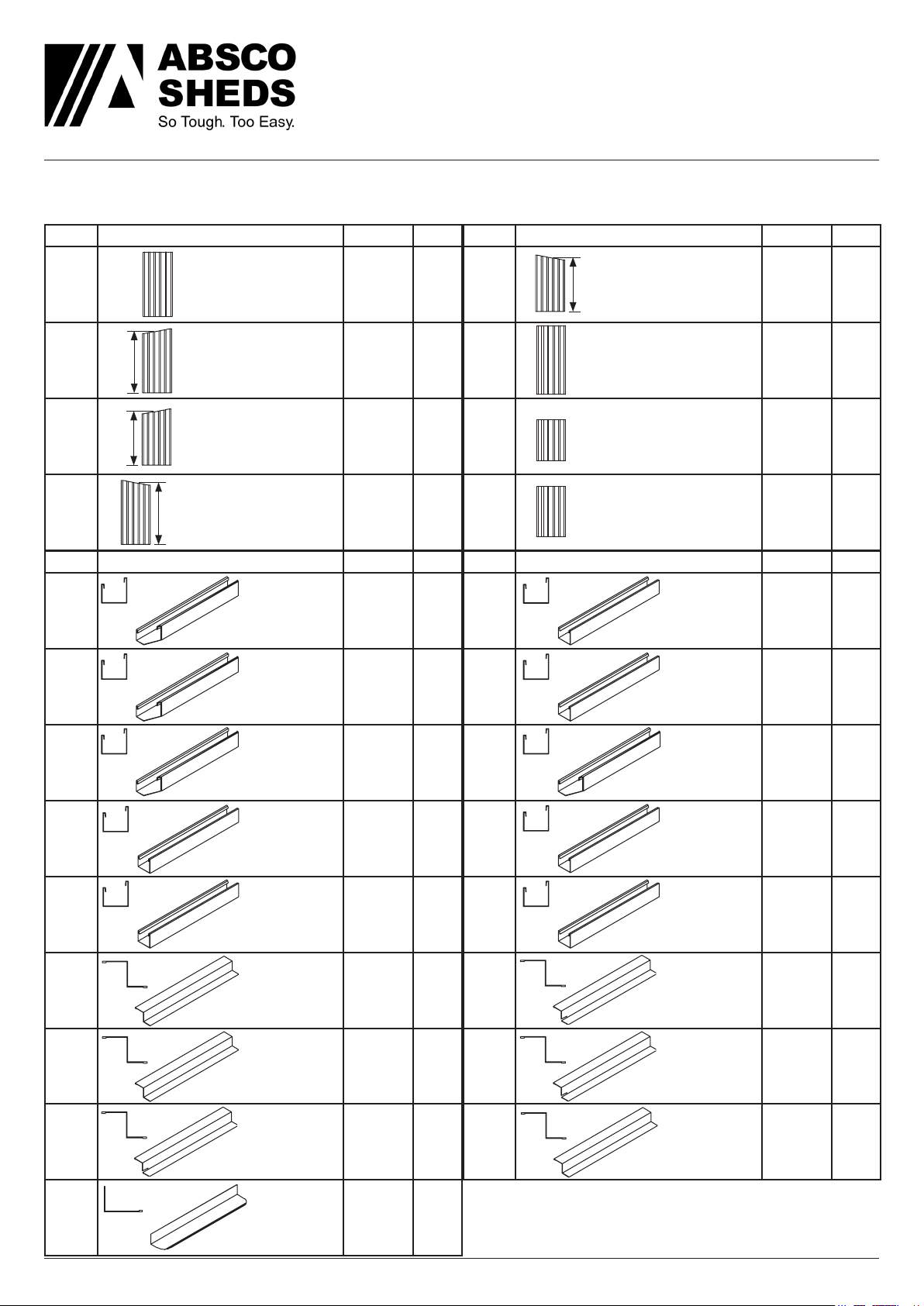

QTY DESCRIPTION PART # CHK

2STEEL SHEET

1460 x 773 mm PPB

STEEL SHEET

1395 mm TO MIDPOINT

x 773 mm

PPG

STEEL SHEET

1265 mm TO MIDPOINT

x 773 mm

PPL

STEEL SHEET

1395 mm TO MIDPOINT

x 773 mm

PPD

QTY DESCRIPTION PART # CHK

1CHANNEL

1513 mm 57A

1CHANNEL

1513 mm 53B

2CHANNEL

1513 mm 81F

2CHANNEL

1528 mm 81N

4CHANNEL

1513 mm 81E

1JAMB

1120 mm 91A

1JAMB

1100 mm 94C

1JAMB

783 mm 90C

4LIP

230 mm 88D

QTY DESCRIPTION PART # CHK

STEEL SHEET

1265 mm TO MIDPOINT

x 773 mm

PPR

2STEEL SHEET

1622 x 773 mm PPA

1STEEL SHEET

1140 x 773 mm PPC

1STEEL SHEET

1203 x 711 mm PPF

QTY DESCRIPTION PART # CHK

1CHANNEL

783 mm 79C

1CHANNEL

1200 mm 64C

1CHANNEL

1140 mm 64A

1CHANNEL

1140 mm 64B

2CHANNEL

773 mm 58C

1JAMB

1203 mm 94A

1JAMB

1203 mm 94B

2JAMB

1480 mm 94D

MIDPOINT

MIDPOINT MIDPOINT

Nominal sheet widths are shown

+/- 2 mm is within tolerance

COMPONENTS LIST

Absco Industries Assembly Instruction Manual

ABSCO POOL PUMP COVER

MODEL: PPCK

1.52mW x 1.52mD x 1.49mH

Model: PPCK 1.0 4

27/4/23

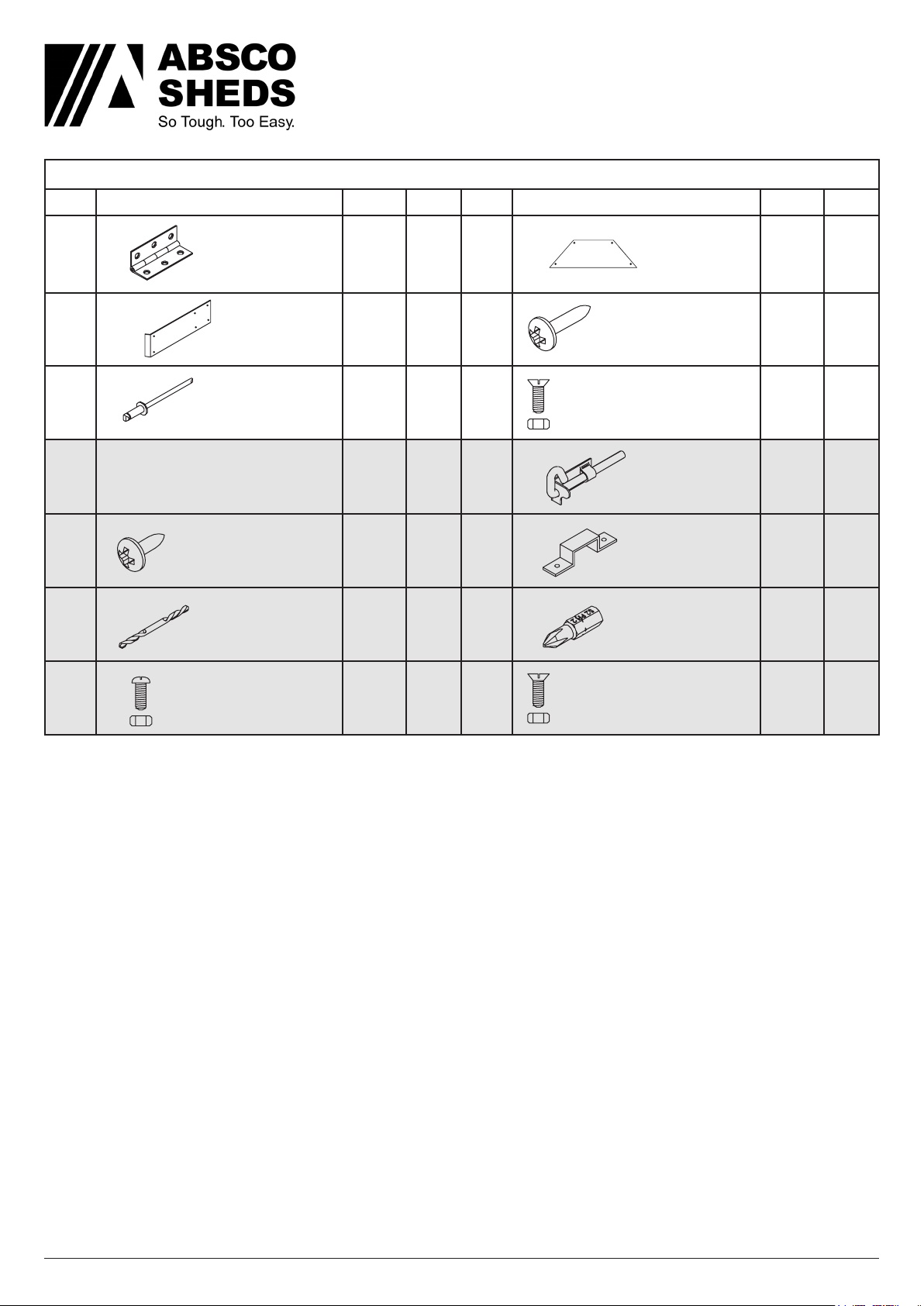

FITTINGS PACK

QTY DESCRIPTION No. CHK QTY DESCRIPTION No. CHK

64 mm

BUTT HINGE

6 HOLE

FAST

012A 1

PADBOLT

SUPPORT

PLATE

22C

1DOOR

PLATE 12A 58G x 3/4” SELF

TAPPING SCREW

FAST

013

30 SBS43E POP

RIVET

FAST

009 30 3/16” COUNTERSUNK

BOLTS & NUTS

FAST

004

FAST

005

1DOUBLE DOOR

FITTINGS PACK

PSTK

DBL 3PADBOLT FAST

006

8G x 3/8” SELF

TAPPING SCREW

x 220

PACK

220 2PADBOLT

HASP

FAST

007

13 mm

DRILL BIT DRILL 1 PHILLIPS HD

DRIVER BIT

FAST

038

3/16” ROUND HD

BOLTS &

NYLOCK NUTS

FAST

002

FAST

003

12 3/16” COUNTERSUNK

BOLTS & NUTS

FAST

004

FAST

005

Absco Industries Assembly Instruction Manual

ABSCO POOL PUMP COVER

MODEL: PPCK

1.52mW x 1.52mD x 1.49mH

Model: PPCK 1.0 5

27/4/23

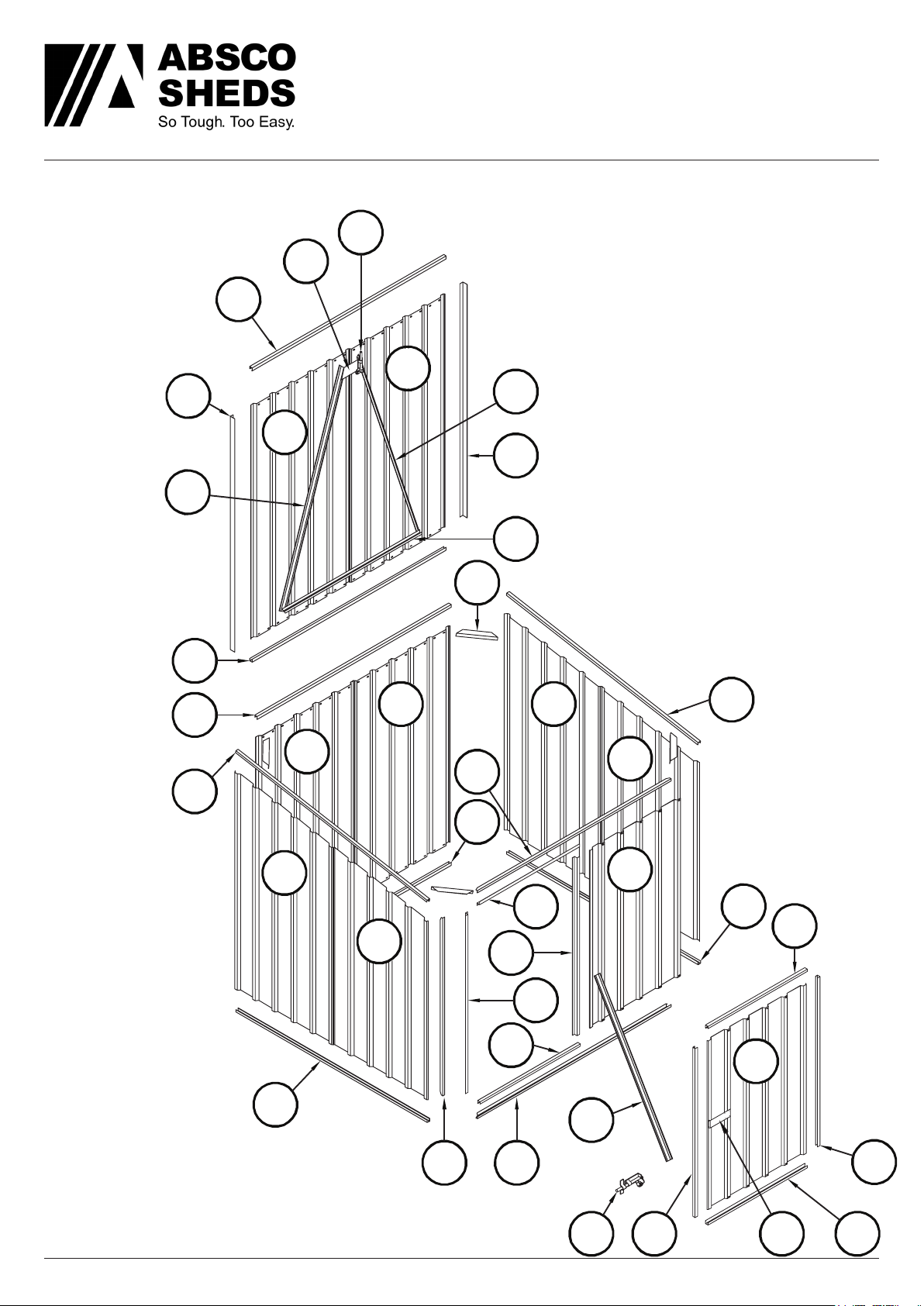

COMPONENT OVERVIEW

22A

22C

81E

88C

PPA

94D

88D

81E

PPG

81E

64C

PPL

90C

PPD

PPR

94A

22A

PPB

88C

94C

PPB

81F

81N

PPF

81N

94B

79C

53B

91A

12A 58C

64A

81E

58C

64B

PPC

57A

81F

Most holes are prepunched.

A 3mm drill bit is supplied for

drilling holes where prepunching

was not possible.

Absco Industries Assembly Instruction Manual

ABSCO POOL PUMP COVER

MODEL: PPCK

1.52mW x 1.52mD x 1.49mH

Model: PPCK 1.0 6

27/4/23

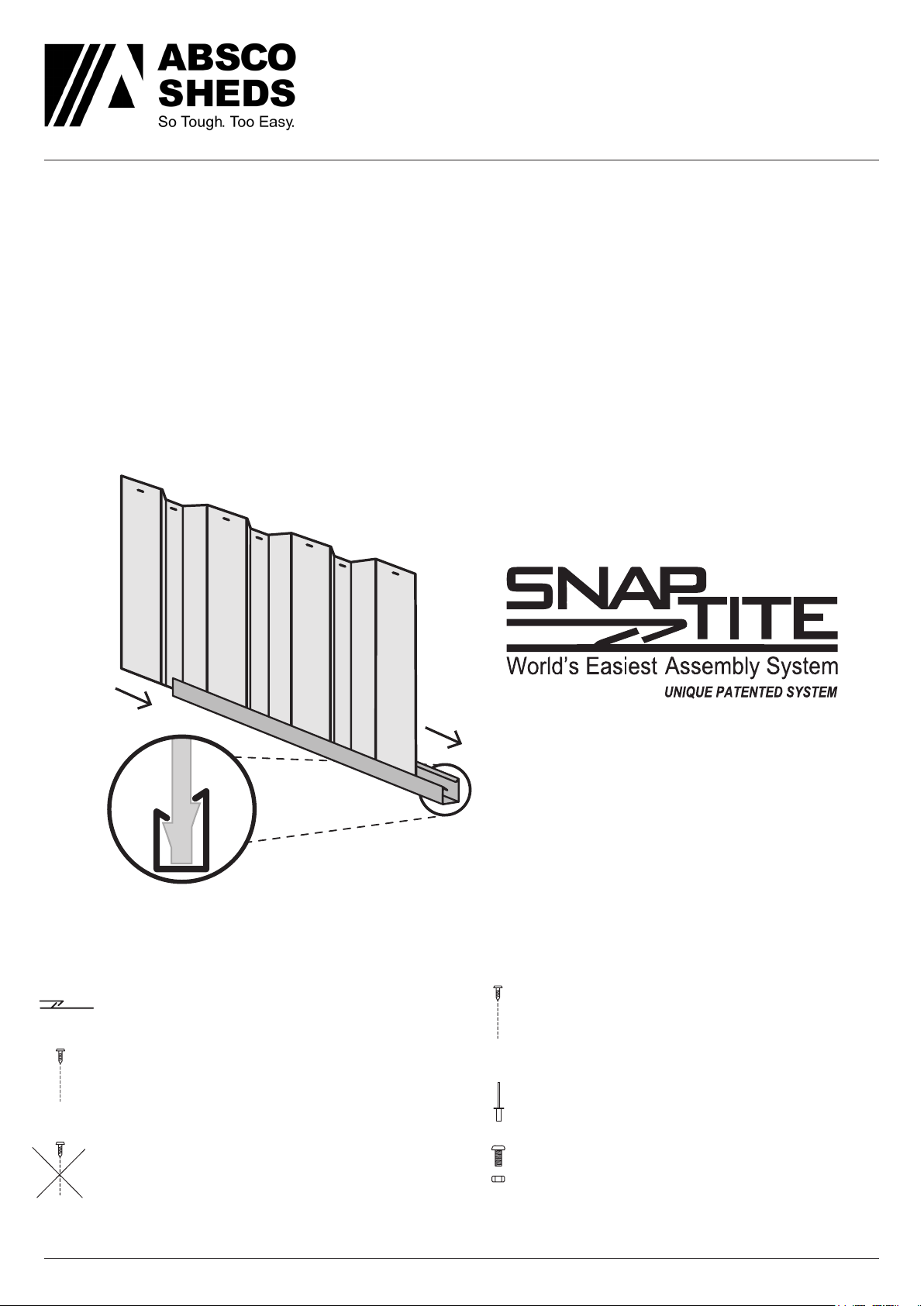

SNAPTiTE ASSEMBLY GUIDE

The Snaptite Assembly System locks end channels to all roof and wall sheets without the need for

tools and fasteners.

To assemble each panel, the perimeter channels are secured to the top and bottom of each panel.

Gently tap the channel over the SNAPTiTE lugs on the sheet, working along the sheet.

Each perimeter channel must ﬁnish ﬂush with the edges of the sheets. Simply tap the channel along

the sheets until each end is neatly ﬂush. If you need to remove channels from the panels, slide it off

from the side.

Channel locks the shed panel into

position without the need for screws!

FASTENING SYMBOLS

Secure channel to sheeting by SNAPTiTE

fastening method.

Join components together with one

screw at this location only, as some

channels have extra holes that are not

required for this model of shed.

Do not join components together at

this location yet, as the screws may

obstruct further assembly of the other

components.

Join components together by pre-drill-

ing the holes ﬁrst. Use one component as

template to mark where the holes are and

drill with a 3mm drill bit.

3mm pop rivet

4mm nut and bolt set.

SNAP

T TE

Absco Industries Assembly Instruction Manual

ABSCO POOL PUMP COVER

MODEL: PPCK

1.52mW x 1.52mD x 1.49mH

Model: PPCK 1.0 7

27/4/23

1. Layout and overlap two PPB

sheets by one rib as shown.

You’ll need to turn one 180

degrees.

Align them so the two rib holes

overlap and the edge holes are

to the outsides.

2. Fasten with self tapping

screws through prepunched

sheet-to-sheet holes on overlap.

If you can’t see bottom hole twist

the sheet left or right.

Make a new hole with supplied

drill bit if bottom hole is too far

up or down the sheet or not

found.

3. Attach the top and bottom

channels using the SNAP-TiTE

method.

Make sure you have the short

side of the channel to the

outside of the sheeting

REAR PANEL ASSEMBLY

81F

edge holes to outside

- This completes the rear panel -

1 required

FAST001

PPB

Absco Industries Assembly Instruction Manual

ABSCO POOL PUMP COVER

MODEL: PPCK

1.52mW x 1.52mD x 1.49mH

Model: PPCK 1.0 8

27/4/23

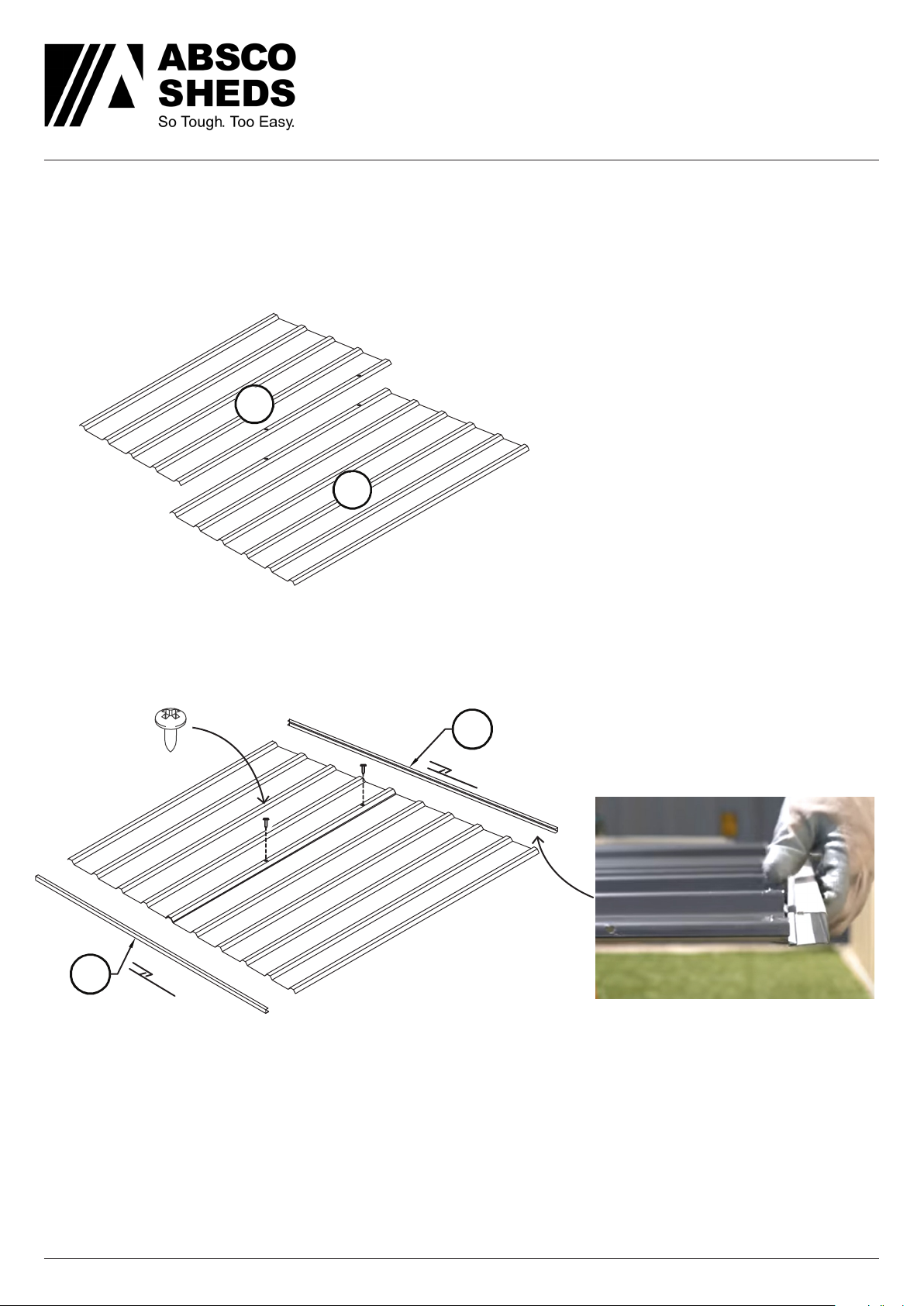

LID PANEL ASSEMBLY 1. Overlap speciﬁed sheets as

shown. Make sure ends are ﬂush.

Where possible, keep sheets in

the same orientation from the

box.

2. Fasten with self tapping

screws through prepunched

sheet-to-sheet holes on overlap.

If you can’t see bottom hole twist

the sheet left or right.

Make a new hole with supplied

drill bit if bottom hole is too far

up or down the sheet or not

found.

3. Attach the top and bottom

channels using the SNAP-TiTE

method.

Make sure you have the short

side of the channel to the

outside of the sheeting

PPA

81E

88C

81E

SNAP

T TE

SNAP

T TE

88C

4. Attach the 88C lips to the

ends, place the face with the

holes on top of the sheet.

Fasten each using ﬁve FAST001

self tapping screws into the

prepunched holes.

FAST001

Absco Industries Assembly Instruction Manual

ABSCO POOL PUMP COVER

MODEL: PPCK

1.52mW x 1.52mD x 1.49mH

Model: PPCK 1.0 9

27/4/23

94C

94D

22C

20mm EDGE ON TOP

15mm EDGE

AT THE BASE

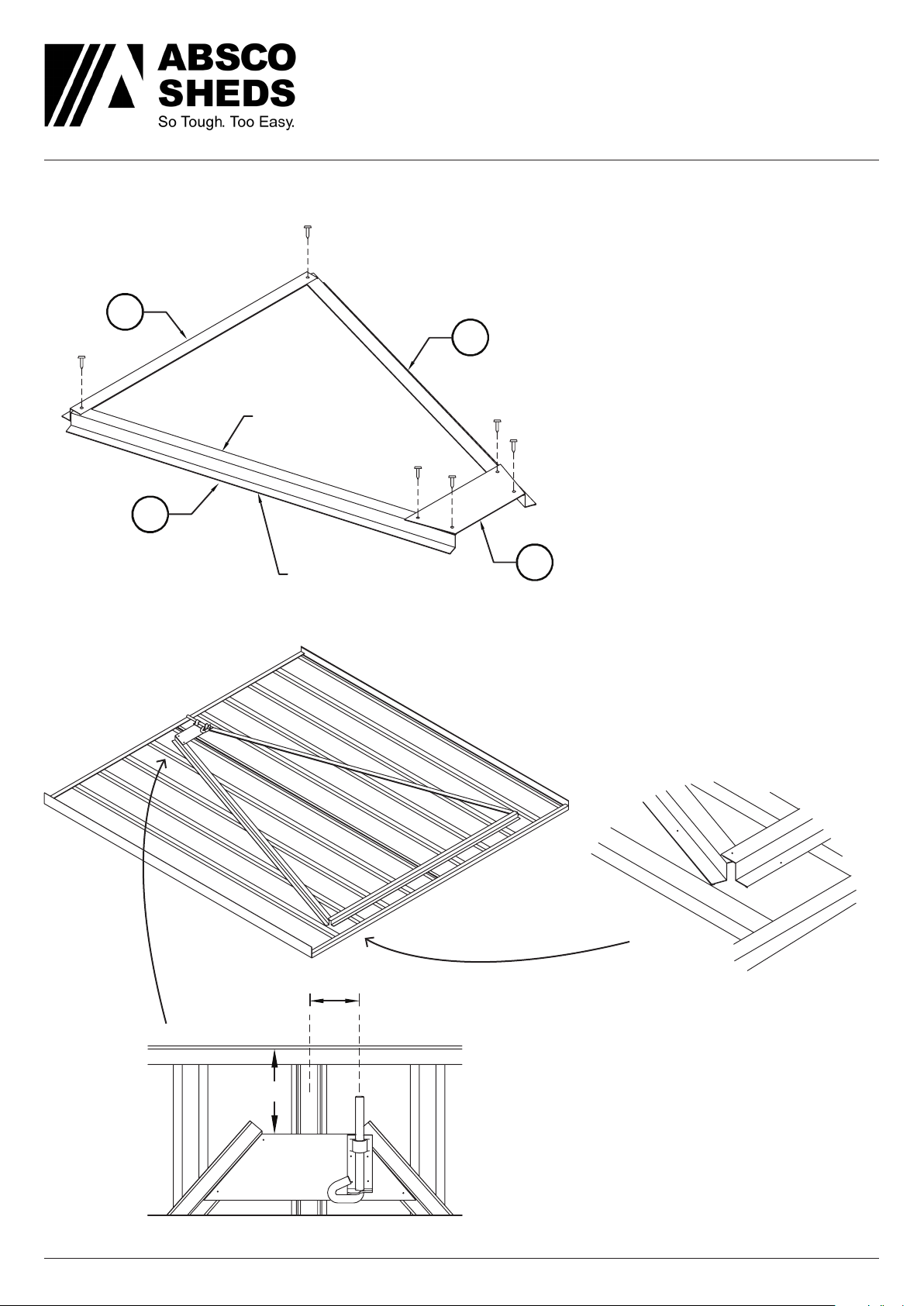

Let’s assemble the lid bracing

5. Join all components at

prepunched locations as shown

6. Position the lid bracing on the

underside of lid as shown.

Drill through the prepunched

holes of the lid bracing into the

sheeting and secure with 10mm

self tapping screws.

7. fasten the padbolt to plate

50mm off centre to allow the bolt

to lock under the top channel of

the front panel next to the door.

LID PANEL ASSEMBLY

CONTINUED

80mm

- This completes the lid panel -

Absco Industries Assembly Instruction Manual

ABSCO POOL PUMP COVER

MODEL: PPCK

1.52mW x 1.52mD x 1.49mH

Model: PPCK 1.0 10

27/4/23

RIGHT PANEL ASSEMBLY

2. Make sure the ends of the

sheets are ﬂush at overlap before

continuing.

Fasten with 10mm self tapping

screws through prepunched

sheet-to-sheet holes on overlap.

1. Layout and overlap the two

sheets by one rib as shown.

orientate them so the two rib

holes overlap and angled end of

the sheets are both to the top.

3. Attach the top and bottom

channels using the SNAP-TiTE

method.

Make sure you have the short

side of the channel to the

outside of the sheeting

Angled ends to top

PPR

PPD

FAST001

81N

81E

SNAP

T TE

SNAP

T TE

- This completes the right panel -
