Abov EW8051 Manuel utilisateur

E-OCD II / OCD / OCD II

EW8051 Setup Guide

IAR EW8051 (Compiler and Debugger)

MDS

Confidential

Contents

1. Introduction

2. IAR Debugger Connections

•2-1 USB Kernel Driver Installation

•2-2 ABOV’s SDK DLL Connections

3. Use of IAR Debugger

•3-1 Download Hexfile

•3-2 Cautions for Debugging

4. Appendix

•4-1 SDK DLL Compatibility according to IAR Versions

•4-2 Number Limitation of Built-in Breakpoints for each Device

•4-3 Number of Built-in Breakpoints: ABOV Devices

5. End of Document

Confidential

1. Introduction

▪This user guide introduces a method to develop ABOV devices in the 8051 debugger of

IAR (C-SPY) environment.

•How to connect and detect the OCD/ OCD II/ E-OCD II dongle.

•How to detect ABOV’s 8051 device.

•How to debug ABOV’s device.

▪This user guide describes restrictions under the 8051 debugger of IAR (C-SPY)

environment.

•Compatibility according to IAR version

•Restrictions according to the number of Breakpoints that are built in ABOV’s device.

Confidential

2. IAR Debugger Connections

2-1 USB Kernel Driver Installation

•E-OCD II dongle

» Since the built-in HID of Windows is used, additional driver doesn’t need to be installed.

» Due to the use of the built-in HID, it can be used immediately after connecting to PC.

•OCD/ OCD II dongle

» It requires an installation of Kernel Driver on a PC.

» While operating the OCD Debugger Setup Program that is provided by ABOV, necessary files are copied.

»You can refer to ABOV’s OCD Debugger Manual for the information of the driver installation.

» You can check the HW connection through the Device Manager on your PC.

Confidential

2. IAR Debugger Connections (continued)

2-2 ABOV’s SDK DLL Connections

•SDK DLL

» SDK DLL is a Dynamic Link Library that is used for a development in the IAR Debugger (C-Spy) environment.

- SDK: Software Development Kit

- DLL: Dynamic Link Library

» IAR selectively provides basic DLL only for some companies such as TI, Infineon, and Segger.

- Products of other companies are connected by using Third Party Drivers.

» ABOV developed DLLs to support its dongles and devices by using SDK sources of IAR.

•SDK DLL compatibility between IAR versions

» It needs to remember that IAR SDK DLL is compatible according to IAR versions.

- Causes: Problem of IAR itself, compatibility problem

- When the version of IAR Embedded Workbench is 8.0, ABOV_OCD_IAR_1010.DLL must be used.

- When the version of IAR Embedded Workbench is 8.1, ABOV_OCD_IAR_1030.DLL must be used.

» ABOV is under development for DLL that is compatible with current version of IAR.

-It is expected that the DLL won’t be compatible with new version of IAR.

- SDK DLL and IAR operate only when they are the same version.

- You should check whether the DLL operates when the version of the installed IAR becomes higher (or lower).

Confidential

2. IAR Debugger Connections (continued)

•IAR project settings

①Select “Options…”, then select “Debugger”.

②Press “OK” button to connect to the Third-Party Driver.

Confidential

2. IAR Debugger Connections (continued)

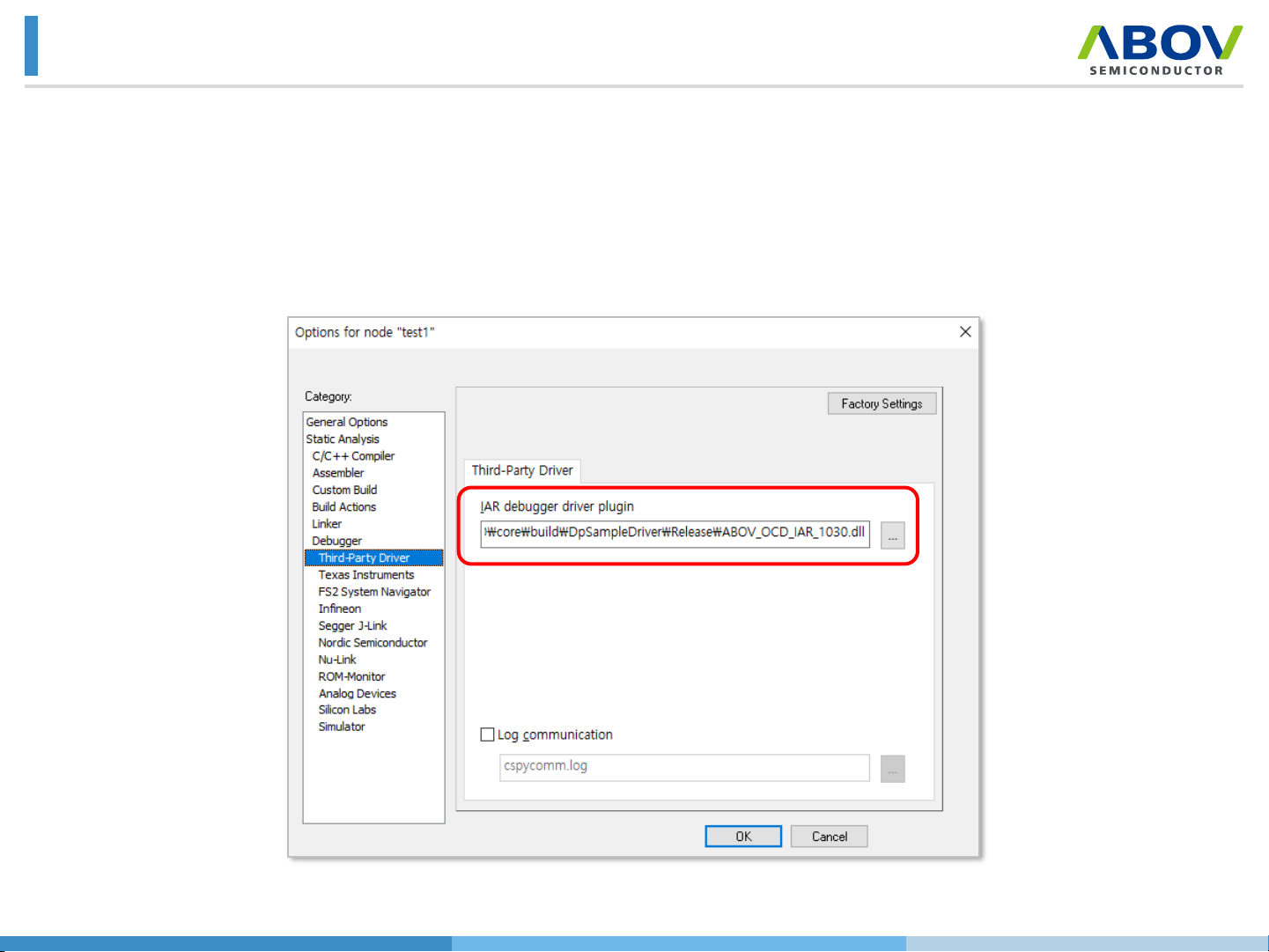

•IAR Third-Party Driver settings

①Select “Options…”, then select “Debugger”. Finally select “Third-Party Driver”.

②Press “OK” button to connect to an SDK DLL file provided by ABOV (Check the IAR version for the

compatibility of SDK DLL).

Confidential

3. Use of IAR Debugger

3-1 Download Hexfile

•By pressing a debugging button ( ), you can proceed operations consecutively.

①Detect OCD/ OCD II/ E-OCD II dongle.

②For each dongle, select POR (Power-on Reset) for the series to which a target device belongs.

When connecting

OCD dongle

When connecting

OCD II dongle

When connecting

E-OCD II dongle

Confidential

3. Use of IAR Debugger (continued)

•If the target is turned off, a dialog box is displayed as shown below:

•If the target is turned on, but an unregistered product is detected, a dialog box is displayed as

shown below:

•When the target is detected normally, a Hex File is downloaded into the Flash of the target.

Confidential

3. Use of IAR Debugger (continued)

•If a target device has options,

» After downloading a Hex file, the corresponding option dialog for the device is displayed.

» Example option dialog for MC96F8204 is shown below:
