Abocom FVR206 Manuel utilisateur

M73-APO09-380

Firewall VPN Router

Quick Installation Guide

-1-

Firewall VPN Router Overview

The Firewall VPN Router provides three 10/100Mbit Ethernet network

interface ports which are the Internal/LAN, External/WAN, and DMZ port. It

also provides an easily operated software WebUIthat allows users to set

system parameters or monitor network activities using a web browser.

Firewall VPN Router security feature

Some functions that are available in the firewall are: Packet Filter, Proxy

Server, Hacker invasion alarm, Packet monitor log, Policy, etc.

Firewall VPN Router installation

This product is a hardware firewall. Therefore the installation is much easier

than a software firewall. First the user has to prepare three network cables,

and connect them to the internal, external and DMZ connectors respectively.

The internal interface has to connect to the office’s internal network on the

same HUB/Switch. The external interface has to connect with an external

router, DSL modem, or Cable modem. The DMZ interface connects to an

independent HUB/Switch for the DMZ network.

Firewall VPN Router function setting

The Firewall VPN Router has a built in WEBUI (Web User Interface). All

configurations and management are done through the WEBUI using an

Internet web browser.

Firewall VPN Router monitoring function

The firewall provides monitoring functions which contains traffic log, event

log, traffic alarm, event alarm, and traffic statistics. Traffic alarm records the

packets of hacker invasions. Not only does the firewall log these attacks, it

can be set up to send E-mail alerts to the Administrator automatically for

immediate hacker’s invasion crisis management.

-2-

Firewall VPN Router supporting protocols

The Firewall VPN Router supports all the TCP, UDP and ICMP protocols,

such as HTTP, TELNET, SMTP, POP3, FTP, DNS, PING, etc. System

Administrators can set up proprietary protocols according to operating

requirements.

Hardware Description

DMZ Port: Use this port to connect to the company’s server(s), which

needs direct connection to the Internet (FTP, SNMP, HTTP, DNS).

External Port (WAN): Use this port to connect to the external router, DSL

modem, or Cable modem.

Internal Port (LAN): Use this port to connect to the internal network of the

office.

Reset: Reset the Firewall VPN Router to the original default settings.

DC Power: connect one end of the power supply to this port, the other

end to the electrical wall outlet.

DMZ Port

External Port

Internal Port

Reset

DC Power

-3-

Connecting Example:

Firewall:

Internal Port = 192.168.1.1

External Port = x.x.x.x (provided by ISP)

DMZ Port = 172.16.1.254

ConnectionType: 10/100 Mbps Cable Connection

【Internal 1 Port】= 192.168.1.3

【Internal 2 Port】= 192.168.1.4

【Internal 3 Port】= 192.168.1.5

【Internal 4 Port】= 192.168.1.6

-4-

【External Port】= 61.11.11.11

【DMZ Port】= 172.16.1.254

Firewall VPN Router Software (management tool) description

Firewall VPN Router management tool: WebUI

The main menu functions are located on the left-hand side of the screen, and

the display window will be on the right-hand side. The main functions include

12 items, which are: Administrator, Configuration, Address, Service,

Schedule, Policy, VPN, Virtual Server, Log, Alarm, Statistics, and Status.

-5-

Quick Setup

WebUI Configuration example

STEP 1:

Connect both the Administrator’s PC and the Internal (LAN) port of the

Firewall VPN Router Firewall to a hub or switch. Make sure there is a link light

on the hub/switch for both connections. The Firewall VPN Router has an

embedded web server used for management and configuration. Use a web

browser to display the configurations of the firewall (such as Internet Explorer

4(or above) or Netscape 4.0(or above) with full java script support). The

default IP address of the firewall is 192.168.1.1 with a subnet mask of

255.255.255.0. Therefore, the IP address of the Administrator PC must be in

the range between 192.168.1.2 /24–192.168.1.254/24.

If the company’s internal IP Address is not subnet of 192.168.1.0, (i.e.

Internal IP Address is 172.16.0.1)the Administrator must change his/her PC

IP address to be within the same range of the internal subnet (i.e.

192.168.0.0). Reboot the PC if necessary.

By default, the Firewall VPN Router is shipped with its DHCP Server function

enabled. This means the client computers on the internal (LAN) network

including the Administrator PC can set their TCP/IP settings to automatically

obtain an IP address from the Firewall VPN Router.

The following table is a list of private IP addresses. These addresses may

not be used as an External IP address.

10.0.0.0 ~ 10.255.255.255

172.16.0.0 ~ 172.31.255.255

192.168.0.0 ~ 192.168.255.255

-6-

STEP 2：

Once the Administrator PC has an IP address on the same network as the

FirewallVPN Router, open up an Internet web browser and type in

http://92.168.1.1 in the address bar.

A pop-up screen will appear and prompt for a username and password. A

username and password is required in order connect to the firewall. Enter the

default login username and password of Administrator (see below).

Username: admin

Password: admin

Click OK

-7-

STEP 3:

After entering the username and password, the Firewall VPN Router WEBUI

screen will display.

Select theConfiguration tab on the left menu and a sub-function list will be

displayed. Click on Interface from the sub-function list, and enter proper

Layer 3 network setup information. (for example)

Internal interface IPAddress 192.168.1.1

NetMask 255.255.255.0

ExternalIP address 211.222.20.100

NetMask 255.255.255.0

Default Gateway 211.222.20.101

DMZ IP address 192.168.3.1

NetMask 255.255.255.0

Note: The above figures are only examples. Please fill in the appropriate IP

address information provided to you by the ISP.

-8-

STEP 4：

Click on the Policy tab from the main function menu, and then click on

Outgoing from the sub-function list.

Click on New Entry button.

When theNew Entryoption appears, then enter the following configuration:

Source Address –select “Inside_Any”

DestinationAddress –select“Outside_Any”

Service -select “ANY”

Action -select “Permit”

Click on OK to apply the changes.

-9-

STEP 5：

The configuration is successful if you see the screen below. Make sure that

all the computers that are connected to the Internal (LAN) port have their

Default Gateway IP Address set to the Firewall’s Internal IP Address (i.e.

192.168.1.1). At this point, all the computers on the Internal network should

gain access to Internet immediately. If a firewall filter function is required,

please refer to the Policy section.

Table des matières

Autres manuels Abocom Routeur réseau

Abocom

Abocom SW2400M Manuel utilisateur

Abocom

Abocom BR580 Manuel utilisateur

Abocom

Abocom PLS485 Manuel utilisateur

Abocom

Abocom HomePlug AV Ethernet Bridge PLE0200 Instructions d'utilisation

Abocom

Abocom CAS1040 Manuel utilisateur

Abocom

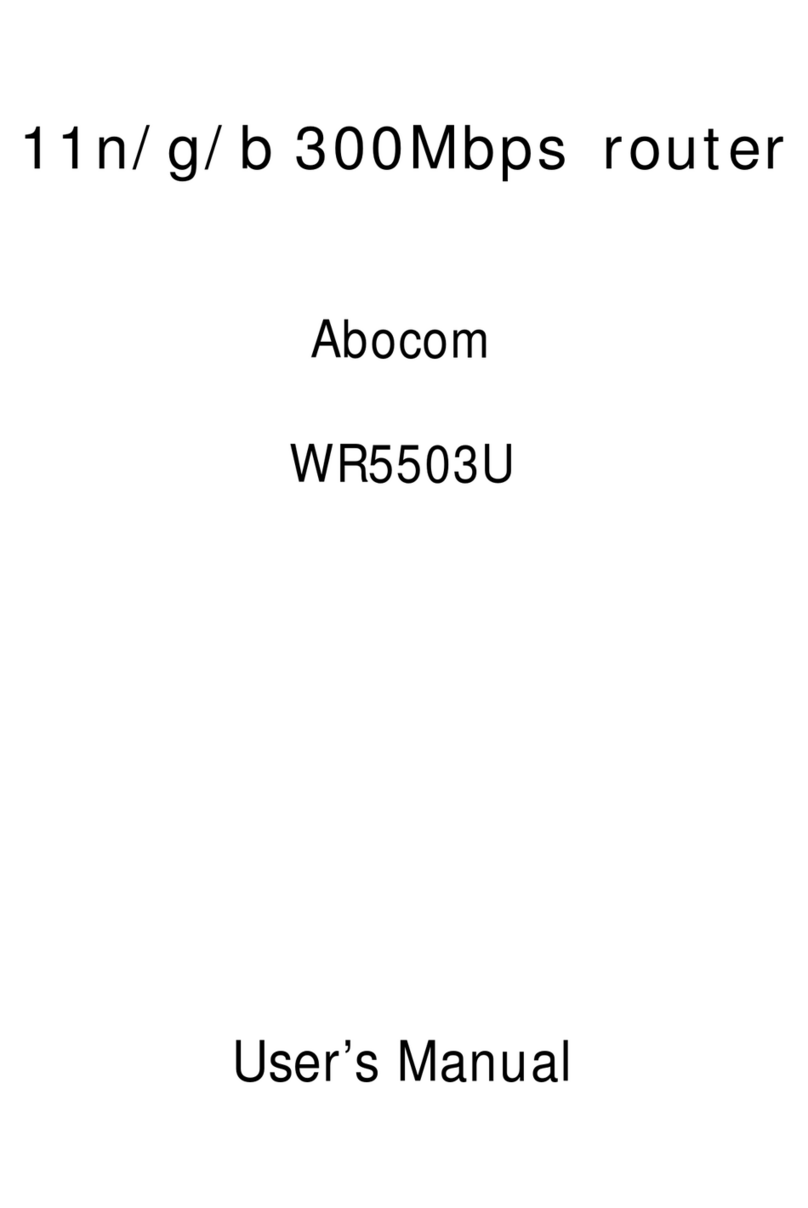

Abocom WR5503U Manuel utilisateur
