ABB IM300-I Guide de démarrage rapide

IM300

Operational Manual

TABLE OF CONTENTS

1. INTRODUCTIONS..................................................................................................1

1.1. FUNCTION SPECIFICATION.................................................................................... 1

1.2. FEATURES............................................................................................................. 1

2. THE INSTALLATION, WIRING AND CONFIGURATION.............................3

2.1. DIMENSIONS AND INSTALLATION......................................................................... 3

2.2. WIRING AND CONFIGURATION............................................................................. 6

3. OPERATING INSTRUCTIONS...........................................................................11

3.1. BUTTON OPERATION........................................................................................... 12

3.2. DATA READ（NON SOE）................................................................................. 13

3.3. PARAMETER SETTINGS........................................................................................33

3.4. LOCAL OPERATION.............................................................................................49

3.5. SOE AND STATISTIC INQUIRY.............................................................................53

4.1. MODBUS PROTOCOL OVERVIEW........................................................................61

4.1.1 THE TRANSMISSION FORMAT............................................................................ 61

4.1.2 THE FRAME FORMAT........................................................................................ 62

4.2. COMMUNICATION PROTOCOL ADDRESS TABLE AND DESCRIPTION..................... 64

4.3. EXPLANATION OF REGISTER ADDRESS................................................................90

4.4. SOE COMMUNICATION FORMAT DESCRIPTION..................................................97

5. TRANSPORTATION AND STORAGE............................................................. 100

APPENDIX............................................................................................................... 101

A. THE DEFAULT VALUE.......................................................................................... 101

B. TECHNICAL INDICATORS..................................................................................... 103

C. ORDER INSTRUCTIONS.........................................................................................105

IM300 Intelligent Power Monitoring Instrument

1. Introductions

1.1. Function Specification

IM300 is an intelligent multipurpose power parameter monitoring and control

device which has an extensive range of applications in 6~35kV or 0.4kV power

systems. It has the data acquisition, control and statistical functions, such as electrical

parameters measurement, calculation and statistics, fault records, 2 ~ 31st

harmonics monitoring function, 4-ch digital inputs and 2-ch relay outputs, 1-ch

4~20mA DC transmission output, over-limit alarm and other functions. IM300 is

equipped with RS485 communications and MODBUS-RTU protocol for integration

into any power monitoring and control system. The appearance is shown in fig 1.1.1.

Fig 1.1.1 The appearance of IM300

1.2. Features

1.2.1.IM300 functions

Applied in 3-phase 3-wire system and 3-phase 4-wire system . It can measure

and calculate 3-phase voltage, 3-phase current, Zero-sequence current, active

power, reactive power, apparent power, power factor, system frequency, active

energy and reactive energy.

Harmonic distortion ratio of voltage and current.( Including total harmonic

distortion ratio THD, odd harmonic distortion ratio , even harmonic distortion

ratio), 2~31st harmonic occupancy of voltage, 2~31st harmonic occupancy of

current, the RMS of voltage and current base wave, etc.

2-ch relay control outputs.

IM300 Intelligent Power Monitoring Instrument

4-ch digital inputs, up to 32 SOE (the Sequence of Events) of digital inputs

can be recorded.

1-ch 4 ~ 20mA DC transmission output which can be associated with any

voltage, current, power.

forward/reverse total active energy, reactive energy in four quadrants.

Multi-rate energy statistics (4 rates, 48 time-periods) of the forward/reverse

total active energy, reactive energy in four quadrants.

The value and occurrence time of the maximum forward/reverse active and

reactive power demand. The maximum/minimum value and occurrence time of

the voltage, current, frequency, power factor, active power, reactive power,

apparent power.

Unbalanced degree of three-phase voltage and current.

The over limit alarm function, such as over-current, zero-current, grounding,

low-voltage, over-voltage, low-frequency, over- frequency, low-power factor, can

be associated with relay outputs.

Checking and modifying the various electrical parameters, running status and

controlling the relays locally.

Communication protocol is MODBUS-RTU.

The clock can be set manually.

Note: The above functions are selected according to the specific models of the

meter (see appendix C).

1.2.2.High safety and reliability

IM300 can run steadily in the complex power system.

Electrostatic discharge immunity test : level 3

Electric fast transient immunity test : level 3

The surge immunity test : level 3

Frequency magnetic field immunity test : level 3

Oscillation wave immunity test : level 3

The IP level of panel: IP50, the IP level of shell: IP20

1.2.3.Easy installation

IM300 dimensions conform DIN96 × 96 standard. It can be mounted on the

IM300 Intelligent Power Monitoring Instrument

cabinet panel easily.

1.2.4.The wiring of system

3-phase 4-wire 3CT (3P4W 3CT)

3-phase 4-wire 1CT (3P4W 1CT)

3-phase 3-wire 3CT (3P3W 3CT)

3-phase 3-wire 2CT (3P3W 2CT)

3-phase 3-wire 1CT (3P3W 1CT)

1.2.5.The human-machine interface

The LCD screen can display various of information with bright backlighting. It’s

very easy to operate IM300 by the human-machine interface.

1.2.6.Application field

Medium and low voltage distribution system, intelligent switch cabinet, load

control system, industrial automation, building automation and Energy management

system.

2. The installation, wiring and configuration

This chapter details the installation method, wiring and configuration of the

IM300. Please read carefully before installation.

2.1. Dimensions and installation

2.1.1. Dimensions of mechanical devices

Front view Side View

IM300 Intelligent Power Monitoring Instrument

Fig 2.1.1. Device size fig. (Unit: mm)

2.1.2. Installation

The IM300 should be mounted on the switch gear panel.

Panel opening dimensions shown in fig. 2-1-2-1:

Fig 2.1.2.1 Slots on the panel (unit: mm) Fig 2.1.2.2 Card is removed

Taking into account the length of wire, the rear panel must be 100mm depth for

accommodating IM300. Actual installation, it normally takes the rear there is

some space (at least 130 × 130 × 100mm), ease of installation and wiring.

Take off the installation card on both sides of the device., as shown in fig. 2.1.2.2,

with the thumb and forefinger of one hand the fixed head gently lift (lift force is

not too large, otherwise it may cause the fixed head fracture), the thumb of the

other hand in the direction of the arrow shown in FIG by pushing the catches can

be removed. When installing the device on the front panel push into the mounting

hole, then from the trench along the rear of the device will be installed on clip. As

shown in fig. 2.1.2.3, his hands were holding down the top and bottom sides of

the device, the top two in the thumb of the clip ends, even before the direction of

the arrow to push hard to make catches squeezing panel. After the installation of

two cards are installed, the device will be firmly fixed on the panel.

IM300 Intelligent Power Monitoring Instrument

Fig 2.1.2.3 Fixed on the panel by the mounting blocks

2.1.3. Safety Warnings

警告！只能由专业电工进行安装。

Warning! Installation by person with electrotechnicalexpertise only.

Warnung! Installation nur durch elektrotechnische Fachkraft.

Avvertenza! Fare installare solo da un elettricista qualificato.

Avertissement! Installation uniquement par des personnes qualifiées en

électrotechnique.

¡Advertencia! La instalacióndeberáserrealizadaúnicamentepor

electricistasespecializados.

www.abb.com/lowvoltage/directives

2.1.4. Installation Notes

Inside of the product is no user-adjustable components, do not open during

installation.

Installation with power on is not allowed..

Run should meet the ambient temperature -25 ℃~ + 70 ℃, humidity 0 to 95%,

atmospheric pressure 70kPa ~ 106kPa. Avoid placing the device into strong

source of interference, radiation, heat sources and dusty environment.

IM300 Intelligent Power Monitoring Instrument

2.2. Wiring and Configuration

2.2.1. Terminal Definition

IM300 back of a total of three sets of terminals, terminal diagram shown in fig.

2-2-1:

Fig 2.2.1. Terminals fig. (back view)

The definition of the terminals shown in table :

Power Supply

I41

I42

Relay Outputs

RO1

Voltage Inputs

RO1

RO2

Analog Outputs

Communication

SHIEL

AO+

RS+

AO-

RS-

Current Inputs

I11

I12

Digital Inputs

DI1

I21

DI2

I22

DI3

I31

DI4

I32

COM

IM300 Intelligent Power Monitoring Instrument

Note: ①IM300 device varies according to the specific models (see appendix C. Order

description). The corresponding terminals that do not have functions are empty (NC).

②In the 3-phase 4-wire system, the Un is connected to the voltage common end; In

3-phase 3-wire system, the Un is connected to B-phase voltage. DI means Digital

Input; RO means Relay Output;Transmitter output is self-powered, AO + is forward

current output , AO- is reverse current output.

2.2.2. Power supply wiring

Power supply range of IM300 is 85 ~ 265VAC or 85 ~ 265VDC, it

suggested a independent power supply wiring as shown in fig. 2-2-2.

1 2 3

2A fuse

Supply voltage

85～265VAC/DC

Earth

PE L N

Fig 2.2.2. Power wiring diagram

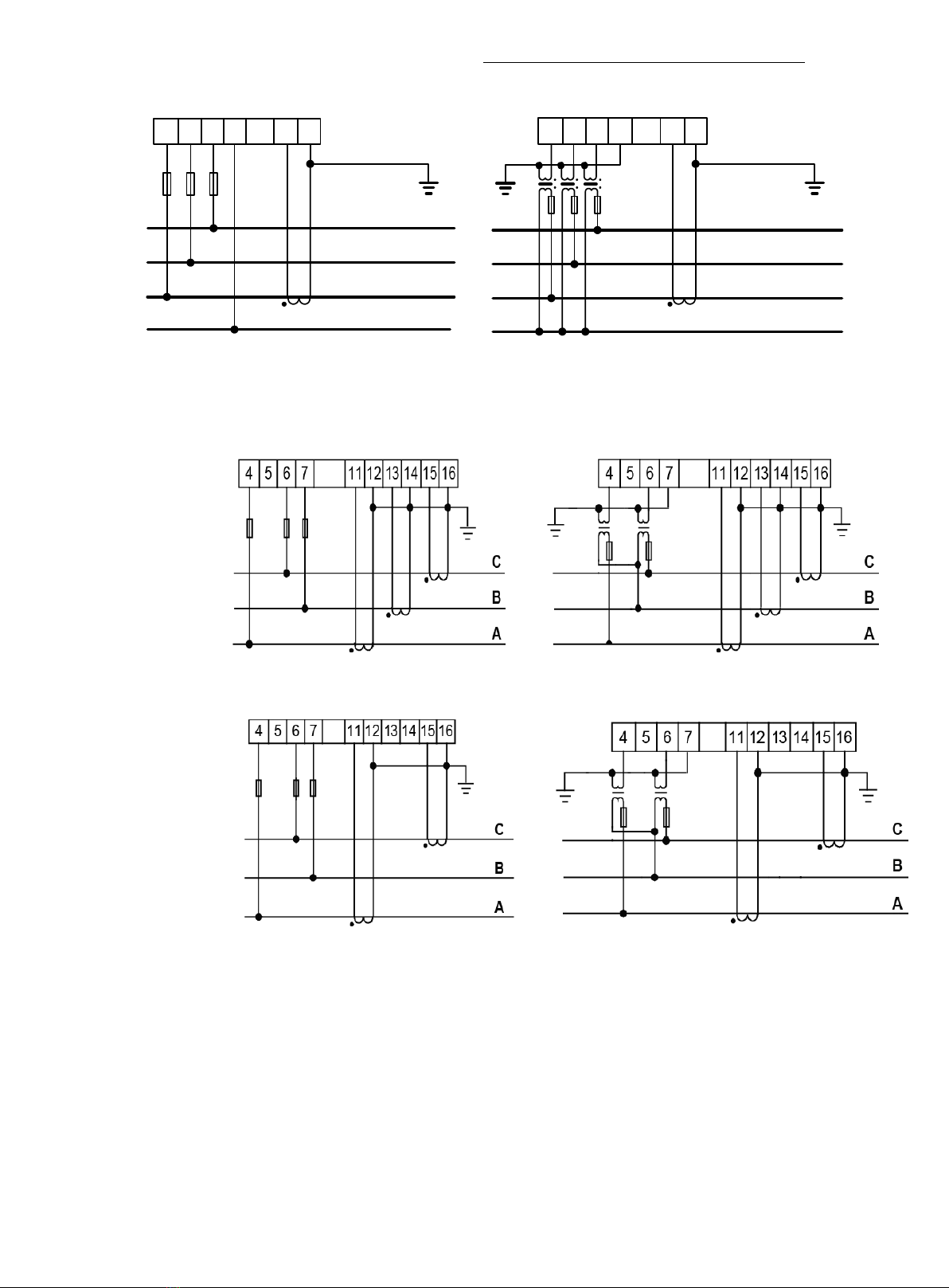

2.2.3. Electric wiring

3-phase 4-wire system: 3CT

Fig 2.2.3.1 3P4W+3CT

3-phase 4-wire system: 1CT

IM300 Intelligent Power Monitoring Instrument

4 5 76 11 12 4 5 6 7 11 12

Fig 2.2.3.2 3P4W+1CT

3-phase 3-wire system: 3CT

Fig2.2.3.3 3P3W+3CT

3-phase 3-wire system: 2CT

Fig 2.2.3.4 3P3W/3PT+2CT

3-phase 3-wire system: 1CT
