AAXA Technologies M5 Manuel utilisateur

aaxa

TECHNOLOGIES

User Guide

Caution!

WARNING: Please use this product as instructed. Misuse may cause

injury or death.

DO NOT use while driving

DO NOT expose to water or wet

surfaces. Electric shock may occur.

DO NOT expose the projected LED

image to your eyes or the eyes of

others

DO NOT block or restrict airow

from ventilation holes as this may

cause the projector to overheat

Keep the projector, battery, or

charger away from any heat sources

Caution for Battery Use

• Do not pierce or puncture the battery

with sharp objects

• Do not heat the product or expose it to

high temperature.

• Do not wet it or place it in any liquid

Caution for Headphone Use

• Prolonged use at high volume may

impair your hearing.

• High volume during walking or driving

may cause distractions and result in

injury or death

Table of Contents

Chapter 1: M5 at a Glance

M5 Introduction

Remote & Keypad

Accessories

Chapter 2: Getting Started

Powering On / Off

Focus Adjustment / Throw

Distance

External Input/Outputs

Connecting to a Computer VGA

Connecting to a Computer HDMI

Connecting to Composite Video

Connecting to HDMI Video

Connecting to Speaker or

Headphones

Connecting a Micro SD Card

Connecting a USB Stick

Chapter 3: Menu Screens

Main Menu

Video Player Menu

Photo Viewer Menu

Music Player Menu

Text Viewer Menu

Chapter 4: Setup Menu

Settings

Brightness Feature

Keystone

Chapter 5: Technical Details

Troubleshooting

Specications

Notes

M5 at a Glance

Chapter 1

Power Switch

Micro SD Card

HDMI

USB Port

Main Unit Front/Back

VGA Port

Power Button

Focus Adjustment

AV Port

Headphone Out

Power On/Off

DC Port

Infrared Receiver

(Remote Control)

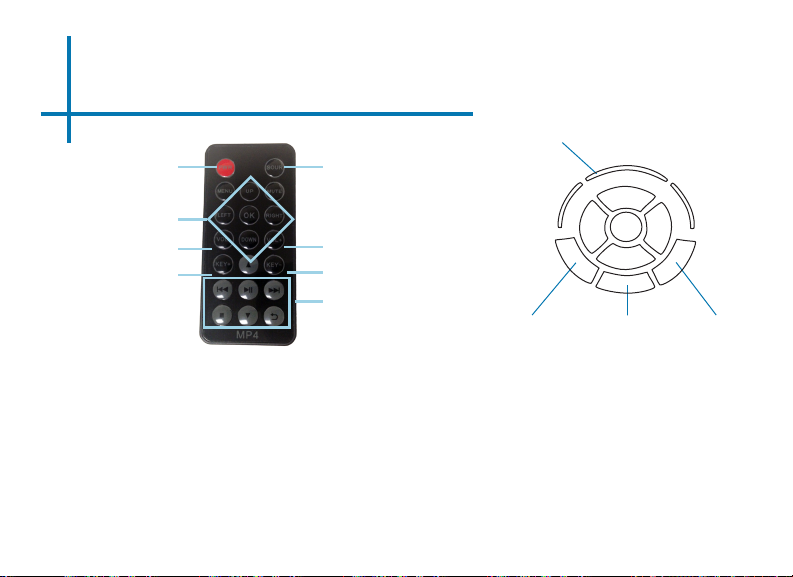

Remote & Keypad

NOTE: Pressing power on the remote will only put the projector in STANDBY mode.

Toggle the “ON/OFF” switch on the side of the projector to fully turn the projector

off.

Power On/Off Select Source

Input Exit/Back

Direction Pad

Both the keypad and remote can be used to navigate through the menus. The Main Menu

Navigation on the remote functions exactly the same as the directional pad on the M5 unit.

On / Off

LED Lights

Main Menu

Navigation

Keystone

Media Player

Menu Navigation

Keystone

Volume Up

Volume Down

Remote

Accessories

*Under various circumstances, the actual accessories may be different from

those shown in the pictures above.

Additional accessories are availbale for purchase at www.aaxatech.com

Tripod Remote

Power Adapter

A/V Cable

Carrying Case

Getting Started

1. Connect the power cord to the M5.

2. Connect the other end of the power cord into the wall power source.

3. Toggle the On / Off switch on the side of the projector to the “ON” position --the

projector should automatically turn on.

4. If the projector does not automatically turn on with the “Power Switch” toggled to the

“ON” position, press the “ON/OFF POWER” button on the keypad and hold for

2-3 seconds to start the projector.

Powering ON the projector

Chapter 2

Powering OFF the projector

Standby Mode

1. To transition to “STANDBY” mode, press the power button on the keypad or the

remote control.

2. The optical engine should power off and the fan should stop spinning. The projector

is now in “STANDBY” mode and can be turned on using the remote control.

*Note: Standby mode will still consume a small amount of power.

1. To turn off the projector, toggle the “Power Switch” to the “OFF” position. This will

fully turn off the projector.

Focus Adjusment / Throw Distance

DIAGONAL SCREEN SIZE

16:9 Aspect Ratio

Throw Distance

Units: Inches

Diagonal Size

Units: Inches

• Spin the focus wheel up or down until the image becomes

clear.

Focus Adjustment

Throw Distance Chart

Throw Ratio 1.20

Projection Angle: 100% Offset

*minimum throw distance: 10 inches

External Inputs and Outputs

Headphones/speakers

Composite Cable

HDMI

VGA

USB Stick

MicroSD

Connecting to a Computer via VGA

Connect one end of the VGA Cable

to your computer’s VGA Adapter.

Step 1:

Step 2:

Step 3:

In the Main Menu Select the “Inputs” icon and then the “VGA” Icon.

Connect the other end of the

VGA Cord to your M5’s VGA port.

Select “VGA” iconSelect “INPUT” icon
