Aaeon IMBA-Q77 Manuel utilisateur

Industrial Motherboard IMBA-Q77

IMBA-Q77

Intel® 3rd Generation CoreTM i3/i5/i7

Processor

DDR3 1066/1333 MHz DIMM

2 SATA 6.0Gb/s, 4 SATA 3.0Gb/s

1 PCI-Express[x16], 1 PCI-Express[x4]

2 PCI-Express[x1], 3 PCI

4 USB3.0, 8 USB2.0, 6 COM, 1 LPT

VGA, 1 DVI-D, 2 DisplayPort™

IMBA-Q77 Manual Rev.A 3rd Ed.

March 14, 2016

All manuals and user guides at all-guides.com

all-guides.com

Industrial Motherboard IMBA - Q77

This document is copyrighted, 2016. All rights are reserved. The

original manufacturer reserves the right to make improvements to the

products described in this manual at any time without notice.

No part of this manual may be reproduced, copied, translated, or

transmitted in any form or by any means without the prior written

permission of the original manufacturer. Information provided in this

manual is intended to be accurate and reliable. However, the original

manufacturer assumes no responsibility for its use, or for any in-

fringements upon the rights of third parties that may result from its

use.

The material in this document is for product information only and is

subject to change without notice. While reasonable efforts have been

made in the preparation of this document to assure its accuracy,

AAEON assumes no liabilities resulting from errors or omissions in

this document, or from the use of the information contained herein.

AAEON reserves the right to make changes in the product design

without notice to its users.

All manuals and user guides at all-guides.com

Industrial Motherboard IMBA - Q77

Acknowledgments

All other products’ name or trademarks are properties of their

respective owners.

Award is a trademark of Award Software International, Inc.

CompactFlash™ is a trademark of the Compact Flash

Association.

Intel®is a trademark of Intel®Corporation.

Microsoft Windows®is a registered trademark of Microsoft Corp.

ITE is a trademark of Integrated Technology Express, Inc.

IBM, PC/AT, PS/2, and VGA are trademarks of International

Business Machines Corporation.

SoundBlaster is a trademark of Creative Labs, Inc.

All other product names or trademarks are properties of their

respective owners.

All manuals and user guides at all-guides.com

Industrial Motherboard IMBA - Q77

Packing List

Before you begin installing your card, please make sure that the

following materials have been shipped:

•1 IMBA-Q77 ATX Main Board

•2 SATA Cable

•1 COM Port Cable

•1 USB2.0 Cable

•1 DVD-ROM for Manual (in PDF Format) and

Drivers

•1 IO Shield for IMBA-Q77 main board

If any of these items should be missing or damaged, please

contact your distributor or sales representative immediately.

iii

All manuals and user guides at all-guides.com

Industrial Motherboard IMBA - Q77

Contents

Chapter 1 General Information

1.1 Introduction................................................................ 1-2

1.2 Features .................................................................... 1-3

1.3 Specifications............................................................ 1-4

Chapter 2 Quick Installation Guide

2.1 Safety Precautions.................................................... 2-2

2.2 Location of Connectors and Jumpers ....................... 2-3

2.3 Mechanical Drawing..................................................2-5

2.4 List of Jumpers..........................................................2-7

2.5 List of Connectors .....................................................2-8

2.6 Setting Jumpers ...................................................... 2-10

2.7 Clear CMOS (JP1) .................................................. 2-11

2.8 Auto Power Button (JP3)......................................... 2-11

2.9 DVI-D / COM1 RS232/422/485 (CN2) .................... 2-11

2.10 Front Panel Connector (FP1)................................ 2-12

2.11 Front Panel Connector (FP2)................................ 2-12

2.12 RS-232 Serial Port Connector (COM2, 3, 4, 5, 6). 2-13

2.13 IR Pin Header (IR1)............................................... 2-13

2.14 Digital I/O (DIO1)................................................... 2-13

2.15 VGA Port PIN Header (CN5)................................. 2-14

2.16 USB2.0 Pin header (USB1~USB3)....................... 2-14

2.17 USB3.0 Port PIN Header (USB4).......................... 2-14

2.18 Parallel Port Pin Header (LPT1)............................ 2-15

All manuals and user guides at all-guides.com

Industrial Motherboard IMBA - Q77

Chapter 3 AMI BIOS Setup

3.1 System Test and Initialization. .................................. 3-2

3.2 AMI BIOS Setup........................................................3-3

Chapter 4 Driver Installation

4.1 Installation ................................................................. 4-3

Appendix A Programming The Watchdog Timer

A.1 Programming .........................................................A-2

A.2 W83627DHG Watchdog Timer Initial Program......A-6

Appendix B I/O Information

B.1 I/O Address Map....................................................B-2

B.2 1stMB Memory Address Map.................................B-4

B.3 IRQ Mapping Chart................................................B-5

B.4 DMA Channel Assignments .................................B-8

Appendix C Mating Connector

C.1 List of Mating Connectors and Cables.................. C-2

Appendix D RAID & AHCI Settings

D.1 Setting RAID......................................................... D-2

D.2 Setting AHCI....................................................... D-11

Appendix E Digital Input & Output

E.1 DIO Programming..................................................E-2

E.2 Digital I/O Register.................................................E-3

E.3 Digital I/O Sample Program...................................E-4

All manuals and user guides at all-guides.com

all-guides.com

Industrial Motherboard IMBA-Q77

Chapter 1 General Information 1- 1

General

Chapter

Information

All manuals and user guides at all-guides.com

Industrial Motherboard IMBA-Q77

Chapter 1 General Information 1- 2

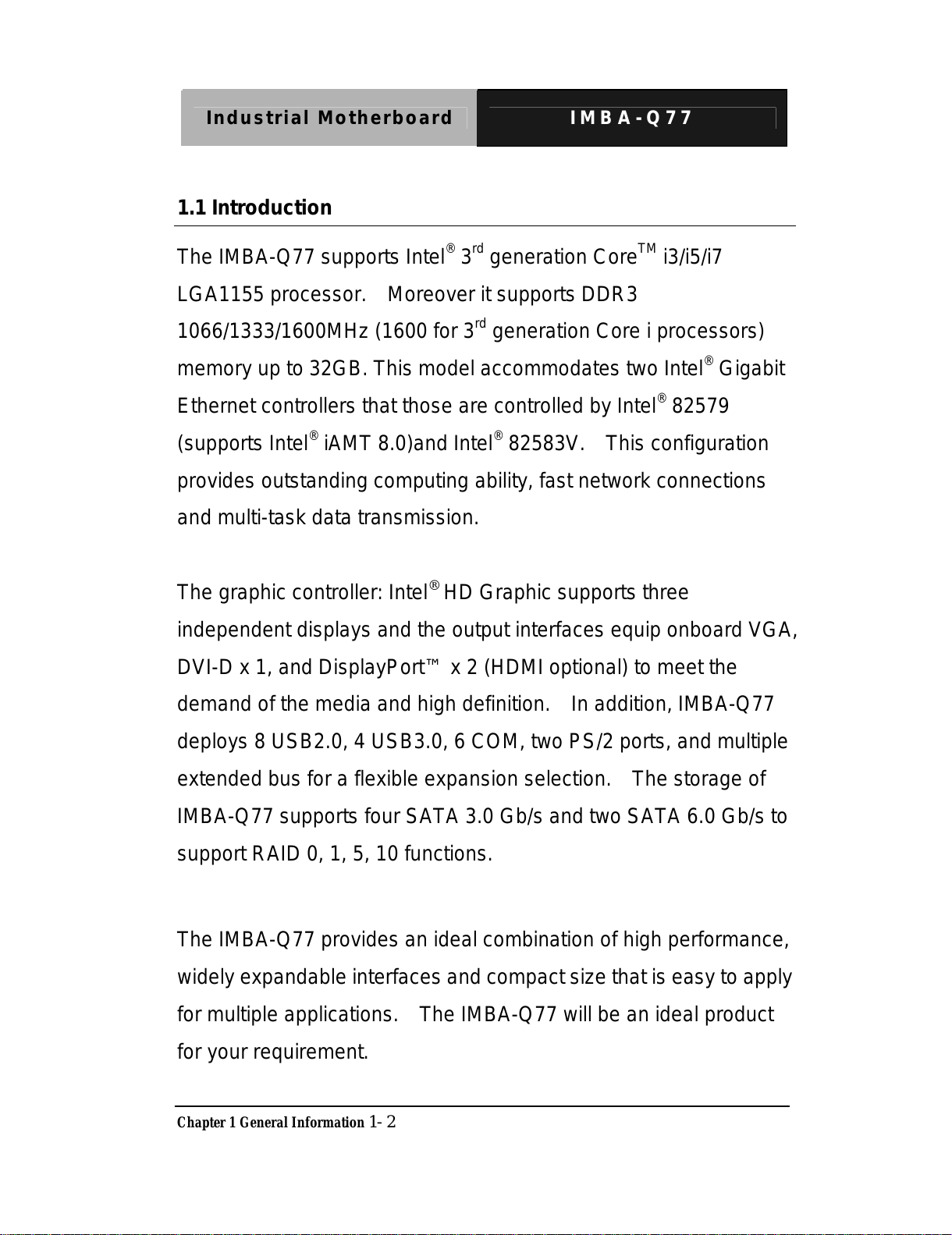

1.1 Introduction

The IMBA-Q77 supports Intel®3rd generation CoreTM i3/i5/i7

LGA1155 processor. Moreover it supports DDR3

1066/1333/1600MHz (1600 for 3rd generation Core i processors)

memory up to 32GB. This model accommodates two Intel®Gigabit

Ethernet controllers that those are controlled by Intel®82579

(supports Intel®iAMT 8.0)and Intel®82583V. This configuration

provides outstanding computing ability, fast network connections

and multi-task data transmission.

The graphic controller: Intel®HD Graphic supports three

independent displays and the output interfaces equip onboard VGA,

DVI-D x 1, and DisplayPort™ x 2 (HDMI optional) to meet the

demand of the media and high definition. In addition, IMBA-Q77

deploys 8 USB2.0, 4 USB3.0, 6 COM, two PS/2 ports, and multiple

extended bus for a flexible expansion selection. The storage of

IMBA-Q77 supports four SATA 3.0 Gb/s and two SATA 6.0 Gb/s to

support RAID 0, 1, 5, 10 functions.

The IMBA-Q77 provides an ideal combination of high performance,

widely expandable interfaces and compact size that is easy to apply

for multiple applications. The IMBA-Q77 will be an ideal product

for your requirement.

All manuals and user guides at all-guides.com

Industrial Motherboard IMBA-Q77

Chapter 1 General Information 1- 3

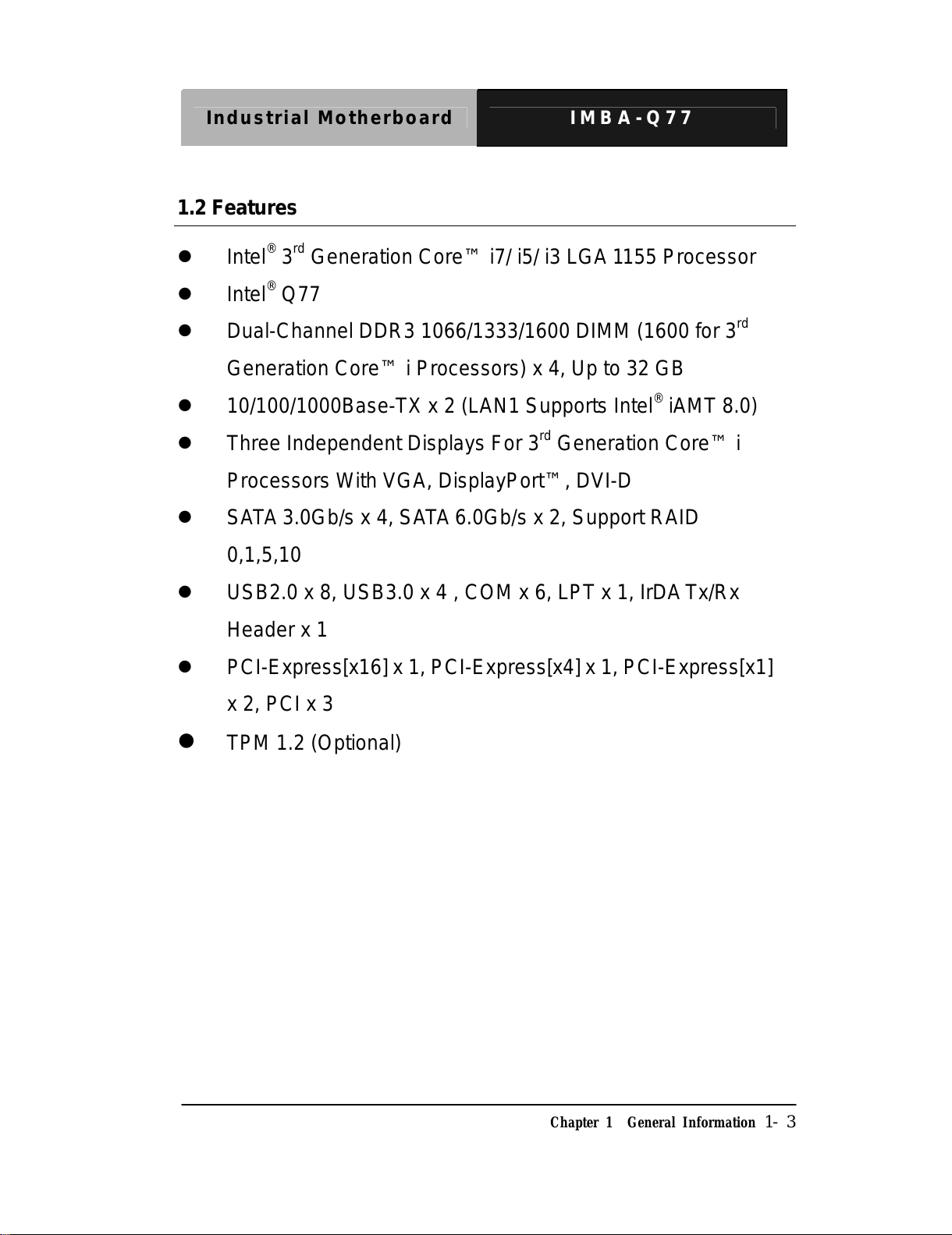

1.2 Features

Intel®3rd Generation Core™ i7/ i5/ i3 LGA 1155 Processor

Intel®Q77

Dual-Channel DDR3 1066/1333/1600 DIMM (1600 for 3rd

Generation Core™ i Processors) x 4, Up to 32 GB

10/100/1000Base-TX x 2 (LAN1 Supports Intel®iAMT 8.0)

Three Independent Displays For 3rd Generation Core™ i

Processors With VGA, DisplayPort™, DVI-D

SATA 3.0Gb/s x 4, SATA 6.0Gb/s x 2, Support RAID

0,1,5,10

USB2.0 x 8, USB3.0 x 4 , COM x 6, LPT x 1, IrDATx/Rx

Header x 1

PCI-Express[x16] x 1, PCI-Express[x4] x 1, PCI-Express[x1]

x 2, PCI x 3

TPM 1.2 (Optional)

All manuals and user guides at all-guides.com

Industrial Motherboard IMBA-Q77

Chapter 1 General Information 1- 4

1.3 Specifications

System

Form Factor ATX

Processor Intel®3rd generation Core™ i3/i5/i7

LGA 1155 Processor

System Memory Dual Channel DDR3

1066/1333/1600MHz DIMM (1600

for 3rd Generation Core™ i

Processors) x 4, up to 32 GB,

Unbuffered memory

Chipset Intel®Q77

Ethernet Gigabit Ethernet, RJ-45 x 2

LAN1: Intel®82579 (supports

Intel® iAMT 8.0);

LAN2: Intel®82583V

BIOS AMI SPI Flash ROM-128Mb ROM

Watchdog Timer System reset: 1~255 steps by

software programming

H/W Status Monitoring System temperature, voltage and

cooling fan status

Battery Lithium battery

Expansion Interface PCI-Express[x16] x 1,

PCI-Express[x4 x 1,

PCI-Express[x1] x 2, PCI x 3, TPM

All manuals and user guides at all-guides.com
