Quick Installation Guide

H S G3 2 0 0 Giga Wireless Hotspot Gateway E N GL I S H

C o p y r i g h t © 4IPNET, INC. A l l r i g h t s r e s e r v e d . 

Preface

4ipnet HSG3200 Giga Wireless Hotspot Gateway in

19” rack-mountable is designed to provide an

easy-to-use, all-in-one solution for hotspot service

providers. Asingle HSG3200 enables a hotspot

provider to service multiple hot-spot franchises in a

mall area through the feature of

multiple-Service-Zone. Each service zone can have

its own login skin and an independent SSID.

HSG3200 is also ideal for hospitality application.

For example, a hotel can use the service zone

feature to separate the privileges of staff, guest, and

VIP usage for accessing Internet.

This Quick Installation Guide provides instructions

and reference materials for getting started with

4ipnet HSG3200. This guide will also show how to

connect HSG3200 to other network devices.

Package Contents

1. 4ipnet HSG3200 x 1

2. Quick Installation Guide x 1

3. CD-ROM (with User Manual and QIG) x 1

4. Power Cord x 1

5. Straight-through Ethernet Cable x 1

6. Cross-over Ethernet RJ-45 Cable x 1

7. RS-232 DB9 to RJ45 Console Cable x 1

8. Rack Mounting Bracket (with Screws) x 1

It is recommended to keep the original

packing material for possible future shipment

when repair or maintenance is required. Any

returned product should be packed in its

original packaging to prevent damage during

delivery.

4Gon www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

Quick Installation Guide

H S G3 2 0 0 Giga Wireless Hotspot Gateway E N GL I S H

C o p y r i g h t © 4IPNET, INC. A l l r i g h t s r e s e r v e d . 

System Overview

Front Panel

1. LED Indicators: There are three kinds of LED, Power, Status and Hard-disk, to indicate different status

of the system.

2. Mgmt: For management use only, it always will open WMI (Web Management Interface) homepage. If

connect to this port with PC directly, please use crossover Ethernet cable.

3. WAN1/ WAN2: Two WAN ports (10/100/1000 Base-T RJ-45) are connected to the external network, such

as the ADSL Router from your ISP (Internet Service Provider).

4. LAN1/ LAN2: Client machines connect to HSG3200 via LAN ports (10/100/1000 Base-T RJ-45).

5. Reset:

Press and hold the Reset button for about 5 seconds and status of LED on front panel will start to

blink before restarting the system.

Press and hold the Reset button for more than 10 seconds and status of LED on the front panel will

start to speed up blinking before resetting the system to default configuration.

6. Console: The system can be configured via a serial console port. The administrator can use a terminal

emulation program such as Microsoft’s Hyper Terminal to login to the configuration console interface to

change admin password or monitor system status, etc.

Rear Panel

1. Power Supply Socket: Connecting the power cord to the built-in open-frame power supply (Input:

100~240 VAC, 50/60 Hz ).

2. Power Switch: Power-On (|) & Power-Off ( O ).

3. Device Cooling Fan: Don’t block the cooling fans. Leave enough open space for ventilation.

4Gon www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

Quick Installation Guide

H S G3 2 0 0 Giga Wireless Hotspot Gateway E N GL I S H

C o p y r i g h t © 4IPNET, INC. A l l r i g h t s r e s e r v e d . 

H a rdwa re I n sta l l a tio n

1. Connect the power cord to the power socket on the rear panel.

2. Turn on the power switch on the rear panel. The Power LED should be on to indicate a proper connection.

3. Connect an Ethernet cable to the WAN1 Port on the front panel. Connect the other end of the Ethernet

cable to an xDSL/cable modem, or a switch/hub of an internal network. The LED of this port should be on

to indicate a proper connection.

4. Connect a crossover Ethernet cable to the Mgmt Port on the front panel. Connect the other end of the

Ethernet cable to an administrator PC for configuring the HSG3200 system, an AP for extending wireless

coverage, a switch for connecting more wired clients, or a client PC. The LED of Mgmt port should be on to

indicate a proper connection.

4Gon www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

Quick Installation Guide

H S G3 2 0 0 Giga Wireless Hotspot Gateway E N GL I S H

C o p y r i g h t © 4IPNET, INC. A l l r i g h t s r e s e r v e d . 

G ettin g Sta rted

4ipnet HSG3200 supports web-based configuration.

Upon the completion of hardware installation,

HSG3200 can be configured through a PC by using

its web browser with JavaScript enabled such as

Internet Explorer version 6.0.

Steps:

1. Set DHCP in TCP/IP of the administrator PC

to get an IP address dynamically. Connect the

PC to any Mgmt Port of HSG3200. An IP

address will be assigned to the PC

automatically via the HSG3200 built-in DHCP

server.

2. Launch a web browser to access the web

management interface of HSG3200 by

entering “https://192.168.255.254” or

http://192.168.255.254” in the address field.

Note:

“https” is used for a secured connection.

3. The following Administrator Login Page will

then appear. Enter “admin” (the default value)

in the Username and Password fields, and

then click Login to log in.

4. The Home Page will appear after a

successful login.

Note:

To logout, simply click the Logout

button at the upper right hand corner

of the interface to return to the

Administrator Login Page.

4Gon www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

Quick Installation Guide

H S G3 2 0 0 Giga Wireless Hotspot Gateway E N GL I S H

C o p y r i g h t © 4IPNET, INC. A l l r i g h t s r e s e r v e d . 

C o mmo n Settin g s

< Setup Wizard >

HSG3200 provides a Setup Wizard for quick

configuration. To quickly configure HSG3200 by

using the Setup Wizard, click on the Setup

Wizard button to start the configuration process.

Step 1: General

•Enter a new password in the New Password

field, and re-enter it again in the Verify

Password field (a maximum of 20 characters

and no spaces allowed in between).

•Select an appropriate time zone from the Time

Zone drop-down list box to set up the system

time.

•Click Next to continue.

For security concern, it is strongly

recommended to change the

administrator's password

Step 2: WAN1 Interface

For setting up both wired WAN and wireless LAN

functions:

•Select a proper type of Internet connection for

WAN1 interface from the following three

available connections: Static, Dynamic, or

PPPoE. Your ISP or network administrator can

advise on the connection type available to you.

Below depicts an example for Dynamic.

•Click Next to continue.

Step 3: Local User Account (Optional)

New local accounts can be created and added into

the database via this optional function. If local user

accounts are not required, click Skip to go directly

to Step 4. However, It is recommended to create at

least one local user account in order to verify the

system‘s readiness upon completion of this Setup

Wizard.

•Enter the Username (e.g. “testuser) and

Password (e.g. “testuser”) to create a new

local account.

•Click Next to continue.

•More local accounts can be added by clicking

the Back button in Step 4.

4Gon www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

Quick Installation Guide

H S G3 2 0 0 Giga Wireless Hotspot Gateway E N GL I S H

C o p y r i g h t © 4IPNET, INC. A l l r i g h t s r e s e r v e d . 

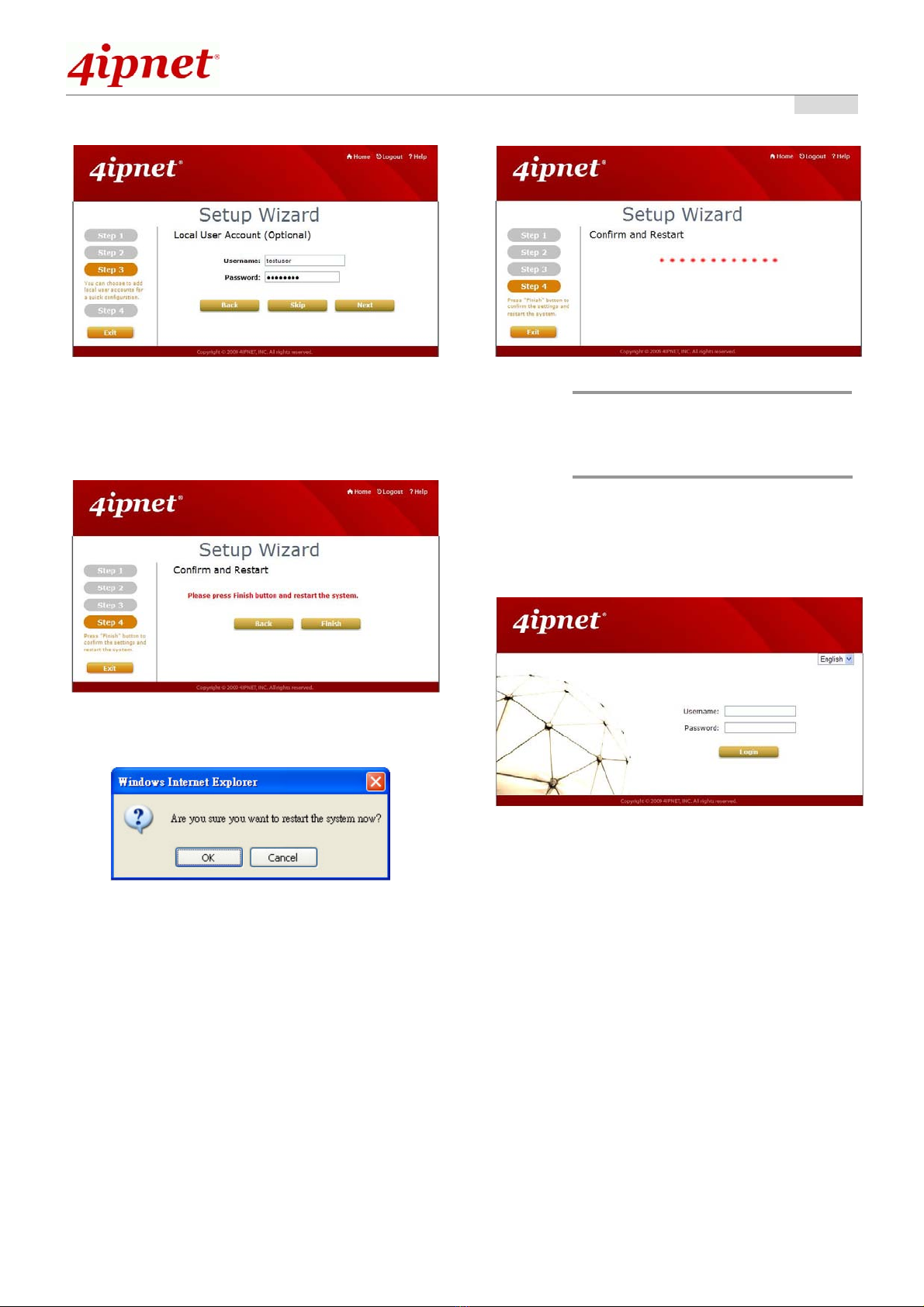

Step 4: Confirm and Restart

•Click Finish to save current settings and restart

the system.

•A confirmation dialog box will then appear.

Click OK to continue.

•A Confirm and Restart message will appear

on the screen during the restarting process.

Please do not interrupt the system until the

Administrator Login Page appears.

Note:

The system is trying to locate a DNS

server at this stage. Therefore, a

longer startup time is required if the

configured DNS cannot be found.

•When the following Administrator Login Page

appears, it means the restart process is now

completed.

4Gon www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

Quick Installation Guide

H S G3 2 0 0 Giga Wireless Hotspot Gateway E N GL I S H

C o p y r i g h t © 4IPNET, INC. A l l r i g h t s r e s e r v e d . 

< User Login >

To verify whether the configuration of the new local

user account(s) created via the Setup Wizard has

been completed successfully:

1. Connect a client device (e.g. laptop, PC) to any

LAN Port of HSG3200. The device will obtain

an IP address automatically via DHCP.

2. Open a web browser on a client device, access

any URL, and then the default User Login

Page will appear.

3. Enter the Username and Password of a local

user account previously generated via Setup

Wizard (e.g. “testuser@local” as the

Username and “testuser” as the Password);

then Click Login.

Note:

1. HSG3200 supports multiple authentication

options including built-in local user database

and external authentication database (e.g.

RADIUS). The system will automatically

identify which authentication option is used

from the full username entered.

2. The format of a full (valid) username is

userid@postfix, where “userid” is the user

ID and “postfix” is the name of the selected

authentication option.

3. Exception: The postfix can be omitted only

when the default authentication option is

used. For example, “LOCAL” is the default

authentication option at this system;

therefore, you may enter either “testuser”or

“testuser@local” in the Username field.

Congratulation!

The Login Success Page will appear after a client

has successfully logged into HSG3200 and has

been authenticated by the system.

The appearance of Login Success Page means

that HSG3200 has been installed and configured

properly.

4Gon www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

Quick Installation Guide

H S G3 2 0 0 Giga Wireless Hotspot Gateway E N GL I S H

Servic e Z o n e – D ep l o ymen t E x a mp l e

< Small and Mid-size Business Network Environment >

In a Small and Mid-size Business (SMB) network environment, devices such as switches, hubs, and access points

are commonly used, and Internet connection is usually via anADSL or a cable modem. HSG3200 uses virtual LAN

(VLAN) technology to partition one physical network under its control into nine logical virtual networks, called

Service Zones, including one untagged zone and eight tagged zones. The untagged zone is also referred as the

Default Service Zone in this system, which is always enabled. On the other hand, the other four tagged zones can

be enabled or disabled respectively. By default, port-based configuration is used and all of the four physical LAN

ports are set to use the Default Service Zone.

The figure below demonstrates an example of the SMB network deployed with HSG3200.

Example: Managed network deployment

4Gon www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

Table des matières

Autres manuels 4IPNET Porte

4IPNET

4IPNET HSG326 Manuel utilisateur

4IPNET

4IPNET HSG327 Manuel utilisateur

4IPNET

4IPNET HSG100 Manuel utilisateur

4IPNET

4IPNET HSG1250 Manuel utilisateur

4IPNET

4IPNET WHG201 Manuel utilisateur

4IPNET

4IPNET HSG200 Manuel utilisateur

4IPNET

4IPNET HSG326 Manuel utilisateur

4IPNET

4IPNET HSG320 Manuel utilisateur

4IPNET

4IPNET WHG315 Manuel utilisateur

4IPNET

4IPNET HSG1250 Manuel de l'opérateur

Manuels Porte populaires d'autres marques

LST

LST M500RFE-AS Manuel utilisateur

Kinnex

Kinnex Media Gateway Manuel utilisateur

2N Telekomunikace

2N Telekomunikace 2N StarGate Manuel utilisateur

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries Superlink SC-WBGW256 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications ZYWALL2 ET 2WE Manuel utilisateur

Telsey

Telsey CPVA 500 - SIP Manuel utilisateur

RTA

RTA 460A-NNA4 Fiche technique

Shaw

Shaw Gateway HDPVR Manuel utilisateur

ABB

ABB VSN900 Guide de démarrage rapide

Commander

Commander Pulse Manuel utilisateur

2N Telekomunikace

2N Telekomunikace ATEUS EasyGate 501309E Manuel utilisateur

NETGEAR

NETGEAR C6300BD Manuel utilisateur

Amit

Amit CDW531AM Manuel utilisateur

HMS

HMS Netbiter EasyConnect EC150 Manuel utilisateur

Huawei

Huawei EchoLife HG620 Manuel utilisateur

AT&T

AT&T U-verse 3801 Manuel d'utilisation et d'entretien

Logic IO

Logic IO RTCU MX2 turbo Manuel utilisateur

Suttle

Suttle MediaMAX MXM-521 Manuel utilisateur
