IES215-1GX-4G

Unmanaged Industrial Ethernet

Switch

Quick Installation Guide

3onedata Co., Ltd.

Address: 3/B, Zone 1, Baiwangxin High Technology

Industrial Park, Xili, Nanshan District,

Shenzhen

Website: www.3onedata.com

Te l : +86 0755-26702688

Fax: +86 0755-26703485

【

Package Checklist

】

Please check the integrity of package and accessories while

first using the switch.

Industrial Ethernet switch

Lugs

RJ45 network cable

Warranty card

Certification

If any of these items are damaged or lost, please contact our

company or dealers, we will solve it ASAP.

【

Product Overview

】

This product is 10Gigabit unmanaged wall-mounting industrial

Ethernet switch. Models as follows: IES215-1GX-4G (1

10Gigabit copper port + 4 Gigabit copper ports)

【

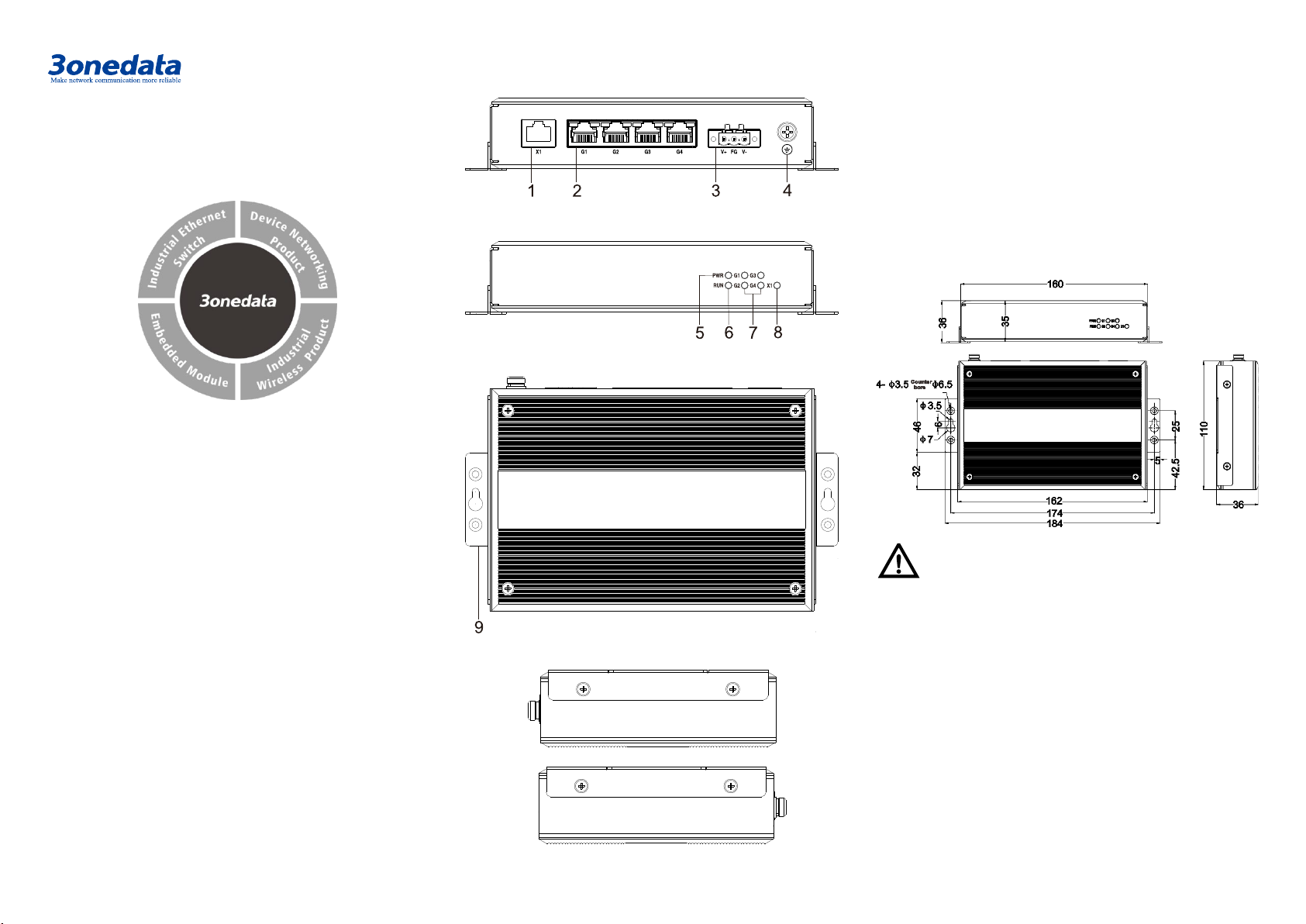

Panel Design

】

Front View

Rear View

Top view

Left view, right view

1. 10Gigabit copper port

2. Gigabit copper port

3. Terminal block for power input

4. Grounding screw

5. Power indicator

6. Running indicator

7. Gigabit Ethernet indicator (G1-G4)

8. 10Gigabit Ethernet indicator (X1)

9. Lugs

【

Mounting Dimension

】

Unit: mm

Notice Before Mounting:

Don't place or install the device in area near water or

moist, keep the relative humidity of the device

surrounding between 5%~95% without condensation.

Before power on, first confirm the supported power

supply specification to avoid over-voltage damaging the

device.

The device surface temperature is high after running;

please don't directly contact to avoid scalding.

【

Wall-mounted Device Mounting

】

Step 1 Adopt M3 screw to install the left/right lugs on the

left/right side of the device backboard.

Step 2 On the wall of device mounting, place the device on

the wall for reference or refer to the mounting

dimension to mark two screw positions.

Step 3 Nail M3 screws on the wall and keep 2mm

interspace reserved.

Step 4 Hang the device on two screws and slide

downward, then tighten the screw to enhance

stability, mounting ends.

【

Wall-mounted Device Disassembling

】

Step 1 Power off the device.

Step 2 Unscrew the screw on the wall about 2mm.

Step 3 Lift the device upward slightly; take out the device,

disassembling ends.

Notice before power on:

Power ON operation: First insert the power supply

terminal block into the device power supply interface,

then plug the power supply plug contact and power on.

Power OFF operation: First, remove the power plug,

then remove the wiring section of terminal block. Please

pay attention to the above operation sequence.

【

Power Supply Connection

】

The device provides 3-pin power supply input terminal blocks

and supports 1 DC power supply input which

supports anti-reverse connection and

overload protection. Voltage range: 24VDC

(12~36VDC)

【

Checking LED Indicator

】

The device provides LED indicators to monitor its operating

status, which has simplified the overall troubleshooting

process. The function of each LED is described in the table

below:

LED

Indicate

Description

PWR

PWR is connected and

running normally

OFF PWR is disconnected or

running abnormally

RUN

Blinking

The system is running

normally

OFF The system is not running or

running abnormally

System is running abnormally

Link/Act

(X1, G1-G4)

ON Ethernet port has established

a valid network connection

Blinking Ethernet port is in an active

network status

OFF

Ethernet port has not

established valid network

connection

【

Specification

】

Panel

10Gigabit copper port 100/1000/10000BASE-T

(10Gigabit port)

(10Gigabit/Gigabit/100M

self-adaption)

Gigabit copper port 10/100/1000Base-T(X)

self-adapting RJ45 port, half/full

duplex self-

adaption or forced

working mode, support MDI/

MDI-X self-adaption

Indicator

Power indicator, running

indicator, interface indicator

Switch Property

Backplane bandwidth

28G

Packet buffer size

2Mbit

MAC Address Table

16K

Power Supply

Power range

24VDC

（

12~36VDC

）

Access terminal block 3-

pin 5.08mm pitch terminal

block

Power Consumption

No-load

3.6W@24VDC

Full-load

7.7W@24VDC

Working Environment

Working temperature

-40~75

℃

Storage temperature

-40~85

℃

Working humidity

～

95% (no condensation)

Protection grade

IP30(metal shell)
