S40/X40

Multimedia Projector

Operator's Guide

Downloaded from Projector.com

CONTENTS

Thank you for purchasing this projector.

• The information in this manual is subject to change without notice.

• The manufacturer assumes no responsibility for any errors that may appear in this manual

• The reproduction, transmission or use of this document or contents is not permitted without express

written authority.

TRADEMARK ACKNOWLEDGEMENT :

• PS/2, VGA and XGA are registered trademarks of the International Business Machines Corporation.

• Apple, Mac and ADB are registered trademarks of Apple Computer, Inc.

• VESA and SVGA are trademarks of the Video Electronics Standard Association.

• Windows is a registered trademark of Microsoft Corporation.

• All other trademarks are the property of their respective owners.

NOTE

CAUTION • Please read the accompanying manual “Product Safety Guide"

and this “Operator's Guide” thoroughly to ensure correct usage through

understanding. After reading, store this instruction manual in a safe place for

future reference.

01CP-S225/X75/Vol1/E/最終02.10.1710:24AMページ1

USING THE MAGNIFY FEATURE ... 21

ACCESSORIES .............................. 38

Page

PROJECTOR FEATURES............... 2

PREPARATIONS ............................. 2

PART NAMES.................................. 4

SETTING UP THE PROJECTOR .... 6

CONNECTING YOUR DEVICES..... 8

USING

THE REMOTE CONTROL ........... 12

TURNING ON THE POWER .......... 14

TURNING OFF THE POWER ........ 16

ADJUSTING THE VOLUME........... 17

TEMPORARILY

SOUND THE SOUND ...................17

ADJUSTING THE POSITION ........ 18

USING THE AUTOMATIC

ADJUSTMENT FEATURE ...........19

CORRECTING

KEYSTONE DISTORTIONS......... 20

Page

FREEZING THE SCREEN ............. 21

SIGNAL SEARCHING ................... 22

SELECTING

THE ASPECT RATIO ..................... 22

TEMPORARILY

BLANKING THE SCREEN .......... 22

USING THE MENU FUCTIONS ..... 23

MULTIFUNCTIONAL

SETTINGS .................................... 24

THE LAMP ..................................... 29

THE AIR FILTER ............................ 31

OTHER CARE ................................ 33

WHAT TO DO

WHEN YOU THINK A MACHINE

DEFECT HAS OCCURRED ......... 34

SPECIFICATIONS .......................... 37

S40/X40 Multimedia Projector

Operator's Guide

Downloaded from Projector.com

●

Ultra High Brightness

Crisp, ultra-bright presentations is achieved

by using a UHB (ultra high brightness) lamp

and a highly efficient optical system

●

Partial Magnification Function

Interesting parts of images can be magnified

for closer viewing

●

Keystone Distortion Correction

Quick correction of distorted images electrically

●

Whisper Mode Equipped

Special mode is available for reducing

projector noise to achieve quieter operation

PREPARATIONS Your projector should come with the items

shown below. Check to make sure that all the

items are included. Contact your dealer if

anything is missing.

Projector

Soft case

Power cord

(US Type)

Power cord

(UK Type)

Power cord

(Europe Type)

(with white lead) (with green lead)

Remote control

Two AA batteries

(for the

remote control)

PROJECTOR

FEATURES

This liquid crystal projector is used to project

various computer signals as well as NTSC / PAL /

SECAM video signals onto a screen. Little space

is required for installation and large images can

easily be realized.

•Keep the original packing material for future reshipment.

NOTE

CP-S317/327W/最終02.9.95:37PMページ2

Product Safety Guide

Warranty

Quick Start Guide

Operator's Guide

RGB cable Video/Audio

cable

Component Video

cable

Stereo Mini-Cable

VIDEO

ASPECT

MUTE

KEYSTONEFREEZE

OFF

MENUPOSITION

ENTER

ESC RESET

VOLUME

MAGNIFY

AUTO BLANK

RGB SEARCH

STANDBY/ON

S40/X40

Multimedia Projector

Operator's Guide

S40/X40Projecteur multimedia - Guide de L' opérateur

S40/X40Multimedia-Projektor - Benutzerhandbuch

S40/X40Proyector de Multimedia - Guía del usuario

S40/X40 Proiettore Multimediale - Guida dell' operatore

S40/X40 Multimedia Projector - Gebruiksaanwijzing

S40/X40 Projector dos Multimedia - Guia da operador

S40/X40 Multimedia Projektør- Brukerhåndbok

Downloaded from Projector.com

1Connect your devices to the projector

Connect your computer, VCR and/or other

devices you will be using to the projector.

Insert the batteries into the control

3Connect the power cord

(1)

Connect the connector of the electrical power cord to the AC inlet of the main unit.

(2) Firmly plug the power cord's plug into the outlet

WARNING Precautions to observe in regards to the power cord: Please use extra

caution when connecting the projector's power cord as incorrect or faulty

connections may result in FIRE AND/OR ELECTRICAL SHOCK. Please adhere to the

following safety guidelines to insure safe operation of the projector:

•

Only plug the power cord into outlets rated for use with the power cord's specified voltage range.

• Only use the power cord that came with the projector.

• NEVER ATTEMPT TO DEFEAT THE GROUND CONNECTION OF THE THREE-

PRONGED PLUG!

• Make sure that you firmly connect the power cord to the projector and wall outlet.

〜

811

01CP-S225/X75/Vol1/E/最終02.10.1710:24AMページ3

(1)

(2)

Power outlet

Power cord

AC inlet

Downloaded from Projector.com

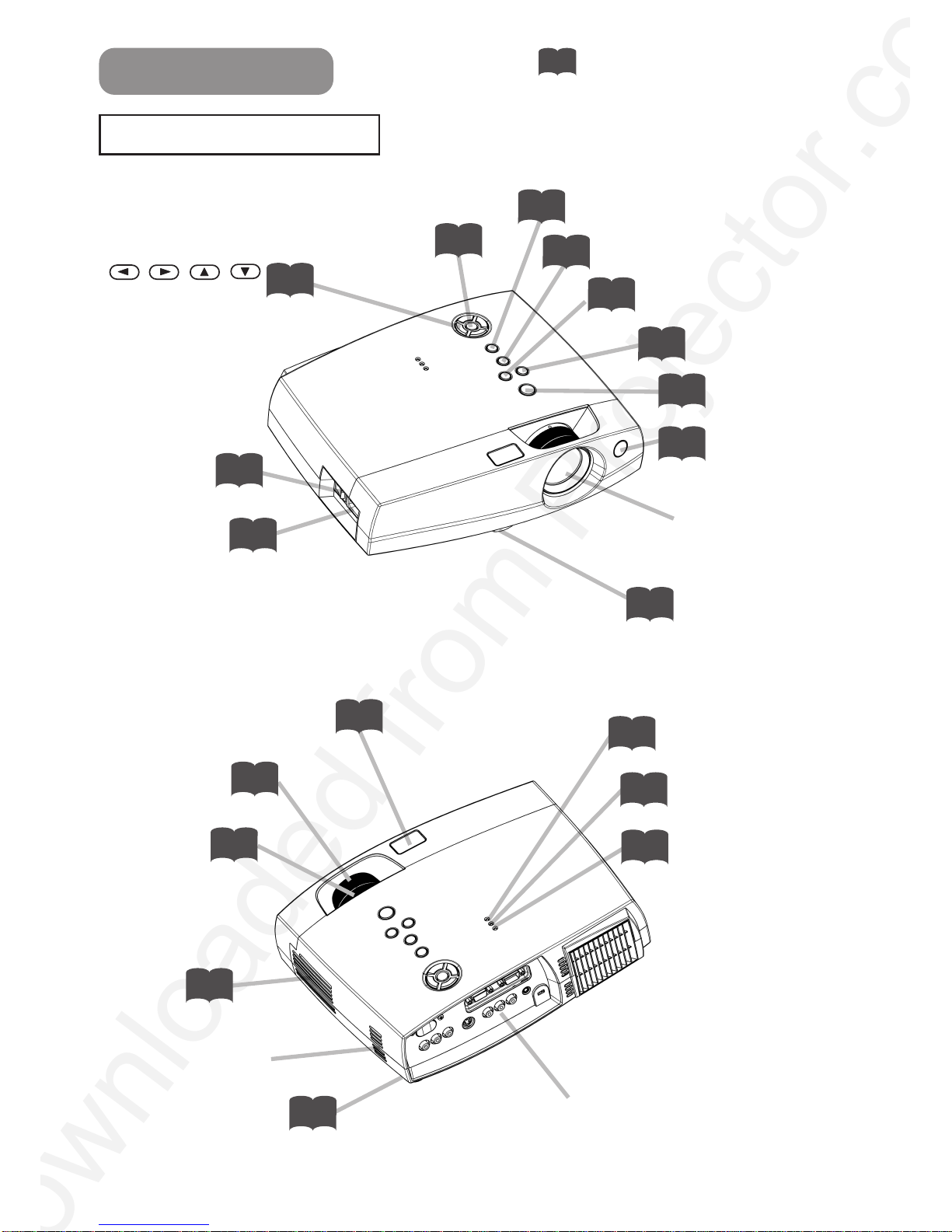

PART NAMES

THE PROJECTOR

Indicates the corresponding

reference page

AC power inlet

Power switch

Focus ring 15

Zoom ring 15

Remote sensor

Lens

Elevator foot

Air filter 31

Speaker

Rear adjuster foot 6

lamp indicator

temp indicator

power indicator

menu button

Terminal Panel

on/off button

video button

rgb button

reset button

keystone button

,,,

cursor buttons 23

Elevator button 6

Downloaded from Projector.com

THE REMOTE CONTROL

THE TERMINAL PANEL

STANDBY/ON button

VIDEO button 15

MENU button

RGB button 15

BLANK button

SEARCH button

VOLUME button

MUTE button

KEYSTONE button

ASPECT button 22

AUTO button

MAGNIFY buttons 21

FREEZE button 21

POSITION button 18

ESC button 23

,,,

Cursor buttons 23

RESET button

ENTER button

VIDEO

ASPECT

MUTE

KEYSTONEFREEZE

OFF

MENUPOSITION

ENTER

ESC RESET

VOLUME

MAGNIFY

AUTO BLANK

RGB SEARCH

STANDBY/ON

audio L port

audio R port

rgb port

control port

audio port

video port 11

s-video port 11

Remote sensor 13

component video CR/PR port

component video Y port 11

component video CB/PBport

Downloaded from Projector.com

CAUTION •

Install the projector in a suitable environment according to instructions

of the “Product Safety Guide” and this manual "Operator's Guide".

• If you press the elevator button without holding the projector, the projector might

crash down, overturn, smash your fingers and possibly result in malfunction. To

prevent damaging the projector and injuring yourself, ALWAYS HOLD THE

PROJECTOR whenever using the elevator button to adjust the elevator foot.

SETTING UP THE PROJECTOR

01CP-S225/X75/Vol1/E/最終02.10.1710:24AMページ6

Adjusting the Projector's Elevator Foot

Rear Foot Adjuster

Press and hold in the elevator

button

2Raise or lower the projector to the

desired height and then release the

elevator button

When you release the elevator button, the elevator

foot will lock into position.

3As necessary, you can also finely

adjust the left-right slope of the

projector by twisting the rear foot

You can use the elevator foot to make adjustments if the surface on which you

need to set the projector is uneven or if you otherwise need to adjust the angle of

projection. The adjustment range of the elevator foot is 0 to 9 degrees.

adjuster screw by hand

Downloaded from Projector.com

Refer to the illustrations and tables below to determine the screen size and

projection distance.

Adjusting the Screen Size and Projection Distance

Top view

Lens center

The screen

Side view

Top view

Lens center

The screen

Side view

If 4:3 aspect ratio

If 16:9 aspect ratio

The values shown in the table are calculated for a full size screen

(S40: 800x600 pixels/X40: 1024x768 pixels).

a:Distance from the projector to the screen (±10%)

b:Distance from the lens center to the bottom of the screen (±10%)

c:Distance from the lens center to the top of the screen (±10%)

Screen Size [inch (m)] a [inch (m)] b

[inch (cm)]

Min. Max.

30 (0.8) 35 (0.9) 42 (1.1) 1 (2) 17 (44)

40 (1.0) 47 (1.2) 56 (1.4) 1 (3) 23 (58)

50 (1.3) 59 (1.5) 71 (1.8) 1 (4) 29 (73)

60 (1.5) 71 (1.8) 85 (2.2) 2 (4) 34 (87)

70 (1.8) 83 (2.1)

100 (2.5)

2 (5) 40 (102)

80 (2.0) 95 (2.4)

114 (2.9)

2 (6) 46 (116)

90 (2.3)

107 (2.7) 129 (3.3)

3 (7) 51 (131)

100 (2.5)

119 (3.0) 143 (3.6)

3 (7) 57 (145)

120 (3.0)

143 (3.6) 172 (4.4)

3 (9) 69 (174)

150 (3.8)

180 (4.6) 216 (5.5)

4 (11) 86 (218)

200 (5.0)

240 (6.1) 288 (7.3)

6 (15)

114 (290)

250 (6.3)

300 (7.6) 361 (9.2)

7 (18)

143 (363)

300 (7.5)

360 (9.2)

433 (11.0)

9 (22)

171 (435)

Screen Size [inch (m)] a [inch (m)] b

[inch (cm)]

Min. Max.

30 (0.8) 38 (1.0) 46 (1.2) 2 (4) 16 (41)

40 (1.0) 51 (1.3) 61 (1.6) 2 (5) 22 (55)

50 (1.3) 64 (1.6) 77 (2.0) 3 (6) 27 (69)

60 (1.5) 77 (2.0) 93 (2.4) 3 (8) 32 (82)

70 (1.8) 90 (2.3)

109 (2.8)

4 (9) 38 (96)

80 (2.0)

104 (2.6) 125 (3.2)

4 (10) 43 (110)

90 (2.3)

117 (3.0) 140 (3.6)

5 (12) 49 (124)

100 (2.5)

130 (3.3) 156 (4.0)

5 (13) 54 (137)

120 (3.0)

156 (4.0) 188 (4.8)

6 (15) 65 (165)

150 (3.8)

196 (5.0) 235 (6.0)

8 (19) 81 (206)

200 (5.0)

261 (6.6) 314 (8.0)

10 (26)

108 (275)

250 (6.3)

327 (8.3)

393 (10.0)

13 (32)

135 (343)

300 (7.5)

393 (10.0)

472 (12.0)

15 (39)

162 (412)

CP-S317/327W/最終03.5.272:22PMページ7

Downloaded from Projector.com

DVD players

VCRs

Laptop computers

Desktop computers

Indicates the

corresponding

reference page

ATTENTION

Precautions to observe when connecting other devices to the projector

• Whenever attempting to connect other devices to the projector, please thoroughly

read the manual of each device to be connected.

• TURN OFF ALL DEVICES prior to connecting them to the projector. Attempting to

connect a live device to the projector may generate extremely loud noises or other

abnormalities that may result in malfunction and/or damage to the device and/or

projector. Refer to the “Technical” for the pin assignment of connectors and

RS-232C communication data.

• Make sure that you connect devices to the correct port. Incorrect connection may

result in malfunction and/or damage to the device and/or projector.

•Some cables have to be used with core set. Use the accessory cable or a designated-

type cable for the connection. For cables that have a core only at one end,

connect the core to the projector.

• Secure the screws on the connectors and tighten.

CONNECTING YOUR DEVICES

Devices You Can Connect to the Projector

(Refer to this section for planning your device

configuration to use for your presentation.)

CAUTION • Incorrect connecting could result in fire or electrical shock. Please

read this manual and the separate “Product Safety Guide”.

01CP-S225/X75/Vol1/E/最終02.10.1710:24AMページ8

Autres manuels pour Multimedia Projector S40

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels 3M Projecteur

3M Liquid crystal projector MP8649 Manuel

3M Multimedia Projector S10 Manuel d'installation et d'exploitation

3M Digital Projector X35N Manuel utilisateur

3M Multimedia Projector H10 Manuel d'utilisation

3M Multimedia Projector MP7650 Manuel

3M projectorsleeve Manuel utilisateur

3M Multimedia Projector S55i Manuel utilisateur

3M Multimedia Projector MP7650 Manuel utilisateur

3M DX70 - Digital Projector XGA DLP Fiche technique

3M 1895 Plus Manuel utilisateur

3M MP 160 Manuel

3M Multimedia Projector MP8765 Manuel utilisateur

3M Multimedia Projector S55i Manuel

3M MPRO150 Manuel

3M Multimedia Projector MP8640 Manuel

3M X95I - Digital Projector XGA LCD Manuel

3M Digital Projector X75 Manuel utilisateur

3M Digital Projector X64 Manuel utilisateur

3M Multimedia Projector MP8790 Manuel d'installation et d'exploitation

3M 9700 Manuel utilisateur

3M Multimedia Projector S40 Manuel utilisateur

3M DX70i Manuel utilisateur

3M PX5 Series Manuel utilisateur

3M Multimedia Projector X62 Manuel d'installation et d'exploitation

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur
