2N Helios IP Safety Manuel utilisateur

www.2n.cz

2N Helios IP Safety

Emergency IP Intercom

Installation Manual

Version: 2.7

The 2N TELEKOMUNIKACE a.s. is a Czech manufacturer and supplier of

telecommunications equipment.

The product family developed by 2N TELEKOMUNIKACE a.s. includes GSM gateways,

private branch exchanges (PBX), and door and lift communicators. 2N

TELEKOMUNIKACE a.s. has been ranked among the Czech top companies for years

and represented a symbol of stability and prosperity on the telecommunications

market for almost two decades. At present, we export our products into over 120

countries worldwide and have exclusive distributors on all continents.

2N is a registered trademark of 2N TELEKOMUNIKACE a.s. Any product and/or other

names mentioned herein are registered trademarks and/or trademarks or brands

protected by law.

2N TELEKOMUNIKACE a.s. administers the FAQ database to help you quickly find

information and to answer your questions about 2N products and services. On www.

faq.2n.cz you can find information regarding products adjustment and instructions for

optimum use and procedures „What to do if...".

2N TELEKOMUNIKACE a.s. hereby declares that the 2N product complies with all

basic requirements and other relevant provisions of the 1999/5/EC directive. For the

full wording of the Declaration of Conformity see the CD-ROM (if enclosed) or our

website at www.2n.cz.

This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and (2)

this device must accept any interference received, including interference that may

cause undesired operation.

The 2N TELEKOMUNIKACE a.s. is the holder of the ISO 9001:2009 certificate. All

development, production and distribution processes of the company are managed by

this standard and guarantee a high quality, technical level and professional aspect of

all our products.

2N TELEKOMUNIKACE a.s., www.2n.cz 4/65

Content:

1. Product Overview

1.1 Components and Associated Products

1.2 Terms and Symbols

2. Description and Installation

2.1 Before You Start

2.2 Mechanical Installation

2.3 Electric Installation

2.4 Extending Module Connection

3. Function and Use

3.1 Configuration

3.2 Maintenance

3.3 Downloads

4. Technical Parameters

5. Supplementary Information

5.1 Troubleshooting

5.2 Directives, Laws and Regulations

5.3 General Instructions and Cautions

2N TELEKOMUNIKACE a.s., www.2n.cz 5/65

1. Product Overview

Here is what you can find in this section:

1.1 Components and Associated Products

1.2 Terms and Symbols

2N TELEKOMUNIKACE a.s., www.2n.cz 6/65

Basic Features

2N Helios IP Safety

®is a highly resistant and reliable IP door access intercom provided

with a lot of useful above-standard functions. Supporting the SIP standard and being

compatible with the leading IP PBX and telephone suppliers, can 2N Helios IP Safety

make use of all VoIP services. can work as a standard or 2N Helios IP Safety

emergency door access intercom for buildings, entrances to premises or garages,

manufacturing halls, highways and so on.

2N Helios IP Safety

®is equipped with two very sensitive microphones and an up to 10

W loudspeaker. Thanks to an integrated acoustic echo cancelling (AEC) system, the

product provides mutual audibility even of persons talking at the same time under

normal conditions.

2N Helios IP Safety

®can be provided with pre-programmed buttons. You can set up

to three telephone numbers and time profiles for each of the buttons to increase the

accessibility of the called party.

2N Helios IP Safety

®is equipped with an electric lock switch. You can control the

switch using a numerical keypad or, during a call, using any telephone set. An

additional switch module can be installed if necessary. A wide range of settings allow

for a variety of applications.

2N Helios IP Safety

®is very easy to install. All you have to do is connect the system

into your LAN via a network cable and feed it from a 12 V power supply or your PoE

supporting LAN.

Configure using your PC via any web browser. Use the 2N Helios IP Safety

® 2N

to manage extensive systems easily and Access Commander 2N Helios IP Safety

quickly.

2N TELEKOMUNIKACE a.s., www.2n.cz 7/65

Advantages of Use

Uncompromising Antivandal design

High coverage level – up to class IP69K

Variable mounting options (brick/plasterboard flush mounting, surface

mounting)

Sensitive microphone and powerful loudspeaker

Bidirectional communication – acoustic echo cancelling

Optional dial buttons including backlight

Integrated electronic lock switches with wide setting options

LAN (PoE) or external 12 V power supply

Configuration via web interface or dedicated PC application

SIP 2.0 support

Up to 999 telephone directory positions

Up to 20 user time profiles

Video codecs (H.263, H.263+, H.264, MPEG-4, JPEG)

Audio codecs (G.711, G.729, G.722, L16/16kHz)

HTTP server for configuration

SNTP client for time synchronisation with server

RTSP server for video streaming

SMTP client for e-mail sending

TFTP client for automatic configuration and firmware update

2N TELEKOMUNIKACE a.s., www.2n.cz 8/65

1.1 Components and Associated Products

Basic Units

9152101Part No.

1 button

control of two electric locks

possibility of connecting additional switch

9152101WPart No.

1 button

10 W loudspeaker

extra robust version

control of two electric locks

possibility of connecting additional switch

2N TELEKOMUNIKACE a.s., www.2n.cz 9/65

9152102WPart No.

2 buttons with „INFO“ and „SOS“ labels

10 W loudspeaker

extra robust version

control of two electric locks

9152101MPart No.

1 red emergency button

1 W loudspeaker

control of two electric locks

possibility of connecting additional switch

2N TELEKOMUNIKACE a.s., www.2n.cz 10/65

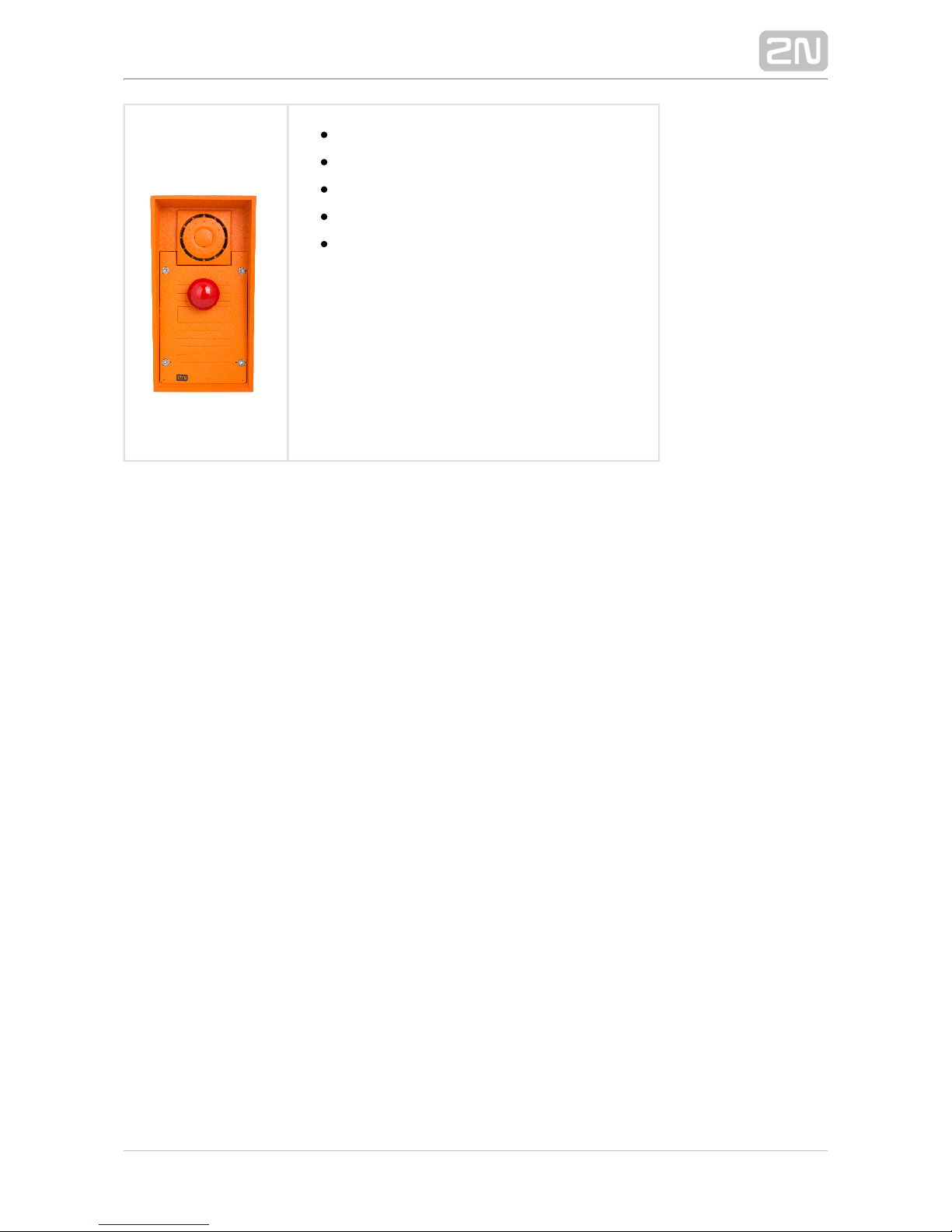

9152101MWPart No.

1 red emergency button

10 W loudspeaker

extra robust version

control of two electric locks

possibility of connecting additional switch

2N Helios IP Safety

®units can wall mounted without requiring any additional

accessories. Use the appropriate mounting box (see below) for plasterboard and flush

mounting.
