Dearcustomer,
Letuscongratulateyou on having purchasedthe EasyGate3Gsystem.
EasyGate3Gisdeduced fromstandardEasyGateforGSMnetworks.Forasmuchas
thereisnoUMTSembedded engine,EasyGate3GisdesignedforexternalUMTS
phonesfromMotorola.
Unfortunately,MotorolaUMTSphonesdon’tsupportsomefunction viathe data
interface; thereforesomeEasyGatefunctionsareinaccessible.
Pleaseread EasyGateUserGuideandpayattention tofollowingdifferences:.
Packing List
An EasyGate3G deliverycontainsthe followingitems:
Item Numberof
Pieces
EasyGate 1 pc
Phoneholderwithbelts 1pc
Supplyadapter 1pc
Telephonecable 1 pc
PC-connection serialcable 1 pc
SMS sendinginput connector 1pc
Dowels 2pcs
Bolts 2pc
UserManual 1pc
Quick InstallationGuide+mountingpattern 1 pc
SoftwareonaCD-ROM 1pc
Warrantycertificate 1 pc
3
BasicFunctions
· You cannot establishdataconnections(GPRS, CSD),faxconnections(PC-FAX)
and send/receiveSMSusingEasyGateincombinationwithaPCand appropriate
softwareduetodisabled serialinterface.

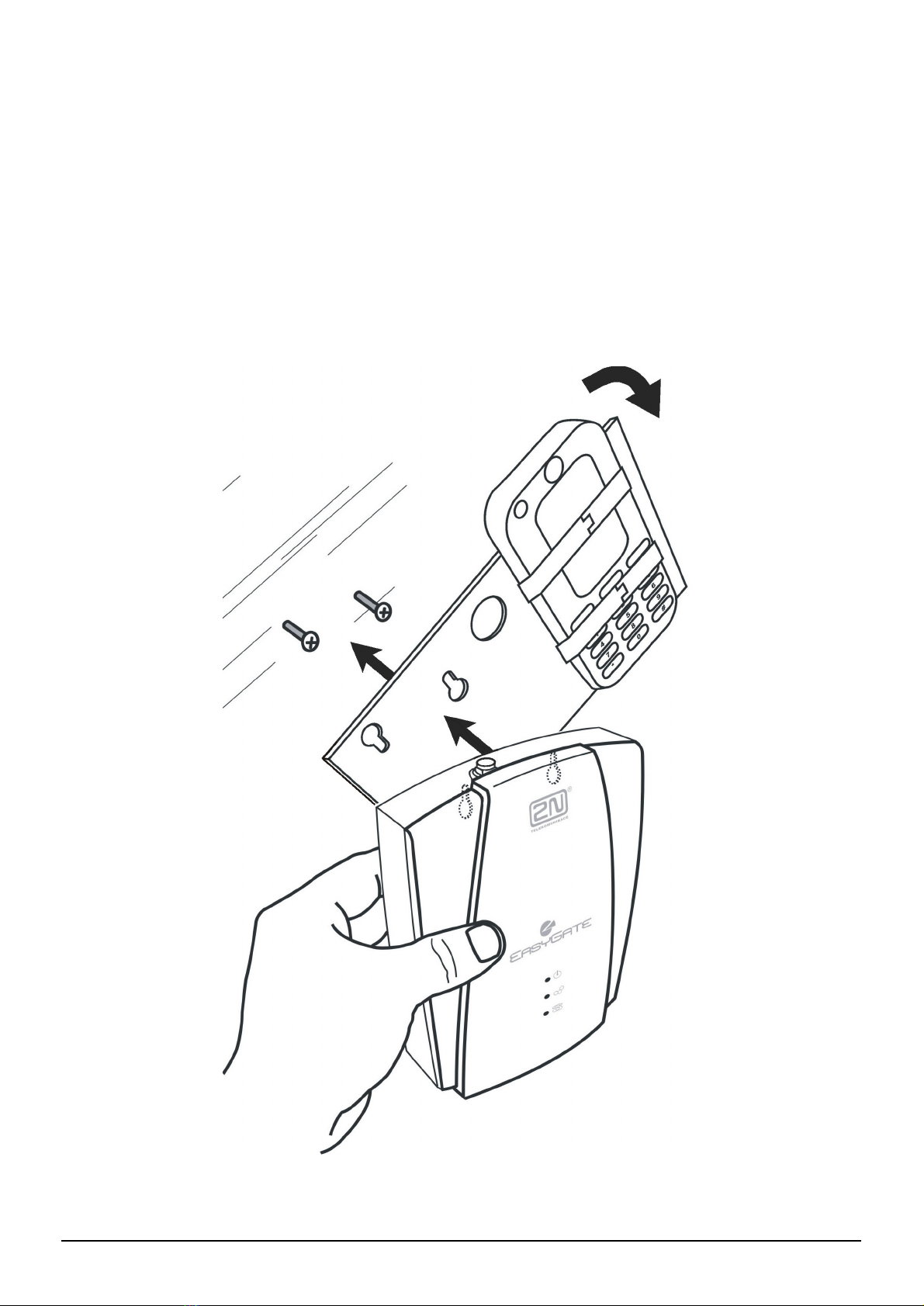

Installation
4
External AntennaConnection
Incaseofbad signalstrengthorradiointerferenceon telephoneline,install
recommendedexternalantennaforusedMotorolaphone.
SIMCardInstallation
Install yourUMTSUSIMtoconnected phone.
Unfortunately,MotorolaUMTSphonesdon’tsupportPINenteringviadatainterface.
It isnotpossibletoprotectyour3GUSIMbyPIN,pleaseswitchthe PINprotectionoff
beforeconnectingtoEasyGate3G.
SIMCardPINprotection
PINprotectionisn’t possible. Pleaseturnoff PINprotectionon yourUSIM.
COM– Serial Interface
COMcan be used onlyforprogrammingtheparameters.Serialinterfaceisdisabled
duringnormalEasyGate3Goperation.
It isnot possibletouseCOMfor:
· CSDPC-PCdatatransmission;
· PC-FAX-transmission offaxmessagesfromyourPC;
· CSDorhigh-speedGPRS connectiontotheInternet;
· SMS sendingandreceiving.
5
ParameterTables
TelephoneLineParameters
Transmission volume FunctionNo.:10
Doesn't workon EasyGate3G.
Reception volume FunctionNo.:11
Doesn't workon EasyGate3G -set upvolumemanuallyon the phone.
Service Parameters
COMenableFunctionNo.:50
COMisdisabled duringthe gatewayoperation onEasyGate3G. It can’tbe
enabled.
SecurityParameters
PIN-value FunctionNo.:40
Doesn'tworkon EasyGate3G. MotorolaUMTSphonesdon'tsupportPIN
enteringviadatainterface.Pleaseswitchthe PINprotectionoffbefore
connectingtoEasyGate3G.
