2gig Technologies Vario Manuel utilisateur

Installation Instructions

Tamper

DIP SW1

1 2 3 4

OPT N/A

Test N/A

Intrnl MIC

Bypass

POWER

YEL GRN

BUS

BLK

COM

RED

AUX

BUS

AUX COM LED TMP Voice

(to panel)

Out In1 In2 In3

Message Box

Test

Spkr

LED1

Rec

Play

MIC1

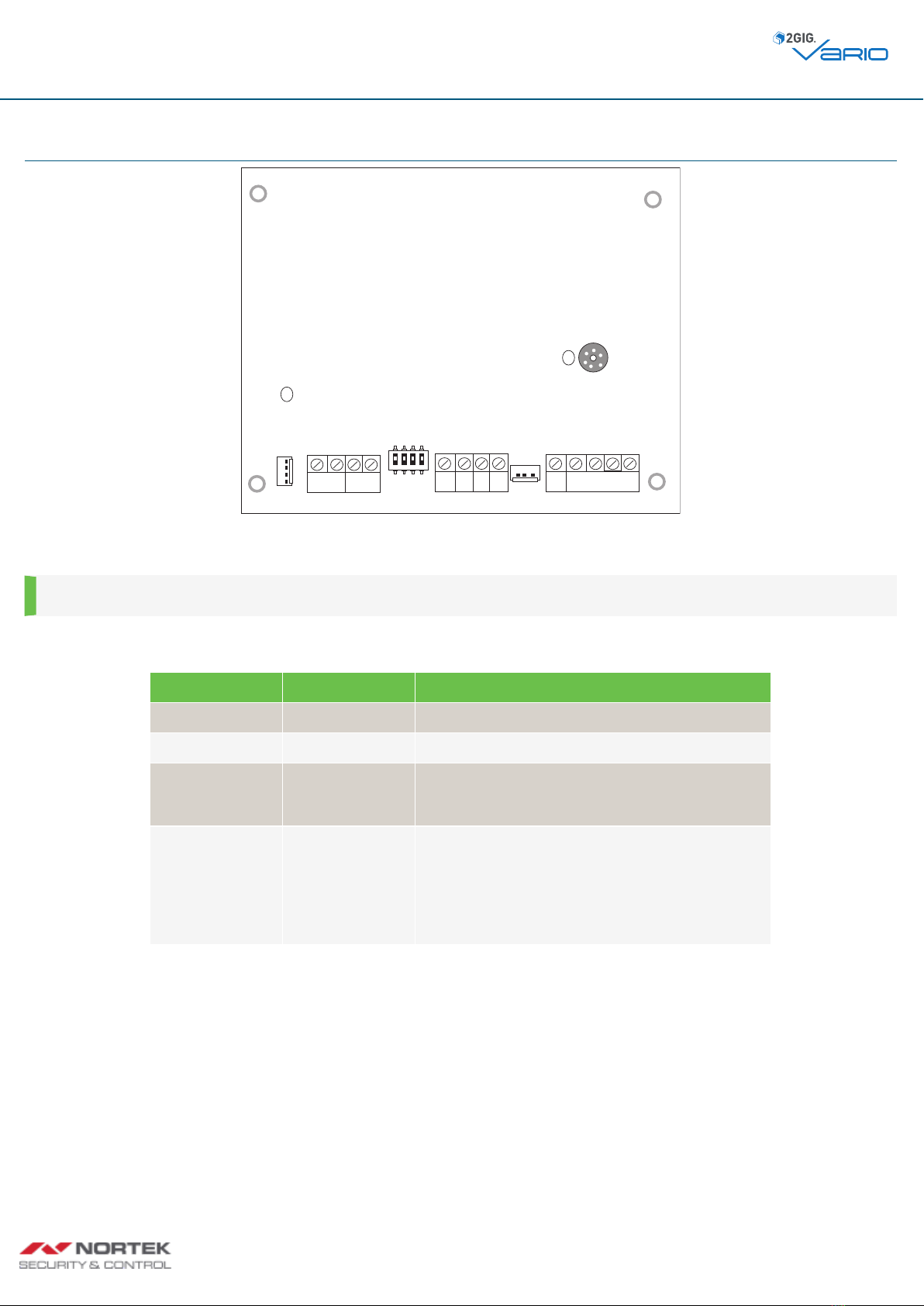

VOICE MODULE

The 2GIG Vario Voice Module provides audible information about the status of the 2GIG Vario System, and enables any remote, touch-tone (DTFM) telephone to

act as a keypad for the system. When a system event occurs (such as an alarm activation) the Voice Module notifies a system user by calling a specified telephone

and playing a pre-recorded announcement.

NOTE: For instructions on how to program the Voice Module, see the 2GIG Vario System Installation Guide.

Installing the Voice Module

SW Description Usage

1 Omit Tamper Instead of a short with the TMP/COM terminal block

2 OPT N/A

3 Test

Connected in parallel to all output channels. It enables the user

to listed to all played messages using a speaker (at least 32

Ohm) connected between the Test Spkr and COM terminals.

4 Intern MIC

Select an external or internal microphone for recording

messages:

On: Enables recording messages from the microphone located

on the Voice Module board.

Off: Enables recording messages from a microphone located

on the 2GIG Vario Listen-in & Speak Module.

DIP Switches

2GIG® Vario System

2GIG Vario Voice Module

10012671 A

Wiring Diagram

Tamper

DIP SW1

1 2 3 4

OPT N/A

Test N/A

Intrnl MIC

Bypass

YEL GRN

BUS

BLK

COM

RED

AUX

BUS

AUX COM LED TMP Voice

(to panel)

Out In1 In2 In3

Message Box

Test

Spkr

COM

BLK

LEDTMP AUX

RED

AUDIO

OUT IN

Listen/Talk Unit

BUS

To Panel

Voice Module

When connecting the Listen-in & Talk Module to the Voice Module, it is recommended to use one of the following types of wires for the INand OUT connections:

Independently shielded wires: Used for Electro-Magnetically Noise Environment/Long Distance. The shield should be grounded (connected to the

COM terminal block).

Independently twisted paired wires: Used for Electro-Magnetically Unquiet Environment/Middle Distance. The second wire should be grounded

(connected to the COM terminal block).

Other types of wires: Can be used for Electro-Magnetically Silent Environment/Short Distance.

Wiring Notes:

Do not run wires close to power (110/230 VAC), high voltage wiring, or any communication lines.

Do not wrap or roll wires.

All unused wires should be grounded by connecting them to the COM terminal.

The maximum distance between each Listen-in & Talk Module and the Voice Module should not exceed 10 meters.

The maximum cable length for the Listen-in & Speak Module is 10 meters.

A maximum of 10 Listen-in & Speak Modules can be connected to the 2GIGVario System.

LED Indicators

Power: The Power LED indicates the status of communication between the Voice Module and the 2GIG Vario System panel.

Off: No voltage power from the main panel.

On: Normal communication with the panel BUS.

Slow Flash: The LED starts to flash 15 seconds after communication with the BUSis interrupted, or during installation mode.

Rec/Play: The Rec/Play LED indicates the status of communication between the Voice Module and the remote Follow-Me phone.

Off:No communication with the Follow-Me phone.

On: Follow-Me communication has been established.

Slow Flash: The Voice Module is in the process of clcalling the Follow-Me number.

2GIG® Vario System

2GIG Vario Voice Module

10012671 A

Connectors

AUX

COM

LED

TMP

VOICE

VOICE PLUG4

2GIG Vario Panel Voice Module

The Voice Module board contains the following connectors:

BUS (plug 1): Used to connect the Voice Module to the panel via the 4-wire BUS. The AUX (RED), COM (BLK), BUS (YEL), and BUS (GRN) terminals

are identical to the BUS connector and can be used for the same purpose.

VOICE (plug 2): Used to connect the Voice Module to the VOICE connector on the 2GIG Vario System main panel wia the supplied cable. This connector

transmits signals from the Voice Module to the telephone line during remote communication, and is essential for normal operation of the Voice Module.

Technical Specifications

Operating Voltage 13.8 VDC ± 10%

Current Draw 30 mA typical/70 mA maximum

Operating Temperature 0° C–70° C

Main Panel Connection Wire BUS, ≤ 300 m from main panel

User Operating

Telephone Control Commands

The 2GIGVario System enables you to operate the system from a remote touch-tone phone. by initiating a telephone call to or from the system. Interacting with

voice menus, you can remotely operate the system.

Receiving a Call

1. Pick up the phone.

2. Say "Hello" or press #. You will hear an event announcement message.

3. Choose an option from the Acknowledgment menu.

Acknowledgment Menu

When a system event occurs (such as an alarm activation) the Voice Module notifies a system user by calling a specified telephone and playing a pre-recorded

announcement. After the event message, the system announces the following options:

Operation Title Description Action (remotely by telephone)

Acknowledgment Message Confirms that you have received a message. The then system calls the next

Follow-Me number. Press 1.

Acknowledge and Stop All Dialing This option acknowledges the event and stops the system from calling the

other Follow-Me numbers to report the event.

Press 2and then enter the

appropriate code.

Acknowledge and Access the Operations

The Operations menu lists the available options for remotely operating your

system.

Press 3and then enter the

appropriate code.

Listen In and Talk This option enables you to perform bi-directional communication. Press 6, press 3, and then enter the

appropriate code.

Repeat the Event Message Press #.

Repeat the Acknowledge Menu Press *.

Acknowledgment Menu

2GIG® Vario System

2GIG Vario Voice Module

10012671 A

Calling the System

1. Dial the number of the premises.

If an answering machine is present at the premises: Let the line ring once, hang up, and call again.

If an answering machine is not in use at the premises: Wait until you hear a continuous tone, indicating that the system has answered the call.

2. After the tone, enter the 2-digit remote access code.

3. Enter your user code and press #.

4. Choose an option from the Operations menu.

Operations Menu

The Operations menu announces options and instructions on how to remotely use system functions. The options in the Operations menu vary according to system

status and your access rights.

The following is a list of remote operations options:

Description Action (remotely by telephone)

To set all partitions Press 1and press 1.

To set a selected partition Press 1, press 9, and then enter the partition number.

To un-set all partitions Press 2and press 2.

To un-set a selected partition Press 2, press 9, and then enter the partition number.

To change Zone Omit stats Press 3, enter the zone number, press #, and press 9.

To change Follow-Me numbers Press 5, enter the Follow-Me number, press #, and press 2.

Enter the new phone number, press #, and press 1.

To listen in to the premises Press 6and press 1.

To talk to the premises. Press 6and press 2.

To listen in and talk to the premises Press 6and press 3.

To record messages that are not included in the message bank (5 messages) Press 7and press 1–5.

To record an opening message Press 7and press 6.

To exit the system Press 0.

To return to the previous menu Press *.

To repeat the menu options Press #.

Operations Menu

2GIG® Vario System

2GIG Vario Voice Module

10012671 A

Regulatory Information

FCC Notice

This device complies with Part 15 of the FCC's Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses , and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

This product complies with FCC radiation exposure limits for an uncontrolled environment. Avoid operating this product at a distance less than 20 cm from the user.

NOTE: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this

equipment.

Industry Canada (IC) Compliance

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause

interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Repairs to certified equipment should be made by an authorized Canadian maintenance facility designated by the supplier. Any repairs or alterations made by the

user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.

Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines, and internal metallic water pipe system, if

present, are connected together. This precaution may be particularly important in rural areas.
