X550N Series
Wireless N Gigabit Router
Quick Start Guide
Version 3.60
3/2008
Edition 1
DEFAULT LOGIN
IP Address http://192.168.1.1
Password 1234
X550N Series Quick Start Guide
2
Overview

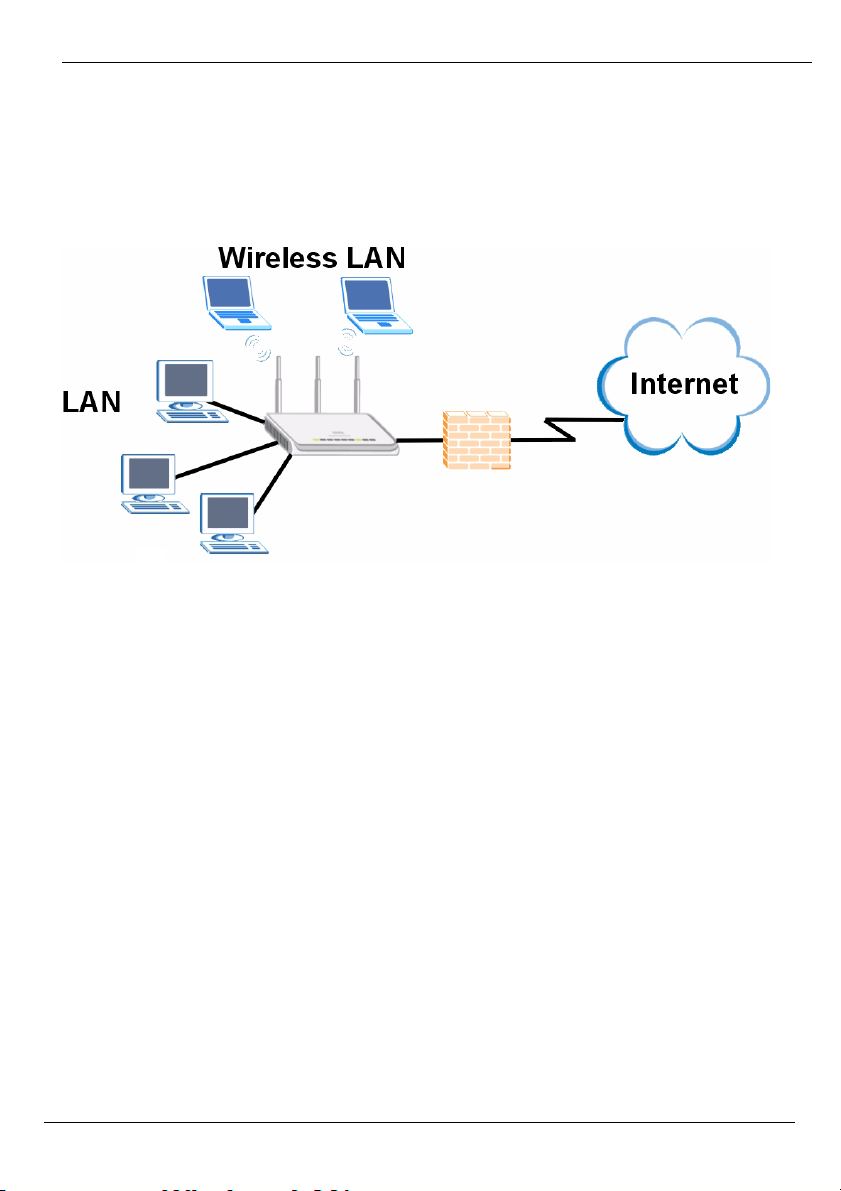

The X550N is an IEEE 802.11b/g/n wireless broadband router or access point (AP). As a
router, the X550N directs traffic between your wireless network and another network such
as the Internet as shown below, providing services such as content filtering, bandwidth
management and a firewall.
This Quick Start Guide shows you how to do the following with your X550N in router mode:
1Connecting Your Hardware
2Accessing the Web Configurator
3Connecting to the Internet with the Wizard
4Set Up a Wireless Network Manually or with WPS
See your User’s Guide on the CD in the package on how to set up the X550N as an AP
and for more information on all features.
To read the User’s Guide insert the CD that came in the box into your CD-ROM drive. A
screen should pop up. Navigate to the User’s Guide from this screen. If a screen does not
pop up, open Windows Explorer (click My Computer), click on the CD-ROM drive (usually
drive D:) and navigate to it from there.
X550N Series Quick Start Guide
3
1 Hardware Connections

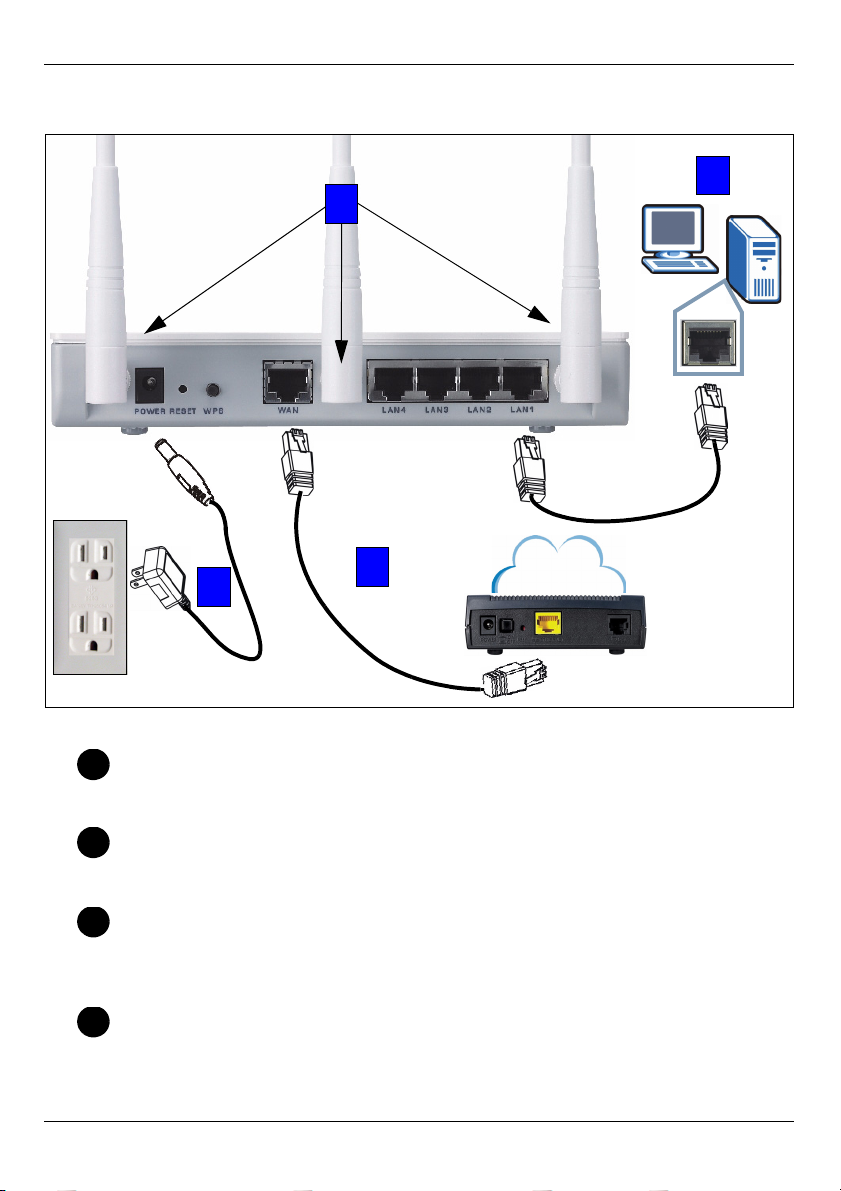

Do the following to make hardware connections for initial setup.
Antennas
Connect each antenna to an antenna socket, ensuring the antennas are screwed
in firmly and angled upwards.
LAN
Connect the Ethernet port on your computer to a LAN port on the X550N using the
included Ethernet cable.
WAN
Connect the WAN port on your X550N to the Ethernet port on the device with which
you are accessing the Internet (for example, a router or modem) using an Ethernet
cable.
POWER Connection
Use the power adapter from the package to connect the POWER socket to an
appropriate power source.
Internet
1
4
2
3
1
2
3
4
X550N Series Quick Start Guide
4
The LEDs
Look at the LEDs (lights). When you connect the power, the power LED ( ) blinks and
stays on once the device is ready.
The LAN ( ) and WAN ( ) LEDs turn on if the corresponding connections
are properly made.
VIf an LED does not turn on, check your connections. If this doesn’t help,
disconnect the X550N from its power source, wait for a few seconds and
turn it back on.
2 Accessing the Web Configurator
Default Login Information

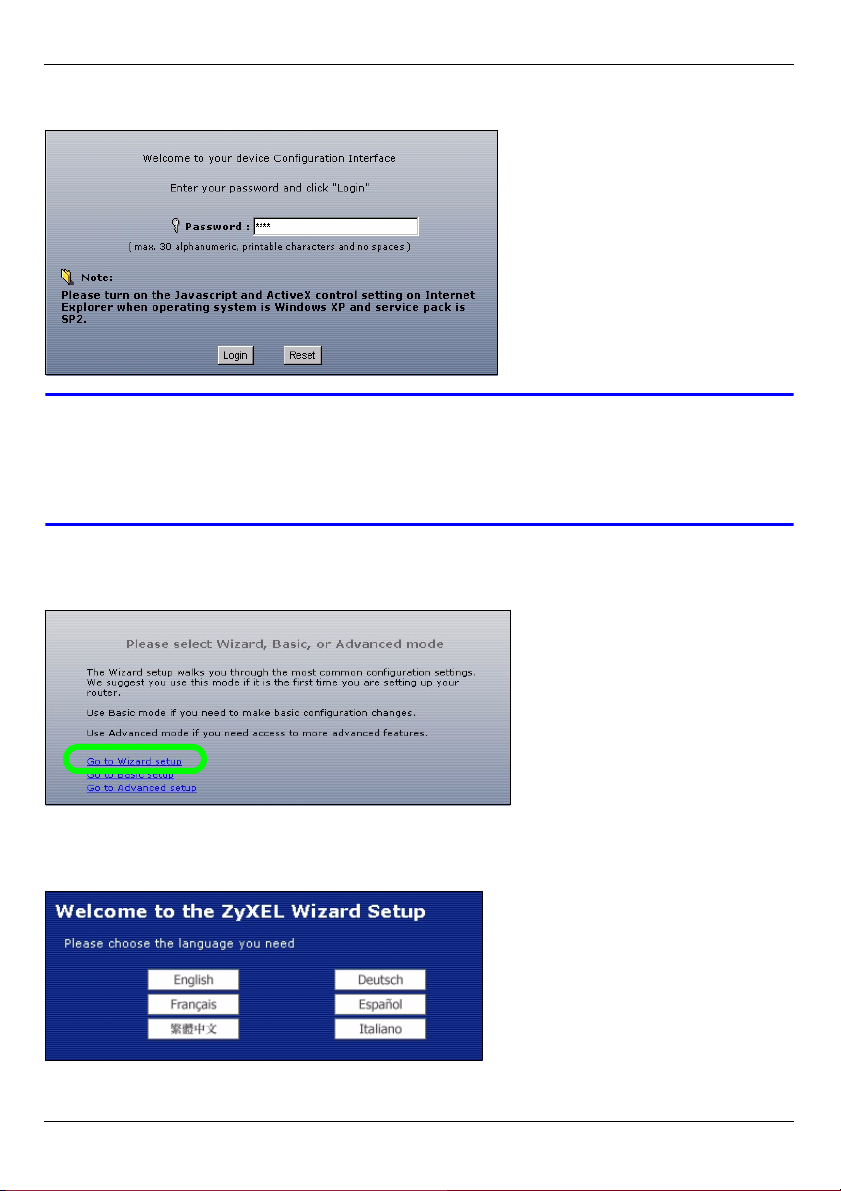

1Launch an Internet browser such as Internet Explorer. Enter “http://192.168.1.1” as
shown below.
IP address http://192.168.1.1
administrator password 1234
X550N Series Quick Start Guide
5
2The Password window displays. Enter the password (“1234” is the default) and click
Login.
VIf the login screen does not display, make sure your computer is set to
receive an IP address dynamically. If that doesn’t help, check your web
browser’s security settings (see the appendix in the User’s Guide for
information on both suggestions).
3Change the password in the screen that follows and click Apply.
4Click Go to Wizard setup to set up your X550N for the first time
3 Connection Wizard Setup
1Select a language. Click Next.
X550N Series Quick Start Guide
6
2Click Next in the following screen to proceed with the Connection Wizard.
"Enter the Internet access information exactly as given to you by your ISP in
each wizard screen. Click Next to continue or click Back to return to the
previous screen. Current screen information will be lost if you click Back.

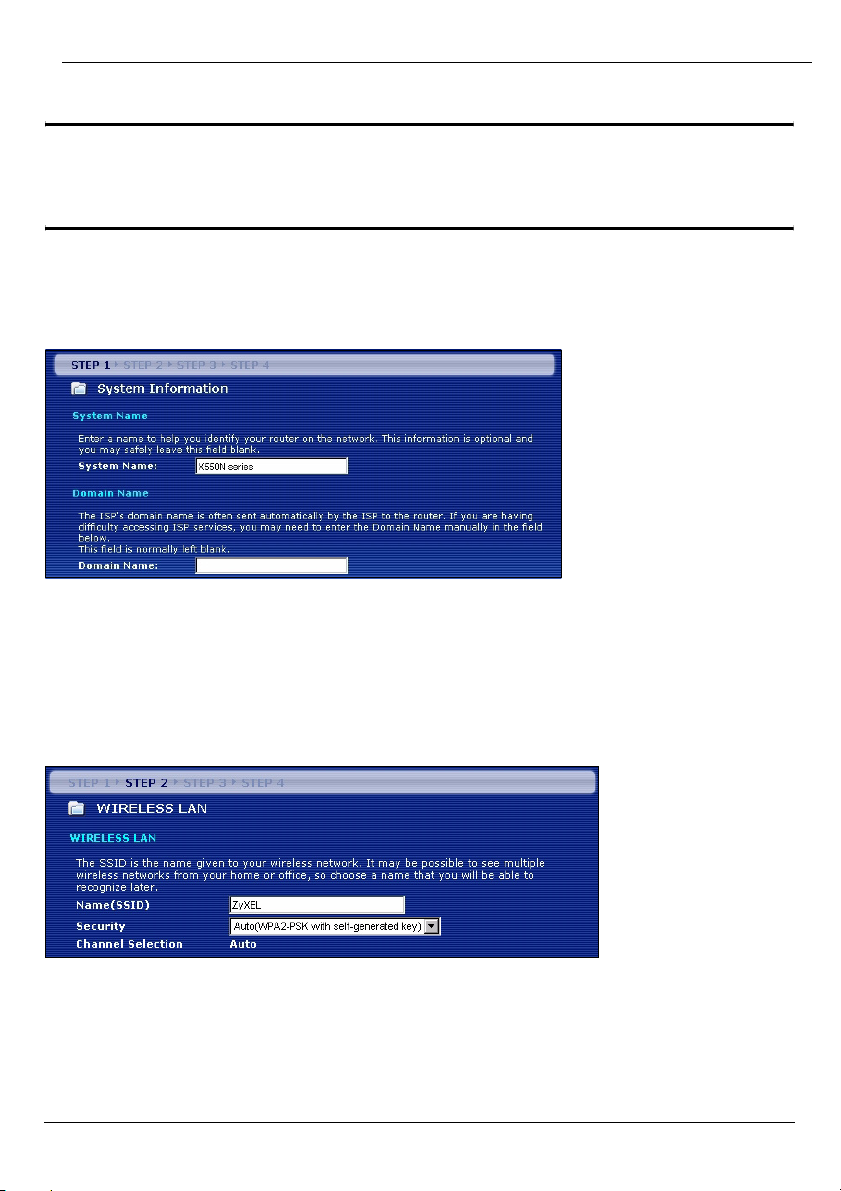

3.1 System Information
This screen is optional. You can just click Next.
3.2 Wireless LAN
Configure your X550N to support a wireless network by following these steps.
1Enter a unique Name (SSID) to identify the X550N on the wireless LAN.
2Select Auto to automatically use WPA-PSK which provides a high level of security. See
your User’s Guide for information on other kinds of security. Click Next.
X550N Series Quick Start Guide
7

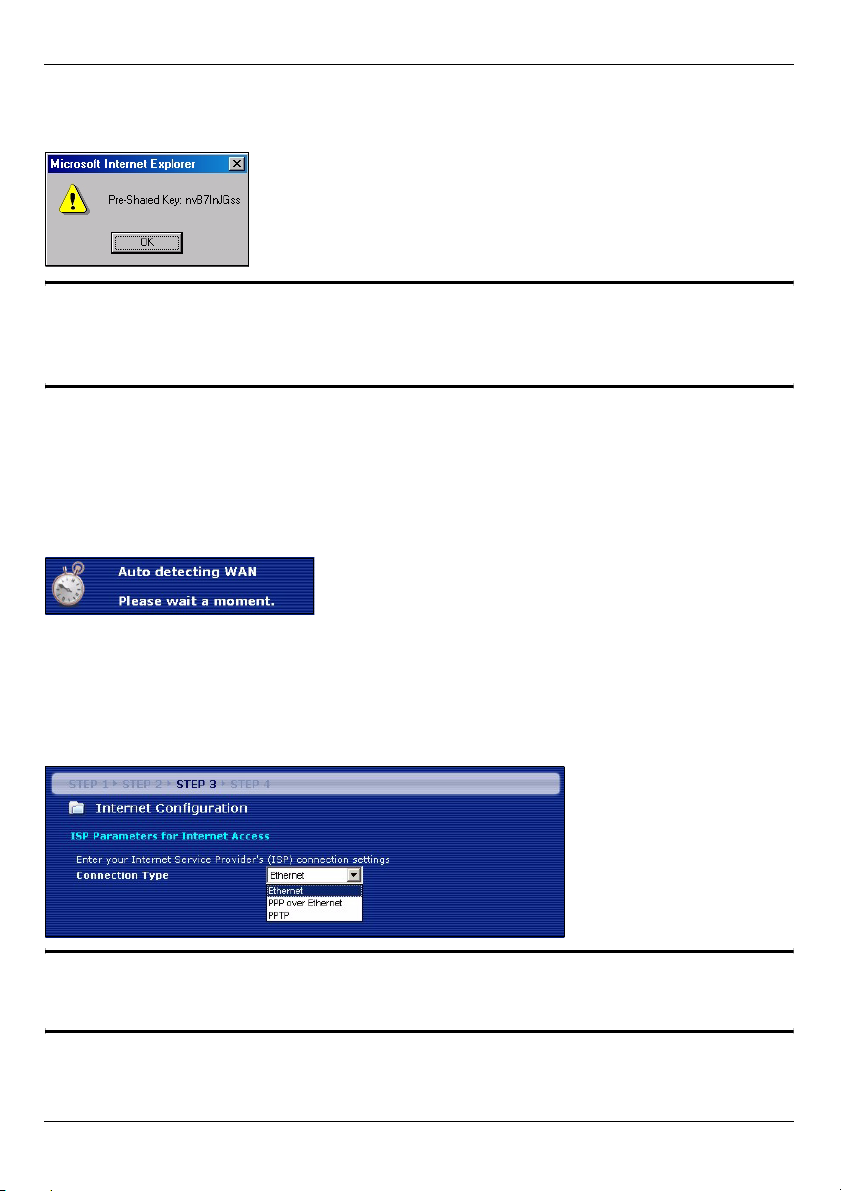

3Write down the security key that displays in the pop-up screen. Computers on the wireless
network will need this security key to access the X550N. The security key is case-sensitive
so “ABCD” is not the same as “abcd”.
"Write down the security key, Name (SSID), Security and Channel
Selection for later use as the X550N and other devices on your wireless
network must use the same settings.
4Click OK to continue.
3.3 WAN Connection
You may need to wait several minutes while the wizard attempts to detect which WAN
connection type (Ethernet, PPP over Ethernet or PPTP) you are using.
• If the wizard detects your connection type, follow the steps for your connection type as
given below.
• If the wizard cannot detect a connection type, you must select your connection type from
the drop-down list box in the screen below. If you do not know what connection type to use,
check with your Internet Service Provider (ISP).
"If you were given Internet access settings, type them in the following fields.
Otherwise leave the default settings and click Next.
X550N Series Quick Start Guide
8
Ethernet Connection
Select Ethernet as your WAN connection type and click Next to go to section 3.4.
PPP over Ethernet Connection
1Select PPP over Ethernet as your WAN connection type
2Type a Service Name (if your ISP gave you one), User Name and Password. Click Next
to go to section 3.4.

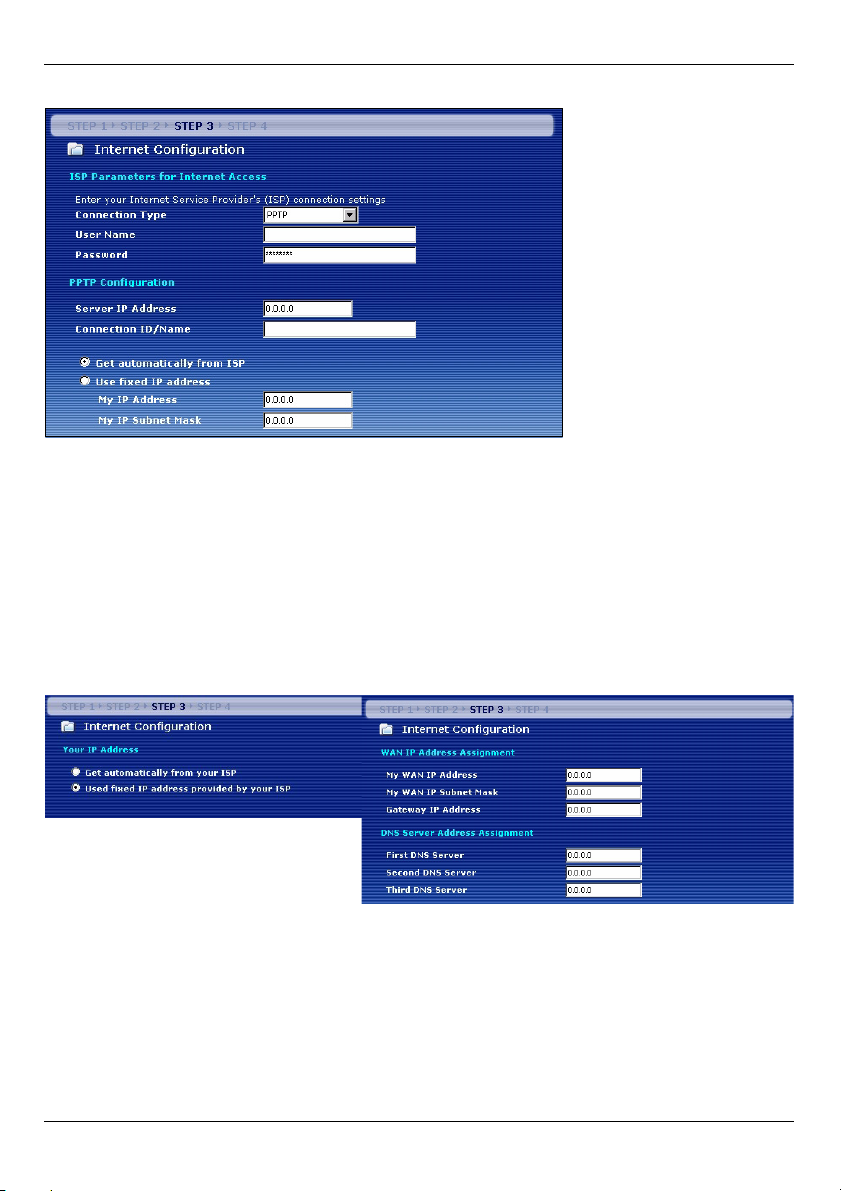

PPTP Connection
1Select PPTP as your WAN connection type.
2Type a User Name and Password.
3Type a PPTP Server IP Address.
4Type a Connection ID/Name (if provided by your ISP).
5If your ISP did not assign you a fixed PPTP IP address, select Get automatically from
ISP.
6If your ISP assigned you a fixed PPTP IP address, select Use fixed IP address to give
the X550N a fixed, unique PPTP IP address and subnet mask.
X550N Series Quick Start Guide
9
7Click Next to go to section 3.4.
3.4 WAN IP Address
• If your ISP did not assign you a fixed IP address, select Get automatically from your ISP
and click Next to go to section 3.5.
• If your ISP gave you a fixed IP address:
1Select Use fixed IP address provided by your ISP. Click Next.
2In the next screen type the WAN IP address, WAN IP Subnet Mask and the gateway IP
address given by your ISP.
If you were given DNS server settings, type them in the fields. Otherwise leave the default
settings and click Next.

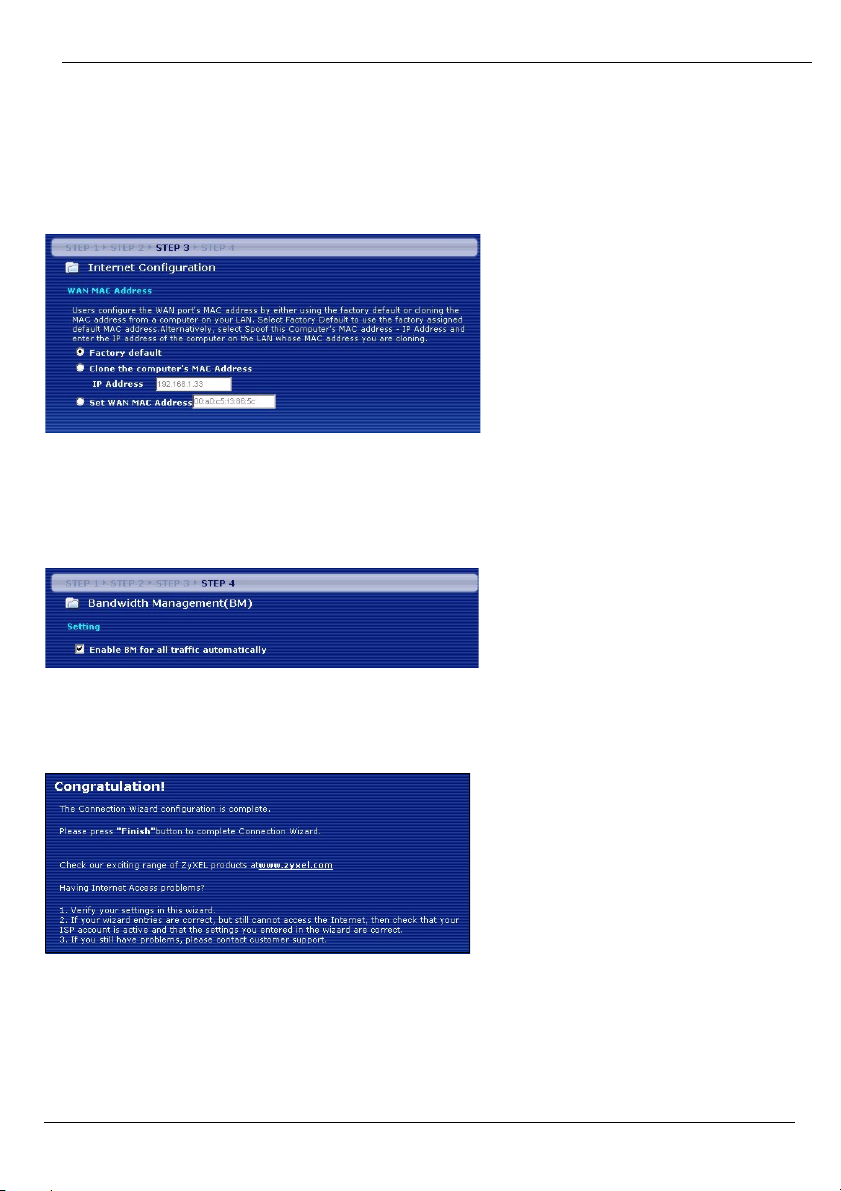

3.5 WAN MAC Address
A MAC address is a number which uniquely identifies a device on any network. Set the
WAN port’s MAC address by either using your device’s factory assigned default MAC
address or cloning the MAC address of a computer on your LAN. By default, the X550N
uses the factory assigned MAC address to identify itself on the WAN.
X550N Series Quick Start Guide
10
•SelectFactory Default to use the factory-assigned, default MAC address.
•SelectClone the Computer’s MAC Address to clone the MAC address from a computer
on your LAN. Type the IP address of the computer with the MAC address you are cloning. It
is advisable to clone the MAC address from a computer on your LAN even if your ISP does
not presently require MAC address authentication.
•SelectSet WAN MAC Address if you know the MAC address you want to use.
3.6 Bandwidth Management
Select Enable BM for all traffic automatically to have the X550N prioritize data traffic
according to the its use. For example, video streaming may have higher priority than email.
Leave unchecked if unsure. Click Next.
3.7 Setup Complete
1Click Apply to save your changes in the next screen that appears in the wizard.
2Click Finish in the screen below to complete the wizard setup.
3Congratulations. Open a web browser, such as Internet Explorer, to visit your favorite
website.
