Enterprise

Switches

ZyXEL Switch 4500

Series

Enterprise

Switches

ZyXEL Switch 4500

Series

Key Features

Ł

L3 Advanced Routing Protocols,

OSPF,VRRP

Ł

Multilayer-aware (L2/L3/L4) ACL

for Security Protection and

Traffic Optimization

Ł

IGMPv3, DVMRP, MVR

Ł

Port Security and Enhanced

802.1x Port Authentication

Ł

VLAN Stacking (QinQ) for

Network-based VPN or Campus

VPN

Ł

802.1x Authentication

Ł

ZyXEL iStackingTM Technology

Clustering Network

Management

Ł

SNMP & RMON Support

Ł

IEEE 802.1p 8 Hardware Priority

Queue

Ł

WFQ,WRR and SPQ Queuing

Algorithms

Ł

Backup Power System Support

The ZyXEL Gigabit Switch 4500 Series consists of two switches: the ZyXEL XGS-4528F and

XGS-4526.These are intelligent multilayer (L2/L3/L4) Ethernet switches that provide four

flexible performance choices—10/100/1000 Mbps and 10 Gbps speeds,along with enterprise-

class availability, resiliency and a redundant architecture.The 4500 Series offers complete

Layer-3 features to make it the preferred choice for real routing networks in the enterprise.

The ZyXEL 4500 Series has two variations:

The XGS-4528F features a very unique design in its hardware configuration.With 24 Gigabit

dual-personalities, 2 built-in 12G stacking interfaces and 1 open slot for the optional 10-

Gigabit uplink port module, the XGS-4528F provides the maximum flexibility on deployment.

The XGS-4526 provides 20 1000Base-T ports, 4 Gigabit dual-personalities, and 1 open slot for

the optional 10-Gigabit uplink port module, the XGS-4526 is ideal for small and medium

enterprises seeking to build a high performance network.

Key Benefits

Managed L2 and L3 Gigabit Connectivity for Lower Future Expansion and

Upgrading Costs

The ZyXEL Switch 4500 Series provides wirespeed Layer-2 Gigabit switching of up to 144 Gbps,

along with advanced Layer-3 switching, multicasting, resiliency including OSPF, DVMRP and VRRP for

connectivity requirements. Its four flexible speeds—10/100/1000 Mbps and 10 Gbps performance—

also provide greater flexibility to the core networks or high-performance servers.

Unique 24 GbE Copper and Fiber Connectivity in 1U-height Design

(XGS-4528F Only)

Unlike competing offerings with GbE copper and fiber connectivity, the leading architecture

employed by XGS-4528F delivers 24 1000Base-T copper interfaces along with standard RJ-45

connectors and 24 SFP slots in a 19-inch 1U enclosure.This unique benefit gives network designers

the highest flexibility and cost advantage in terms of equipment investment, network

administration and system maintenance.

Intelligent QoS for Mission Critical Applications Ensure Best Network Status

With more applications integrated into IP-based networks, traffic flows become more complicated

and diverse than ever. To ensure the quality of multiple services on a converged network,adopting

advanced traffic control technologies to manage different types of traffic flows is critical and

necessary to enterprises.

The ZyXEL 4500 Series supports Intelligent QoS features to regulate network traffics for the best

performance.Taking advantage of Class of Service (CoS) and Differentiated Services Code Point

(DSCP) supports, administrators can easily classify and perform traffic prioritizing for critical business

applications such as VoIP and video conferencing. In addition, the 4500 Series provides advanced

bandwidth control with granularity of 64 kbps and 8 hardware priority queues that bring better

bandwidth administration to network operators.

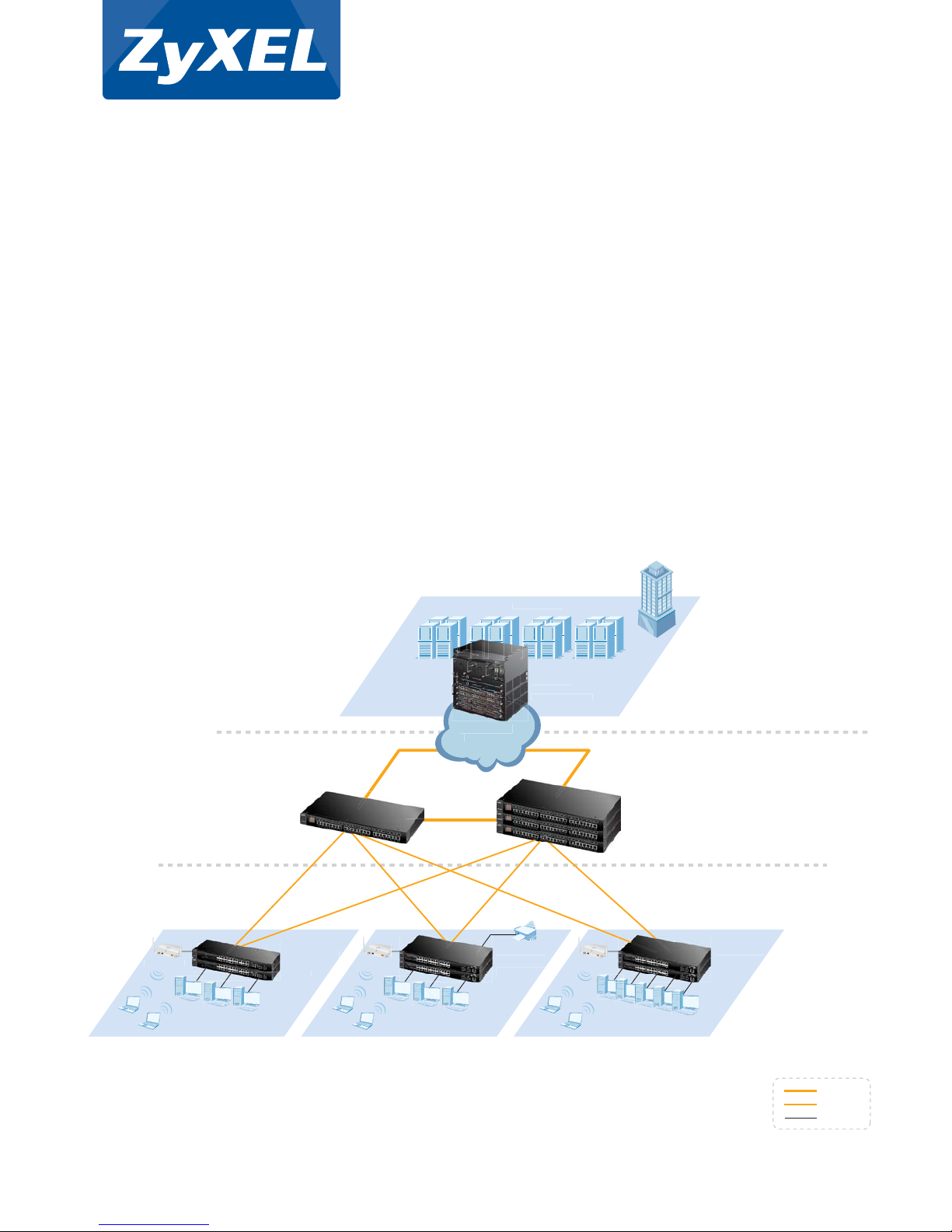

orporat

S-720

Chass

tch

-4

10G Switch

1500-24

Gigabit PoE

-4

0G Switch

WLAN AP

POWER

12VDC

RESET

CONSOLE

WDS

WLAN

ETHN

PWR/SYS

10G Fiber

GbE Fiber

GbE Copper

WLAN AP

POWER

12VDC

RESET

CONSOLE

WDS

WLAN

ETHN

PWR/SYS

WLAN AP

erver Far

POWER

12VDC

RESET

CONSOLE

WDS

WLAN

ETHN

PWR/SYS

-24

witch

Gigabit Swit

Wiring Closet

Small Building 1

GbE Server Core

GbE Fiber

Aggregation

GbE Edge Switch

Wiring Closet

Small Building 2

Wiring Closet

Small Building 3

10G Connection10G Connection

-2

2200-4

witch

Gigabit Swit

Robust and High-Availability System Design Guarantee Non-stop Operations

The ZyXEL 4500 Series supports the VRRP routing protocol for failover transmissions.The second DC power source,called BPS, protects the device from

internal AC power supply failures, while the IEEE 802.3ad Link aggregation reduces network downtime by providing more packet paths and bandwidth

aggregation to critical paths.The Gigabit connectivity not only gives superb transmission bandwidth, but also allows users to set up Gigabit aggregation

for securing critical transmission paths.The IEEE 802.1w Rapid spanning tree (RSTP) also allows immediate recovery from failed links by sending packets

via a backup link path.

Hassle-free Network Management and Stacking Capability of Up to 24 Units

The ZyXEL 4500 Series provides various network management options for administrators to choose to manage the switch using friendly Web-based

configuration or convenient text-based CLI (Command Line Interface), and it also supports SNMP-based, centralized management software for switch

maintenance to be done remotely. On the other hand, the 4500 Series supports the ZyXEL-exclusive iStacking™ clustering management technology that

works across different floors and routing domains to locate other iStacking-capable switches in the same management cluster, allowing administrators to

manage 24 switches with one single IP. This not only greatly reduces operating costs,but also offers more flexible maintenance to ZyXEL Switches.

Enterprise Switches

ZyXEL Switch 4500 Series

Enterprise Switches

ZyXEL Switch 4500 Series

Key Applications

Specifications

Feature/Model XGS-4528F XGS-4526

Product Picture

Port Density

10/100/1000Base-T - 20

Dual Personality GbE Ports 24 4

10G Extend Slot 1 1

12G Stacking Port 2-

Performance

Switching Capacity 144 Gbps 96 Gbps

Switching Forwarding Rate 100 Mpps 71.5 Mpps

Packet Buffer 768 KB 768 KB

MAC Address 8K 8K

IP Address Table 2K 2K

Routing Entries 512 512

Routing Domains 64 64

Power Requirement

Input Voltage of AC 100 to 240 V, 50/60 Hz 100 to 240 V, 50/60 Hz

Input Voltage of DC -48 to -60 V DC -48 to -60 V DC

Maximum Power Consumption 62.8 Watt 62.8 Watt

Environmental Specification

Operating Temperature 0°C ~ 45°C 0°C ~ 45°C

Storage Temperature -25°C ~ 70°C -25°C ~ 70°C

Operating Humidity 10% ~ 90%, (non-condensing) 10% ~ 90%, (non-condensing)

Physical Feature

Dimensions (W) x (D) x (H) mm 440 x 310 x 44.45 440 x 310 x 44.45

Weight, kg 7.0 7.0

Features

Standard Compliance

• IEEE 802.3 10Base-T Ethernet

• IEEE 802.3u 100 Base-Tx Ethernet

• IEEE 802.ab 1000 Base-T Ethernet

• IEEE 802.3x flow control

• IEEE 802.1D spanning tree protocol

• IEEE 802.1w rapid spanning tree protocol

• IEEE 802.1s multiple spanning tree protocol

• IEEE 802.1p class of service, priority protocols

• IEEE 802.1Q VLAN tagging

• IEEE 802.1x port authentication

• IEEE 802.3ad LACP aggregation

Traffic Management and QoS

• Rate Limiting: Rule-based/Port-based

bandwidth control, 64 kbps granularity

• Dual-Rate-Three-Color

• CIR/PIR for bandwidth control

• Port-based egress traffic shaping

• Broadcast storm control

• IEEE 802.1p with 8 priority queues per port for

different traffic types

• WFR (Weighted Fair Queue)/WRR (Weighted

Round Robin)/SPQ scheduling algorithm

• DSCP/DSCP to 802.1p priority mapping

• Static multicast

• IGMP/IGMP snooping v1, v2, v3

• IGMP throttling

• Support IGMP snooping fast leave

• Support IGMP snooping statistics

• MVR

• Congestion control on all ports

• Selective QinQ

IP Routing and Service Features

• 64 IP routing domains

• 2K IP address table

• Wire-speed IP forwarding

• RIP v1, v2

• Static routing

• DHCP server/relay

• OSPF summary address

Link Aggregation

• IEEE 802.3ad LACP link aggregation

• Static manually port trunking

• Up to 6 aggregation groups, 8 ports per group

randomly selected

• Link aggregation algorithm of

source/destination IP address

Resilient Network

• IEEE 802.1w Rapid Spanning Tree Protocol

(RSTP)

• IEEE 802.1s Multiple Spanning Tree Protocol

(MSTP)

• BPS (Backup Power System)

User Security and Authentication

• IEEE 802.1Q tag-based and port-based VLAN

• Support GVRP, automatic VLAN member

registration

• 1K static VLAN, up to 4K dynamic VLAN

• Full range 4K PVID support

• Port-base VLAN & VLAN isolation

• IP classification VLAN

• VLAN counter

• VLAN search

• VLAN translation

• VLAN MAC limit

• Intrusion Lock

• MAC freeze

• MAC search

• MAC filtering per port secures access to

each port

• Port security

• Limited MAC number per port

• IP source guard

• Loop guard

• RADIUS MAC login

• IP filtering

• TCP/UDP socket filtering

• BPDU transparency

• 802.1x port-based authentication

• TACACS+

• Layer 2 protocol tunneling

Network Administration Security

• User name/password required for

Web/Telnet/local console administrators

• Two-level security by specific SNMP read/write

community

• Multiple login session

• Multiple access permission management

• SSH v1/v2

• SSL/TLS

Network Management

• ZyXEL iStackingTM,up to 24 switches managed

by single IP address

• Web-based management

• Telnet CLI

• SNMP v1, v2c, v3

• RS-232c local console

• IP management: static IP or DHCP client

• RMON four RMON groups 1, 2, 3, 9 (history,

statistics, alarms, and events)

• Port mirroring: source/destination/both port

mirroring

• IEEE 802.1ag CFM

• IEEE 802.1AB LLDP

• Support transceiver DDMI information

(including MIB)

Intelligent ACL

(L2/L3/L4 Access List Control)

• Based on MAC address

• Based on VLAN

• Based on IP address

• Based on protocol type

• Based on TCP/UDP type

• Based on DSCP

Hardware

• Support of auto-negotiation

• Support of auto MDI/MDI-X

• Console: D-Sub 9 pin Female (DCE)

• Management:1 out-of-band management

RJ-45 port

Certification

• UL 60950-1

• CSA 60950-1

• EN 60950-1

• IEC 60950-1

• EU RoHS Compliant

Enterprise Switches

ZyXEL Switch 4500 Series

Enterprise Switches

ZyXEL Switch 4500 Series

10-Gigabit Module (Optional)

Model Features

-412 • 2-slot CX4 10 GbE module

• Extended 10 GbE CX4 module for short distance deployment

-422 • 2-slot XFP 10 GbE module

• Extended 10 GbE XFP module for long distance deployment

Backup Power System (Optional)

Model Features

PS-12

• Up to 6 switches can be connected to one BPS-120

• Provides power to one switch without traffic or user interruption or switch rebooting in the event

of a switch internal power supply failure

• Temperature, power and fan speed monitoring

Accessories

SFP Transceivers (Optional)

Speed Model Type Description

FTLX8511D3 (XFP-SR) SC connector Singlemode, up to 300 m reach

10 Gigabit FTLX1611M3 (XFS-ER) SC connector Singlemode, up to 40 km reach

FTLX1412D3BCL (XFP-LR) SC connector Singlemode, up to 10 km reach

SFP-1000T RJ-45 connector Up to 100 m using standard Ethernet cable

SFP-SX-D LC connector SFP SX 550 m commercial type transceiver, DDMI version

SFP-LX-10-D LC connector SFP LX 10 km commercial type transceiver, DDMI version

abi

SFP-BX1310-10-D LC connector Bidirectional singlemode, up to 10 km reach, DDMI version*

SFP-BX1490-10-D LC connector Bidirectional singlemode, up to 10 km reach, DDMI version*

SFP-LHX1310-40-D LC connector SFP LHX 1310 wavelength 40 km commercial type transceiver, DDMI version

SFP-ZX-80-D LC connector SFP ZX 80 km commercial type transceiver, DDMI version

*: Bi-directional SFP must be used in pairs (Example: 1 x SFP-BX1310-10-D and 1 x SFP-BX1490-10-D connected together is a solution)

65-100-000053B 09/09

For more product information, visit us on the web at www.ZyXEL.com

ZyXEL Communications Corp. All other brands, product names, or trademarks mentioned are the property of their

respective owners. All specifications are subject to change without notice.

Autres manuels pour XGS-4526

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ZyXEL Communications Changer

ZyXEL Communications

ZyXEL Communications GS1900-8 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications XGS1250-12 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications ES-315 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications Dimension GS-3012 Mode d’emploi

ZyXEL Communications

ZyXEL Communications PoE-10 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications Dimension ES-105A Guide de référence

ZyXEL Communications

ZyXEL Communications GS-1548 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications GS2200 Series Manuel utilisateur

ZyXEL Communications

ZyXEL Communications ZyXEL Dimension GS-1008 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications MGS3520 Series Manuel utilisateur

ZyXEL Communications

ZyXEL Communications ES-2024 - V3.80 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications ZyXEL Dimension ES-2724 Guide de référence

ZyXEL Communications

ZyXEL Communications ETHERNET SWITCHES ES-1016 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications MGS3750-28F Manuel utilisateur

ZyXEL Communications

ZyXEL Communications Dimension ES-108P Manuel utilisateur

ZyXEL Communications

ZyXEL Communications XMG1930-30 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications Dimension GS-3012 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications Dimension ES-3124 Mode d’emploi

ZyXEL Communications

ZyXEL Communications DIMENSION ES-1016A Manuel utilisateur

ZyXEL Communications

ZyXEL Communications Dimension GS-1116 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications GS2210 Series Manuel utilisateur

ZyXEL Communications

ZyXEL Communications GS1100 Series Manuel utilisateur

ZyXEL Communications

ZyXEL Communications Dimension GS-3012F Mode d’emploi

ZyXEL Communications

ZyXEL Communications MES-3528 - Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
