Zotac ZBOX series Manuel utilisateur

ZOTAC ZBOX

User’s Manual

No part of this manual, including the products and software described in it,

may be reproduced, transmitted, transcribed, stored in a retrieval system,

or translated into any language in any form or by any means, except

documentation kept by the purchaser for backup purposes, without the

express written permission of ZOTAC.

Products and corporate names mentioned in this manual may not be

registered trademarks or copyrights of their respective companies, and are

used for identication purposes only. All trademarks are the property of their

respective owners.

Every effort has been made to ensure that the contents of this manual are

correct and up to date. However, the manufacturer makes no guarantee

regarding the accuracy of its contents, and reserves the right to make

changes without prior notice.

CAUTION:

Risk of explosion if the battery is replaced with an incorrect type. Batteries

should be recycled where possible. Disposal of used batteries must be in

accordance with local environmental regulations.

ZOTAC ZBOX

Table of Contents

Product Specications -------------------------------------------------------------------------- 3

Safety information -------------------------------------------------------------------------------- 4

Setting up your system ----------------------------------------------------------------------- 4

Care during use -------------------------------------------------------------------------------- 4

Welcome --------------------------------------------------------------------------------------------- 5

Package contents ------------------------------------------------------------------------------ 5

Getting to know your ZOTAC ZBOX -------------------------------------------------------- 6

Front view ---------------------------------------------------------------------------------------- 6

Rear view----------------------------------------------------------------------------------------- 7

Customizing ZOTAC ZBOX -------------------------------------------------------------------- 8

Installing a memory module ----------------------------------------------------------------- 8

Removing the memory module ------------------------------------------------------------- 9

Installing a hard disk -------------------------------------------------------------------------- 10

Setting up your ZOTAC ZBOX ---------------------------------------------------------------- 11

Positioning your ZOTAC ZBOX--------------------------------------------------------------- 12

Installing the stand----------------------------------------------------------------------------- 12

Installing drivers and software --------------------------------------------------------------- 13

Installing an operating system -------------------------------------------------------------- 13

Installing system drivers---------------------------------------------------------------------- 13

Using your ZOTAC ZBOX----------------------------------------------------------------------- 14

Conguring wired connection --------------------------------------------------------------- 14

Using a static IP ---------------------------------------------------------------------------- 14

Using a dynamic IP (PPPoE connection) -------------------------------------------- 15

Conguring audio output via an HDMI device ------------------------------------------ 15

ZOTAC ZBOX

Product Specications

q Chipset

v Intel® NM70

q Product Dimensions

v 188mm x 188mm x 44mm

qOnboard CPU

v Intel®1007U (dual core, 1.5GHz)

qOnboard graphics

vIntel®HD Graphics Family

v HDMI & DVI-I output

qMemory support

v Two 204-pin DDR3-1600 SO-DIMM slots

v Up to 16 GB of memory

qUSB Ports

v Two USB 2.0 ports & four USB 3.0 ports

qStorage support

v SATA 6.0 Gb/s transfer rates

vSupports one 2.5-inch SATA HDD/SSD (9.5mm max height)

vOne eSATA port

q Network support

v Gigabit (10/100/1000Mbps) LAN

vIEEE 802.3 compatible

qAudio

v 2-channel high-denition audio

v Jack-sensing compatible

qOperating System support

v Windows 7 & Windows 8

v 32-bit and 64-bit support

ZOTAC ZBOX

Safety information

Your ZOTAC ZBOX is designed and tested to meet the latest standards of safety for

information technology equipment. However, to ensure your safety, it is important that you

read the following safety instructions.

Setting up your system

Read and follow all instructions in the documentation before you operate your system.

Do not use this product near water or a heat source such as a radiator.

Set up the system on a stable surface with the provided stand. Never use the system

alone without the stand.

Openings on the chassis are for ventilation. Do not block or cover these openings.

Make sure you leave plenty of space around the system for ventilation. Never insert

objects of any kind into the ventilation openings.

Use this product in environments with ambient temperatures between 0℃and 35℃.

If you use an extension cord, please use the UL listed cord and make sure that

the total ampere rating of the devices plugged into the extension cord does not

exceed its ampere rating.

Care during use

Do not walk on the power cord or allow anything to rest on it.

Do not spill water or any other liquids on your system.

When the system is turned off, a small amount of electrical current still ows. Always

unplug all power, modem, and network cables from the power outlets before cleaning

the system.

If you encounter the following technical problems with the product, unplug the power

cord and contact a qualied service technician or your retailer.

¾The power cord or plug is damaged.

¾Liquid has been spilled into the system.

¾The system does not function properly even if you follow the operating instructions.

¾The system was dropped or the cabinet is damaged.

¾The system performance changes.

ZOTAC ZBOX

Welcome

Congratulations on your purchase of the ZOTAC ZBOX mini-PC. The following illustration

displays the package contents of your new ZOTAC ZBOX. Please contact your retailer If

any of the below items are damaged or missed.

Package contents

• 1 x ZOTAC ZBOX

• 1 x Stand

• 1 x AC Adapter

• 1 x Power Cord

• 1 x DVI-to-VGA Adapter

• 1 x Support DVD

• 1 x User Manual & Warranty Card

• 1 x Quick Start Guide

ZOTAC ZBOX

Getting to know your ZOTAC ZBOX

Front view

1 2 3 4 5 6

Refer to the diagram above to identify the components on this side of the system

1. Headphone/Audio Out jack

The stereo headphone jack (3.5mm) is used to connect the system’s audio out

signal to amplied speakers or headphones.

2. Microphone jack

The microphone jack is designed to connect a microphone for video conferencing,

voice narrations or simple audio recordings.

3. Memory card slot

The built-in memory card reader reads and writes MMC/SD/SDHC/MS/MS Pro/xD/

SDXC cards used in devices such as digital cameras, MP3 players, mobile phones

and PDAs.

4. USB 2.0 port

The USB (Universal Serial Bus) ports are compatible with USB devices such as

keyboards, mice, cameras and hard disk drives.

5. HDD status indicator

The hard disk LED blinks when data is being written onto or read from the hard

disk drive.

6. Power switch

The power switch turns the mini-PC ON and OFF.

ZOTAC ZBOX

Rear view

1 2 3 4 5 6 7 8

Refer to the diagram above to identify the components on this side of the system.

1. eSATA port

The external SATA port is compatible with e.SATA devices such as external hard

drives and Blu-ray drives.

2. USB 3.0 ports

The USB 3.0 port supports the SuperSpeed USB 3.0 devices and is backwards

compatible with USB 2.0/1.1 devices. Use this port for USB 3.0 devices for

maximum performance with USB 3.0 compatible devices.

3. Ethernet port

The eight-pin RJ-45 LAN port supports standard Ethernet cable for connection to a

local area network (LAN) with speeds of 10/100/1000Mbps.

4. USB 2.0 ports

The USB (Universal Serial Bus) ports are compatible with USB devices such as

keyboards, mice, cameras and hard disk drives.

5. DVI port

The DVI port supports connection to analog monitors and displays (supports VGA

for analog monitors with bundled DVI-VGA adapter).

6. HDMI port

The HDMI (High Denition Multimedia Interface) output supports Full HD 1080p

displays such as an HDTV or monitor.

7. Optical (SPDIF OUT) jack

Plug an optical cable into this jack for digital audio transfer.

8. Power input (DC19V)

The supplied power adapter converts AC power to DC power for use with this jack.

Power supplied through this jack supplies power to the mini-PC. To prevent damage

to the mini-PC, always use the supplied power adapter.

Note 1: The power adapter may become warm to hot when in use. Do not cover the adapter and keep it away from your body.

Note 2: Due to the unique tool-less customizable design, some connectors are placed upside down.

ZOTAC ZBOX

Customizing the ZOTAC ZBOX

Before installing hardware, please follow the instructions below to remove the cover of your

ZOTAC ZBOX.

1. Unscrew.

Installing a memory module

1. Locate the SO-DIMM memory slots and insert a SO-DIMM memory module

into the slot at a 45 degree angle.

Note: When installing two SO-DIMM memory modules, please insert a module into the lower slot rst.

2. Gently remove the cover as the image below.

ZOTAC ZBOX

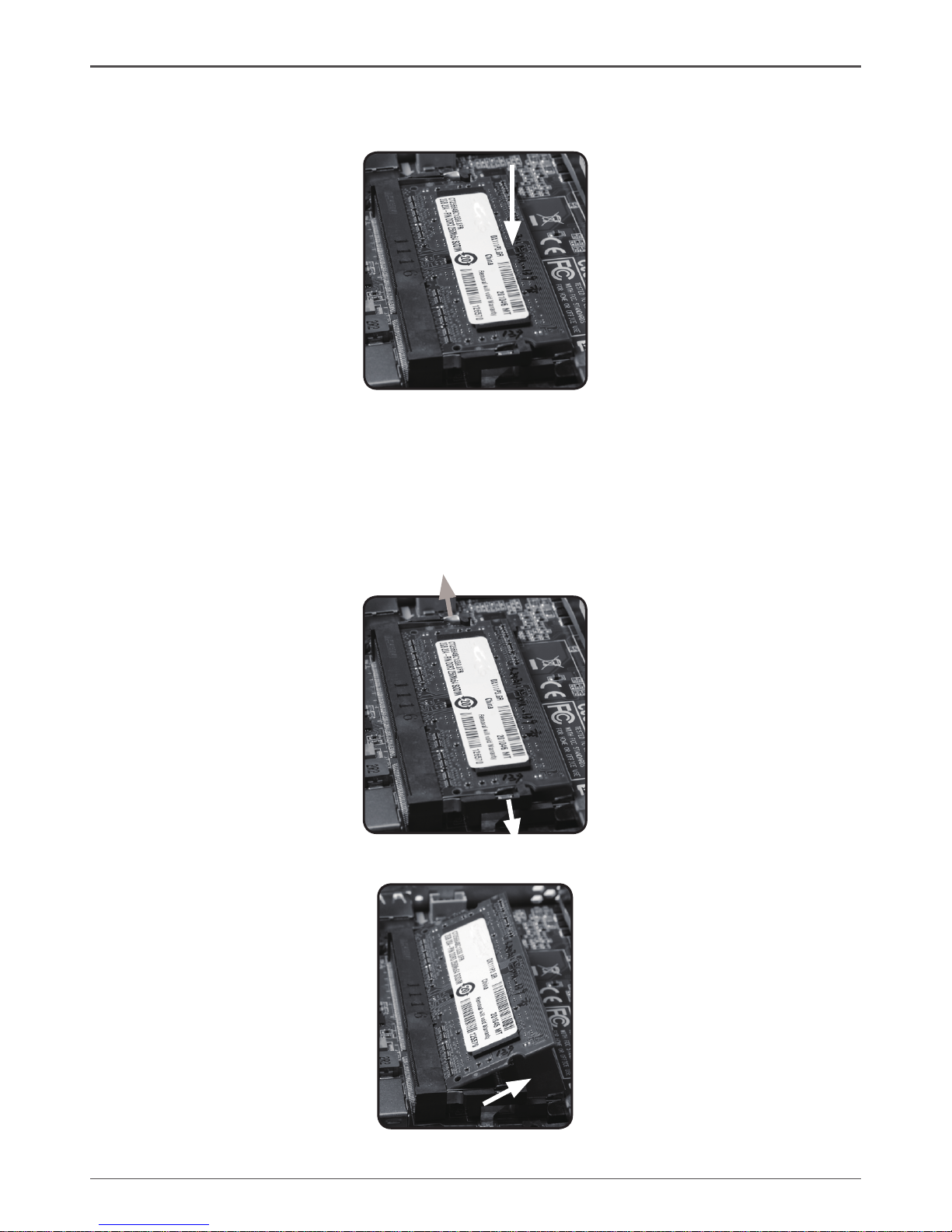

2. Gently press down on the memory module until it locks into place by the arms

of the memory slot.

Removing the memory module

1. Locate the SO-DIMM memory slot and gently press the two arms securing the

memory module outwards, as shown in the image below, to release the

memory module.

2. Remove the memory module from the slot at a 45-degree angle.

Note: This ZOTAC ZBOX accomodates two DDR3 SO-DIMM memory modules. You must install at least

one module in one of the two slots.
