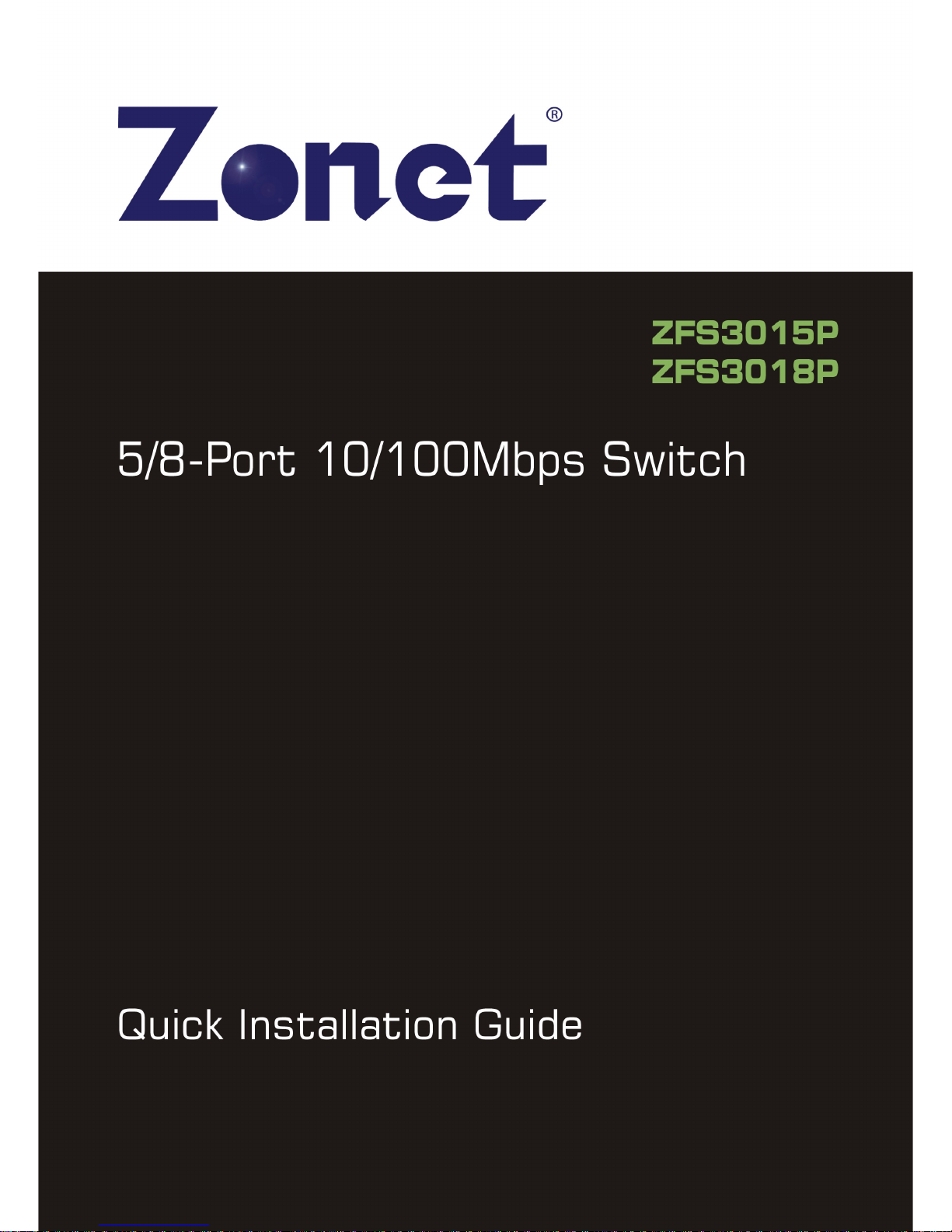

Zonet ZFS3015P Manuel utilisateur

P

Pa

ac

ck

ka

ag

ge

e

C

Co

on

nt

te

en

nt

ts

s

•One ZFS3015P / ZFS3018P

•One Quick Installation Guide

•One Power Adapter

ontact your local authorized reseller or the store purchased from for any items

damaged and/or missing.

T

To

op

p

P

Pa

an

ne

el

l

LED indicators

LED Status

Operation

Power Green

Steady: Power is ON

LNK/A T Green

Steady: Network cable connected and connection established

Flash: Data packets are transmitting

Off: Network cable is unplug

Diagram

a. ZFS3015P

Note: Power onnector is on the marked side of ZFS3015P

b. ZFS301 P

Note: Power onnector is on the marked side of ZFS3018P

R

Re

ea

ar

r

P

Pa

an

ne

el

l

a. ZFS3015P

5 RJ-45 ports

b. ZFS301 P

8

RJ-45 ports

I

In

ns

st

ta

al

ll

la

at

ti

io

on

n

1. onnect the provided power adapter to the Power connector of the ZFS3015P /

ZFS3018P

2. onnect your network devices to the RJ-45 ports of the ZFS3015P / ZFS3018P

with UTP/STP ategory 3/4/5 cables

C

Ca

au

ut

ti

io

on

n

•The switch must put on a surface that is able to hold at least 5kgs weight

•Power adapter must be connected to the switch properly and securely

•Suggested at least 10cm empty space around the unit for sufficient ventilation

and cooling

•Do not recommend to put any items on top of the switch

•ZFS3015P / ZFS3018P is not ideally to work in a high electromagnetic

environment, under direct sunlight, dust and vibrating surfaces

•Maximum distance between the switch and the end node is 100 meters

•Must use an unshielded or shielded twisted-pair (UTP/STP) ategory 5 or

better cables to ensure proper transmission

•Loss of data packet may encounter when using cable other than ategory 5

T

Tr

ro

ou

ub

bl

le

es

sh

ho

oo

ot

ti

in

ng

g

1. heck the power adapter and power wall-jet to make sure they are function

properly. heck if the switch is turned-ON and power LED is steady.

2. heck all cable connections between computer and the switch to make sure

they are connected properly.

3. Maximum distance is 100 meters from the switch to end nodes.

4. Link LED(s) is ON/flashing at the connected port(s) of the switch.

5. Test your computer’s network adapter to make sure it is installed and functioned

properly.

6. heck issues such as network collisions, domain limitations, and other physical

installation aspects. Make sure they all meet IEEE standard network

installation requirements, more details can be found at www.ieee.org.

7. If problem still persists, write down your software/hardware configuration and

LED error indications and contact your local retailer or the store purchased for

further assistance.

8. If the provided power adapter is missing, purchase 9V / 600mA power adapter

for replacement.
