Zodiac Edenpac 1 Manuel utilisateur

Ed. 09/2009

Réf. : 1011463-11

Heat pump ...............................................................Instructions for installation and use

1-2-3-4-5-6-7-8

IMPORTANT

These installation instructions are an integral part of the product and must be given to the

installer and kept by the user.

The warnings and indications contained in the present handbook must be carefully read and

understood as they provide important information relative to handling and operating safety.

This handbook must therefore always be kept available for later consultation.

Installation must be carried out in compliance with valid regulations and the manufacturer’s

instructions by a qualified professional.

The term «qualified professional» refers to a person possessing the technical knowledge

associated with Z.P.C.E. components and heating installations.

An installation error could result in physical injury to persons or animals as well as mechanical

damage for which the manufacturer may under no circumstances be held responsible.

After having unpacked the heat pump, the content should be checked for possible damage.

Before connecting the heat pump, ensure that the data provided by Z.P.C.E. is compatible with

the true installation conditions and does not exceed the maximum authorised limits for the

product in question.

Before beginning any installation, handling or repair work on the heat pump, always isolate

the electrical power supply to the unit.

In the case of a fault and/or operating error on the heat pump, the electrical power supply

must be isolated and no attempt should be made to repair the fault.

Repair work may only be carried out by an authorised technical assistance service using

original spare parts only. Non-respect of the aforementioned clauses may have a negative

influence on the operating safety of the heat pump.

To guarantee the efficiency and correct operation of the heat pump, it is important to ensure

it is regularly maintained in compliance with the instructions provided by Z.P.C.E.

In the case where a heat pump is sold or transferred to another user, always ensure that all

technical documentation is sent with the equipment to be used by the new user or installer.

This heat pump may only be used for the purpose for which it was designed: to heat a

swimming pool; all other uses must be considered inappropriate, incorrect or even

dangerous.

All contractual or extra-contractual responsibilities of Z.P.C.E. will be considered nil and void for

any damage caused by installation or operating errors, or due to non-respect of the

instructions provided by Z.P.C.E. or valid installation standards for the equipment object of the

present document.

CONTENTS

1 General..................................................2

1.1 General terms of delivery ..............................2

1.2 Voltage ..........................................................2

1.3 Water treatment .............................................2

2 Description............................................2

2.1 Presentation ...................................................2

2.1.1 Edenpac 1, 2, 3, 4 and 5

2.1.2 Edenpac 6

2.1.3 Edenpac 7 and 8

2.2 Dimensional characteristics...........................6

2.2.1 Edenpac 1, 2, 3, 4 and 5

2.2.2 Edenpac 6, 7 and 8

3 Installation ............................................8

4 Connections...........................................9

4.1 Access to the electrical card..............................9

4.1.1 Edenpac with single fan

4.1.2 Edenpac with double fan

4.2 Hydraulic connections ......................................10

4.3 Electric connections..........................................11

5 Regulator operation .............................12

5.1 Presentation.......................................................12

5.2 Setting the target temperature...........................13

6 Starting up ............................................13

6.1 Check................................................................14

6.2 Start up the heat pump ......................................14

6.3 Checking...........................................................15

6.4 Troubleshooting................................................15

6.5 Winter storage...................................................16

7 Maintenance instructions ....................16

8 Recycling the product ..........................16

9 Electrical diagrams ..............................17

9.1 Electrical diagram EdenPAC single-phase .......17

9.2 Electrical diagrams EdenPAC three-phase .......19

1. GENERAL

1.1 General terms of delivery

Any equipment, even CARRIAGE and PACKING FREE, travel at the consignee’s risk. The consignee shall make

reserves in writing on the CARRIER’S delivery bill if he notes damage caused during transport (confirmation to be

sent to the CARRIER within 48 hours by registered mail with acknowledgement of receipt).

Reminder: The unit must be shipped and stored in the upright position on a pallet and in the original packaging. In the

contrary case, place the unit in the vertical position on the pallet and check its global state (in case of doubt regarding the unit’s

good state of operation establish reserves in writing with the carrier).

Under no circumstances may the heat pump be operated immediately if it was placed horizontally.

Wait at least 12 hours before operating the pump

1.2 Voltage

Prior to any operation, check that the voltage on the name plate of the appliance corresponds to the mains voltage

provided on site.

1.3 Water treatment

In order to use our appliances under the best conditions, the following parameters must be respected: free chlorine:

max. 2.5 mg/L, total bromine: max. 5.5 mg/L, pH between 6.9 and 8.0. If chemical or electrophysical disinfection

systems are used, the installer and user must contact the supplier to ensure they are compatible with our materials.

These systems must be installed after the heating system.

2. DESCRIPTION

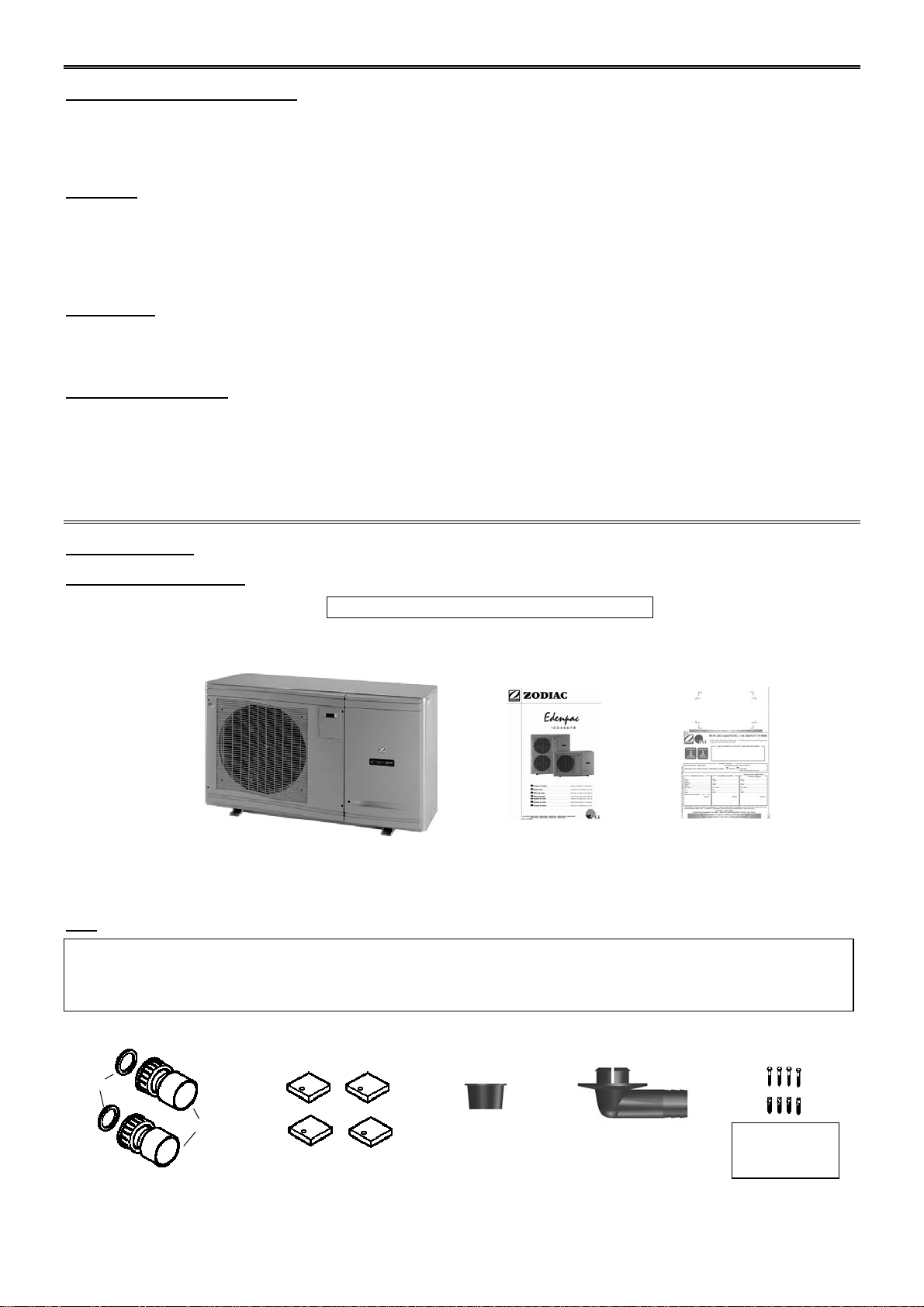

2.1 Presentation

Contents after unpacking:

The unit with its instructions, warranty card

Note:inside the appliance you will find a sachet of accessories. To extract it, see paragraph 4.1 of these instructions.

Content of sachet:

two sealing rings + two half-union connectors Ø50 with strap - four silent blocks

a plastic cap - a grooved elbow union - four anchor bolts and dowels (only supplied with double fan unit).









Must be installed

with a double fan

machine

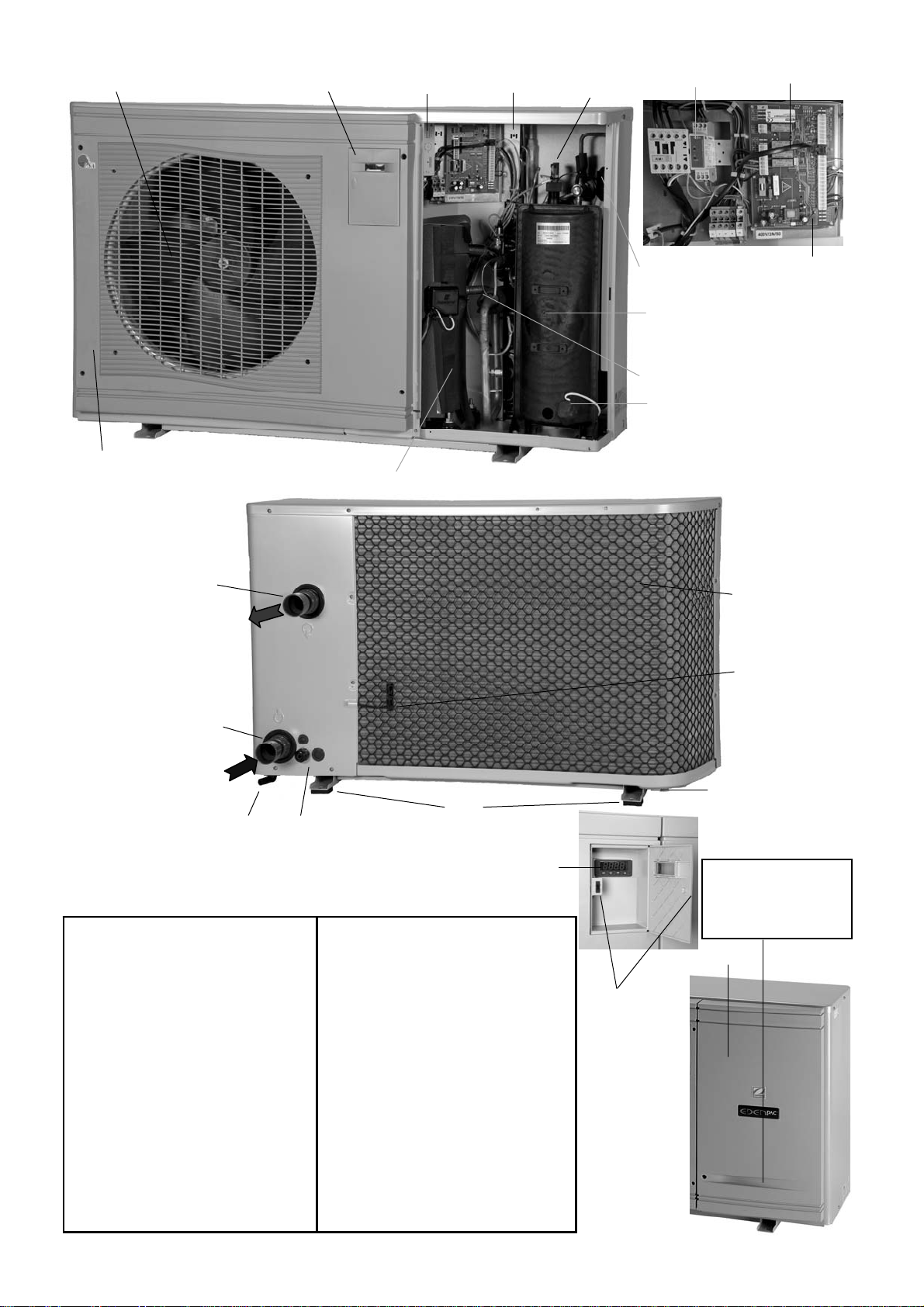

2.1.1 Edenpac 1, 2, 3, 4 and 5

1Front panel with polypropylene grid

2Motor fan unit

3Access door to digital display (EVK)

4Electric board

5Flow switch

6TITANIUM condenser

7Control sensor

8Cased SCROLL compressor

9Arched “plate fin” evaporator

Anti-frost sensor

11 Fastening plates (with silent blocks)

12 Pool inlet water connection (40/49 male

screw fastening)

13 Packing gland (and/or cable inlet)

14 Pool outlet water connection (40/49

male screw fastening)

15 Removable polypropylene panel to

access the technical compartment

16 Closing snap clips

17 Phase order relay on three-phase PAC

cj Dehydrator

ck Grooved elbow

db Plastic plug

dc EVK digital display front panel

dd EVK control plate

de Connecting cable between the plate and

the EVK digital display

df 4/20 mA pressure sensor

dg Progressive starter on single-phase PAC



2345ci

Attention! Never use

the panel

reinforcement as a

load-bearing support.

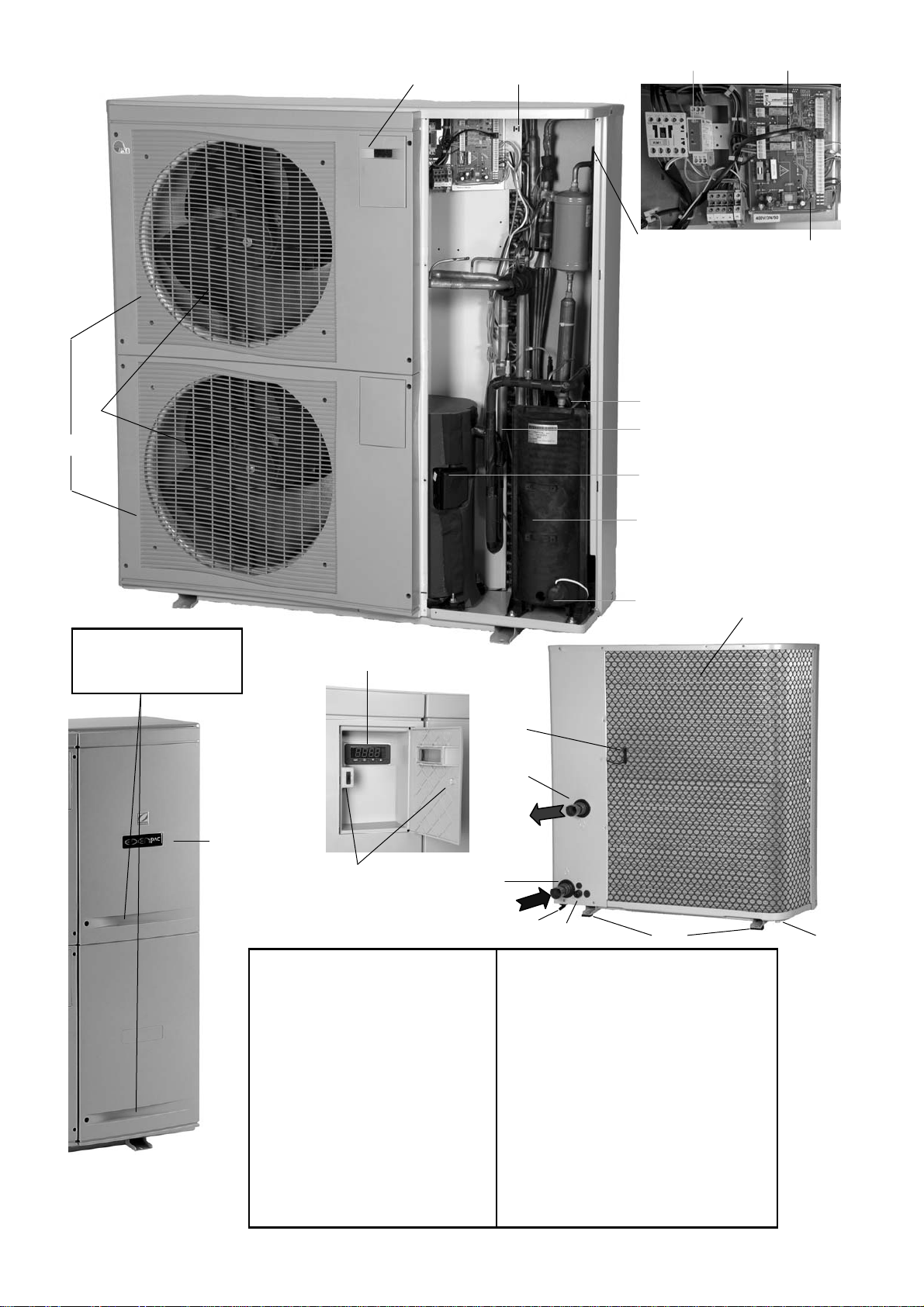

2.1.2 Edenpac 6



c92b

Attention! Never use the

panel reinforcement as a

load-bearing support.

1Front panel with polypropylene grid

2Motor fan unit

3Access door to digital display (EVK)

4Electric board

5Flow switch

6TITANIUM condenser

7Control sensor

8Cased SCROLL compressor

9Arched “plate fin” evaporator

Anti-frost sensor

11 Fastening plates (with silent blocks)

12 Pool inlet water connection (40/49

male screw fastening)

13 Packin

land

(

and/or cable inlet

)

14 Pool outlet water connection (40/49 male

screw fastening)

15 Removable polypropylene panel to access the

technical compartment

16 Closing snap clips

17 Phase order relay on three-phase PAC

cj Dehydrator

ck Grooved elbow

db Plastic plug

dc EVK digital display front panel

dd EVK control plate

de Connecting cable between the plate and the

EVK digital display

df 4/20 mA pressure sensor

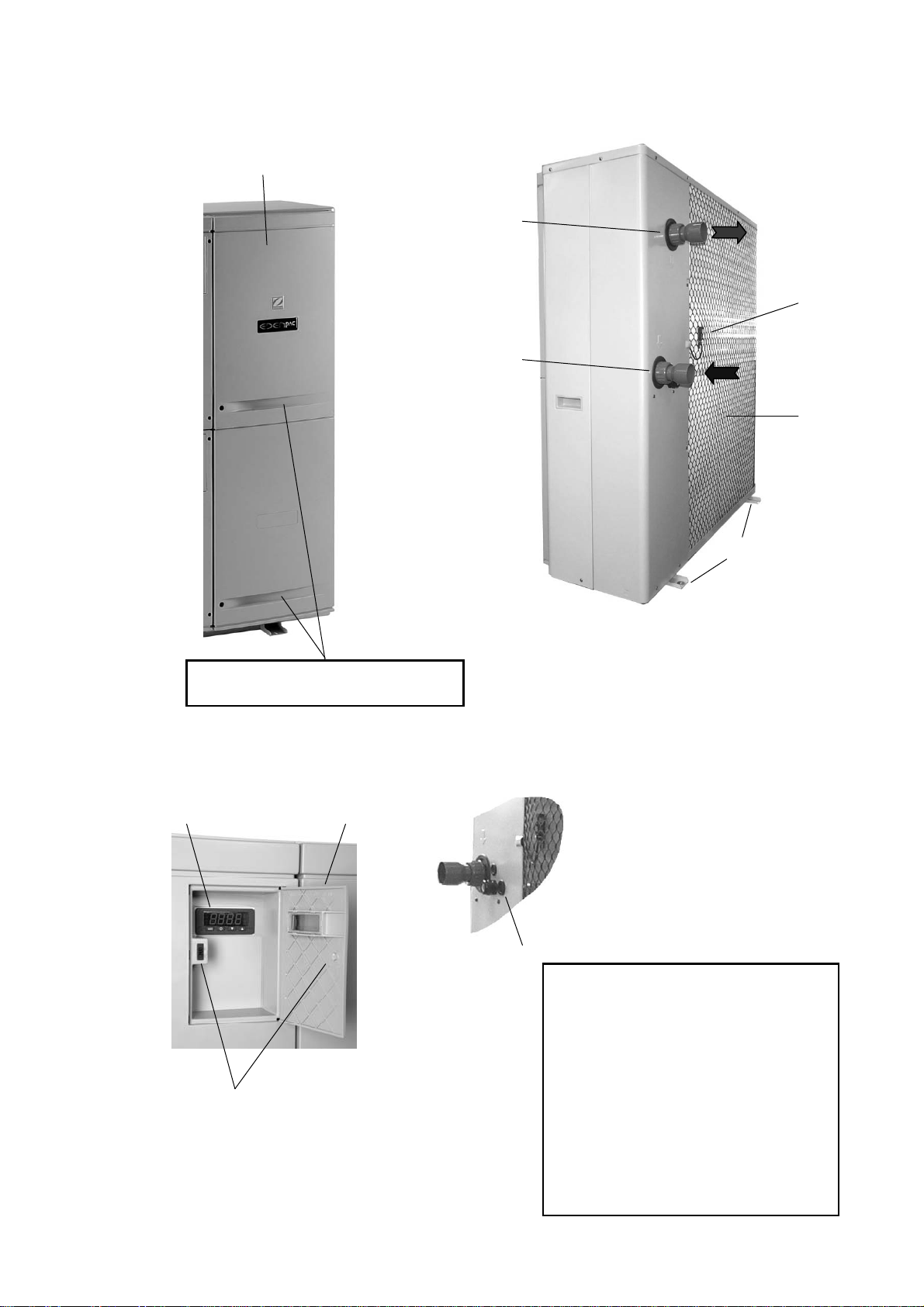

2.1.3 Edenpac 7 and 8

3Access door to digital display (EVK)

9Arched “plate fin” evaporator

Anti-frost sensor

11 Fastening plates

12 Pool inlet water connection (40/49 male screw

fastening)

13 Packing gland (and/or cable inlet)

14 Pool outlet water connection (40/49 male screw

fastening)

15 Removable polypropylene panel to access the

technical compartment

16 Closing snap clips

d1EVK digital display front panel



Attention! Never use the panel

reinforcement as a load-bearing support.

2.2 Dimensional characteristics

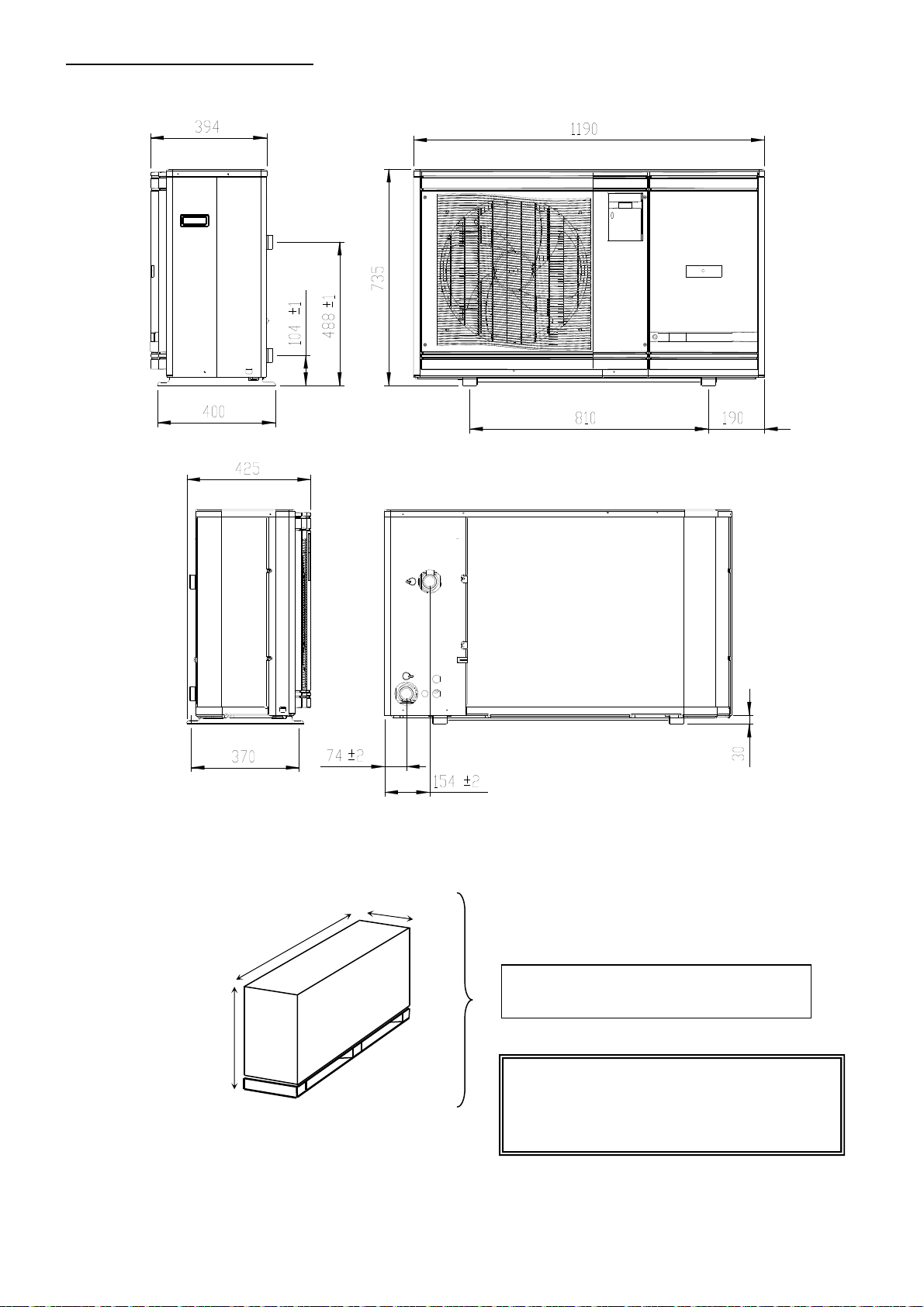

2.2.1 Edenpac 1, 2, 3, 4 and 5

Dimensions of the appliance with packaging (in mm):

1275

480

870

To be transported upright in its original

packaging close to the installation site.

Weight of Edenpac 1 with packaging: ≅96 kg

Weight of Edenpac 2 with packaging: ≅98 kg

Weight of Edenpac 3 with packaging: ≅101 kg

Weight of Edenpac 4 - 5 with packaging: ≅110 kg

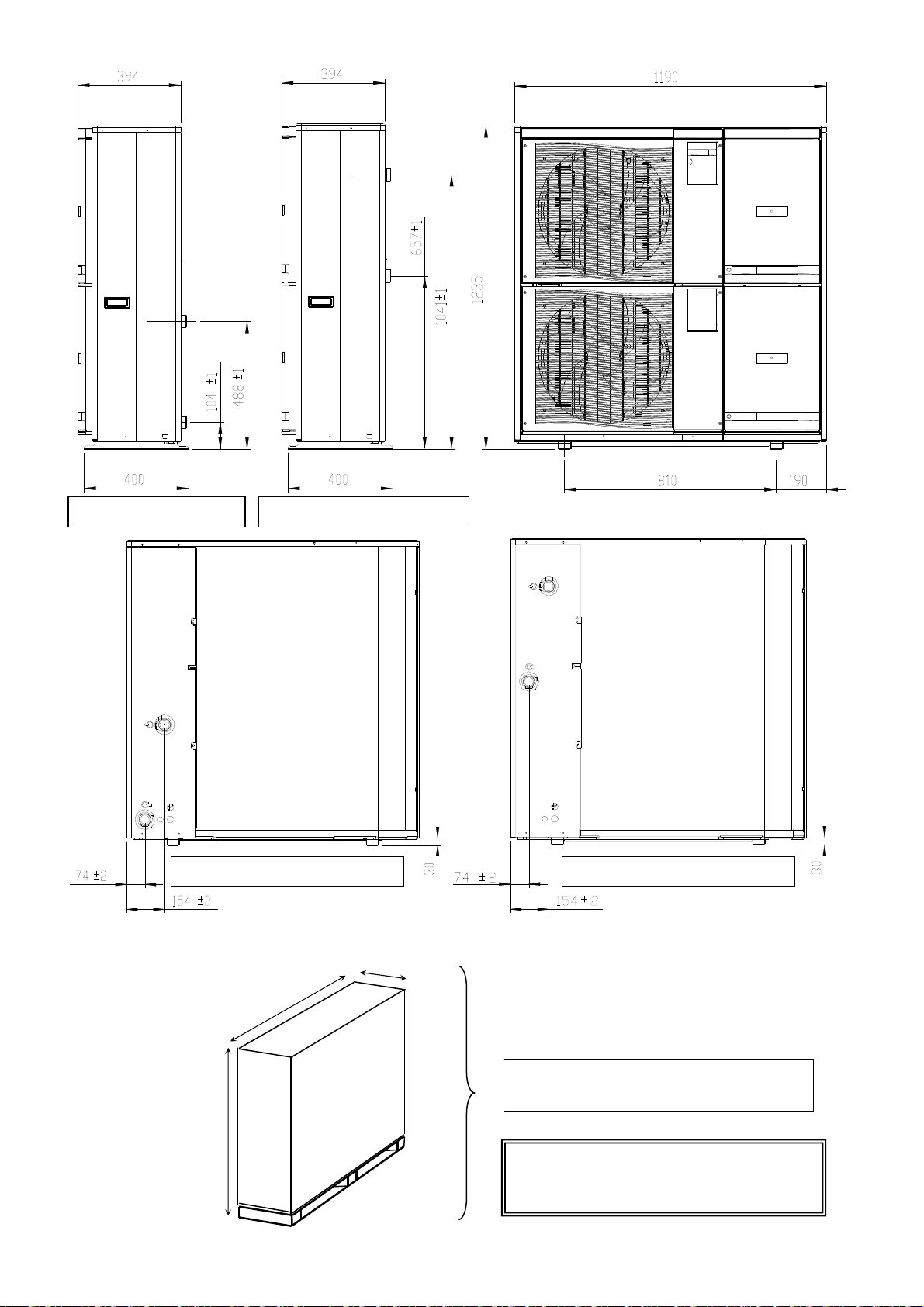

2.2.2 Edenpac 6, 7 and 8

Dimensions of the appliance with packaging (in mm) :

1370

To be transported upright in its original

packaging close to the installation site.

1275

480

Side view EdenPAC 7 and 8

Rear view EdenPAC 6 Rear view EdenPAC 7 and 8

Weight of Edenpac 6 with packaging: ≅145 kg

Weight of Edenpac 7 with packaging: ≅175 kg

Weight of Edenpac 8 with packaging: ≅170 kg

Side view EdenPAC 6

3. INSTALLATION

Tools required for installation:

-1 set of flat head screwdrivers

-1 set of crosshead screwdrivers

-1 cutter

-1 wire stripper

-1 pipe or round head spanner 13

-1 ratchet spanner

-1 pliers

-2 straps (for handling)

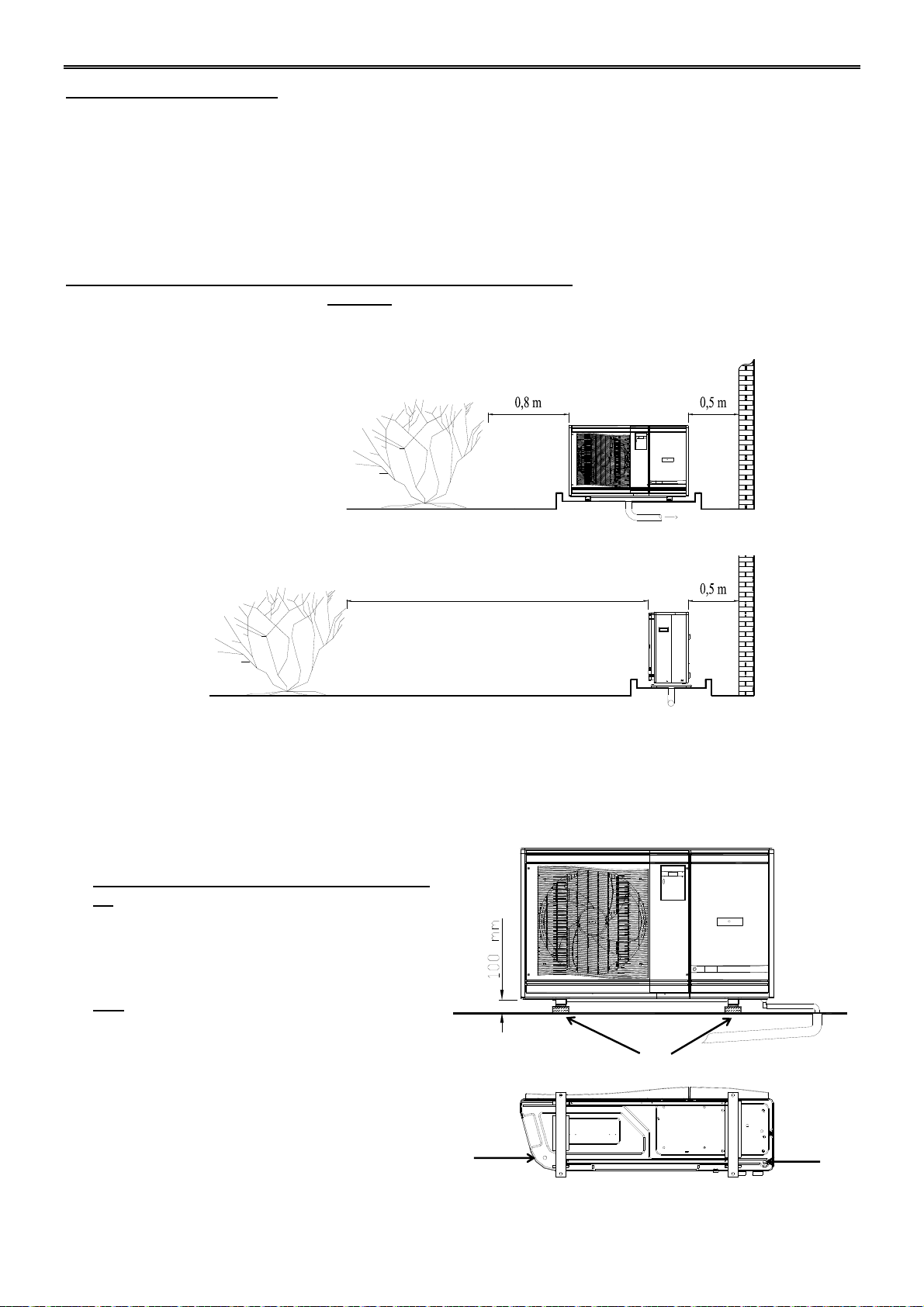

Choose the appliance installation site according to the following criteria:

• the appliance must be installed outdoors

• the clearance around the appliance must be respected (see minimum dimensions on the drawings below) to

avoid recycling of cold air produced.

vers égout

Dense obstacle (hedge, wall, fencing).

• the installation must be simple and allow for easy maintenance interventions.

• the appliance must be installed on a solid base (fastening centre distance 810 x 370) and protected against

flooding (using a « concrete » base with drain facility for condensation or installation of an additional

condensation evacuation kit placed at your disposal in the accessories sachet). The silent blocks supplied must

be used, paying attention not to compress them too much when tightening the fastening screws.

• the appliance must be level to allow for the gravitational evacuation of possible condensation produced during

operation.

To use the additional condensation evacuation

kit:

- Use the grooved elbow union and cap.

- The tank is equipped with two evacuation holes,

one for the cap and the other for the grooved

elbow union (their position is interchangeable).

Note: To facilitate installation raise the unit 100 mm

above the ground with the additional blocks made of

a hard, water-resistant material (not supplied).







4 m

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Zodiac Pompe à chaleur

Zodiac

Zodiac POWER PAC 1M Manuel utilisateur

Zodiac

Zodiac ZHP-3216-TI Manuel utilisateur

Zodiac

Zodiac Z550iQ Manuel utilisateur

Zodiac

Zodiac PX 50 Manuel utilisateur

Zodiac

Zodiac HPO Manuel utilisateur

Zodiac

Zodiac Z950 Manuel utilisateur

Zodiac

Zodiac PF Premium 6M Manuel utilisateur

Zodiac

Zodiac PF 6M-8M-11M-13M-15M Manuel utilisateur

Zodiac

Zodiac Z400 iQ Manuel utilisateur

Zodiac

Zodiac ZS500 Manuel utilisateur

Zodiac

Zodiac AquaLink Z350iQ Manuel utilisateur

Zodiac

Zodiac Jandy Pro Series JE1500T Manuel utilisateur

Zodiac

Zodiac Edenpac 4D Manuel utilisateur

Zodiac

Zodiac ZS500 Manuel utilisateur

Zodiac

Zodiac PX50 MD12 Manuel utilisateur

Zodiac

Zodiac Jandy EE-Ti Manuel utilisateur

Zodiac

Zodiac Z200 Manuel utilisateur

Zodiac

Zodiac Z900 TD20 Manuel utilisateur

Zodiac

Zodiac Z400 iQ Manuel utilisateur

Zodiac

Zodiac POWER FORCE 25 Manuel utilisateur

Zodiac

Zodiac Edenpac 2 Manuel utilisateur

Zodiac

Zodiac Z550iQ Manuel utilisateur

Zodiac

Zodiac Z300 Series Manuel utilisateur

Zodiac

Zodiac PW-5m Manuel utilisateur

Manuels Pompe à chaleur populaires d'autres marques

MICROWELL

MICROWELL HP 1000 GREEN Manuel utilisateur

Sanyo

Sanyo SAP120FCH Manuel utilisateur

Daikin

Daikin EHYHBH05AA Manuel utilisateur

Panasonic

Panasonic WH-SDF03E3E5 Mode d’emploi

Bryant

Bryant 544B Manuel utilisateur

Airxcel

Airxcel 45000 Series Manuel

Mitsubishi Electric

Mitsubishi Electric PUZ-SWM60VAA Manuel utilisateur

Dimplex

Dimplex LI 16I-TUR Guide de l'utilisateur

Carrier

Carrier WSHP Open v3 Guide de configuration rapide

TGM

TGM CTV14CN018A Manuel utilisateur

Carrier

Carrier 38MGQ Series Manuel utilisateur

Kokido

Kokido K2O K880BX/EU Guide de dépannage

Viessmann

Viessmann VITOCAL 300-G PRO Type BW 2150 Guide rapide

Carrier

Carrier 48EZN Manuel utilisateur

Viessmann

Viessmann KWT Vitocal 350-G Pro Series Mode d'emploi

Ariston

Ariston NIMBUS Manuel utilisateur

Weishaupt

Weishaupt WWP L 7 Guide de l'utilisateur

GE Zoneline AZ85H09EAC Manuel utilisateur
