ZKTeco FaceDepot-7BL Manuel utilisateur
Quick Start Guide
FaceDepot-7BL
Version: 1.2
Date: May 2020
Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between the
actual product and the written information in this manual.
Power
GN D
+12V
Overview
Flash
Camera &
Palm Collector
7" Touch Screen
Microphone
Fingerprint Sensor
Card Reading Area
Magnetic
Tamper Switch
Speaker
FP & RFID Reader (Optional)
Connection
Interface
Lock
AUX
Alarm
Exit
Button
Sensor
AL+
AL-
NC
COM
NO
BU T
GN D
SEN
GN D
Auxiliary
input
Wiegand
In
Wiegand
Out
+12V
GN D
INWD0
INWD1
WD0
WD1
RS232
RS485
12V
485A
GN D
TXD1
RXD1
GN D
TXD2
RXD2
RS232
485B
Connection Interface
Reset Button
USB Port
Network Interface
1
Device Installation
1.5m
123
①
② Attach the device to the backplate.
③ Fasten the device to the backplate with a security screw.
Method 1: Installation on the wall
Please pass the wire through the bracket before installation.
1. Drill a hole on the barrier gate.
2. Insert the bracket to the hole and fix it with a nut.
3. Adjust the angle of the device.
Method 2: Installation on the barrier gate
Adjust the device
1. Adjust the angle of the device.
2. Fix the screws.
Note: If you want to install FP & RFID readers, please install the readers after step ①.
2
Attach the mounting template sticker to the wall and drill holes according to the
mounting paper. Fix the backplate on the wall using the wall mounting screws.
TCP/IP
Alarm Smoke
Detector
Lock
Exit Button
Door Sensor
Card
Reader
ZKBioSecurity
Standalone Installation
AUX
AL+
AL-
NC
COM
NO
BUT
GND
SEN
GND
+
-
Door Sensor, Exit Button & Alarm Connection
Door Sensor
Alarm
Alarm's Power Switch
ExitButton
Smoke Detector
Note: Here, we guide you to connect only the necessary components. If you want
more details regarding the connection of SRB, external fingerprint reader and so on,
please refer the User Manual.
+
-
-
+
+
-
3

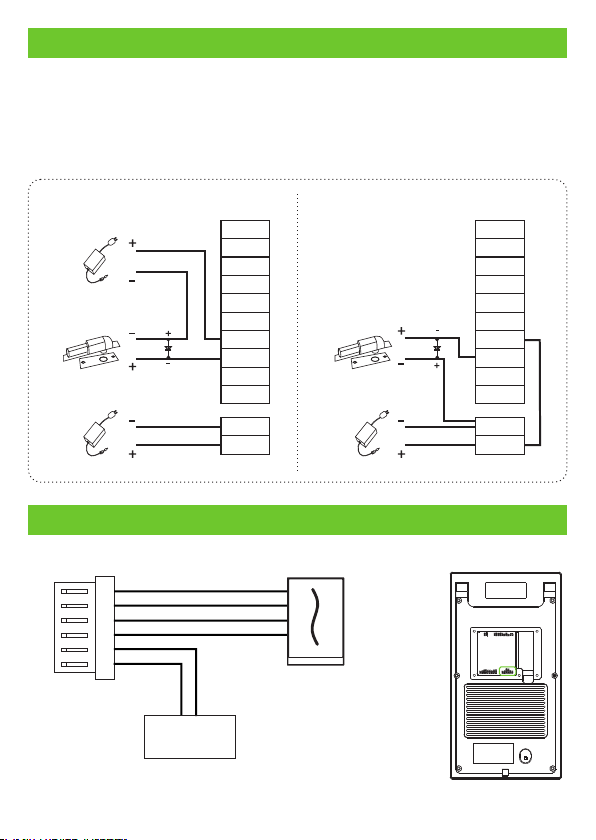

Lock Relay Connection
Wiegand Reader Connection
The system supports Normally Opened Lock and Normally Closed Lock.
FR107
AUX
GND
SEN
GND
BUT
NO
COM
NC
AL-
AL+
The NO LOCK (normally opened at power on) is connected with 'NO' and 'COM'
terminals; and the NC LOCK (normally closed at power on) is connected with
'NC'and 'COM' terminals. Take NC Lock as an example, as shown below:
Normally Closed Lock
1) Device is not sharing power with the lock
WD0
WD1
+12V
GND
Wiegand Reader
+12V
IW D1
IW D0
GN D
WD0
WD1
Access Controller
GND
+12V
DC12V
DC12V
4
2) Device is sharing power with the lock
FR107
AUX
GND
SEN
GND
BUT
NO
COM
NC
AL-
AL+
GND
+12V
DC12V
Normally Closed Lock
Barrier Connection
Ethernet Connection
Default IP Address: 192.168.1.201
Subnet mask: 255.255.255.0
Click [COMM.] > [Ethernet] > [IP Address], enter the IP address and click [OK].
IP Address: 192.168.1.130
Subnet mask: 255.255.255.0
8
7
6RJ 45
5
4
3
2
1
Barrier Gate
ZKBioSecurity
AUX
GND
SEN
GND
BUT
NO
COM
NC
AL-
AL+
GND
K1
5
Note: In LAN, the IP addresses of the server (PC) and the device must be in the same
network segment when connecting to the ZKBioSecurity software.
User Registration
GND
12V DC
Recommended power supply
1) 12V ± 10%, at least 3000mA.
2) To share the power with other devices, use a power
supply with higher current ratings.
Power Connection
Method 1: User registration on the device
6
Click > [User Mgt.] > [New User] to register a new user. The user parameters
include User ID, Name, User role, Palm, Fingerprint (optional), Face, Password, Badge
(optional), User Photo, and Access Control Role.
When the Super Administrator is not configured in the device, click to open the
menu.
After setting the Super Administrator, the system will request for the administrator’s
verification before entering the menu. For security purpose, it is recommended to
register a Super Administrator for the first time you use the device.
LL
Method 2: User registration on ZKBioSecurity software
Please set the IP address and cloud service server address on the device.
1. Click [Access] > [Access Device] > [Device] > [Search Device] to add the device
to the software. When the server address and port has been set on the device, it can
be added automatically.
7
Enroll Palm
NewUser
User ID 3
Name
Password
User Role Normal User
Palm 0
Fingerprint 0
Face 0
Access Control Role
Badge
User Photo 0
L
2. Click [Personnel] > [Person] > [New] to register a new user in the software.
3. Set the user access levels.
4. Click [Access] > [Device] > [Device Control] > [Synchronize All Data to Devices].
For more details, please refer the ZKBioSecurity User Manual.
Step1
Step2
Step3
Step4

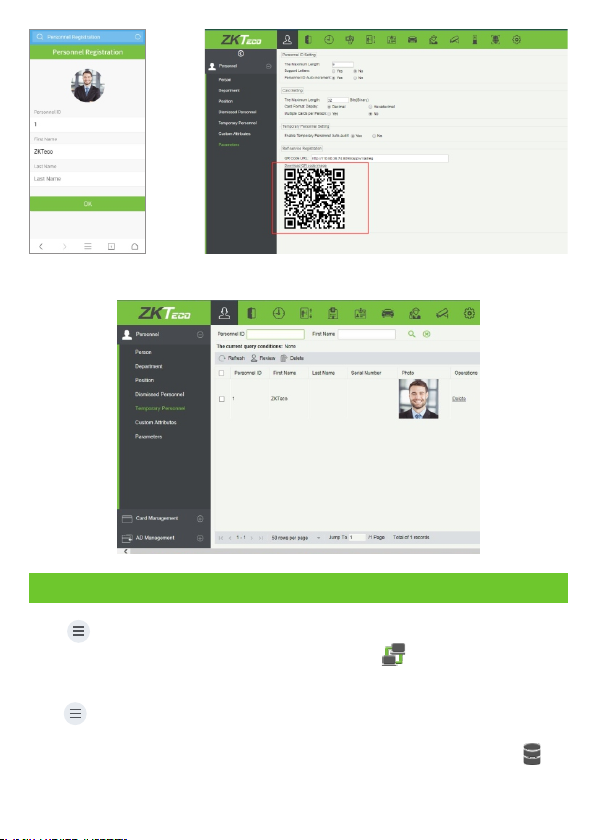

Method 3: User registration on a mobile phone
Once the ZKBioSecurity software is installed, users could enroll via a browser on their
mobile phone.
8
1. Click [Personnel] > [Parameters], enter ‘’http: //Server address: Port’’ in the QR
Code UGL bar. The software will automatically generate a QR code. Scan the QR
code or log in to ‘’http: //Server address: Port/app/v1/adreg’’ from your mobile
phone to register users.
9
2. Click [Personnel] > [Temporary Personnel] > [Review] to view the user details.
Click> [COMM.] > [Ethernet] to set the network parameters. If the TCP/IP
communication of the device is successful, the icon will be displayed in the
top right corner of the standby interface.
Ethernet and Cloud Server Settings
Click > [COMM.] > [Cloud Server Setting] to set the server address and server
port, that is, the IP address and port number of the server after the software is
installed. If the device communicates with the server successfully, the icon will
be displayed in the top right corner of the standby interface.
